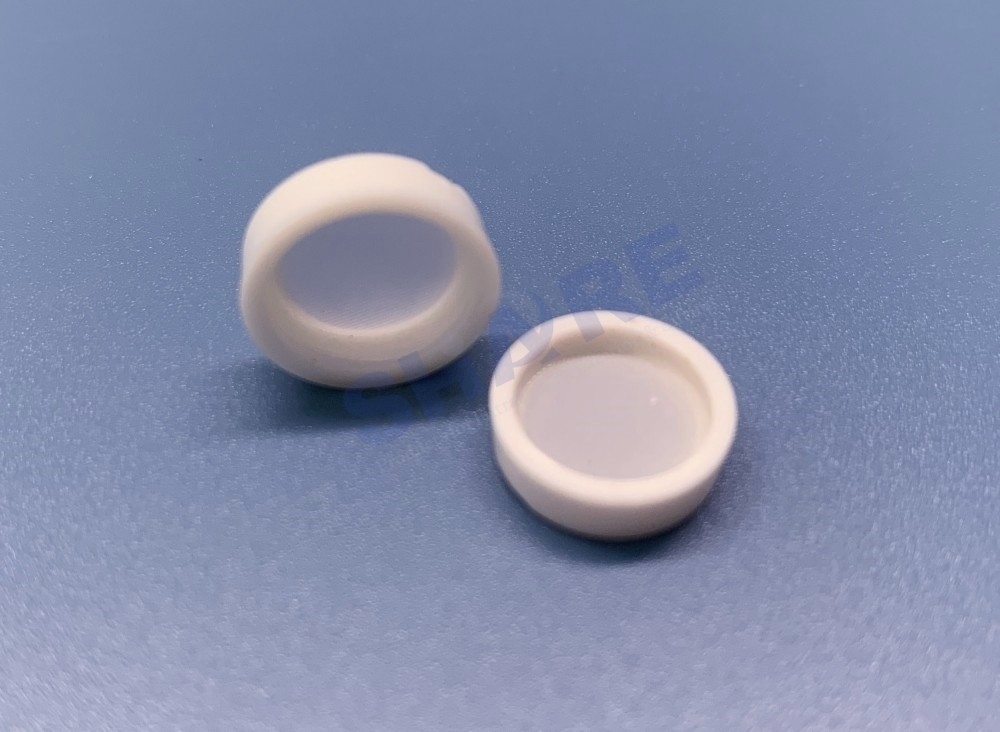

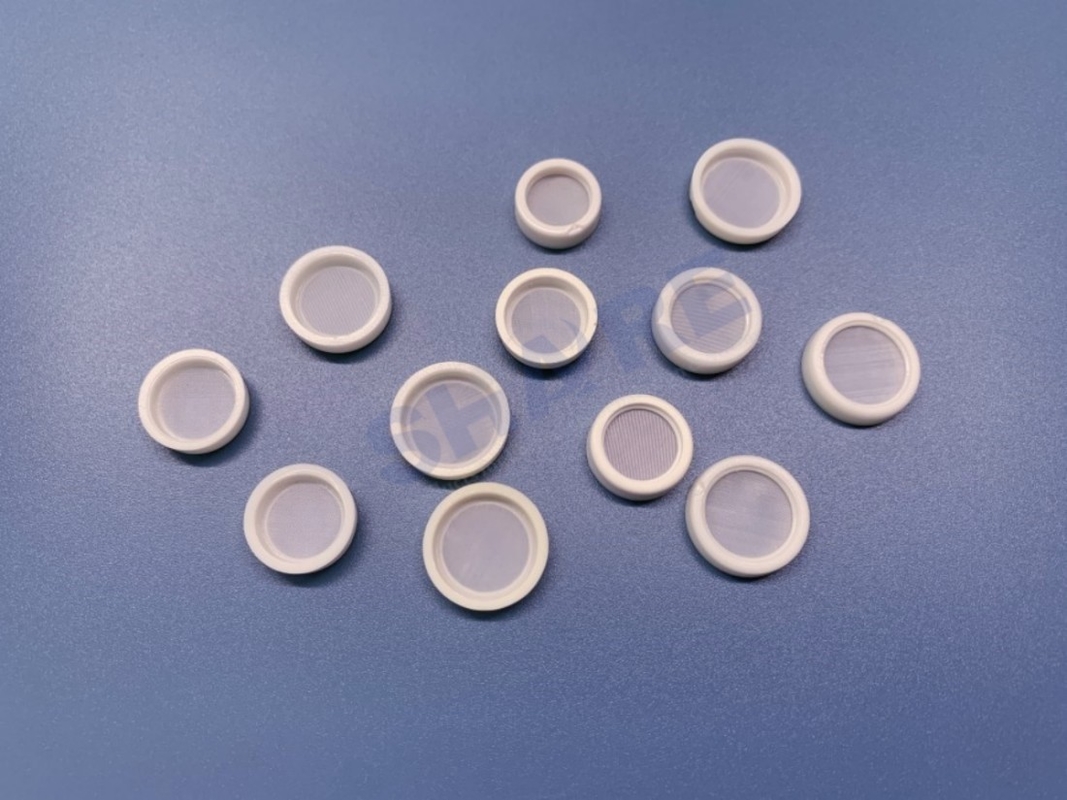

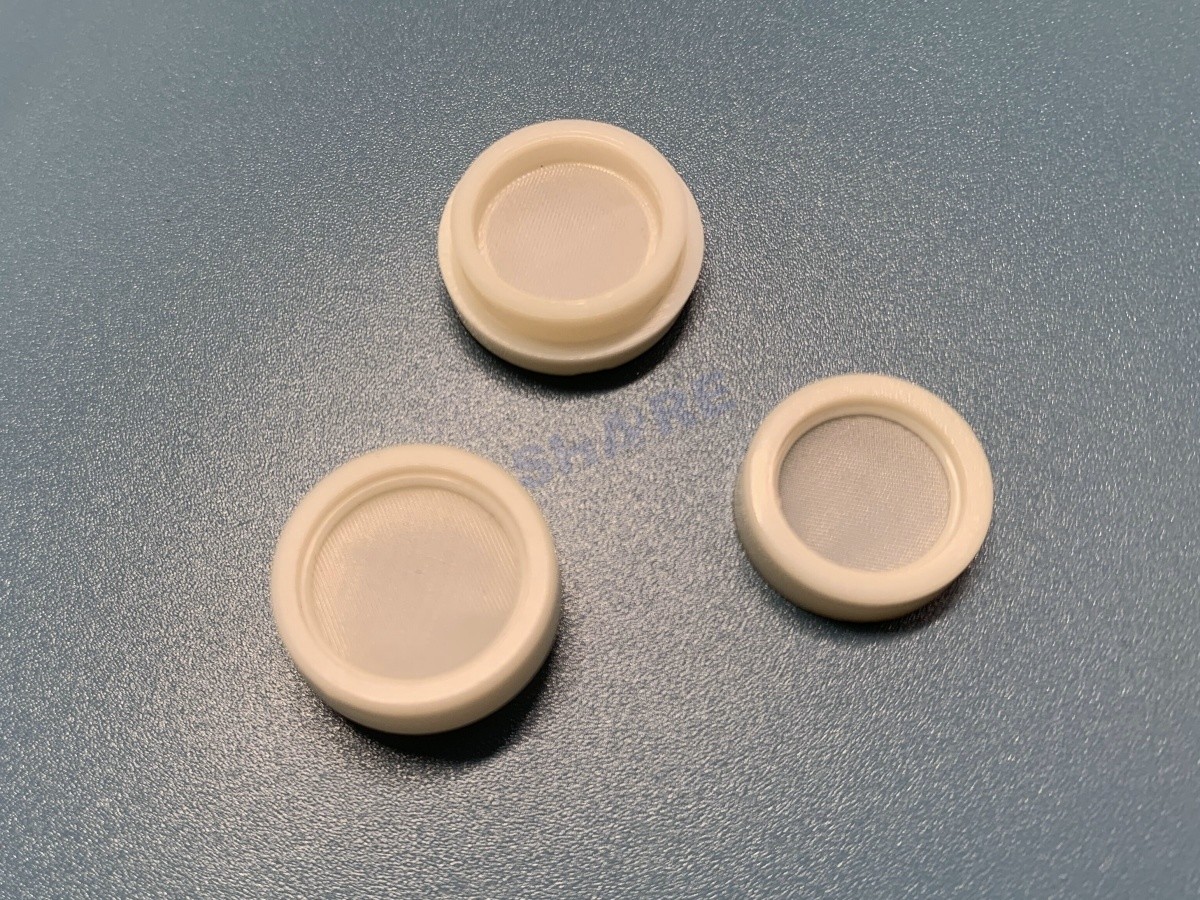

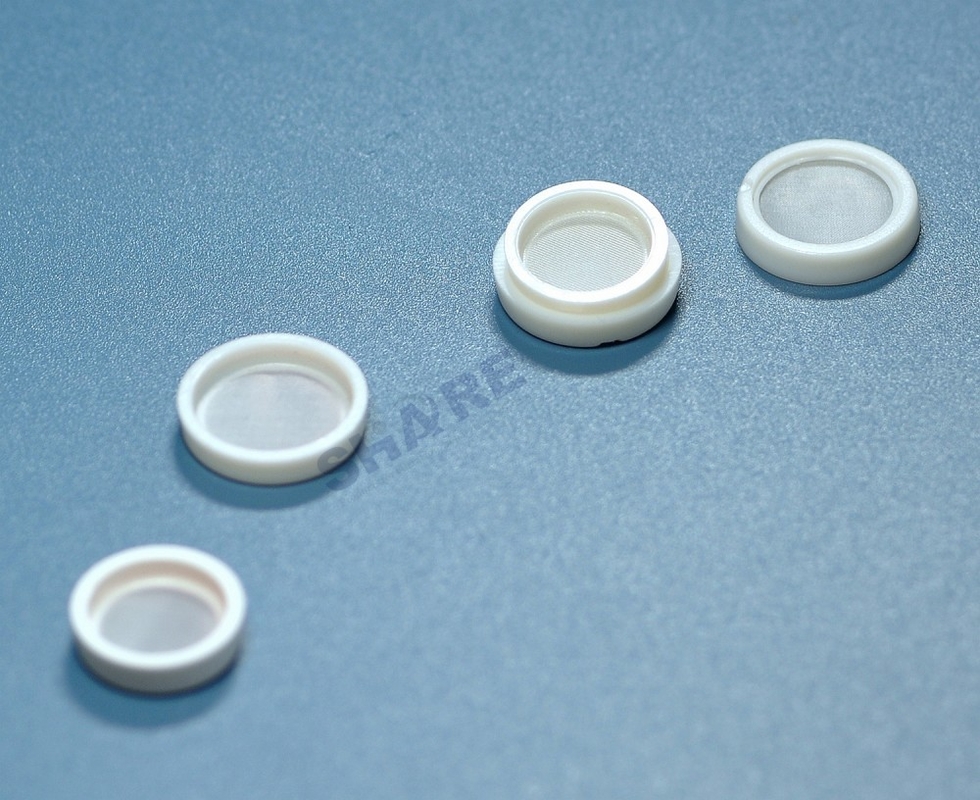

1-500 Micron Disc Filters for Drip Chambers and Infusion

Related Filter Products



The several models listed below enable customers to find the suitable product for their application. Some examples of SHARE custom made filter element for healthcare applications:



Medical Bag Filter



Biopsy Bag



Blood Tubular Filters Hemodialysis



Blood Tubular Filters Transfusion



Flow Cytometry Strainer Cap Filter



Cell Strainer



Infusion Filter / Vent Filter



Medical Filter Cylinder



Medical Filters





Mesh Technical Datasheet



Precision Nylon Filter Mesh Technical Data Sheet
Fabric Number	Mest Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
No.	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 3233/58.3	2.3	6	1000	3233	58.3	1900	412
PA 2300/51.3	3.1	8	900	2300	51.3	1700	450
PA 1950/61	4	10	550	1950	61	950	262
PA 1500/58	5	12	500	1500	58	850	271
PA 1267/56	6	16	400	1267	56	780	208
PA 1079/57	7	18	350	1079	57	675	186
PA 900/52	8	20	350	900	52	685	212
PA 860/58	9	24	250	860	58	455	145
PA 700/49	10	25	300	700	49	576	195
PA 583/49	12	30	250	583	49	470	162
PA 533/41	12	30	300	533	41	585	234
PA 414/34	14	35	300	414	34	595	273
PA 425/46	16	40	200	425	46	370	139
PA 375/36	16	40	250	375	36	485	217
PA 350/49	20	50	150	350	49	375	98
PA 300/36	20	50	200	300	36	385	173
PA 267/41	24	60	150	267	41	285	117
PA 237/44	28	70	120	237	44	215	87
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/42	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/41	59	150	60	110	41	98	46
PA 100/38	64	160	60	100	38	105	50
PA 90/41	72	180	50	90	41	82	39
PA 75/36	80	200	50	75	36	90	43
PA 60/34	100	250	42	60	34	65	35
PA 42/24	120	305	42	42	24	75	42
PA 44/29	120	305	38	44	29	72	35
PA 42/25	120	305	38	42	25	67	35
PA 45/33	120	305	35	45	33	60	28
PA 55/40	120	305	30	55	40	52	20
PA 40/25	130	330	38	40	25	74	36
PA 42/29	130	330	35	42	29	62	30
PA 47/37	130	330	30	47	37	55	22
PA 32/21	140	355	38	32	21	68	36
PA 37/26	140	355	35	37	26	65	33
PA 38/33	140	355	30	38	33	53	25
PA 31/18	150	380	38	31	18	68	40
PA 35/29	150	380	30	35	29	57	26
PA 34/26	150	380	30	34	26	50	26
PA 30/25	165	420	30	30	25	59	28
PA 30/19	145	368	38	30	19	64	40
PA 25/21	180	460	30	25	21	60	31
PA 25/15	165	420	38	25	15	75	42
PA 20/16	200	508	30	20	16	65	34
PA 10/4.3	208	530	38	10	4.3	77	53
PA 8/3	220	560	38	8	3	78	56
PA 6/1.7	228	580	38	6	1.7	80	59
PA 3/1	236	600	38	3	1	85	61
PA 1/2	256	650	34*38	1	2	80	62
PA 2/1	275	700	34*38	2	1	80	66
PA10GG	4	10	550	2000	61	950	238
PA12GG	4.5	11	400	1822	67	760	153
PA14GG	5	13	400	1600	64	770	170
PA15GG	5.5	14	400	1418	61	780	187
PA16GG	6	15	350	1317	62	665	156
PA18GG	6.5	17	350	1180	59	670	170
PA19GG	7	18	350	1079	57	675	182
PA20GG	7.5	19	300	1023	60	560	144
PA22GG	8	20	300	950	58	560	153
PA24GG	8.5	22	300	876	56	565	163
PA26GG	9	23	300	811	54	570	172
PA27GG	10	25	250	750	56	475	133
PA28GG	10.5	27	250	702	54	475	140
PA30GG	11	28	250	659	53	480	146
PA31GG	11.5	29	250	619	51	485	153
PA34GG	12	30	250	583	49	490	159
PA36GG	12.5	32	250	550	47	490	166
PA38GG	14	36	200	514	52	360	119
PA40GG	14.5	37	200	489	50	365	123
PA42GG	15	38	200	466	49	365	128
PA44GG	16	41	200	425	46	370	136
PA46GG	17	43	200	388	44	375	145
PA50GG	18	46	200	355	41	380	153
PA52GG	20.5	52	150	338	48	270	98
PA54GG	21.5	55	150	315	46	275	103
PA58GG	22	56	150	304	45	275	105
PA60GG	23	58	150	285	43	280	110
PA62GG	23.5	60	150	275	42	285	112
PA64GG	24	61	150	267	41	285	115
PA66GG	28.5	72	100	251	51	163	61
PA68GG	29	74	100	245	50	165	63
PA70GG	29.5	75	100	239	48	166	64
PA72GG	30.5	77	100	227	47	168	66
PA74GG	32	81	100	213	46	170	69
PA-6XXX	30	76	120	213	40	225	94
PA-7XXX	31	79	120	200	40	228	98
PA-8XXX	35.5	90	100	182	42	178	78
PA-8.5XXX	38	97	100	163	38	190	84
PA-9XXX	41	104	90	154	40	170	60
PA-9.5XXX	43	109	90	143	38	175	63
PA-10XXX	47	117	80	135	39	145	61
PA-10.5XXX	49	124	80	125	37	146	64
PA-11XXX	50	130	80	115	36	147	65
PA-12XXX	55	140	70	112	38	130	48
PA-12.5XXX	57	145	70	105	36	132	50
PA-13XXX	59	150	70	99	35	135	52
PA-14XXX	60	152	70	97	34	136	53
PA-15XXX	66	168	60	92	36	108	53
PA-16XXX	69	175	60	85	35	110	55
PA-17XXX	71	180	60	81	33	112	57





























































































































































































































































































The data are compiled to the best of our knowledge. Subject to change without notice. Current data are available on you demand.

Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh





Housing Material Slection





Production Process





Yarn



Monofilament

• Excellent diameter control for precise openings
• High flow rates and low pressure drops
• Filtration by surface particle capture
• Excellent surface particle release, easy to clean
• High degree of stiffness





Weave



Plain Weave



Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.



Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.









Product Procedure



Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated mesh if needed→Plastic molded filters if needed



























Mesh





SHARE precision filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise mesh opening from 3um to 4400um. These allow for the different sized filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.

SHARE can further processed filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.







Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.

Our products are categorized into three classes.



Monofilament Mesh Rolls 30 years of experience & capabilities PA, PET, PP, PE, PPS, PEEK etc. Characterized by precise mesh opening, open area and thickness Excellent converting capabilities from yarn over weaving to converted items
Discs, Tubes, Ribbons, Bags Cutting, calendering, welding, slitting, sewing, pleating, molding Discs, tubes, ribbons, bags etc. Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonic Clean, smooth & closed edge quality Maximum compatibility with injection molding process
Plastic Molded Filters Insert molding and over molding Mold design, modeling, prototyping, manufacturing and testing High efficiency, excellent particles holding capacity and low pressure drop High stability, repeatability and reliability Extensive material options and industry-best lead times



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.



Contact SHARE today for additional information and how we can help you with your specific filtration requirements.





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
