Drinking Fountain Inline Filter Part Custom Order Mesh Insert Plastic Molded Filters
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 200pcs | Price : | USD0.30-USD1.50/pc |
|---|---|---|---|
| Packaging Details : | Caron, Polybag | Delivery Time : | 7-20 days |
| Payment Terms : | T/T, L/C, D/P, Western Union, MoneyGram | Supply Ability : | 10000pcs/day |
| Place of Origin: | China | Brand Name: | Share Filters |
|---|---|---|---|
| Certification: | SGS | Model Number: | In-Line Fuel Filter |
|
Detail Information |
|||
| Product Name: | In-line Fuel Filter | Application: | Motorcycle Engine Fuel Filtration |
|---|---|---|---|
| Support Rim: | PA, PE, PP, ABS, Etc. | Filter Media: | Nylon Mesh, Polyester Mesh, Pp Mesh, Metallic Mesh |
| Dimension: | Custom | Colour: | Custom |
| Micron Rating: | 16μm-1500μm | ||
| High Light: | Fuel Insert Molding Plastic Filters,Motorcycle Inline Fuel Filter,Micron KTM InLine Fuel Filter |
||
Product Description

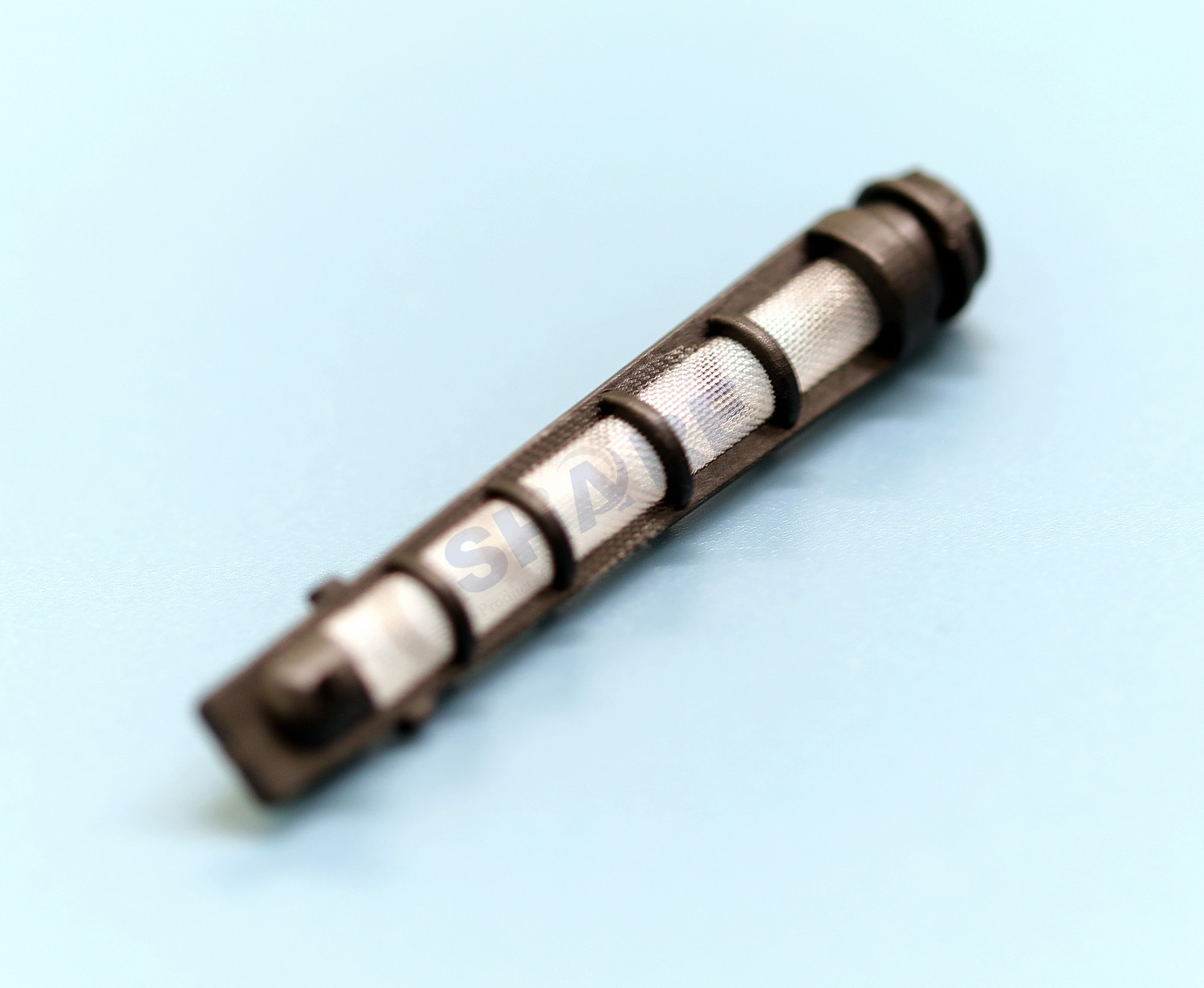

Motorcycle In-Line Fuel Filter 20 Micron KTM Custom Fuel Injection System Strainer
The motorcycle in-line fuel filter works by allowing the fuel to pass through a fine mesh or element that traps particles and contaminants such as dirt, rust, and debris. This helps to prevent these particles from entering the engine and causing damage or reducing its performance.
Share Filter's custom motorcycle in-line fuel filter consist of a synthetic filter mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use. Injection moulding can take many forms and Share filters is fully capable to help develop and produce the injection moulded filter product that will best suit your filtration needs, as well as, offering any additional advice or service along the way.
Fuel Filters Materials Options
|
Support rim material | PA6, PA66, PET, PP, ABS, brass, and other High- Performance Thermoplastics |
| Filter media | Nylon mesh, polyester mesh, PP mesh, metallic mesh | |
| Micron rating | 16μm - 1500μm | |
| Mesh parts fabrication | Laser cutting, sonic cutting, sonic welding | |
| Process | Injection moulding | |
| Specification | Custom |
Share Filters Custom In-line Filters
Property of Plastic
| Material | PA6 | PA66 | PET | PP | PEEK |
| Specific gravity (g/mm²) | 1.14 | 1.14 | 1.38 | 0.91 | 1.3 |
| Tensile strength(daN/mm²) | 41-67 | 41-67 | 45-75 | 35-62 | 33-75 |
| Relative strength at wet conditions(%) | 89-90 | 85-90 | 100 | 100 | 100 |
| Elongation at break (%) | 20-35 | 20-35 | 15-30 | 20-50 | 20-40 |
| Moisture absorption at 20°C / 65% r.h. (%) | 3.5-4 | 3.5-4 | 0.4 | 0 | 0.1 |
| Melting point (°C) | 210-220 | 260-268 | 250-260 | 165-175 | 334 |
| Softening point (°C) | - | - | 220-240 | 140-155 | 300 |
| Working temperature dry (°C) | - | - | -75 to +150 | -30 to +90 | up to 250 |
| Stability to light | poor | poor | poor | poor | good |
| Atmospheric influence | - | - | none | none | none |
| Abrasion resistance | good | good | limited | limited | good |
| Acid resistance | limited-poor | limited-poor | good | good | good |
| Alkaline resistance | good | good | limited | good | good |
| Stability to solvents | limited | limited | good | good | good |
How To Select the Right Filter Media?
You can follow these points.
|
Mesh count(n/cm), (n/in) The mesh count stands for the number of openings per inch.
Mesh opening (w), (μm) The mesh opening w is the distance between two adjacent warp or weft thread.
Thread diameter (d), ( μm) The thread diameter is measured on the thread before weaving.
Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area. |
Filter Mesh
PA(nylon) Filter Mesh Specification
| Ref. No. | Mesh Count | Thread Diam. | Mesh Opening | Opening Area | |
| mesh/cm | mesh/inch | µm | µm | % | |
| JPP5 | 5 | 12 | 500 | 1500 | 56 |
| JPP6 | 6 | 16 | 400 | 1267 | 58 |
| JPP7 | 7 | 18 | 350 | 1079 | 57 |
| JPP8 | 8 | 20 | 350 | 900 | 52 |
| JPP9 | 9 | 24 | 250 | 860 | 60 |
| JPP10 | 10 | 25 | 300 | 700 | 49 |
| JPP12 | 12 | 30 | 250 | 583 | 49 |
| JPP12 | 12 | 30 | 300 | 533 | 41 |
| JPP14 | 14 | 35 | 300 | 414 | 34 |
| JPP16 | 16 | 40 | 200 | 425 | 46 |
| JPP16 | 16 | 40 | 250 | 375 | 36 |
| JPP20 | 20 | 50 | 150 | 350 | 49 |
| JPP20 | 20 | 50 | 200 | 300 | 36 |
| JPP24 | 24 | 60 | 150 | 267 | 41 |
| JPP28 | 28 | 70 | 120 | 237 | 44 |
| JPP30 | 30 | 76 | 120 | 213 | 41 |
| JPP32 | 32 | 80 | 100 | 213 | 46 |
| JPP36 | 36 | 90 | 100 | 178 | 41 |
| JPP40 | 40 | 100 | 100 | 150 | 36 |
| JPP43 | 43 | 110 | 80 | 152 | 43 |
| JPP48 | 48 | 120 | 80 | 130 | 38 |
| JPP56 | 56 | 140 | 60 | 120 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 42 |
| JPP64 | 64 | 160 | 60 | 100 | 37 |
| JPP72 | 72 | 180 | 50 | 90 | 41 |
| JPP80 | 80 | 200 | 50 | 75 | 36 |
| JPP100 | 100 | 250 | 40 | 60 | 36 |
| JPP120 | 120 | 305 | 40 | 43 | 25 |
| JPP130 | 130 | 330 | 40 | 37 | 23 |
| JPP140 | 140 | 355 | 30 | 38 | 33.7 |
| JPP150 | 150 | 381 | 30 | 34 | 30.25 |
| JPP165 | 165 | 420 | 30 | 28 | 20.7 |
| JPP180 | 180 | 460 | 30 | 25 | 19.5 |
| JPP200 | 200 | 510 | 30 | 16 | 10.2 |
About Share Filters
Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
Share Filters Productions Application
|
|
|
|
|
|
| Automotive | Healthcare | Appliances | Beverage | Chemical | Environment |
