Drinking Fountain Inline Filter Part Custom Order Mesh Insert Plastic Molded Filters
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 500pcs | Price : | USD0.15-USD0.50/pc |
|---|---|---|---|
| Packaging Details : | Caron, Polybag | Delivery Time : | 7-20 days |
| Payment Terms : | T/T, L/C, Western Union, MoneyGram, PayPle | Supply Ability : | 5000pcs/day |
| Place of Origin: | China | Brand Name: | Share Filters |
|---|---|---|---|
| Certification: | SGS | Model Number: | Injector Fuel Filter OD50mmx7.5mm |
|
Detail Information |
|||
| Product Name: | Injector Fuel Filter OD50mmx7.5mm | Keyword: | Injector Fuel Filter |
|---|---|---|---|
| Filter Medium: | PET Mesh, Nylon Mesh | Micron Rating: | 15μm-500μm |
| Support Frame Material: | PP PA PE ABS POM, Others | Colour: | Black, White, Beige, And Other Colour |
| Application: | For Injector Nozzle Filter | Processing: | Injection Molding |
| Custom Design: | Acceptable | ||
Product Description

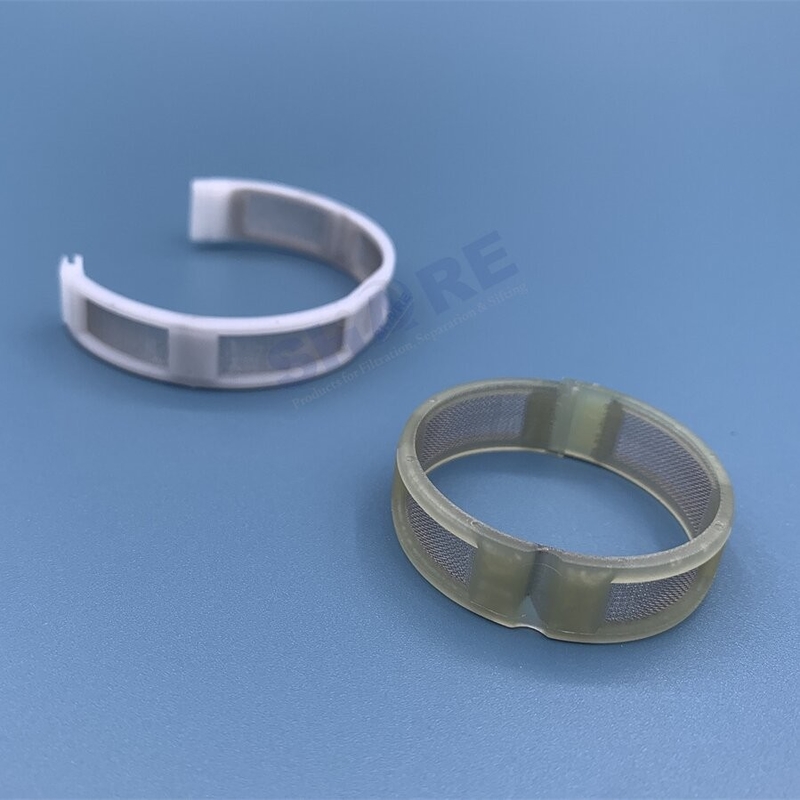

Injector Fuel Filter OD50x7.5mm with Mesh Screen Auto Parts Fuel Filter Repair Kit
Share Filters' custom injector nozzle fuel filter consists of a synthetic mesh or metallic mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use. This filter is durable and replaceable. It is very easy to installation.
The main function of a Injector Fuel Filter is to prevent contaminants and debris from entering the fuel injectors. Share Filters' custom injector fuel filter is a crucial component that helps to ensure the proper functioning of the fuel injectors and prevent damage to the engine.
|
Properties of Share Filters Injector Fuel Filters:
|
|
Technical Data
| Product name: | Injector fuel filter | Cage material: | PA PP, others |
| Application: | For injector nozzle fuel filtration | Filter medium: | Polyester mesh, nylon mesh, |
| OEM/ ODM: |
Acceptable |
Micron rating: | 15μm-500μm, ect |
| Dimension: | OD50X7.5mm, other custom size | Color: | Black, white, beige, other custom color |
| Supply type: | Welded filter mesh tube, moulded filter | Package: | Plastic bag, master carton |
Product Pictures
Share Filters not only manufactures the finished molded filters, but also supplies the various size of pre-cutted mesh pieces and welded mesh tubes.
Polyester Filter Mesh Data Sheet
| Fabric number |
Mesh count | Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
| No. | mesh/cm | mesh/inch | micron | micron | % | micron | g/m2 |
| PES 530/40 | 12T | 30 | 300 | 530 | 40 | 580 | 277 |
| PES 515/52 | 14S | 36 | 200 | 515 | 52 | 360 | 143 |
| PES 470/50 | 15S | 38 | 200 | 470 | 50 | 380 | 154 |
| PES 420/40 | 15T | 38 | 250 | 420 | 40 | 470 | 240 |
| PES 525/92 | 16S | 41 | 100 | 525 | 92 | 180 | 36 |
| PES 425/46 | 16T | 41 | 200 | 425 | 46 | 380 | 164 |
| PES 405/53 | 18S | 46 | 150 | 405 | 53 | 260 | 104 |
| PES 375/46 | 18T | 46 | 180 | 375 | 46 | 330 | 150 |
| PES 375/51 | 19T | 48 | 150 | 375 | 51 | 260 | 110 |
| PES 420/71 | 20S | 50 | 80 | 420 | 71 | 140 | 33 |
| PES 400/64 | 20S | 50 | 110 | 400 | 64 | 180 | 51 |
| PES 350/49 | 20T | 50 | 150 | 350 | 49 | 260 | 115 |
| PES 325/47 | 21T | 53 | 150 | 325 | 47 | 270 | 121 |
| PES 340/67 | 24S | 61 | 120 | 340 | 67 | 220 | 88 |
| PES 270/42 | 24T | 61 | 150 | 270 | 42 | 280 | 138 |
| PES 250/46 | 27T | 68 | 120 | 250 | 46 | 230 | 100 |
| PES 280/62 | 28S | 71 | 80 | 280 | 62 | 150 | 46 |
| PES 240/45 | 28T | 71 | 120 | 240 | 45 | 230 | 103 |
| PES 225/43 | 29T | 74 | 120 | 225 | 43 | 230 | 107 |
| PES 215/42 | 30T | 76 | 120 | 215 | 42 | 230 | 111 |
| PES 230/54 | 32S | 80 | 80 | 230 | 54 | 150 | 52 |
| PES 210/45 | 32T | 80 | 100 | 210 | 45 | 180 | 82 |
| PES 215/53 | 34S | 86 | 80 | 215 | 53 | 150 | 56 |
| PES 195/44 | 34T | 86 | 100 | 195 | 44 | 180 | 87 |
| PES 180/42 | 36T | 91 | 100 | 180 | 42 | 180 | 92 |
| PES 200/61 | 39S | 99 | 55 | 200 | 61 | 95 | 30 |
| PES 190/55 | 39T | 99 | 64 | 190 | 55 | 115 | 40 |
| PES 150/36 | 40T | 102 | 100 | 150 | 36 | 190 | 103 |
| PES 150/42 | 43T | 110 | 80 | 150 | 42 | 155 | 71 |
| PES 160/57 | 47S | 120 | 55 | 160 | 57 | 96 | 36 |
| PES 150/50 | 47T | 120 | 64 | 150 | 50 | 120 | 48 |
| PES 140/43 | 47HD | 120 | 71 | 140 | 43 | 130 | 59 |
| PES 140/47 | 49S | 125 | 64 | 140 | 47 | 120 | 50 |
| PES 135/44 | 49T | 125 | 71 | 135 | 44 | 130 | 62 |
| PES 144/55 | 53S | 135 | 45 | 144 | 55 | 76 | 27 |
| PES 135/51 | 53S | 135 | 55 | 135 | 51 | 97 | 40 |
| PES 125/44 | 53T | 135 | 64 | 125 | 44 | 122 | 54 |
| PES 117/39 | 53T | 135 | 71 | 117 | 39 | 132 | 67 |
| PES 115/46 | 59S | 150 | 55 | 115 | 46 | 99 | 45 |
| PES 105/38 | 59T | 150 | 64 | 105 | 38 | 123 | 61 |
| PES 100/41 | 64S | 160 | 55 | 100 | 41 | 100 | 48 |
| PES 90/33 | 64T | 160 | 64 | 90 | 33 | 125 | 66 |
| PES 95/47 | 72S | 180 | 45 | 95 | 47 | 78 | 37 |
| PES 85/38 | 72T | 180 | 55 | 85 | 38 | 102 | 55 |
| PES 75/33 | 77T | 195 | 55 | 75 | 33 | 105 | 58 |
| PES 80/41 | 80S | 200 | 45 | 80 | 41 | 80 | 41 |
| PES 85/44 | 80T | 200 | 48 | 85 | 44 | 86 | 44 |
| PES 70/40 | 90M | 230 | 39 | 70 | 40 | 68 | 34 |
| PES 68/34 | 90T | 230 | 45 | 68 | 34 | 80 | 46 |
| PES 65/33 | 90T | 230 | 48 | 65 | 33 | 82 | 49 |
| PES 60/36 | 100T | 250 | 39 | 60 | 36 | 69 | 38 |
| PES 56/38 | 110T | 280 | 34 | 56 | 38 | 62 | 34 |
| PES 52/33 | 110HD | 280 | 39 | 52 | 33 | 70 | 42 |
| PES 52/40 | 120S | 300 | 31 | 52 | 40 | 48 | 32 |
| PES 48/33 | 120T | 300 | 34 | 48 | 33 | 63 | 37 |
| PES 44/28 | 120HD | 300 | 39 | 44 | 28 | 72 | 46 |
| PES 47/37 | 130S | 330 | 31 | 47 | 37 | 50 | 35 |
| PES 42/30 | 130T | 330 | 34 | 42 | 30 | 58 | 40 |
| PES 43/34 | 140S | 350 | 31 | 43 | 34 | 50 | 37 |
| PES 36/25 | 140T | 355 | 34 | 36 | 25 | 62 | 43 |
| PES 37/30 | 150S | 380 | 31 | 37 | 30 | 50 | 40 |
| PES 32/24 | 150 | 381 | 34 | 32 | 24 | 56 | 43 |
| PES 33/31 | 165S | 420 | 27 | 33 | 31 | 40 | 26 |
| PES 32/23 | 165T | 420 | 31 | 32 | 23 | 50 | 36 |
This just a part of specifications which commonly used.
|
Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch.
Mesh opening (μm) The mesh opening w is the distance between two adjacent warp or weft thread.
Thread diameter (μm) The thread diameter is measured on the thread before weaving.
Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area |
Other Automotive Filter Components
Share Filters, An OEM Mesh Insert Moulded Filters Manufacture From China
As a filter meshes and moulded filters manufacture, Share Filters always find the best solution to work with our OEM customers to collaborate on their filtration product development projects. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:
| Consider Area | Factors | Outcoming | |
Filtration Media |
|
Select right material, weave type, pore size, thread diam, heat treatment, coatings | Media selected meets the required performance |
Component Design |
|
Consider supporting media, housing, end caps | The filtration components can perform well in working condition |
Manufacturing Process |
|
Design lends itself to easy manufacture and economic cost? | Produced at low cost of manufacture and high efficiency |
Quality Control |
|
Determine parameters and frequency of measurement | High quality, precision filter components |
About Share Filters
ShareFilters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
|
|
|
|
|
|
| Automotive | Appliance | Medical | Food & Beverage | Chemical | Environmental |
Factory Capabilities
Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.
|
|
|
||
| Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. | Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. | Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials. | ||
|
|
|
||
| Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. | Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. | Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory. |
Photos of Factory
|
||
| Warping | Weaving | Inspection |
|
||
| Whashing | Heat setting | Ultrasonic welding, cutting |
Packing and Delivery
Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the best products for your specific projects.
FAQ
Are You Factory or Trade Company ?
We're factory, and manufacture our products in-house.
Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.
Which Port You Ship?
Ningbo port.
Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.
What's Your Payment Term ?
T/T, LC, PayPal, and others.
What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.
What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.
Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.
How To Delivery the Order?
Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
