PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis

Minimum Order Quantity : 50 square meters Price : USD11.00-USD25.50/m²
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 1000mts/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: PPS mesh 47T-55, 100um thick

Detail Information

Product Name: PPS Mesh Fabric 47T-55, 100um Thick Keywords: PPS Mesh Thick 100um
Material: Polyphenylene Sulfide Yarn Mesh Number: 47T, 120 Mesh
Pore Size: 156μm Thread Diameter: 55μm
Characteristics: High Temperature Resistance Up To 180/190°C Chemical Resistance: Excellent
Corrosion Resistance: Excellent Electrolysis Resistance: Excellent
Product Type: PPS Mesh In Rolls Width: 65cm 100cm 200cm 220cm 300cm
Highlight:

PSF-ZrO2 Composite Diaphragm Mesh

,

Efficient Electrolysis Mesh

,

100 Micron Thickness Mesh

Product Description



PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis





PPS (Polyphenylene Sulfide) mesh is a high-performance synthetic mesh known for its excellent thermal and chemical resistance. The mesh properties provide solutions for wide range of industries applications, especially where high temperatures and aggressive chemicals are involved, the water ShareFilters' PPS filter mesh thickness is available in 80μm 100μm 260μm 280μm, the Toray yarn is also avaible in thickness of 80μm and 280μm.





Common Applications:

  • Filtration: PPS mesh is used in filtration systems for high-temperature and chemically aggressive fluids, including air and liquid filtration.
  • Automotive: It is used in components such as fuel system parts, electrical connectors, and under-the-hood applications where high temperatures and exposure to chemicals are common.
  • Electronics: PPS is used in electrical connectors, switch components, and other electronic parts that require high temperature and chemical resistance.
  • Aerospace: PPS mesh is used in aerospace applications where materials are subjected to extreme conditions.
  • Industrial: It is used in pump components, valves, seals, and gaskets in industrial processes that involve high temperatures and corrosive chemicals.

PPS mesh is used for hydrogen production



PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 0



PPS Mesh Thickness 100 MicronTechnical Data



Product name: PPS mesh 47T-55 Roll length: 50m, 100m, other custom length
Application: Electrolyte, other high temperature corrosion liquid Mesh thickness: 100um
Colour: Beige Mesh count: 120 mesh
Material: Monofilament 100% Polyphenylene Sulfide yarn  Mesh opening: 156μm
Roll width: 65cm, 100cm, 200cm, 220cm, 300cm, other custom widths Open area: 55%

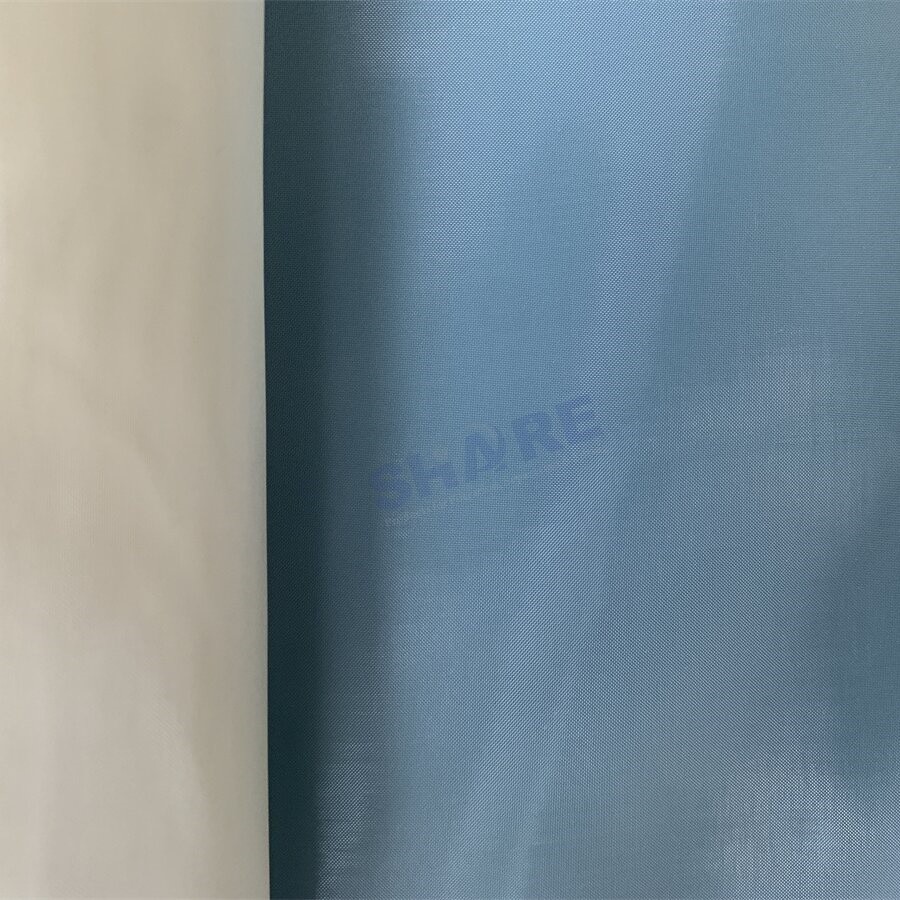

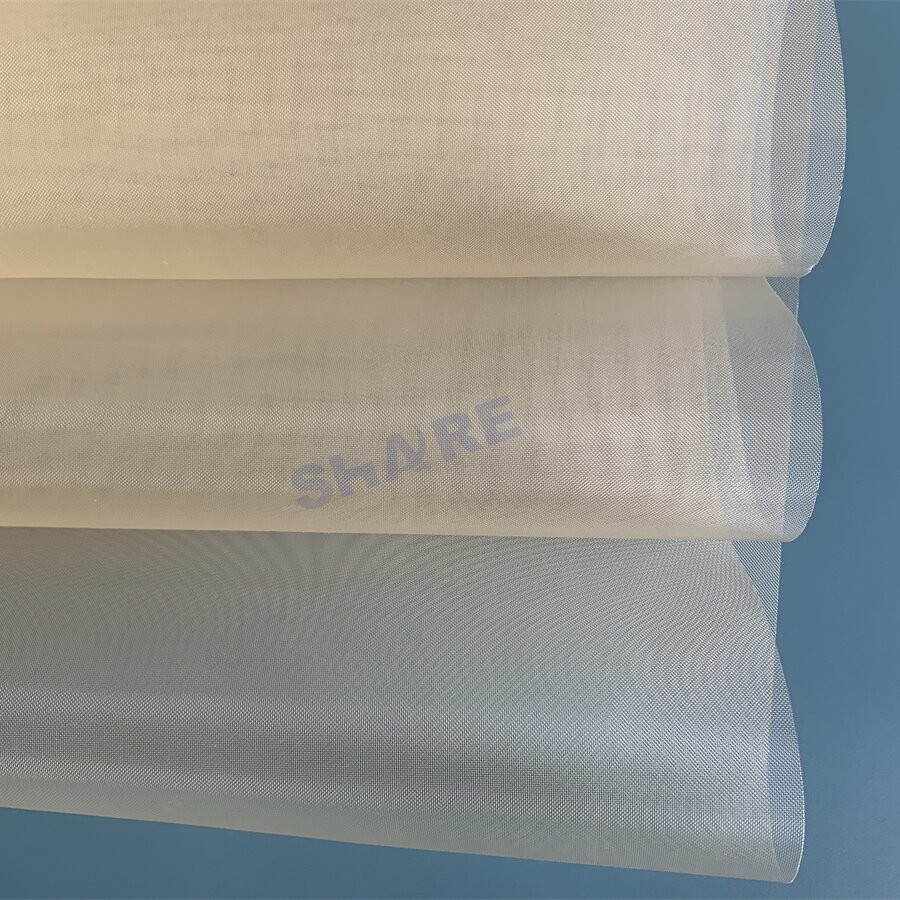

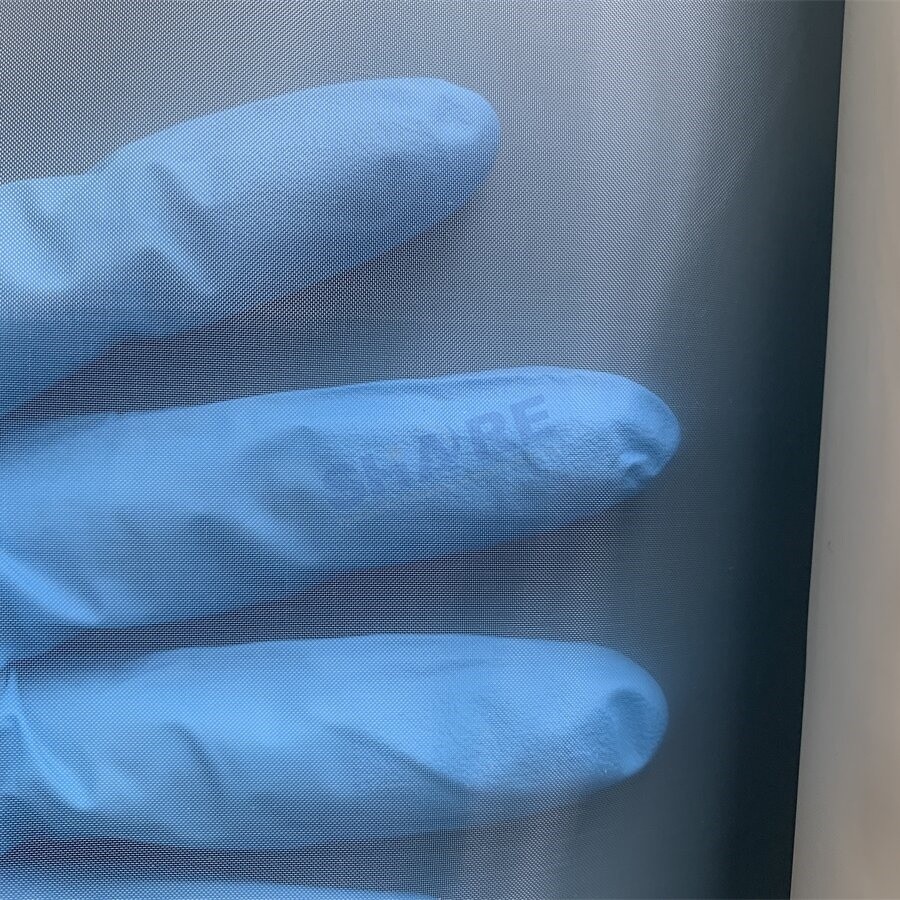

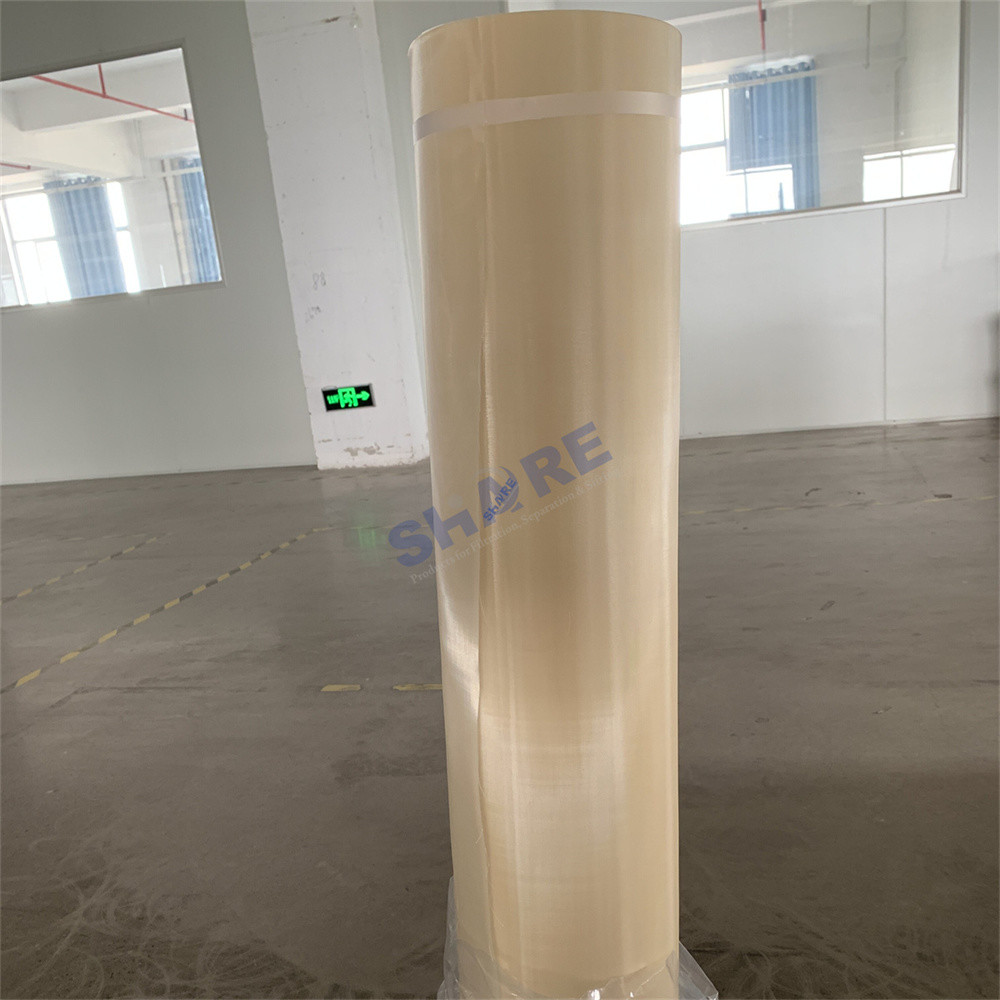

Product Pictures



PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 1 fine PPS mesh

PPS mesh PPS mesh

PPS mesh PPS mesh





PPS Filter Mesh Data Sheet



Material Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight Tensile Breaking Strength Tensile Elongation
    μm μm % μm g/m2 (N/5CM) (warp/weft) (%) (warp/weft)
PPS 20T-140 140 350 51 260 86 660/643 29.5/27.8
PPS 20T-150 150 340 48 280 100 766/755 29.5/28.4
PPS (Toray yarn) 20T-150 150 340 48 280 100 810/780 24/24
PPS 47T-55 55 156 55 100 34 246/253 26.4/30
PPS (Toray yarn) 59T-45 45 125 54 80 27 210/210 17.7/17.7

This just a part of specifications which commonly used.



PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 7 Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Mesh Opening =25400÷Mesh Count(per inch)−Wire Diameter
Mesh Opening =10000÷Mesh Count(per cm)−Wire Diameter
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Open Area %=(Opening Size)2÷(Opening Size+Wire Diameter)2×100





Advantage of PPS Mesh

  • High temperature resistance (190° C in continuous using and 220° C at top level)
  • Excellent chemical resistance. Good resistance to a wide range of chemicals at high temperature
  • Excellent hydrolysis and electrolysis resistance. Very resistant to steam and high pressure water
  • Very good mechanical strength
  • Dimensional stability at high temperatures
  • Corrosion resistance
  • Environmentally friendly. Unlike wire mesh, PPS is fully recyclable
  • Alternative to PEEK mesh



Properties of Industry Mesh



Material PA6 PA66 PET PP PPS PEEK
Specific gravity (g/mm²) 1.14 1.14 1.38 0.91 1.37 1.30
Tensile strength(daN/mm²) 41-67 41-67 45-75 35-62 60-91 33-75
Relative strength at wet conditions(%) 89-90 85-90 100 100   100
Elongation at break (%) 20-35 20-35 15-30 20-50   20-40
Moisture absorption at 20°C / 65% r.h. (%) 3.5-4 3.5-4 0.4 0 0.6% 0.1
Melting point (°C) 215-220 250-260 250-260 165-175 285-288 334
Softening point (°C) 180 230-235 220-240 140-155 245-270 300
Working temperature dry (°C) -40-115 -40-115 -75 to +150 -30 to +90 Until 215 up to 250
Stability to light poor poor poor poor good good
Atmospheric influence - - none none   none
Abrasion resistance good good limited limited   good
Acid resistance limited-poor limited-poor good good good good
Alkaline resistance good good limited good good good
Stability to solvents limited limited good good good good
Hydrolysis resistance good good limited good good good







What Share Filters Do


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 8



Factory Capabilities



Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.



filter mesh weaving   filter mesh slitting   filter mesh cutting shapes
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.   Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.   Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
mesh tube   sewn mesh bag   mesh insert injection moulded filter
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.   Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.   Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.



The Process of Filter Mesh Production

filter mesh production process




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Automotive Laboratory Healthcare Appliance Beverage Agriculture
PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 16 PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 17 Transfusion filter PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 19 PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 20 water strainer





Packing and Transportation

PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 22
delivery method


Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.



PPS Mesh 100 Micron Thickness for Mesh-based PSF-ZrO2 Composite Diaphragm for Efficient Electrolysis 24

WhatsApp/Tel: +8615858692620
Email: sales02@sharefilters.com
Address: Pingqiao Industrial Park
Tiantai County, Zhejiang Province 317203, China





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.



What's Your Payment Term ?

T/T and LC and more.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



Can You Process the Filter Mesh?
Yes, that’s where our strength lies, we have full ranges of machines to offer the seivice such as slitting, cutting, welding, sewing and injection moulding. Products include mesh in rolls, mesh pieces, mesh tubes, mesh bags and mesh insert injection molding filters.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
