Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE

Minimum Order Quantity : 300 m2 Price : $13 for 300 m2, $12 for 10,00 m2, $11 for 3, 000 m2
Packaging Details : PE bag and carton Delivery Time : 5 working days
Payment Terms : L/C, T/T, Paypal Supply Ability : 1, 0000 m2 / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: SGS RoHS Model Number: SG-PPS-01

Detail Information

Features: Heat Resistance, Chemical Resistance, Hydrolysis Resistance, Flame Retardancy Material: 100% PPS Monofilament
Width: Up To 300cm Forms: Fabric, Bag, Custom Shape
Performance: High Performance Material Applications: Ion Exchange Processes, Alkaline Water Electrolysis For Hydrogen Production, Desalination...
Highlight:

Resin Support Mesh Separators

,

Alkaline Water Electrolysis Fiber Membranes

,

Polyphenylene Sulfide PPS Fiber Membranes

Product Description



SHARE's PPS mesh/membranes is made of 100% PPS monofilament and are widely used for energy and environmental applications. It offers remarkable corrosion resistance, thermal stability, and flame retardancy, excel in harsh conditions like high temperatures and strong chemical environments.

Our PPS mesh has a melting point of 285ºC and is capable of enduring continuous usage at temperatures up to 190ºC. Additionally, it exhibits resistance to hydrolysis even at elevated temperatures, as well as to acids, alkalis, and organic solvents.

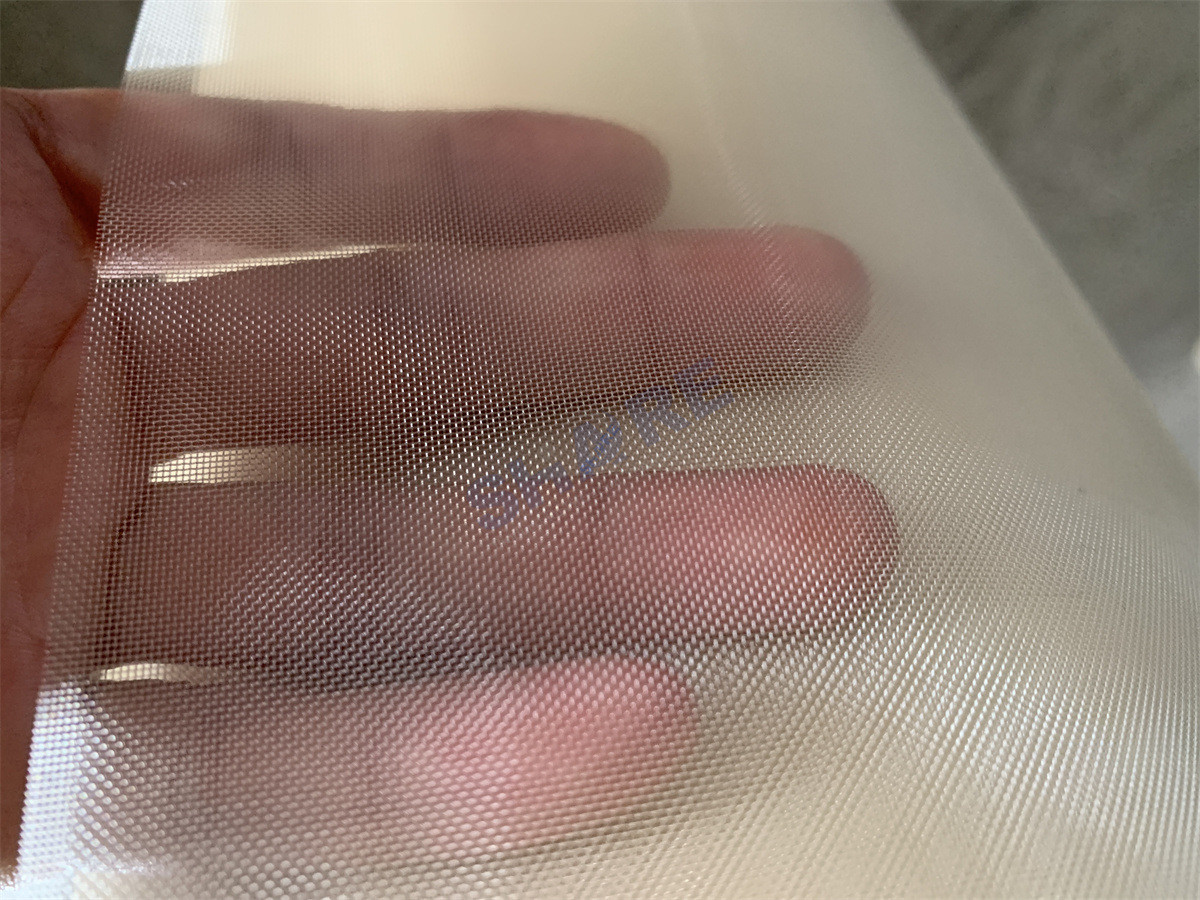

Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE 0Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE 1





PPS Mesh for Alkaline Water Electrolysis

In the process of alkaline water electrolysis for hydrogen production, PPS mesh (polyphenylene sulfide mesh) typically acts as a support structure within the electrolyzer due to its excellent mechanical properties, robust alkali resistance, and outstanding electrochemical traits. Its roles are as follows:

Support Structure: SHARE PPS mesh provides physical support, helping to maintain separation and orderly arrangement within the electrolyzer, ensuring the effective distribution of electrical current.

Enhanced Conductivity: Due to its excellent chemical stability and conductivity, PPS mesh can help improve electrolysis efficiency.

Corrosion Resistance: PPS material is highly resistant to alkaline environments, maintaining structure and functionality without corrosion during the electrolysis process.

Improved Hydrogen Purity: As a separation layer, PPS mesh helps to segregate the produced hydrogen and oxygen, enhancing the purity of the hydrogen output.

Increased Surface Area: The structure of our PPS mesh provides a large surface area, which helps increase the area for electrolytic reactions and, consequently, the production of hydrogen.

Strength and Stability: Our PPS mesh maintains stability owing to its high strength and thermal stability, even under high temperatures and prolonged electrolysis, contributing to the long-term stability of alkaline water electrolysis systems.



Features

Affordable pricing
Uniform fabric structure
High porosity and large surface area
Exceptional corrosion resistance, thermal stability, and flame retardancy

Applications

From what we've gathered, our clients are mainly using our PPS mesh for

  • ion exchange processes
  • alkaline water electrolysis for hydrogen production
  • feed and food drying
  • filter for food, semiconductor and chemical applications
  • chemical catalyst substrates
  • oil-water separation
  • gas filtration and purification
  • wastewater treatment
  • air pollution control
  • desalination
  • and more…


Product Options

PPS mesh specifications are designed to cater to a diverse array of applications. The available mesh options are in the following range:

Thread Diameter
30 - 250 µm

Mesh Count
25 - 420 per inch

Mesh Opening
30 - 800 µm

Open Area
25 - 60%

Mesh Thickness
56 - 508 µm

Pattern
Plain weave, twill weave

Width
Up to 300cm (Can be cut to specific widths such as 100 cm or 200 cm, or customized to any width as per request)


Below are a few standard specifications of our PPS mesh for your information, but this isn't the full extent. Please reach out to us for more information.

SHARE PPS Filter Mesh Technical Datasheet
Material Item No. Specification Thread Diameter Mesh Opening Open Area Mesh Thickness Weight Tensile Breaking Strength Tensile Elongation
      μm μm % μm g/m2 (N/5CM) (warp/weft) (%) (warp/weft)
PPS 20T-140 350/51PW 140 350 51 260 86 660/643 29.5/27.8
PPS 20T-150 340/48PW 150 340 48 280 100 766/755 29.5/28.4
PPS 47T-55 156/55PW 55 156 55 100 34 246/253 26.4/30
PPS
(Toray yarn)
20T-150 340/48PW 150 340 48 287 100 810/780 24/24
PPS
(Toray yarn)
59T-45 125/54PW 45 125 54 80 27 210/210 17.7/17.7

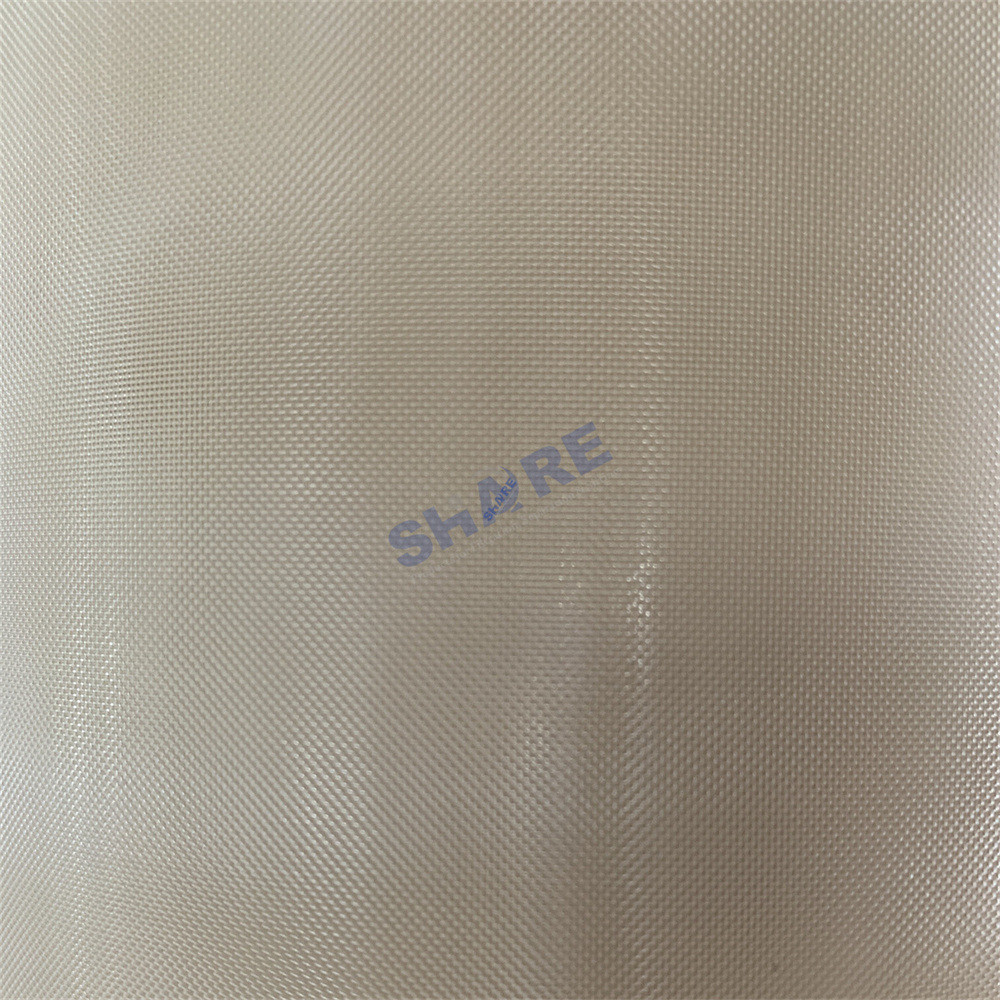

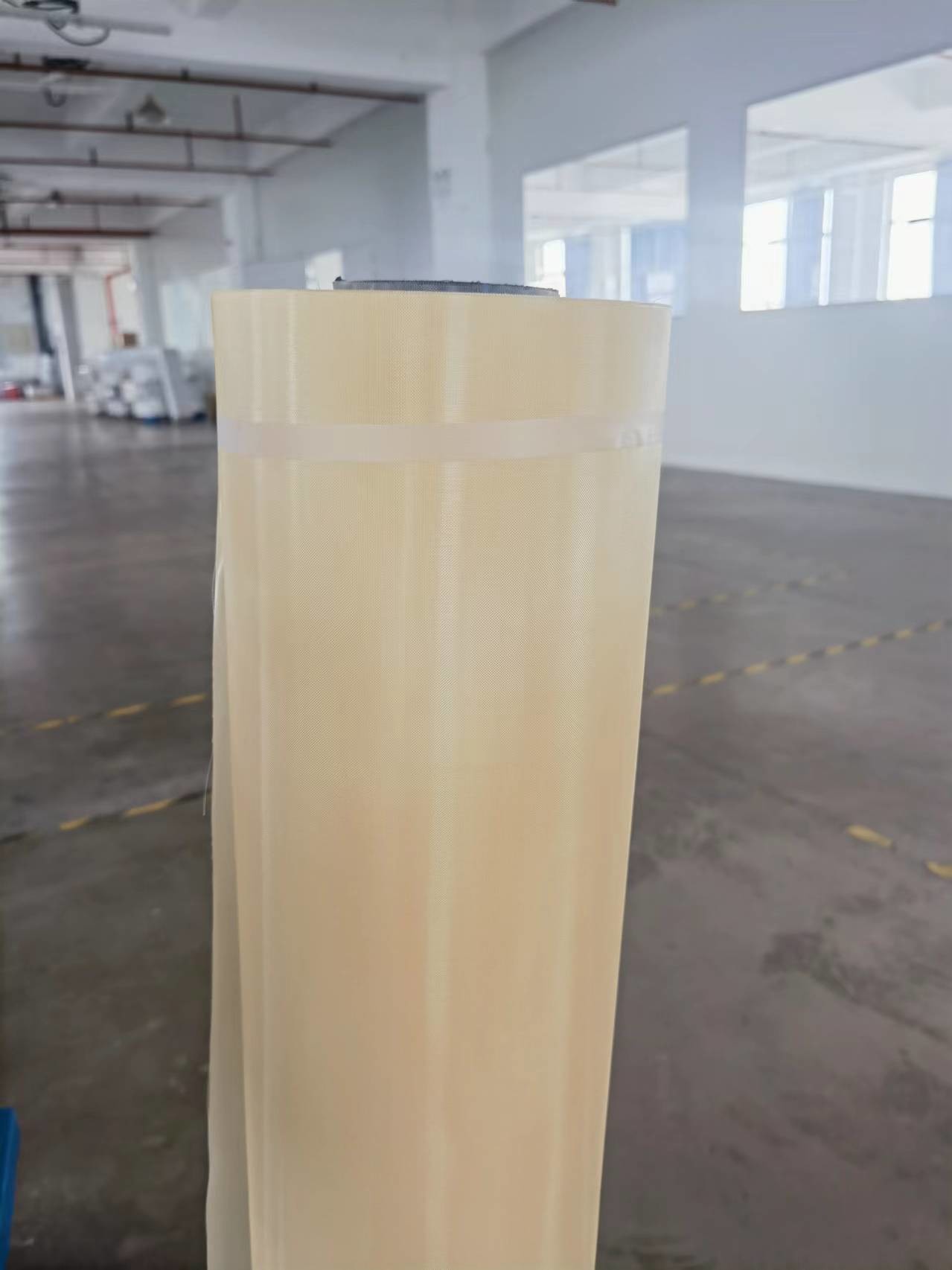

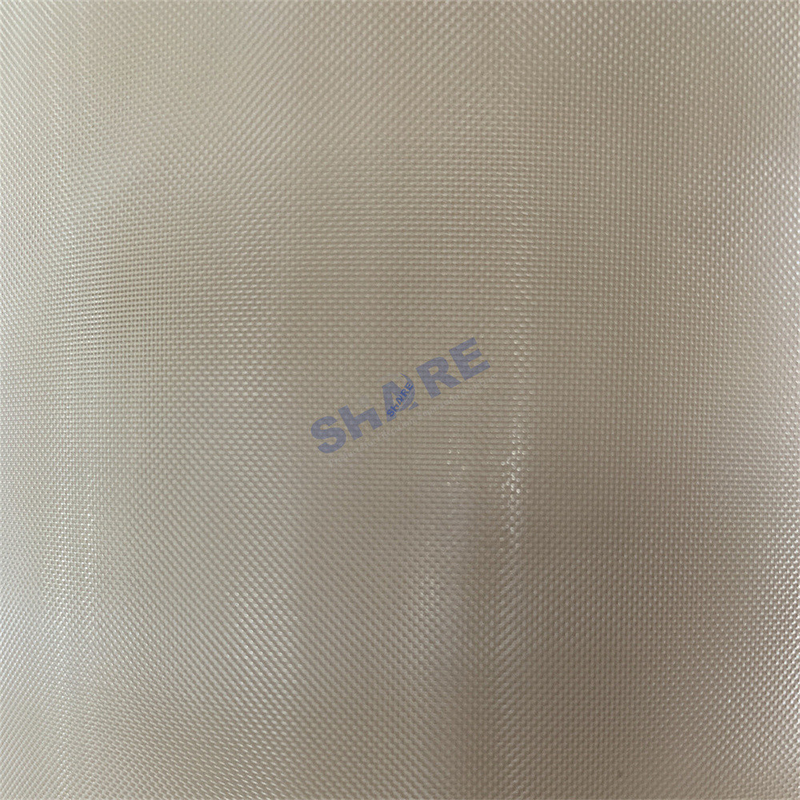

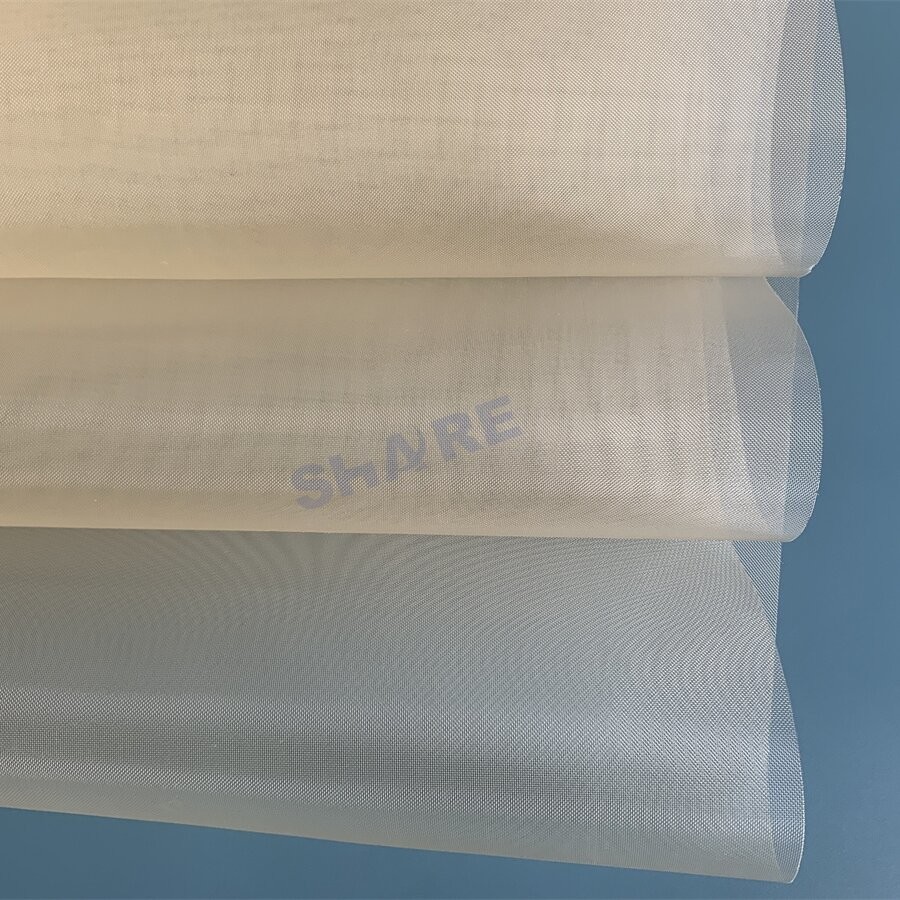

Real Images



Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE 2Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE 3

Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE 4Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE 5



Thickness 30 40 50 60 70 80 90 100 Micron PPS Fiber Membranes Resin Support Mesh Separators For Alkaline Water Electrolysis AWE 6

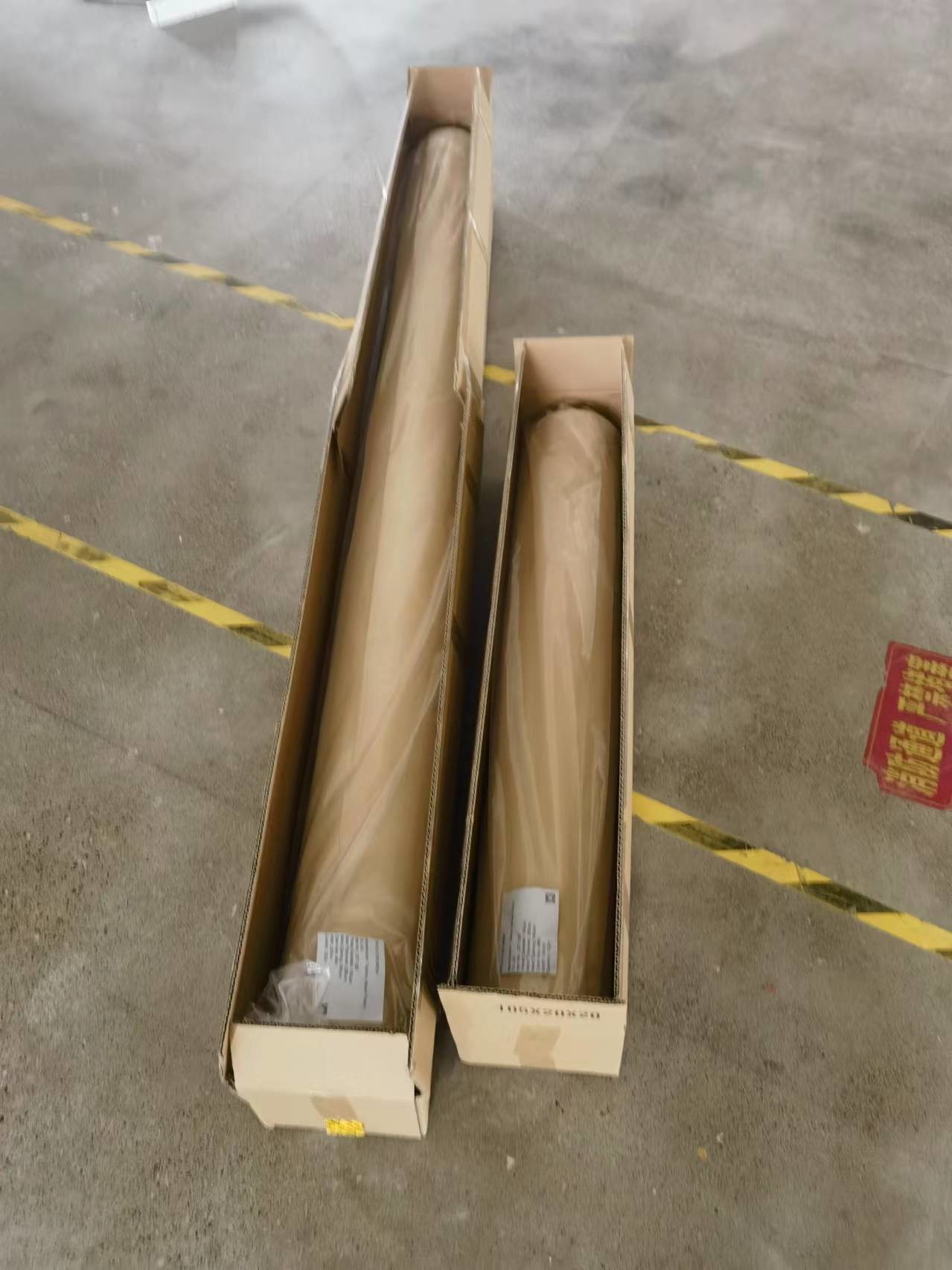

Packaging & Shipping



1. Rolled on the paper core or plastic pipe, packed into PE bags
2. Put into standard export carton
3. Put into PP woven bag
to prevent damage during transportation

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.



  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
