Injector Fuel Cone Filter Dimension OD13xL25mm For Car Gas Nut 30 40 50 60 75 Micron

Product Description

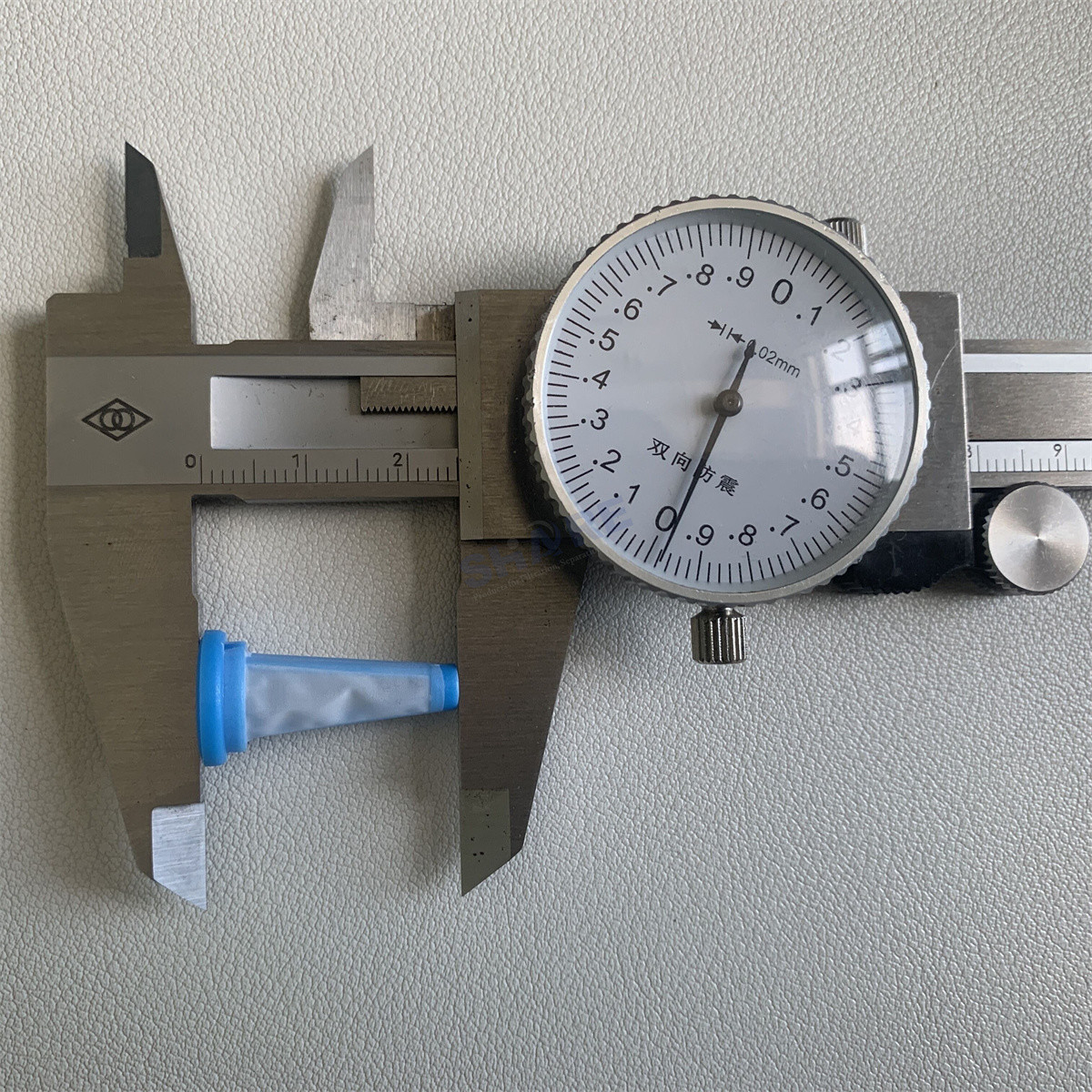

Injector Cone Filter Dimension OD13xL25mm for Car Gas Nut 30 40 50 60 75 Micron



The fuel filters protect the internal combustion engine against the ingress of dirt, particulate matter and water. Filtration is usually multi-stage. The first filtration occurs before the fuel pump inlet, followed by the main fuel filter and the filter screen before the high-pressure fuel pump or injector.



Share Filters' gasolene filter consists of a synthetic mesh or metallic mesh held in a polymer plastic frame, allowing for a more robust part/product giving more reliability and longevity in its use. This filter is durable and replaceable. It is very easy to installation.



When it comes to mesh insesrt injection molded filter needs, look no further than Taizhou Share Filter Co. Ltd. Share filter mesh also can be tailored to your requirements.

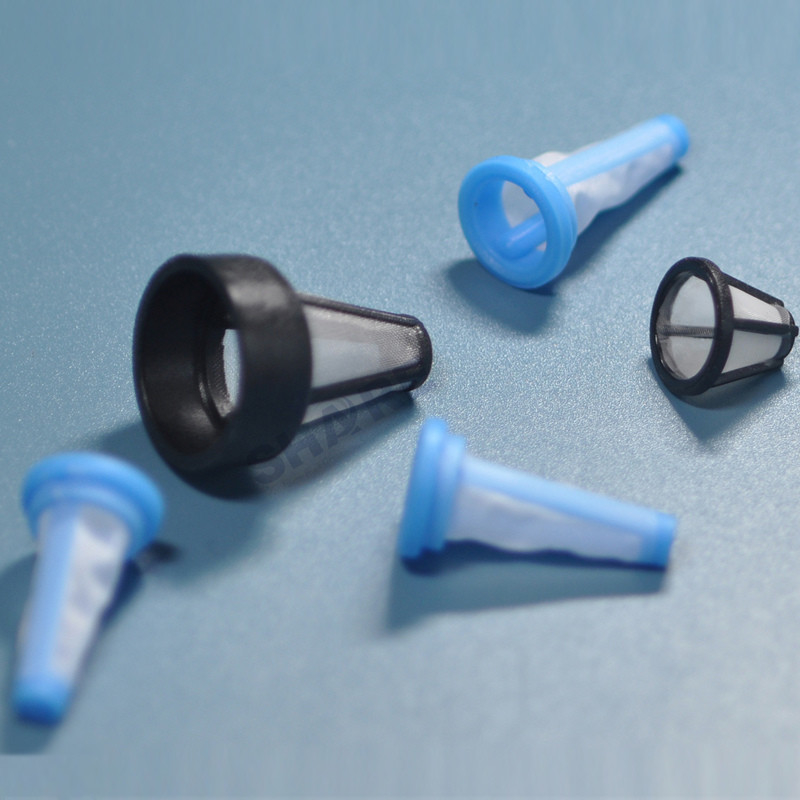

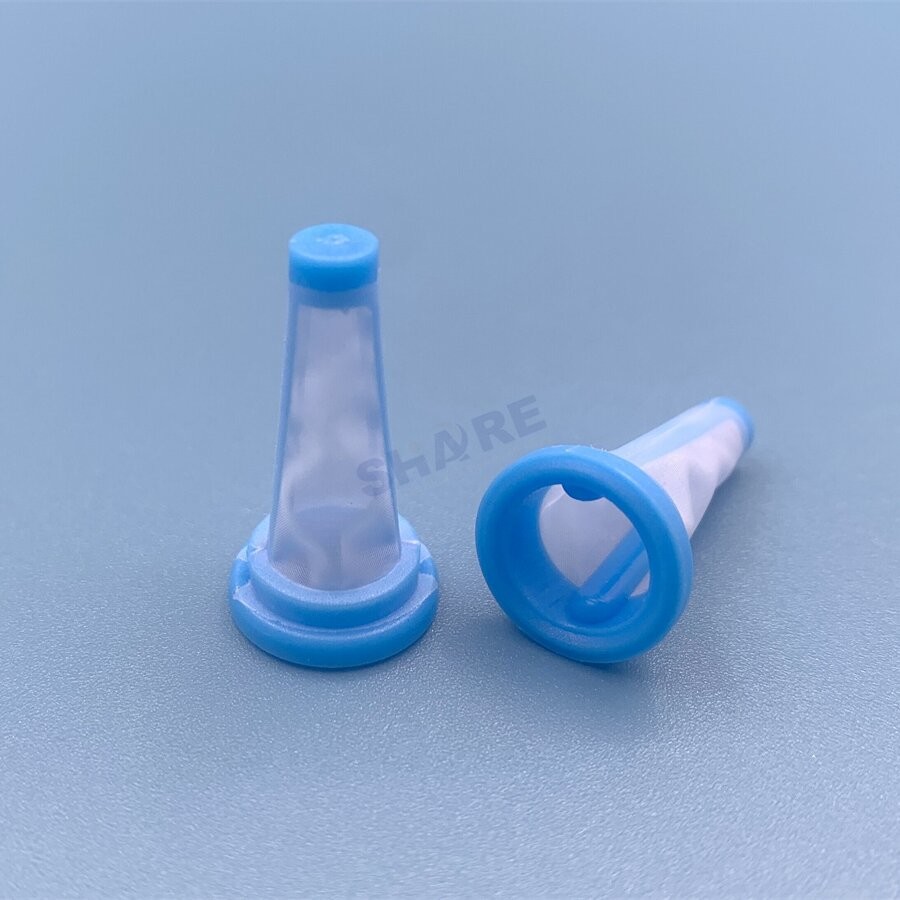

Product Picture



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. Take filtration to new performance levels with mesh insert production from component plastics. We’re a trusted manufacture of precision injection-molded plastic parts with mesh filters for critical practices.

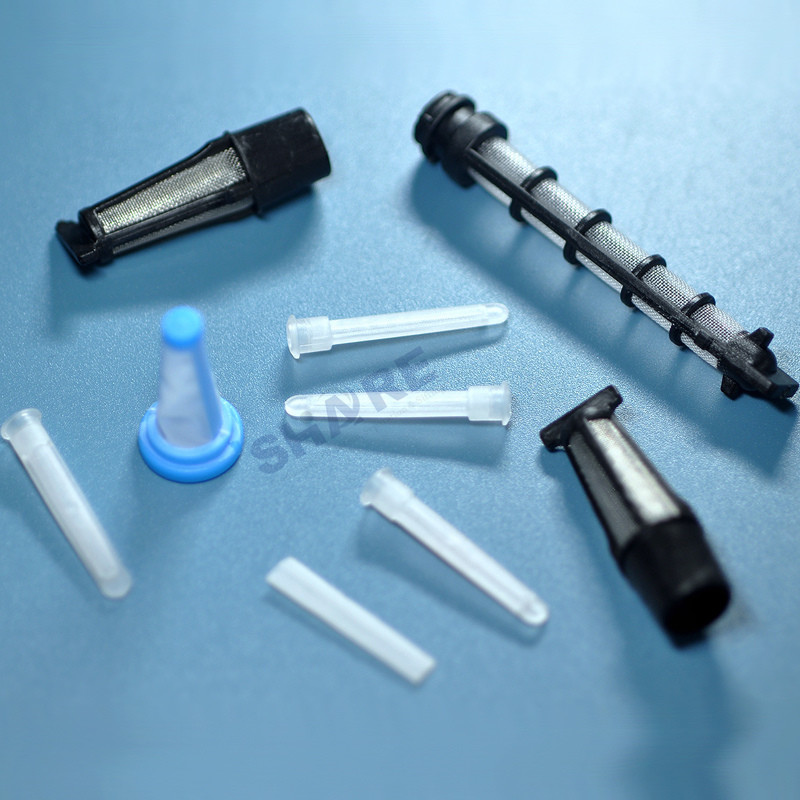

Other OEM/ODM Moulded Fuel Filters









Share Filters Custom-Tailor Plastic Molded Filters Materials Options



	Filter media	Nylon mesh, polyester mesh, PP mesh, metallic mesh
	Micron rating	16μm - 1500μm
	Mesh parts fabrication	Slitting, cutting or punching, welding
	Support cage material	PA6, PA66, PET, PP, ABS, and other high-performance thermoplastics
	Processing	Insert injection molding, over molding
	Supply type	OEM





Share Filter Value Added Services





Nylon Filter Mesh Data Sheet



Fabric number	Mesh count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
NO.	mesh/cm	mesh/inch	micron	micron	%	micron	g/m2
JPP7	7	18	350	1079	57	675	186
JPP8	8	20	350	900	52	685	212
JPP9	9	24	250	860	60	455	145
JPP10	10	25	300	700	49	576	195
JPP12	12	30	250	583	49	470	162
JPP12	12	30	300	533	41	585	234
JPP14	14	35	300	414	34	595	273
JPP16	16	40	200	425	46	370	139
JPP16	16	40	250	375	36	485	217
JPP20	20	50	150	350	49	375	98
JPP20	20	50	200	300	36	385	173
JPP24	24	60	150	267	41	285	117
JPP28	28	70	120	237	44	215	87
JPP30	30	76	120	213	41	225	94
JPP32	32	80	100	213	46	165	69
JPP36	36	90	100	178	41	178	78
JPP40	40	100	100	150	36	190	87
JPP43	43	110	80	152	43	135	60
JPP48	48	120	80	130	38	145	62
JPP56	56	140	60	120	44	85	44
JPP59	59	150	60	110	42	98	46
JPP64	64	160	60	100	37	105	50
JPP72	72	180	50	90	41	82	39
JPP80	80	200	50	75	36	90	43
JPP100	100	250	42	60	36	65	35
JPP120	120	305	30	55	42	52	20
JPP120	120	305	35	45	29	60	28
JPP120	120	305	38	42	25	67	35
JPP120	120	305	42	42	25	75	42
JPP130	130	330	30	47	37	55	22
JPP130	130	330	35	42	30	62	30
JPP130	130	330	38	40	26	74	36
JPP140	140	355	30	38	28	53	25
JPP140	140	355	35	37	26	65	33
JPP140	140	355	38	32	20	68	36
JPP145	145	368	38	30	19	64	40
JPP150	150	380	30	34	26	50	26
JPP150	150	380	38	31	21	68	40
JPP165	165	420	30	30	25	59	28

This just a part of specifications which common used.



Mesh count (n/cm), (n/in) The mesh count stands for the number of openings per inch.   Mesh opening (w), (μm) The mesh opening w is the distance between two adjacent warp or weft thread.   Thread diameter (d),( μm) The thread diameter is measured on the thread before weaving.   Open area (%) The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area



































Property of Thermoplastic









How To Select the Right Filter Mesh? You Can Follow These Points

• Mesh size or the size of the particle you need to filter
• Mesh material (consider the working condition)
• Mesh thread diameter, Mesh thickness
• Opening area







About Share Filters



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the woven filter mesh manufacturing and mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like mesh screens to highly complex devices like customized plastic filters.





Share Filters Capacities



Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the rolls or cut shapes.	Ultrasonic and heat slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge.	Our cutting method include Laser cutting, Cold cutting, Hot cutting, Stamping. Professional cutting using custom made tools that will not damage the materials.	Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.	Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.	Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.





Products Packing Example



Shipping Ways



Share Filter offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

• Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
• Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
• SF EXPRESS usually to Hongkong and Southeast Asia countries.
• Customers choose express commonly to send them samples.



Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!
