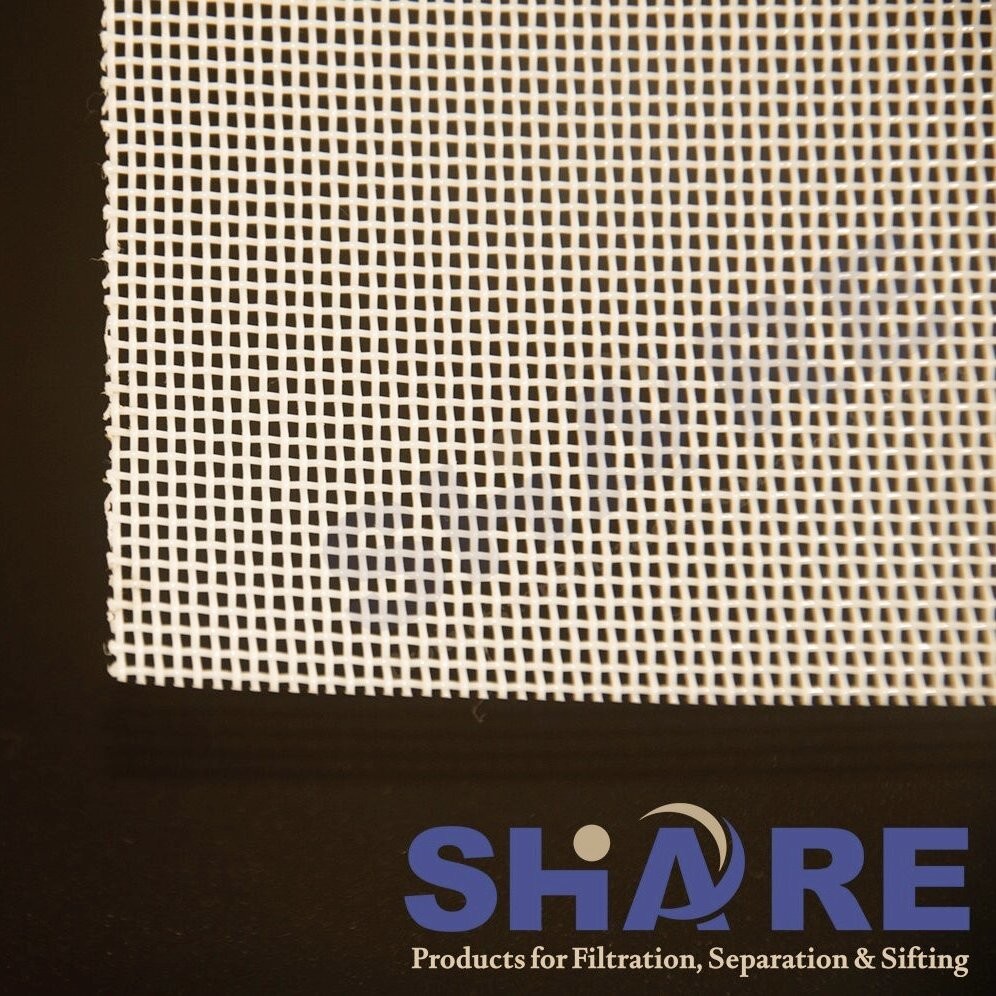

PPS Mesh 47T Opening 156 Micron, Open Area 55%, Chemical Resistance Alternative to PEEK Mesh

Advantage of PPS Mesh

• High temperature resistance (190° C in continuous using and 220° C at top level)
• Excellent chemical resistance. Good resistance to a wide range of chemicals at high temperature
• Excellent hydrolysis and electrolysis resistance. Very resistant to steam and high pressure water
• Very good mechanical strength
• Dimensional stability at high temperatures
• Corrosion resistance
• Environmentally friendly. Unlike wire mesh, PPS is fully recyclable
• Alternative to PEEK mesh

Share Filters' PPS Mesh

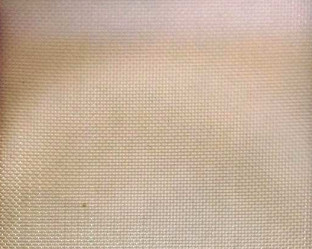

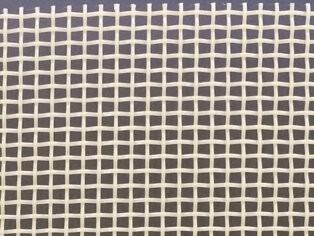

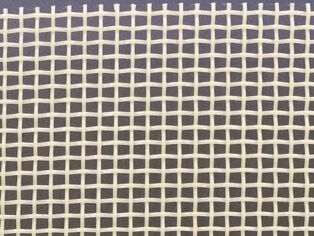

Product Pictures

Mesh Count: Number of openings per inch or centimeter Weave Type: Plain Weave (PW) or Twill Weave (TW) Thread Diameter: The diameter of each thread before weaving Mesh Thickness: The average thickness of the woven mesh Mesh Opening: The distance between adjacent threads Mesh Opening =25400÷Mesh Count(per inch)−Wire Diameter Mesh Opening =10000÷Mesh Count(per cm)−Wire Diameter Open Area: The ratio (%) of the open area to the thread area within a woven mesh Open Area %=(Opening Size)2÷(Opening Size+Wire Diameter)2×100

Common Applications:

Filtration: PPS mesh is used in filtration systems for high-temperature and chemically aggressive fluids, including air and liquid filtration. Automotive: It is used in components such as fuel system parts, electrical connectors, and under-the-hood applications where high temperatures and exposure to chemicals are common. Electronics: PPS is used in electrical connectors, switch components, and other electronic parts that require high temperature and chemical resistance. Aerospace: PPS mesh is used in aerospace applications where materials are subjected to extreme conditions. Industrial: It is used in pump components, valves, seals, and gaskets in industrial processes that involve high temperatures and corrosive chemicals.

What Share Filters Do


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Factory Capabilities

Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.

Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.		Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.		Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.		Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.		Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.

Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Automotive	Laboratory	Healthcare	Appliance	Beverage	Agriculture
Fuel filter	Biopsy bag	Blood filter	Dryer filter	Coffee filter	Water strainer





Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.
