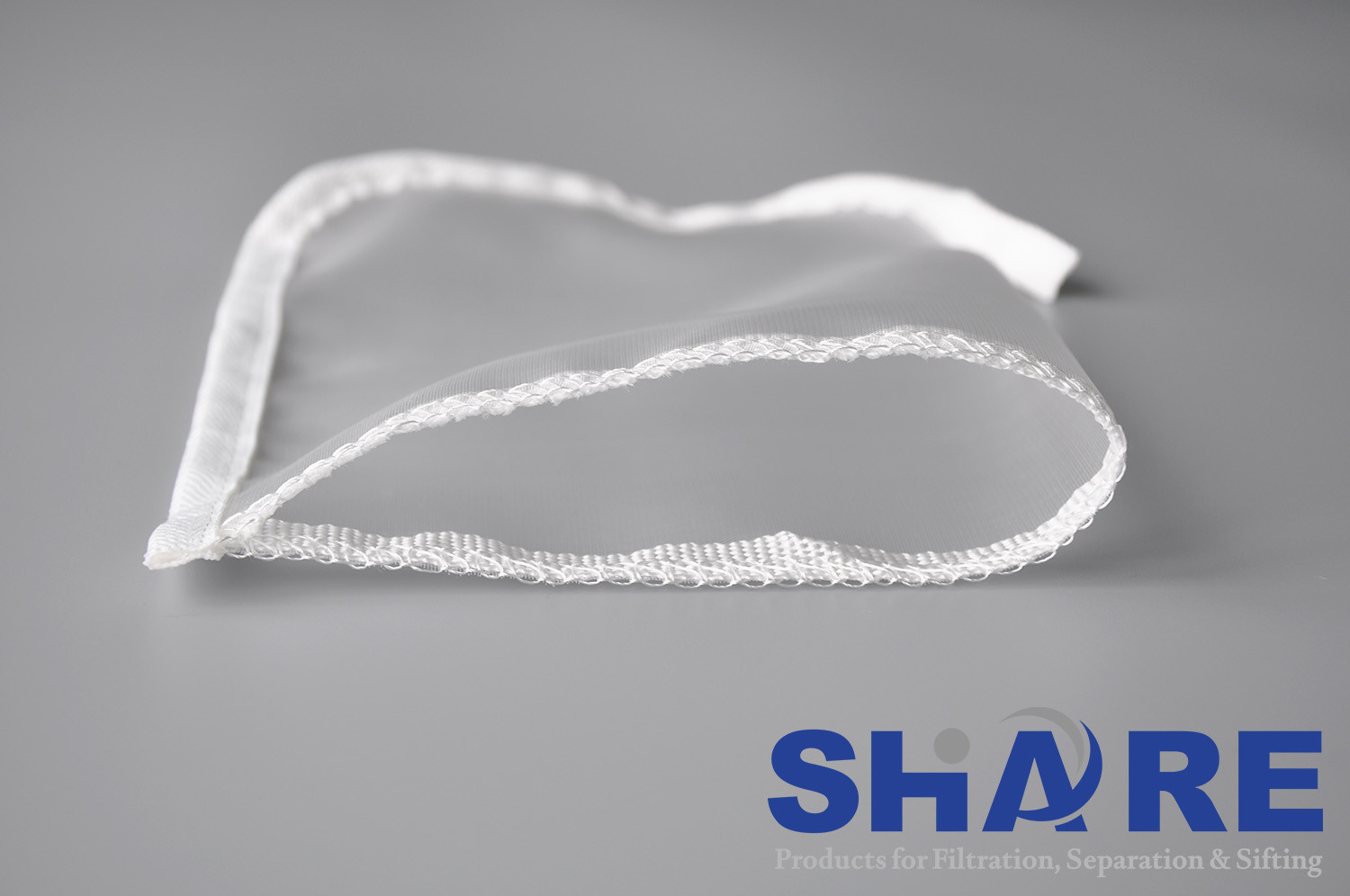

High Tenacity Polyester Filter Mesh Woven / Food Filtration Bag Roll Length 50-90M

Name: High Tenacity Polyester Filter Mesh Woven / Food Filtration Bag Roll Length 50-90M
Brand: SHARE
SKU: DPP5T-DPP180T
Price: 0.2 USD
Availability: InStock
Rating: 4.5 (138 reviews)

Minimum Order Quantity :	100meters	Price :	USD0.2-USD3.5/m
Packaging Details :	Caron	Delivery Time :	5-15days
Payment Terms :	L/C, T/T, Western Union, MoneyGram	Supply Ability :	100000/month

Place of Origin:	CHINA	Brand Name:	SHARE
Certification:	SGS	Model Number:	DPP5T-DPP180T

Detail Information
Material:	Monofilament Polyester Yarn	Color:	White/Black
Width:	100cm, 165cm, 180cm, 360cm Max.	Rating:	5um-2000um
Mesh Count:	DPP5T-DPP180T	Thread Diameter:	27um-350um
Name:	Polyester Filter Mesh	Package:	Carton
Highlight:	polyester filter fabric , monofilament polyester mesh

Product Description

High-tenacity, tension, Low-elongation Polyester Filter Meshes woven with monofilament yarn

Material	Mono-filament Polyester Yarn
Width	from 100cm to 360cm
Rating	from 5um to 2000um

Introduction:

Combined with years of Research, Development and Production of various kinds of filter mesh, mainly including polyester filter mesh, polyamide filter and high quality raw material, state-of-the-art production facility, SHARE is dedicated to the supply of high tenacity polyester filter meshes.

By working with top synthetic yarn suppliers in China and abroad, SHARE has been supplying clients with continuous quality products for filtration, sifting, esp. polyester filter meshes, micron rating can be available from 5um up to 2000um in raw filter mesh and we are also capable of slitting meshes into different width suiting our clients' special needs up to their requirements.

Applications:

Food Filtration, Medical Filtration, Blood Filtration, Diesel Filtration, Automotive Filtration, Juice Filtration, Dust Collection/Separation

Datasheet

Mesh count (per cm/inch)	Type of weave (tw or pw)	Thread diameter (microns)	Mesh opening (microns)	Overall fabric thickness (microns)	% Open area	Theoretical ink deposit (cm3/m2)	Mesh Weight (gsm)

8/20-300W	PW	300	950	560	57.8	323.5	169
10/25-260W	PW	260	739	498	54.6	272.0	158
12/30-140W	PW	140	688	256	68.2	174.7	55
15/40-200W	PW	200	465	353	48.6	171.5	141
18/45-180w	PW	180	375	330	45.5	145.5	128
21/54-140W	PW	140	333	250	49.0	122.5	96
24/60-120W	PW	120	294	210	49.7	104.3	81

27/70-120W	PW	120	249	210	45.3	95.0	91
30/76-120W	PW	120	211	212	40.2	82.4	101
32/83-70W	PW	70	240	117	58.7	68.7	37
32/83-100W	PW	100	209	166	44.5	72.1	75
36/92-90W	PW	90	183	147	43.3	64.9	68
36/92-100W	PW	100	174	162	39.1	62.6	84

40/103-80W	PW	80	166	133	44.1	58.6	60
43/110-80W	PW	80	149	130	40.8	53.0	64
45/115-80W	PW	80	138	130	38.7	50.3	67
48/123-80W	PW	80	122	130	34.5	44.8	72
48/123-55W	PW	55	151	90	52.8	47.5	34
51/131-70W	PW	70	121	114	38.1	43.5	58
54/137-64W	PW	64	115	103	38.7	39.8	51
61/156-64W	PW	64	90	101	30.1	30.4	58
68/175-55W	PW	55	85	87	33.5	28.4	48
68/175-64W	PW	64	78	98	28.2	27.6	65
71/180-55W	PW	55	79	90	31.5	28.4	51
77/195-48W	PW	48	77	80	35.0	28.0	42

77/195-55W	PW	55	67	87	26.5	23.3	55
82/206-48W	PW	48	68	79	30.8	24.3	44
90/230-40W	PW	40	68	65	37.6	24.4	33
90/230-48W	PW	48	55	78	24.6	19.2	49
100/255-40W	PW	40	57	64	32.5	21.1	37

110/280-34W	PW	34	54	55	35.2	19.3	31
110/280-40W	PW	40	47	65	26.6	17.3	40
120/305-34W	PW	34	45	55	29.6	16.3	34
120/305-40W	PW	40	37	64	20.1	13.0	44
130/330-34W	PW	34	40	55	26.9	14.3	37
140/355-34W	PW	34	31	55	19.4	10.6	39
150/380-34W	PW	34	23	55	12.1	6.6	42
165/420-34W	PW	34	23	62	13.9	8.6	42

Fabric number
The fabric number is composed of:
Mesh-count n 110-80W PW Thread ∅ dnom 110-80W PW Fabric colour 110-80W PW
(White = W; yellow = Y) Type of weave 110-80W PW (Plain Weave = PW)
