100 / 75 / 50 / 25 Micron Polyester Filter Mesh For Water Filtration In Food Processing

Product Description



100, 75, 50, 25 Micron Polyester Filter Mesh For Water Filtration In Food Processing



The quality of the water used for bakery and food processing has been of increasing interest over the last few years. Water is used in many ways: for washing, for cooking or cleaning installations, it can also be incorporated into preparations at different stages. water in the food industry must meet very precise standards, hygiene and purity levels. In food processing, water filtration is crucial to ensure the quality and safety of the final products. Polyester filter mesh is used in filtration systems to remove impurities, particles, and contaminants from water. It effectively captures solid particles, sediments, and other suspended matter, leading to cleaner and clearer water.



Share Filters' polyester filter mesh is available in various micron ratings, allowing for precise filtration based on the specific requirements of the water filtration in food processing application.





Share Filters Polyester Filter Mesh Options for Water Filtration in Food Processing



Yarn	Monofilament (Single Filament)
Mesh Opening	From 25 micron to 100 micron
Thread Diameter	From 34 micron to 64 micron
Open Area	From 13.9% to 38.7%
Weave Type	Plain Weave, Twill Weave
After Treatment	Washing, Heat-setting, Calendaring, Water-repellent, etc
Size	Can slit or cut in custom dimension
Colour	White, or customize

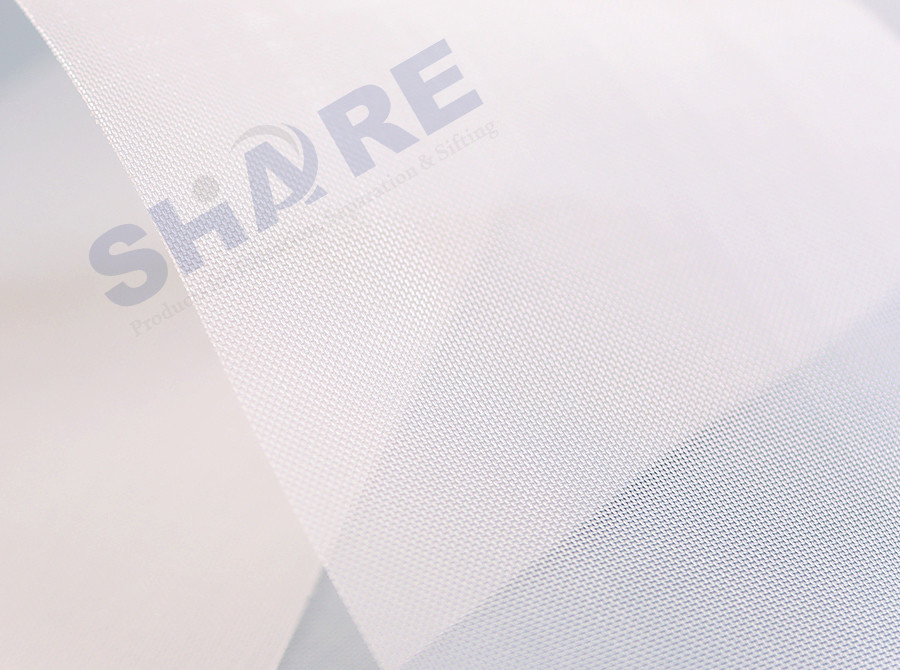

Polyester Filter Mesh



Polyester Mesh Filter Bag



*High strength and durability   *Excellent dimensional stability   *Hydrophobic surface   *Resistance to acids, corrosion, heat/fire, mold/mildew staining, ultraviolet light, and wear   *Easy sewing and cleaning requirements



Properties of Polymers



Material	PA6	PA66	PET	PP
Specific gravity (g/mm²)	1.14	1.14	1.38	0.91
Tensile strength(daN/mm²)	41-67	41-67	45-75	35-62
Relative strength at wet conditions(%)	89-90	85-90	100	100
Elongation at break (%)	20-35	20-35	15-30	20-50
Moisture absorption at 20°C / 65% r.h. (%)	3.5-4	3.5-4	0.4	0
Melting point (°C)	210-220	260-268	250-260	165-175
Softening point (°C)	-	-	220-240	140-155
Working temperature dry (°C)	-	-	-75 to +150	-30 to +90
Stability to light	poor	poor	poor	poor
Atmospheric influence	-	-	none	none
Abrasion resistance	good	good	limited	limited
Acid resistance	limited-poor	limited-poor	good	good
Alkaline resistance	good	good	limited	good
Stability to solvents	limited	limited	good	good
Hydrolysis resistance	good	good	limited	good





How to select the right filter mesh? You can follow these points.

• Mesh size or the size of the particle you need to filter
• Mesh material (consider the working condition)
• Mesh thread diameter, Mesh thickness
• Opening area



Polyester Filter Mesh Datasheet for Water Filtration



Mesh of Count	Type of Weave	Thread Diameter (microns)	Mesh Opening (microns)	Overall Fabric Thickness (microns)	% Open are	Theoretical Ink Deposit (cm³/ m²)	Mesh Weight (g/sm²)
30/76-120W	PW	120	211	212	40.2	82.4	101
32/83-70W	PW	70	240	117	58.7	68.7	37
32/83-100W	PW	100	209	166	44.5	72.1	75
36/92-90W	PW	90	183	147	43.3	64.9	68
36/92-100W	PW	100	174	162	39.1	62.6	84
40/103-80W	PW	80	166	133	44.1	58.6	60
43/110-80W	PW	80	149	130	40.8	53.0	64
45/115-80W	PW	80	138	130	38.7	50.3	67
48/123-80W	PW	80	122	130	34.5	44.8	72
48/123-55W	PW	55	151	90	52.8	47.5	34
51/131-70W	PW	70	121	114	38.1	43.5	58
54/137-64W	PW	64	115	103	38.7	39.8	51
61/156-64W	PW	64	90	101	30.1	30.4	58
68/175-55W	PW	55	85	87	33.5	28.4	48
68/175-64W	PW	64	78	98	28.2	27.6	65
71/180-55W	PW	55	79	90	31.5	28.4	51
77/195-48W	PW	48	77	80	35.0	28.0	42
77/195-55W	PW	55	67	87	26.5	23.3	55
82/206-48W	PW	48	68	79	30.8	24.3	44
90/230-40W	PW	40	68	65	37.6	24.4	33
90/230-48W	PW	48	55	78	24.6	19.2	49
100/255-40W	PW	40	57	64	32.5	21.1	37
110/280-34W	PW	34	54	55	35.2	19.3	31
110/280-40W	PW	40	47	65	26.6	17.3	40
120/305-34W	PW	34	45	55	29.6	16.3	34
120/305-40W	PW	40	37	64	20.1	13.0	44
130/330-34W	PW	34	40	55	26.9	14.3	37
140/355-34W	PW	34	31	55	19.4	10.6	39
150/380-34W	PW	34	23	55	12.1	6.6	42
165/420-34W	PW	34	23	62	13.9	8.6	46





---

Factory Capabilities



Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh,

polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons,

filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' Filtration demands.





Filter Mesh Stock in Rolls

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or

other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.





Filter Mesh Slitted in Narrow Ribbons
