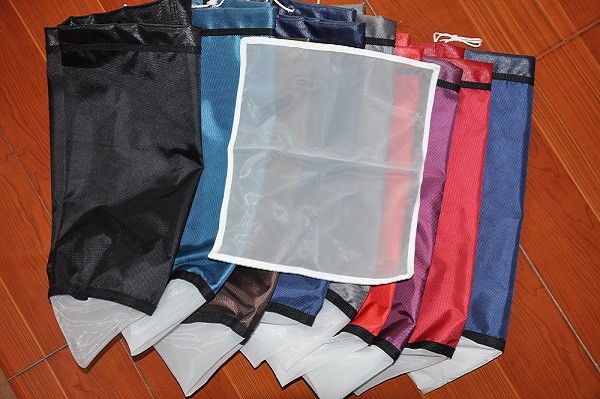

5 20 32 Gallon 8 Bag 25 45 73 90 120 160 190 220 Micron Polyester Mesh Herbal Ice Filter Bubble Hash Bags Extractor Kit

Related Filter Bags





Technical Datasheet



The data sheet of meshes listed below are Polyester. Nylon meshes or popypropelene meshes are available upon request.



SHARE Precision Polyester Filter Mesh Technical Data Sheet
Fabric number	Mest count		Thread diameter	Mesh opening	Open area	Fabric thickness	Weight
NO.	mesh/cm	mesh/inch	micron	micron	%	micron	g/m2
PES 4400/77.5	2T	5	600	4400	77.5	1170	156
PES 2750/67.2	3T	8	600	2750	67.2	1160	234
PES 2000/64	4T	10	500	2000	64	950	217
PES 1550/60	5T	13	450	1550	60	850	2259
PES 1270/58	6T	15	400	1270	58	760	246
PES 1080/57	7T	18	350	1080	57	660	220
PES 900/52	8T	20	350	900	52	660	251
PES 760/47	9T	23	350	760	47	670	282
PES 800/64	10S	25	200	800	64	360	87
PES 750/56	10	25	250	750	56	450	160
PES 700/49	10T	25	300	700	49	570	231
PES 720/74	12S	30	120	720	74	215	44
PES 680/67	12	30	150	680	67	260	69
PES 580/48	12	30	250	580	48	460	192
PES 530/40	12T	30	300	530	40	580	277
PES 515/52	14S	36	200	515	52	360	143
PES 470/50	15S	38	200	470	50	380	154
PES 420/40	15T	38	250	420	40	470	240
PES 525/92	16S	41	100	525	92	180	36
PES 425/46	16T	41	200	425	46	380	164
PES 405/53	18S	46	150	405	53	260	104
PES 375/46	18T	46	180	375	46	330	150
PES 375/51	19T	48	150	375	51	260	110
PES 420/71	20S	50	80	420	71	140	33
PES 400/64	20S	50	110	400	64	180	51
PES 350/49	20T	50	150	350	49	260	115
PES 325/47	21T	53	150	325	47	270	121
PES 340/67	24S	61	120	340	67	220	88
PES 270/42	24T	61	150	270	42	280	138
PES 250/46	27T	68	120	250	46	230	100
PES 280/62	28S	71	80	280	62	150	46
PES 240/45	28T	71	120	240	45	230	103
PES 225/43	29T	74	120	225	43	230	107
PES 215/42	30T	76	120	215	42	230	111
PES 230/54	32S	80	80	230	54	150	52
PES 210/45	32T	80	100	210	45	180	82
PES 215/53	34S	86	80	215	53	150	56
PES 195/44	34T	86	100	195	44	180	87
PES 180/42	36T	91	100	180	42	180	92
PES 200/61	39S	99	55	200	61	95	30
PES 190/55	39T	99	64	190	55	115	40
PES 150/36	40T	102	100	150	36	190	103
PES 150/42	43T	110	80	150	42	155	71
PES 160/57	47S	120	55	160	57	96	36
PES 150/50	47T	120	64	150	50	120	48
PES 140/43	47HD	120	71	140	43	130	59
PES 140/47	49S	125	64	140	47	120	50
PES 135/44	49T	125	71	135	44	130	62
PES 144/55	53S	135	45	144	55	76	27
PES 135/51	53S	135	55	135	51	97	40
PES 125/44	53T	135	64	125	44	122	54
PES 117/39	53T	135	71	117	39	132	67
PES 115/46	59S	150	55	115	46	99	45
PES 105/38	59T	150	64	105	38	123	61
PES 100/41	64S	160	55	100	41	100	48
PES 90/33	64T	160	64	90	33	125	66
PES 95/47	72S	180	45	95	47	78	37
PES 85/38	72T	180	55	85	38	102	55
PES 75/33	77T	195	55	75	33	105	58
PES 80/41	80S	200	45	80	41	80	41
PES 85/44	80T	200	48	85	44	86	44
PES 70/40	90M	230	39	70	40	68	34
PES 68/34	90T	230	45	68	34	80	46
PES 65/33	90T	230	48	65	33	82	49
PES 60/36	100T	250	39	60	36	69	38
PES 56/38	110T	280	34	56	38	62	34
PES 52/33	110HD	280	39	52	33	70	42
PES 52/40	120S	300	31	52	40	48	32
PES 48/33	120T	300	34	48	33	63	37
PES 44/28	120HD	300	39	44	28	72	46
PES 47/37	130S	330	31	47	37	50	35
PES 42/30	130T	330	34	42	30	58	40
PES 43/34	140S	350	31	43	34	50	37
PES 36/25	140T	355	34	36	25	62	43
PES 37/30	150S	380	31	37	30	50	40
PES 32/24	150	381	34	32	24	56	43
PES 33/31	165S	420	27	33	31	40	26
PES 32/23	165T	420	31	32	23	50	36
PES 25/16	165	419	34	25	16	66	49
PES 24/18	180	457	27	24	18	43	33
PES 23/17	180	457	31	23	17	56	40
PES 18/18	235x245	597x622	24	18	18	44	32
PES 18/13	200	508	31	18	13	60	48
PES 23/25	200T	500	27	23	25	45	32
PES 15/10	200x215	508x546	31	15	10	59	50















































































































































































































































The data are compiled to the best of our knowledge.
Subject to change without notice.
Complete product range is available on request.





Production Process





Yarn



Monofilament

• Excellent diameter control for precise openings
• High flow rates and low pressure drops
• Filtration by surface particle capture
• Excellent surface particle release, easy to clean
• High degree of stiffness





Weave



Plain Weave



Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.



Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.









Product Procedure



Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated mesh if needed→Plastic molded filters if needed



























Mesh





SHARE precision filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise mesh opening from 3um to 4400um. These allow for the different sized filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.

SHARE can further processed filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.







Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.

Our products are categorized into three classes.

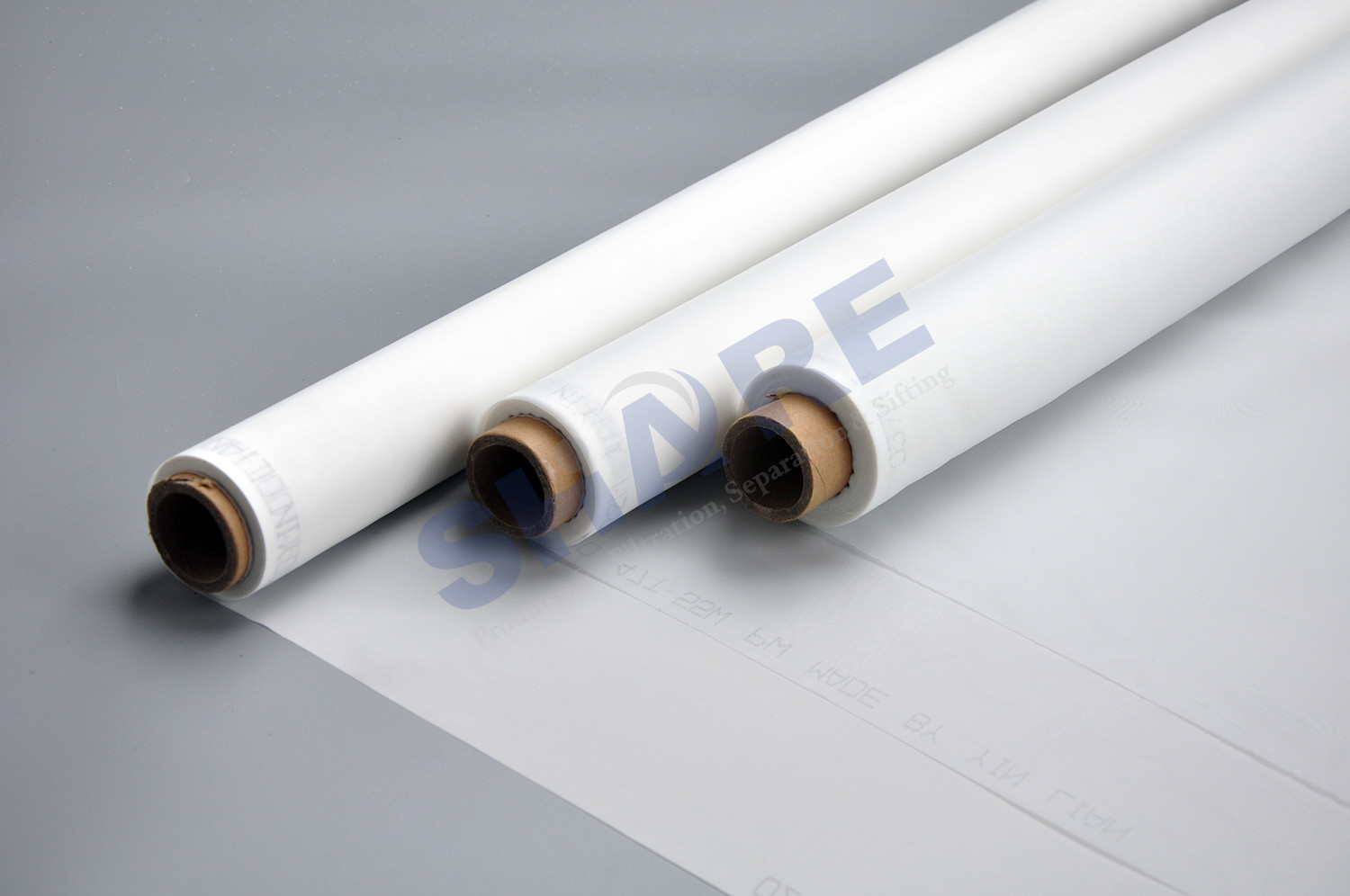

Monofilament Mesh Rolls 30 years of experience & capabilities PA, PET, PP, PE, PPS, PEEK etc. Characterized by precise mesh opening, open area and thickness Excellent converting capabilities from yarn over weaving to converted items
Discs, Tubes, Ribbons, Bags Cutting, calendering, welding, slitting, sewing, pleating, molding Discs, tubes, ribbons, bags etc. Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonic Clean, smooth & closed edge quality Maximum compatibility with injection molding process
Plastic Molded Filters Insert molding and over molding Mold design, modeling, prototyping, manufacturing and testing High efficiency, excellent particles holding capacity and low pressure drop High stability, repeatability and reliability Extensive material options and industry-best lead times



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.



Contact SHARE today for additional information and how we can help you with your specific filtration requirements.





Packaging & Shipping







FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
