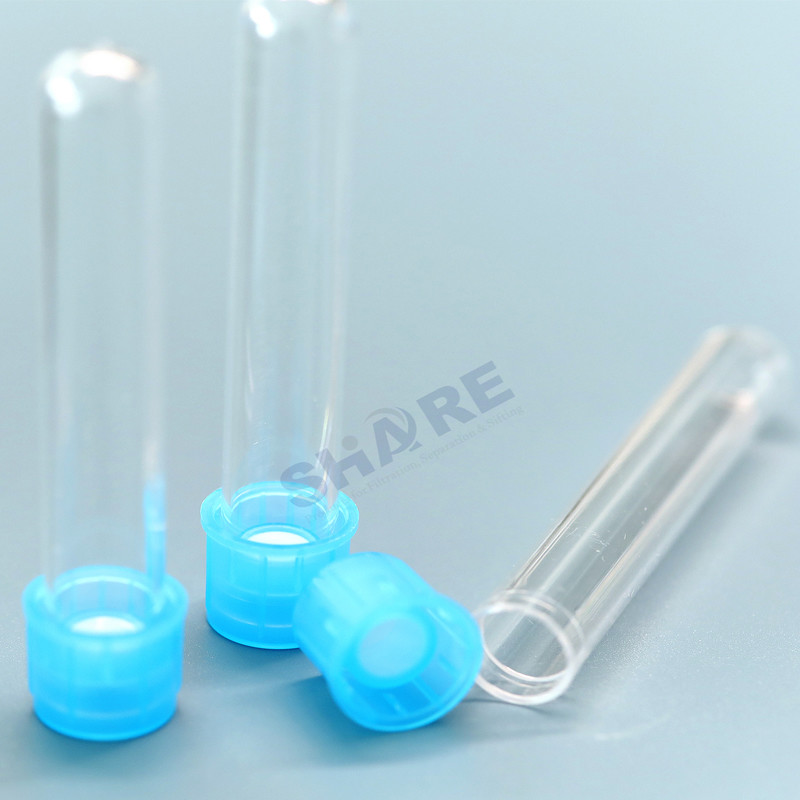

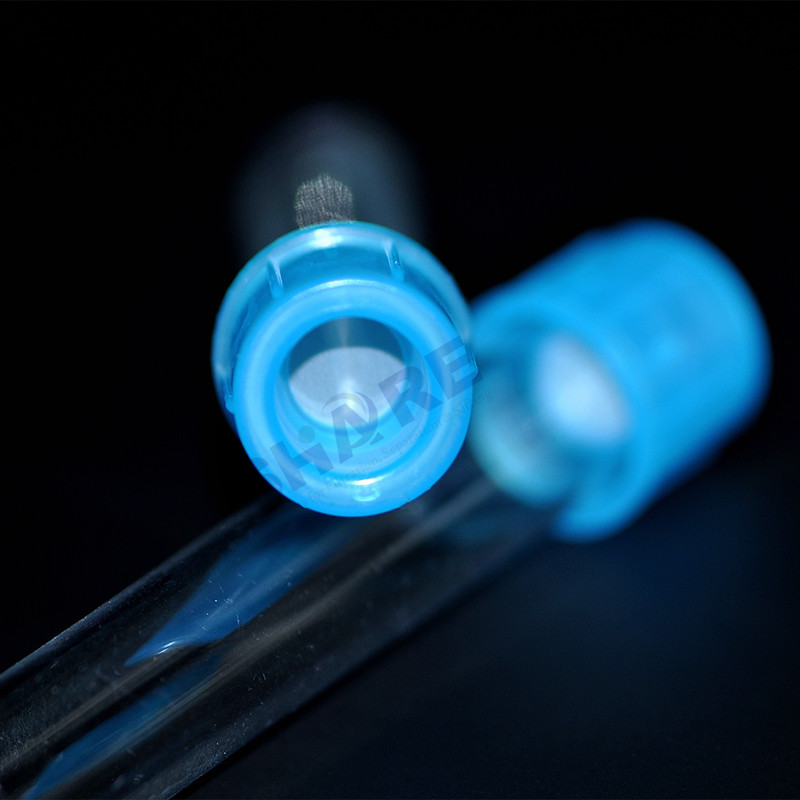

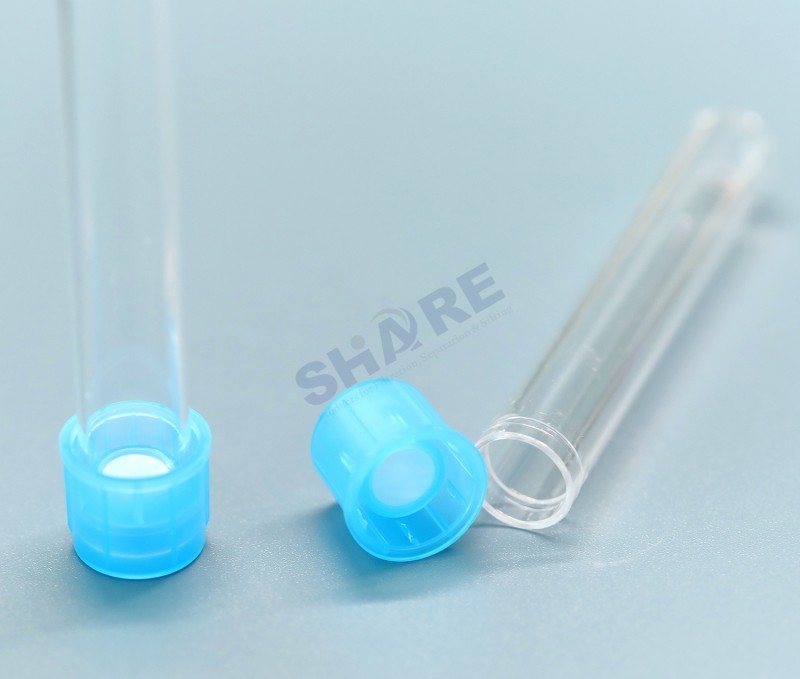

40um Nylon Mesh Strainer Caps for Flow Cytometry Tubes
For Preparation of Samples for FACS
SHARE cell strainer cap for stem cell and tissue derived primary cell preparation
- A simple solution for producing uniform single-cell suspensions
- Designed to fit perfectly into round bottom centrifuge tube
- A faster and easier alternative to gauze filtration in procedures involving dissociation of cells from either clumps or primary tissues
- Many different pore sizes available: 20um, 35um, 40um, 70um, 100um

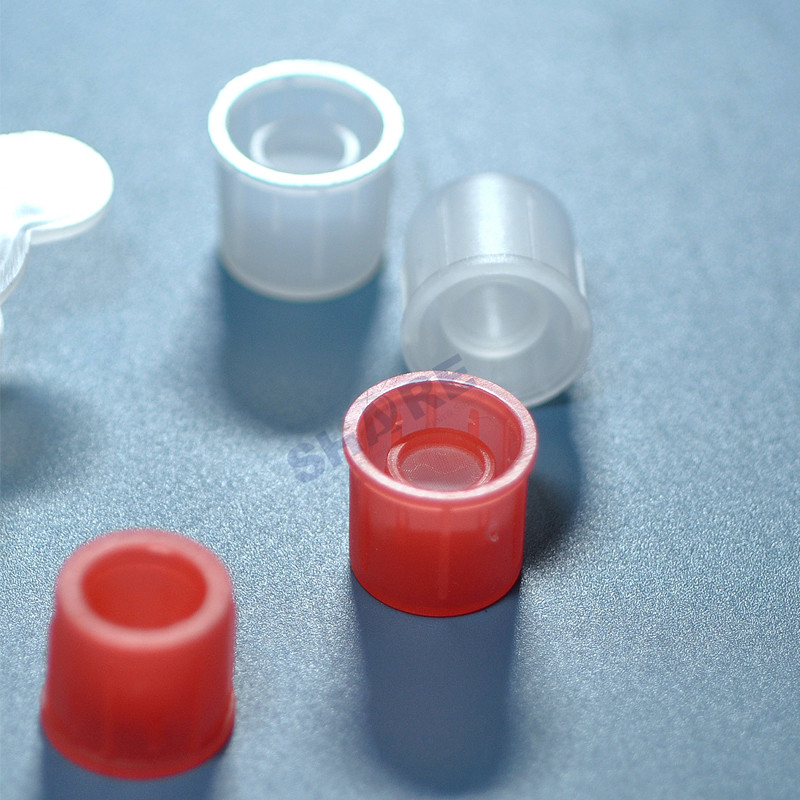

- Color coded by mesh pore size
SHARE offers molded plastic cell strainer snap cap for a wide range of laboratory applications where the filtration and the purification of liquids is required. Its unique design features improved ventilation to avoid clogging for smart sample preparation.
Our cell strainers are stackable to allow direct filtration with different mesh sizes and can be inverted to recover the sieved material. For large sample volumes it can be combined with a funnel.
Fits for: 15 ml conical centrifuge tubes, blood collecting tube, flow cytometry tube, 3 ml tube, 2 ml cryo tube, 5 ml conical tube screw cap, 5 ml reaction tube snap cap, 2 ml reaction tube, 1.5 reaction tube, 48 well plate, 24 well plate.
Specifications
| Product Name |
40um Nylon Mesh Strainer Cap for Flow Cytometry Tubes |
| Manufacturer |
Taizhou Share Filters Co. Ltd. |
| Brand |
SHARE FILTERS |
| Material |
Polypropylene frame with nylon mesh filter |
| Pore Size |
Generally 20um, 35um, 40um, 70um, 100um |
| Color |
White, yellow, blue, red or customized, color coded by mesh pore size |
| Size |
1cm or customised |
| Fit for |
Most brands of test tubes: 15 ml conical centrifuge tubes, blood collecting tube, flow cytometry tube, 3 ml tube, 2 ml cryo tube, 5 ml conical tube screw cap, 5 ml reaction tube snap cap, 2 ml reaction tube, 1.5 reaction tube, 48 well plate, 24 well plate |
| Usage |
Cell culture in laboratory, flow cytometer cell sample, impurity filtration, cell dispersion, sampling, etc |
| Package |
Individual single packaged, 100pcs/carton |
Gallery
SHARE has the ability to engineer woven mesh fabrics into finished or partly finished products by insert molding or over molding. With its industrial lines and long-standing experience, we provide fabrics cut to size, lot-to-lot consistency and high quality custom fabricated components, in almost any requested shapes.
SHARE application specialists with decades of years experience will help you select the best filter for your application.
Filter Mesh Selection
The production of SHARE's nylon filter meshes includes at least twelve steps, ensuring high quality products:
Yarn → Raw yarn inspection → Warping arranging → Drawing in heddle → Drawing in reed → Weaving → Initial survey → Washing → Heat setting treatment → Physical properties inspection → Products inspection → Product → Fabricated filter and screens if needed → Molded plastic filters if needed
Plastic Selection
Material property is an important know-how to injection molding. It is highly related with molding quality, finish and cost. Our team devotes this knowledge and experience to the molding products of our customers.
From various thermoplastic (PA, PP, PC, POM, PET, ABS and Peek) to thermosetting (PE, Epoxy and Silicon) even combined plastic materials (such as glass fiber), we put material property as a must-evaluation when design tooling, so we would also help to suggest equivalent materials for quality improvement or cost reduction.
| Artificial or Synthetic Fiber Chemical Resistance Comparison |
| Fiber Type |
Continuous Working Temp. |
Max. Working Temp. |
Filtration Characteristic |
Abrasion Resistance |
Hydrolysis Resistance |
Acid Resistance |
Alkalis Resistance |
Oxidation Resistance |
| PVC |
75ºC |
80ºC |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Good |
| PP |
90ºC |
100ºC |
Good |
Good |
Excellent |
Excellent |
Excellent |
Poor |
| PA |
110ºC |
115ºC |
Moderate |
Excellent |
Poor |
Moderate |
Good |
Moderate |
| PAN Copolymer |
120ºC |
130ºC |
Good |
Good |
Good |
Moderate |
Moderate |
Good |
| PET |
135ºC |
150ºC |
Excellent |
Excellent |
Poor |
Moderate |
Poor |
Good |
| m-Aramide |
180ºC |
220ºC |
Excellent |
Excellent |
Moderate |
Moderate |
Moderate |
Good |
| PPS |
190ºC |
200ºC |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Moderate |
| Polyimide |
240ºC |
280ºC |
Excellent |
Moderate |
Good |
Good |
Moderate |
Excellent |
| Polyertrafluoroethylene |
250ºC |
280ºC |
Moderate |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
| Fiberglass |
250ºC |
280ºC |
Moderate |
Moderate |
Excellent |
Poor |
Moderate |
Excellent |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ needs to be confirmed, we will promptly notify you.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
