Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive

Minimum Order Quantity : 1000pcs Price : USD0.30-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 7-30 days depends on qty
Payment Terms : T/T, L/C, Western Union, Payple Supply Ability : 2000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Petrol Filter Element Ring PET Mesh Insert

Detail Information

Product Name: Automotive Petrol Filter Element Ring PET Mesh Insert Keyword: Petrol Filter Element
Support Cage: PA6, PA66, PET, PP, ABS, POM, PC, Etc. Filter Medium: Nylon Mesh, PET Mesh, PP Mesh, Stainless Steel Mesh
Micron Rating: 16μm-1500μm Processing: Mesh Insert Injection Moulding
Dimension: Custom Tailor Application: Petrol, Fuel Filter
High Light:

PET Mesh Insert Fuel Filter Element

,

Automotive Fuel Filter Element

,

Petrol Fuel Filter Element Ring

Product Description



Custom-Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive



The fuel filters protect the internal combustion engine against the ingress of dirt, particulate matter and water. Filtration is usually multi-stage. The first filtration occurs before the fuel pump inlet, followed by the main fuel filter and the filter screen before the high-pressure fuel pump or injector.



The fuel filters are essential components that are typically included in the fuel system of automotive. Its primary function is to remove impurities and debris from the fuel before it reaches the engine. This helps ensure that clean fuel is delivered to the engine, which is crucial for efficient combustion and optimal performance.



When it comes to mesh insesrt injection molded filter needs, look no further than Taizhou Share Filter Co. Ltd. Share filter mesh also can be tailored to your requirements.





Product Picture

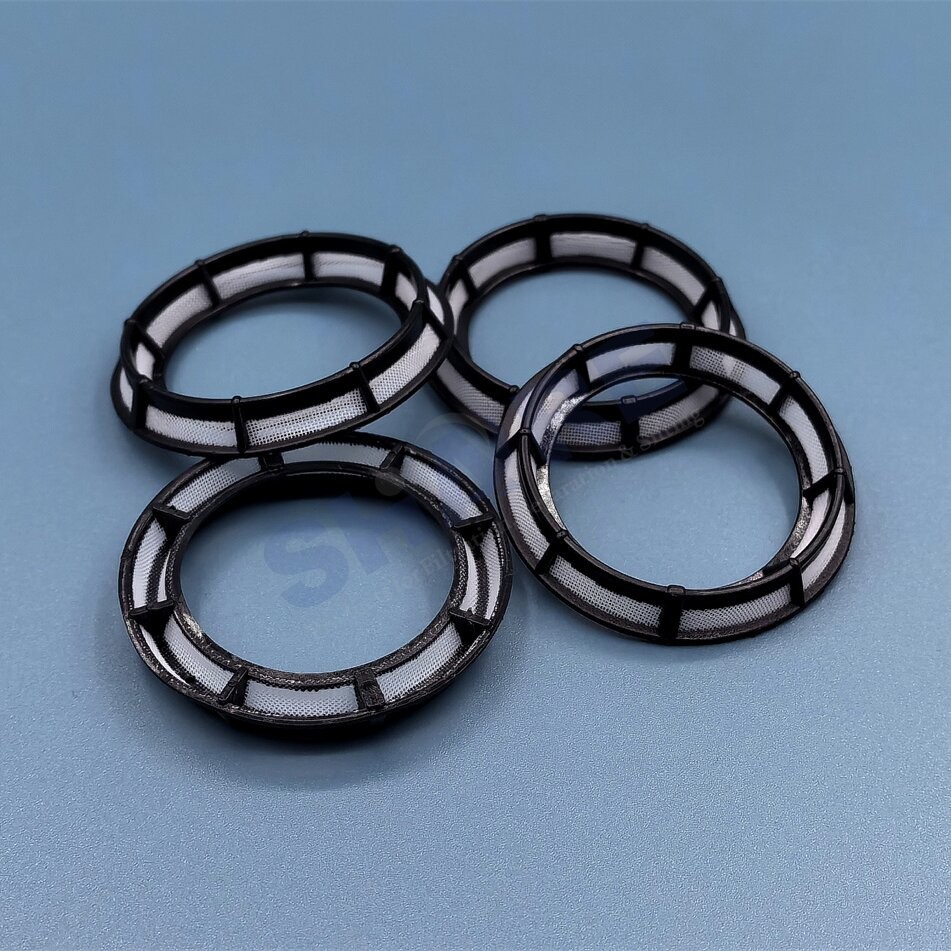

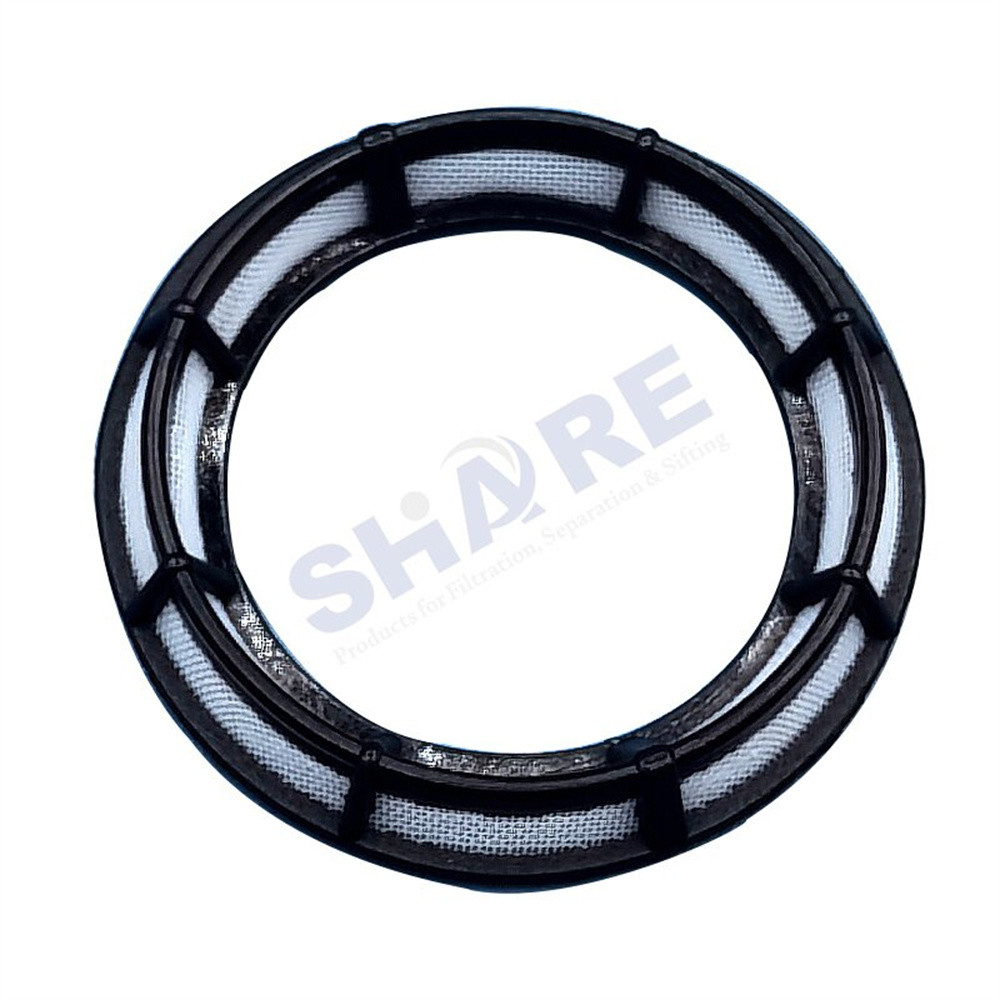

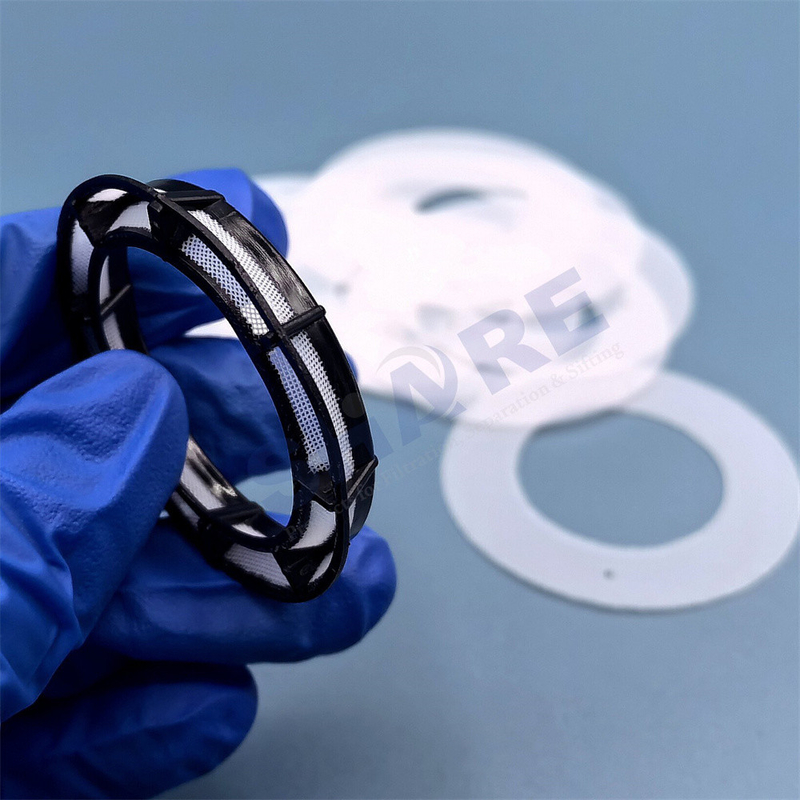

petrol filter petrol filter element





Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. Take filtration to new performance levels with mesh insert production from component plastics. We’re a trusted manufacture of precision injection-molded plastic parts with mesh filters for critical practices.

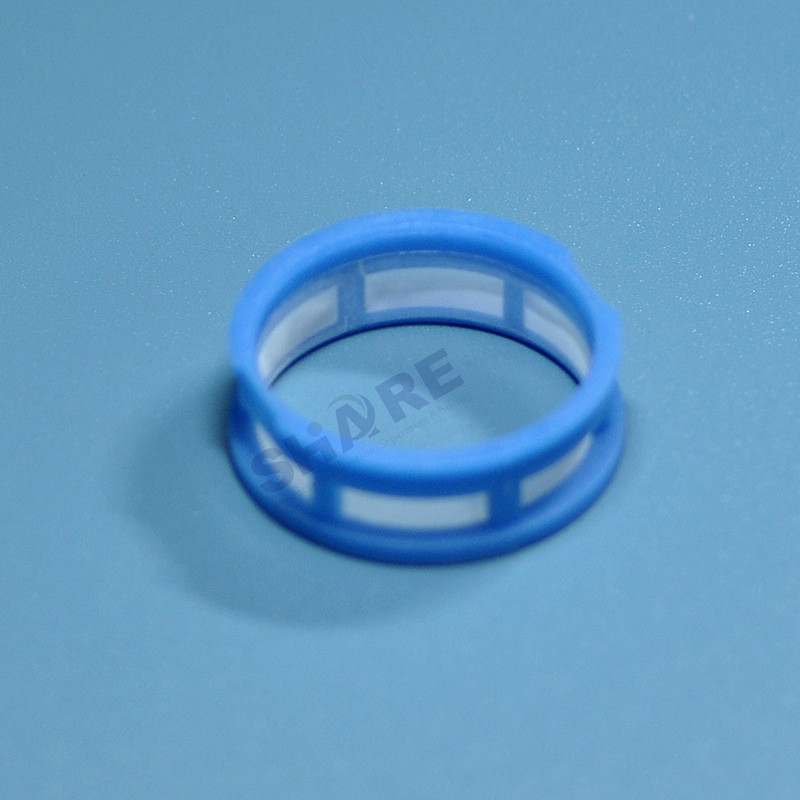

Other OEM/ODM Moulded Fuel Filters



fuel filter diesel strainer fuel filter diesel strainer Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive 4 fuel filter diesel filter





Share Filters Custom-Tailor Plastic Molded Filters Materials Options



FILTER MEDIA Filter media Nylon mesh, polyester mesh, PP mesh, metallic mesh
Micron rating 16μm - 1500μm
Mesh parts fabrication Slitting, cutting or punching, welding
PLASTIC Support cage material PA6, PA66, PET, PP, ABS, and other high-performance thermoplastics
Processing Insert injection molding, over molding
Supply type OEM





Share Filter Value Added Services

Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive 8





Nylon Filter Mesh Data Sheet



Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 1267/58 6 16 400 1267 56 780 208
PA 1079/57 7 18 350 1079 57 675 186
PA 900/52 8 20 350 900 52 685 212
PA 860/60 9 24 250 860 58 455 145
PA 700/49 10 25 300 700 49 576 195
PA 583/49 12 30 250 583 49 470 162
PA 533/41 12 30 300 533 41 585 234
PA 414/34 14 35 300 414 34 595 273
PA 425/46 16 40 200 425 46 370 139
PA 375/36 16 40 250 375 36 485 217
PA 350/49 20 50 150 350 49 375 98
PA 300/36 20 50 200 300 36 385 173
PA 267/41 24 60 150 267 41 285 117
PA 237/44 28 70 120 237 44 215 87
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/43 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/36 100 250 42 60 34 65 35

This just a part of specifications which common used.



Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive 9

Mesh count (n/cm), (n/in)

The mesh count stands for the number of openings per inch.



Mesh opening (w), (μm)

The mesh opening w is the distance between two adjacent warp or weft thread.



Thread diameter (d),( μm)

The thread diameter is measured on the thread before weaving.



Open area (%)

The percentage of the open are is the sum of all mesh openings as percentage of the total fabric area

































Property of Thermoplastic



PP (polypropylene)                      Excellent chemical resistance, high purity, low water absorption and good electrical insulating properties

ABS                                             Toughness and impact resistance, even at low temperatures, good stiffness and machinability

POM (Polyoxymethylene)           Good sliding properties, excellent wear resistance and low moisture absorption. The material's dimensional                                                                stability, particularly good fatigue strength and excellent machinability

PA6 (polyamide 6)                       Tough, abrasion-resistant, good vibration damping, resistant to solvents, fuels and lubricant

PA66 (polyamide6.6)                   Rigid, stiff, abrasion-resistant, dimensionally stable at heat exposure

PET (polyethyleneterehthalate)   High rigidity, high hardness, high chemical resistance, good dimensional stability

PEEK (polyetheretherketone)      High mechanical strength, stiffness, toughness, temperature, chemical and radiation resistance



Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive 10





How To Select the Right Filter Mesh? You Can Follow These Points

  • Mesh size or the size of the particle you need to filter
  • Mesh material (consider the working condition)
  • Mesh thread diameter, Mesh thickness
  • Opening area

Filter mesh filter mesh





About Share Filters



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the woven filter mesh manufacturing and mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or configuration – from simple, traditional components like mesh screens to highly complex devices like customized plastic filters.





Share Filters Capacities



filter mesh weave filter mesh slitting filter mesh shapes filter mesh welding tube, bag Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive 17 plastic molded filter
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the rolls or cut shapes. Ultrasonic and heat slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge. Our cutting method include Laser cutting, Cold cutting, Hot cutting, Stamping. Professional cutting using custom made tools that will not damage the materials. Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.





Products Packing Example

Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive 19



Shipping Ways



Share Filter offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

  • Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
  • Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
  • SF EXPRESS usually to Hongkong and Southeast Asia countries.
  • Customers choose express commonly to send them samples.

Custom Tailor Petrol Fuel Filter Element Ring PET Mesh Insert Automotive 20



Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!
