Blood Filter Clear PP Nylon Mesh 200um Diam15.0×L41.4mm For Transfusion Set

Product Description



Blood Filter Clear PP Nylon Mesh 200µm Diam16.2×L61.5mm for Transfusion Set



The blood transfusion filter is an essential component in the blood transfusion set, playing a pivotal role in enhancing the safety and efficacy of the transfusion process. Comprising a filter mesh endowed with pore sizes ranging from 40 to 260 microns in diameter, the blood tranfusion filter serves as a meticulous gatekeeper during the journey of blood from donor to recipient.



Share Filters' blood filter consists of a nylon or polyester filter mesh held in polymer by insert moulding, allowing for a more robust part giving more reliability and longevity in its usage. Micron rating available in 40μm, 150μm, 170μm, 200μm, 260μm. This injection moulding processing can take many forms. Thanks to advance equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way, from tool making to final products.







Property of Share Filters' Blood Transfusion Filter

Carefully selected high quality medical grade materials Wide range of filtration micron rating of filter mesh available All the processings are dealing in-house Cost Effective: many sizes availabe, save the cost of tooling Efficiency of filtration 98% Pyrogenicity <0.25 EU/ml Maximum operating temperature 50°C Low extractable levels and wide drug compatibility Latex-free, PVC-free, and free of animal-origin substances





Technical Data



Product name:	Blood tubular filter	Cage material:	PP PA PS ABS, others
Application:	For transfusion drip chamber	Filter medium:	Nylon mesh, polyester mesh
Total length:	41.4mm, custom	Micron rating:	40μm 150μm 170μm 200μm 260μm, ect
External ring diameter:	15.0mm, custom	Color:	Clear, white, cream, other custom color
Internal ring diameter:	13.0mm, custom	Package:	Plastic bag, master carton

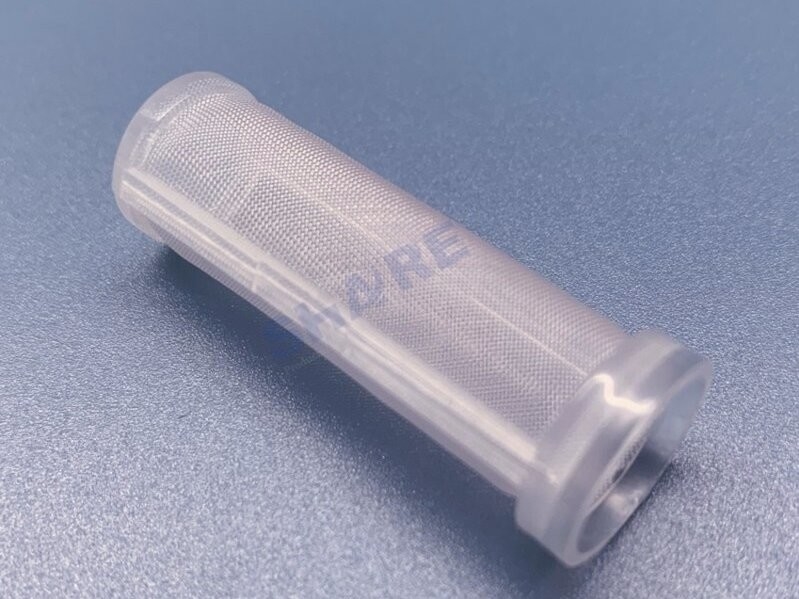

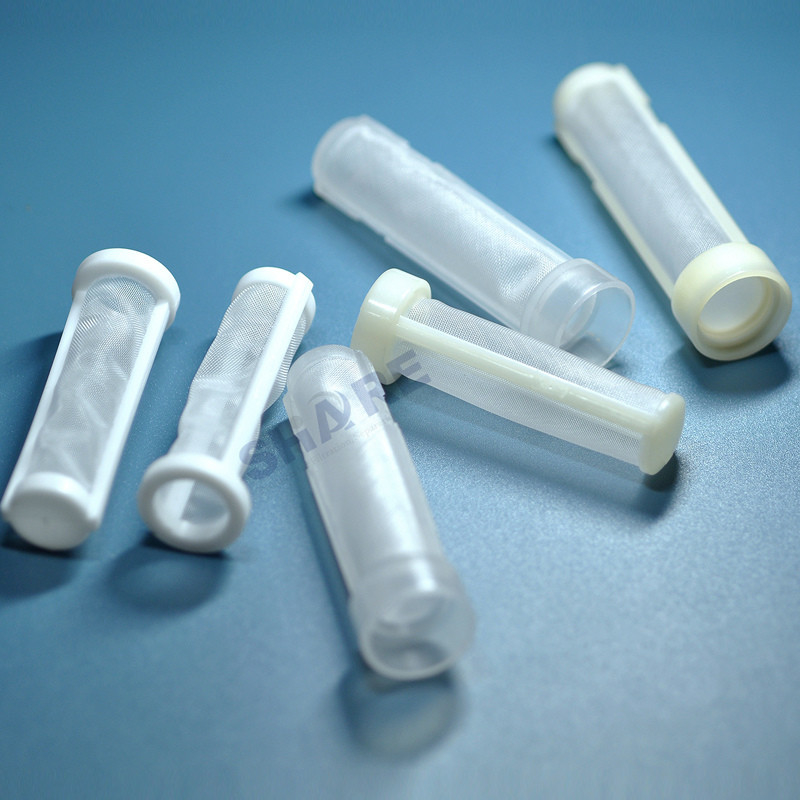

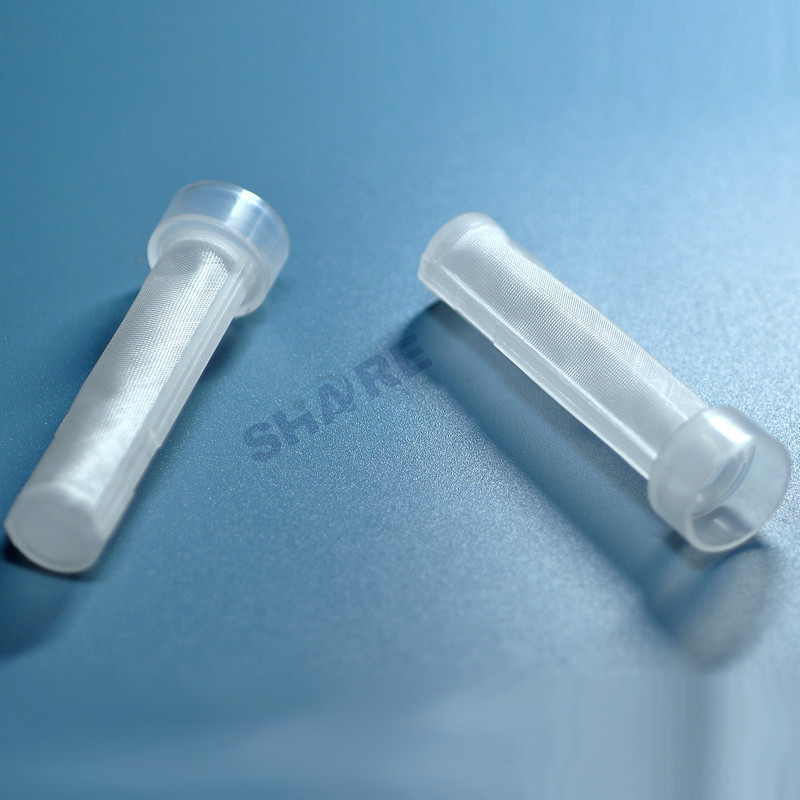

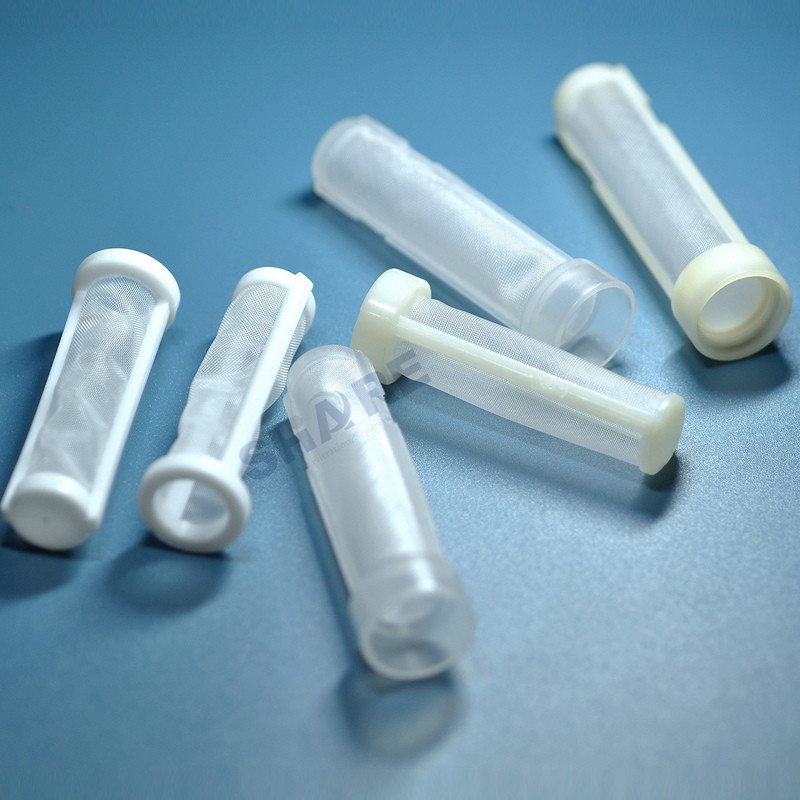

Product Pictures









Filter Pore Size



Blood transfusion filters have specific pore sizes that determine the types and sizes of particles they can effectively remove. The pore sizes are measured in micrometers (μm), and the choice of filter depends on the desired level of filtration and the specific requirements of the transfusion.





Nylon Filter Mesh Datasheet for Blood Transfusion Filter



Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/43	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/42	59	150	60	110	41	98	46
PA 100/37	64	160	60	100	38	105	50
PA 90/41	72	180	50	90	41	82	39
PA 75/36	80	200	50	75	36	90	43
PA 60/36	100	250	42	60	34	65	35
PA 42/25	120	305	42	42	24	75	42
PA 44/27	120	305	38	44	29	72	35
PA 42/25	120	305	38	42	25	67	35
PA 45/29	120	305	35	45	33	60	28
PA 55/42	120	305	30	55	40	52	20
PA 40/26	130	330	38	40	25	74	36
PA 42/30	130	330	35	42	29	62	30
PA 47/37	130	330	30	47	37	55	22

This just a part of specifications which commonly used.





Other Medical and Biochemical Filter Components









Share Filters, An OEM Mesh Insert Molded Filters Manufacture From China



As a filter meshes and filters manufacture, Share Filters always find the best solution to work with our OEM customers to collaborate on their filtration product development projects before the final design prints are completed. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:



Consider Area		Factors	Outcoming
Filtration Media		Select right material, weave type, pore size, thread diam, heat treatment, coatings	Media selected meets the required performance
Component Design		Consider supporting media, housing, end caps	The filtration components can perform well in working condition
Manufacturing Process		Design lends itself to easy manufacture and economic cost?	Produced at low cost of manufacture and high efficiency
Quality Control		Determine parameters and frequency of measurement	High quality, precision filter components





Application of Share Filters Products







What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.





Factory Capabilities



Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,   Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons   Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.
