40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set

Minimum Order Quantity : 200pcs Price : USD0.10-USD0.90/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPle Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Blood Tubular Filter Diameter 16.2×H52.3mm

Detail Information

Product Name: Blood Tubular Filter Diameter 16.2×H52.3mm Keyword: Blood Tubular Filter
Filter Medium: Nylon Filter Mesh, Polyester Filter Mesh Micron Rating: 40 150 170 200 260 μm
Support Frame Material: PP PA PS ABS, Others Colour: Clear, White, Cream, And Other Colour
Application: For Transfusion Drip Chamber Processing: Mesh Insert Injection Moulding
High Light:

40um Blood Tubular Filter

,

Transfusion Set Blood Tubular Filter

Product Description



40μm-263μm Blood Tubular Filter Diameter16.2×H52.3mm For Transfusion Set



The blood transfusion filter is an integral component in the blood transfusion set, playing a pivotal role in enhancing the safety and efficacy of the transfusion process. Comprising a fiber mesh endowed with pores ranging from 40 to 260 microns in diameter, the blood tranfusion filter serves as a meticulous gatekeeper during the journey of blood from donor to recipient.



Share Filters' blood filter consists of a nylon or polyester filter mesh held in polymer by insert moulding, allowing for a more robust part giving more reliability and longevity in its usage. Micron rating available in 40μm, 150μm, 170μm, 200μm, 260μm. This injection moulding processing can take many forms. Thanks to advance equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way, from tool making to final products.



40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 0





Property of Share Filters' Blood Transfusion Filter

  • Cost Effective: many sizes availabe, save the cost of tooling
  • High Quality Materials: carefully selected medical grade materials
  • All the processings are dealing in-house
  • Wide range of filtration micron rating of filter mesh available
  • Efficiency of filtration 98%
  • Pyrogenicity <0.25 EU/ml
  • Maximum operating temperature 50°C
  • Low extractable levels and wide drug compatibility

  • Latex-free, PVC-free, and free of animal-origin substances

40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 1





Technical Data



Product name: Blood tubular filter Cage material: PP PA PS ABS, others
Application: For transfusion drip chamber Filter medium: Nylon mesh, polyester mesh
Total length:

52.3mm, custom

Micron rating: 5μm 10μm 20μm 30μm 40μm 70μm 100μm, 200μm, ect
External ring diameter: 16.2mm, custom Color: Clear, white, cream, other custom color
Internal ring diameter: 11.95mm, custom Package: Plastic bag, master carton

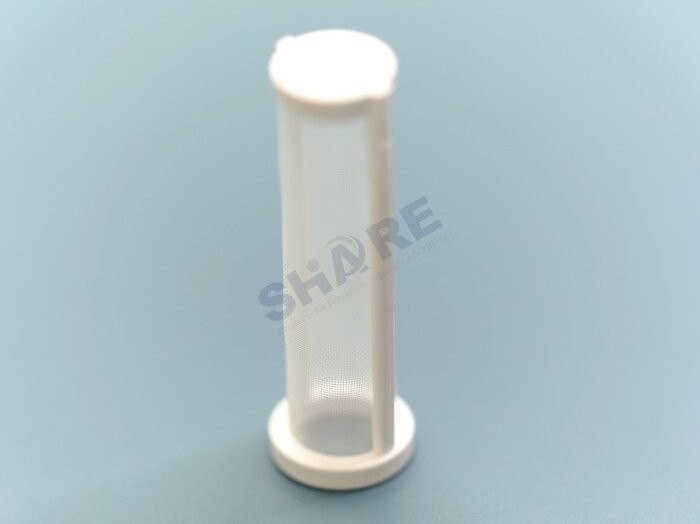

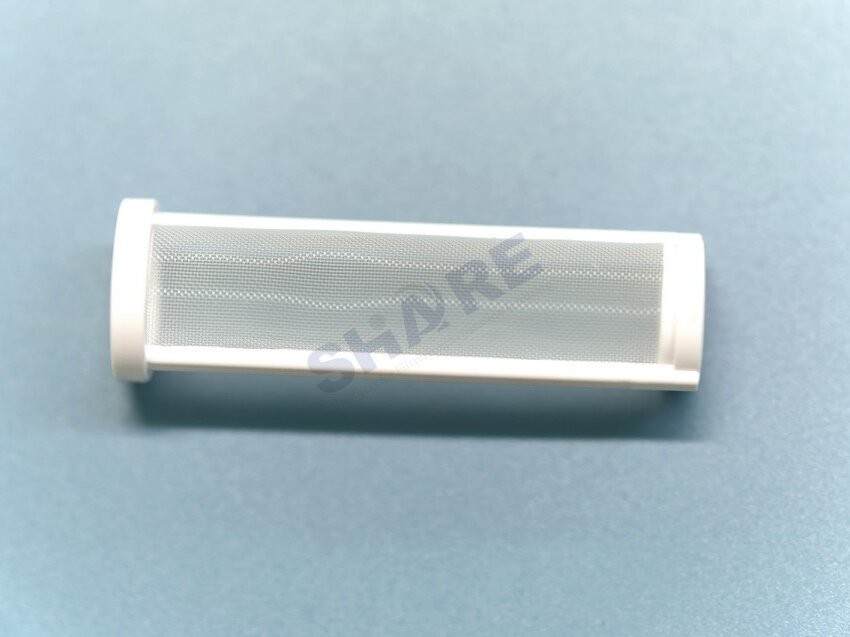

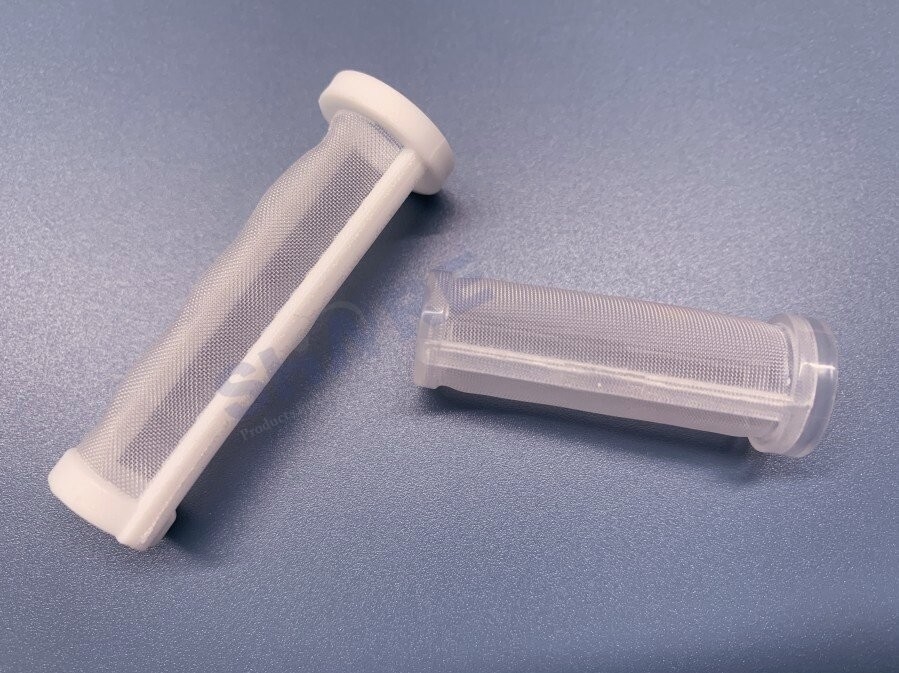

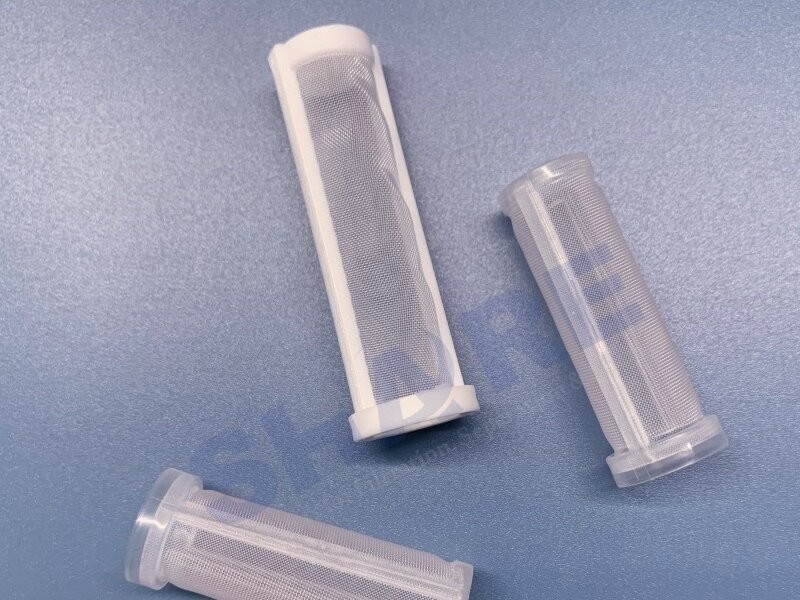

Product Pictures

blood transfusion filter blood transfusion filter

blood transfusion filter blood transfusion filter





Filter Pore Size: lood transfusion filters have specific pore sizes that determine the types and sizes of particles they can effectively remove. The pore sizes are measured in micrometers (μm), and the choice of filter depends on the desired level of filtration and the specific requirements of the transfusion.





Nylon Filter Mesh Datasheet for Blood Transfusion Filter



Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/43 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/36 100 250 42 60 34 65 35
PA 42/25 120 305 42 42 24 75 42
PA 44/27 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/29 120 305 35 45 33 60 28
PA 55/42 120 305 30 55 40 52 20
PA 40/26 130 330 38 40 25 74 36
PA 42/30 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22

This just a part of specifications which commonly used.





Other Medical and Biochemical Filter Components



cell strainer cap filter cylinder bag cell trainer 40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 9





Share Filters, An OEM Mesh Insert Molded Filters Manufacture From China



As a filter meshes and filters manufacture, Share Filters always find the best solution is to work with our OEM customers to collaborate on their filtration product development projects before the final design prints are completed. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:



Consider Area Factors Outcoming

Filtration Media
40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 10 Select right material, weave type, pore size, thread diam, heat treatment, coatings Media selected meets the required performance

Component Design
40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 11 Consider supporting media, housing, end caps The filtration components can perform well in working condition

Manufacturing Process
40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 12 Design lends itself to easy manufacture and economic cost? Produced at low cost of manufacture and high efficiency

Quality Control
40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 13 Determine parameters and frequency of measurement High quality, precision filter components





Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical and etc., giving us a wealth of experience in many areas.



injector filter BIOPSY BAG 40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 16 coffee filter 40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 18 40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 19

Fuel filter



Biopsy bag



Air purifier filter



Coffee filter



Irrigation filter



Mesh disc filter



Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.





Factory Capabilities



weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,



Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons



Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

Filter mesh slitted to be ribbons





40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 22

Filter Mesh Pre Cut Pieces and Shapes



Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.







Filter Mesh Tubes and Tubular Ribbon



Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

    nylon filter mesh weld tube ribbon




mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing



Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.





Mesh Insert Injection Moulded Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.

 custom mesh insert injection moulded filter





Photos of Factory


Share Filter workshops
Warping Weaving Inspection
40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 27
Whashing Heat setting Injection moulding





Transportation



Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

  • Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
  • Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
  • SF EXPRESS usually to Hongkong and Southeast Asia countries.
  • Samples are always  sent via express commonly.

40um - 260um Blood Tubular Filter Diameter 16.2×H52.3mm For Transfusion Set 28





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Which Port You Ship?

Ningbo port.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



What's Your Payment Term ?

T/T, LC, PayPal, and others.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
