70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml

Minimum Order Quantity : 200pcs Price : USD0.10-USD0.70/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPle Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: 70μm Cell Strainer Cap Clear

Detail Information

Product Name: 70μm Cell Strainer Cap Clear Keyword: 70μm Cell Strainer Cap
Filter Medium: Nylon Filter Mesh Micron Rating: 5, 10, 20, 30, 40, 70, 100, 200μm
Cage Material: Polypropylene, Polyethylene, Others Colour: Clear, Blue, Red, Yellow, And Other Colour
Application: Cell Suspension Straining Processing: Mesh Insert Injection Moulding
High Light:

FACS Tube Plastic Filters


Nylon Mesh Cell Strainer Cap


70um Cell Strainer Cap

Product Description

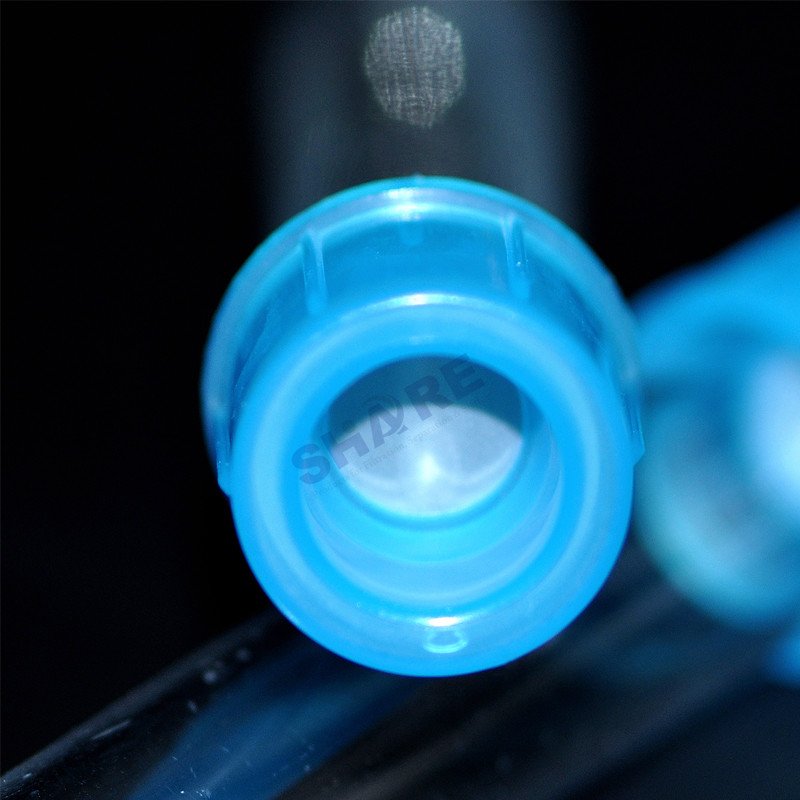

70μm Cell Strainer Cap CLear PP with Nylon Mesh Fit for FACS Tube 3ml 5ml


The cell strainer cap for a FACS tube (fluorescence-activated cell sorting tube) is an accessory that filter out unwanted debris, clumps, cells from the cell suspension before running it through a flow cytometer or FACS machine. These caps typically have a built-in filter mesh that acts as a strainer, allowing the passage of single cells whilekeeping larger particles. They are designed to fit securely onto the top of a FACS tube and provide a convenient way to filter the sample directly into the tube.


Share Filters' cell strainer caps are manufactured from precise nylon filter mesh with evenly spaced mesh pores that built-in the popypropylene(PP) cap. Micron rating available in 5μm, 10μm, 20μm, 30μm, 40μm, 70μm, 100μm, 200µm and can be color-coded for identifying. These caps with strainers fit for diameter φ12mm test tube, for example 12x55mm (3ml), 12x75mm (5ml) tubes.



Features of Share Filters Cell Strainer Cap


  • Fit for diameter φ12 sampling tubes, like φ12×55mm, 3ml capacity
  • For filtration of samples of flow cytometry or mass spectrometry
  • Strainer made of precise nylon filter mesh with evenly spaced mesh pore
  • Wide range of pore sizes of screen available
  • Filter screens in different pore sizes are marked with different colors for easy indentifying
  • Non sterilized in bulk, or pre sterilized and individually wrapped
  • Made in China

       70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 0



Technical Data


Product name: 70μm cell strainer cap Cage material: Polypropylene, polyethylene
Application: Use for dissociating cell suspension Strainer: Nylon filter mesh
Fit for:

12mm sampling tube

Micron rating: 5μm 10μm 20μm 30μm 40μm 70μm 100μm, 200μm, ect
Disposable: Yes Color: Clear, red, yellow, blue, other custom color
Dimension: Inner diam12mm, custom size Package: Plastic bag, master carton



Product Pictures

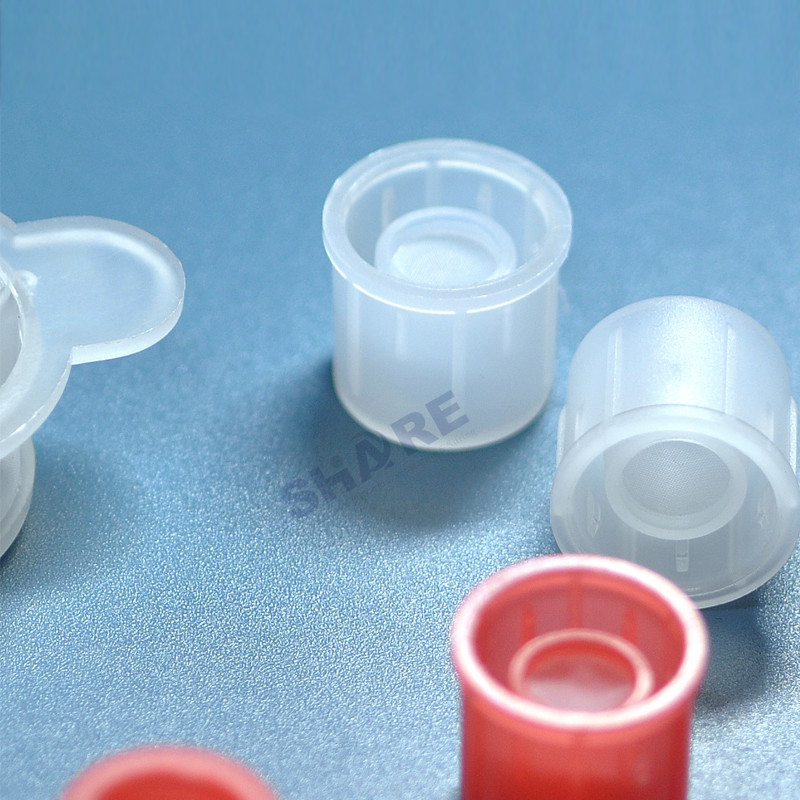

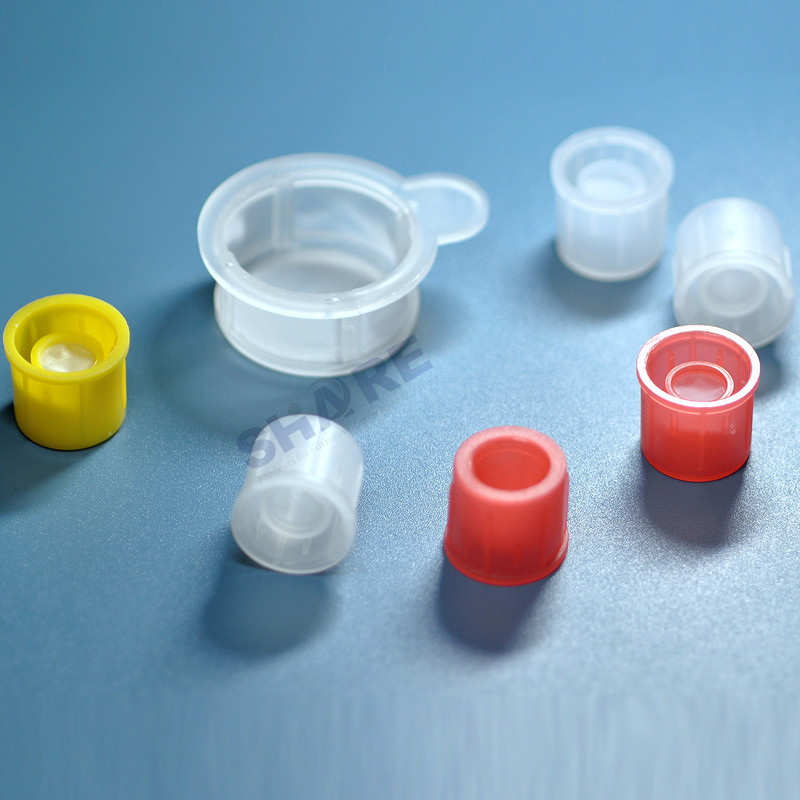

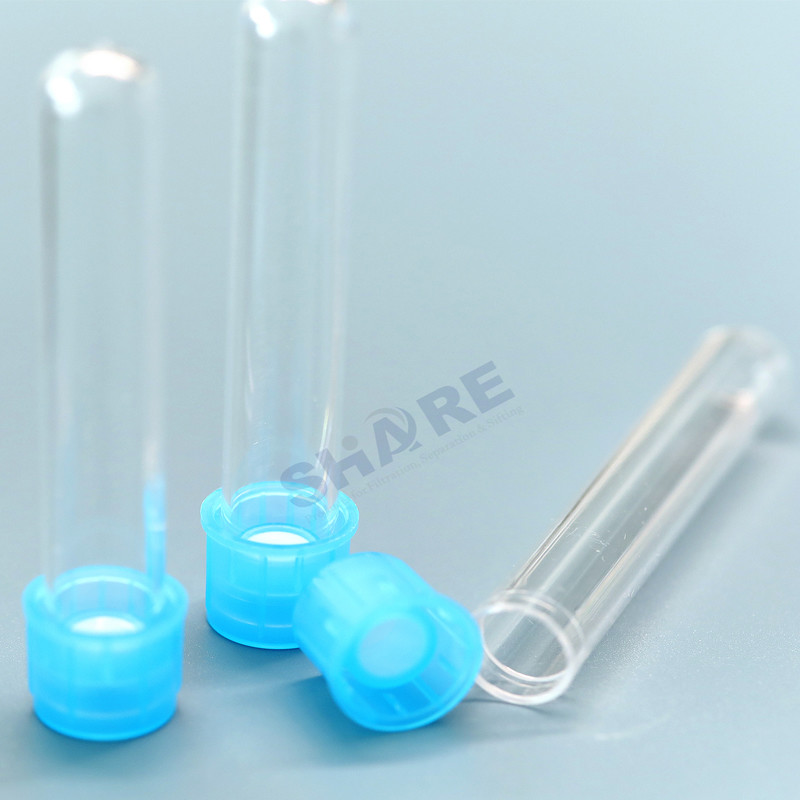

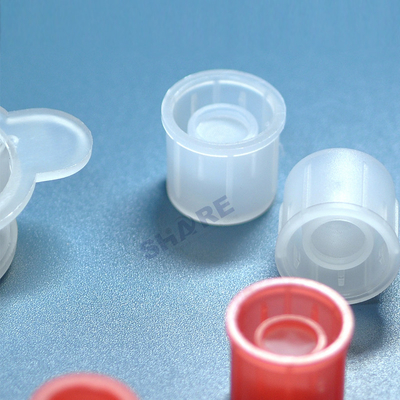

20μm cell strainer cap cell strainer cap

cell strainer cap 20μm cell strainer cap


Cell strainer caps come in different pore sizes, usually ranging from 20 to 200 microns, allowing to choose the appropriate mesh size depending on the size of the cells working with. It is important to select a pore size that will effectively eliminate any unwanted particles while not clogging or impeding the flow of cells.



Nylon Filter Mesh Datasheet for Cell Strainer Cap


Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/43 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/36 100 250 42 60 34 65 35
PA 42/25 120 305 42 42 24 75 42
PA 44/27 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/29 120 305 35 45 33 60 28
PA 55/42 120 305 30 55 40 52 20
PA 40/26 130 330 38 40 25 74 36
PA 42/30 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22
PA 32/20 140 355 38 32 21 68 36
PA 37/26 140 355 35 37 26 65 33
PA 38/28 140 355 30 38 33 53 25
PA 31/21 150 380 38 31 18 68 40
PA 35/27 150 380 30 35 29 57 26
PA 34/26 150 380 30 34 26 50 26
PA 30/25 165 420 30 30 25 59 28
PA 30/19 145 368 38 30 19 64 40
PA 25/21 180 460 30 25 21 60 31
PA 25/15 165 420 38 25 15 75 42
PA 20/16 200 508 30 20 16 65 34
PA 10/4.3 208 530 38 10 4.3 77 53
PA 8/3 220 560 38 8 3 78 56
PA 6/1.7 228 580 38 5 1.7 80 59

This just a part of specifications which commonly used.



Other Medical and Biochemical Filter Components


chamber Liquid Filters 70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 6 cell trainer 70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 8



Share Filters, An OEM Mesh Insert Molded Filters Manufacture From China


As a filter meshes and filters manufacture, Share Filters always find the best solution is to work with our OEM customers to collaborate on their filtration product development projects before the final design prints are completed. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:


Consider Area Factors Outcoming

Filtration Media
70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 9 Select right material, weave type, pore size, thread diam, heat treatment, coatings Media selected meets the required performance

Component Design
70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 10 Consider supporting media, housing, end caps The filtration components can perform well in working condition

Manufacturing Process
70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 11 Design lends itself to easy manufacture and economic cost? Produced at low cost of manufacture and high efficiency

Quality Control
70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 12 Determine parameters and frequency of measurement High quality, precision filter components




What Share Filters Do?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.


We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Factory Capabilities


weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,


Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.



Filter Mesh Slitted in Narrow Ribbons


Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

Filter mesh slitted to be ribbons



70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 15

Filter Mesh Pre Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.




Filter Mesh Tubes and Tubular Ribbon


Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

    nylon filter mesh weld tube ribbon


mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing


Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.



Mesh Insert Injection Moulded Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.

 custom mesh insert injection moulded filter


Application of Share Filters Products


Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical and etc., giving us a wealth of experience in many areas.


injector filter BIOPSY BAG 70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 21 coffee filter 70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 23 70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 24

Fuel filter


Biopsy bag


Air purifier filter


Coffee filter


Irrigation filter


Mesh disc filter


Automotive Laboratory Appliance Food & Beverage Agriculture Power tool



Photos of Factory

Share Filter workshops
Warping Weaving Inspection
70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 26
Whashing Heat setting Injection moulding





Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

  • Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
  • Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
  • SF EXPRESS usually to Hongkong and Southeast Asia countries.
  • Samples are always  sent via express commonly.

70μM Cell Strainer Cap Clear PP With Nylon Mesh Fit For FACS Tube 3ml 5ml 27





Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.


Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.


Which Port You Ship?

Ningbo port.


Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.


When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.


What's Your Payment Term ?

T/T, LC, PayPal, and others.


What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.


What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.


Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.


How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
