20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube

Minimum Order Quantity : 200pcs Price : USD0.10-USD0.70/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPle Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: 20μm Cell Strainer Cap

Detail Information

Product Name: 20μm Cell Strainer Cap Keyword: 20μm Cap Strainer
Filter Medium: Nylon Filter Mesh Micron Rating: 5, 10, 20, 30, 40, 70, 100, 200μm
Cage Material: Polypropylene, Other Colour: Blue, Red, Clear, Yellow, And Other Colour
Application: Cell Separating Processing: Mesh Insert Injection Moulding
High Light:

Flow Cytometry Tube Cell Strainer Cap


Insert Molding Cell Strainer Snap Cap


Cell Strainer Cap With Nylon Screen

Product Description


20μm Small Cell Strainer Cap with Nylon Screen Fit for Flow Cytometry Tube


The cell strainer cap for a FACS tube (fluorescence-activated cell sorting tube) is an accessory that filter out unwanted debris and clumps from the cell suspension before running it through a flow cytometer or FACS machine. These caps typically have a built-in mesh or sieve-like structure that acts as a strainer, allowing the passage of single cells while retaining larger particles. They are designed to fit securely onto the top of a FACS tube and provide a convenient way to filter the sample directly into the tube.


Share Filters' cell strainers are manufactured from precise nylon filter mesh with evenly spaced mesh pores and popypropylene(PP) surport cage. Available in 5μm, 10μm, 20μm, 30μm, 40μm, 70μm, 100μm, 200µm and color-coded mesh variants. These caps with strainers fit for diam 12 test tube, for example 12x75mm (5ml) tubes.



Feature of Share Filters Cell Strainer Cap

  • For filtration of samples of flow cytometry or mass spectrometry
  • Fit for φ12 sampling tubes, like φ12×75mm, 5ml
  • Strainer made of precise nylon filter mesh with evenly spaced mesh pore
  • Wide range of pore sizes of strainer available
  • Filter screens in different pore sizes are marked with different colors for easy indentifying
  • Can be non sterilized in bulk, pre sterilized and individually wrapped
  • Made in China

       20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 0



Technical Data


Product name: 20μm cell strainer cap Cage material: Polypropylene, polyethylene
Application: Use for dissociating cell suspension Strainer: Nylon filter mesh
Fit for: 12×75mm 5ml flow tube Micron rating: 5μm 10μm 20μm 30μm 40μm 70μm 100μm, 200μm, ect
Disposable: Yes Color: Blue, red, yellow, clear, other custom color
Dimension: Inner diam12mm, custom size Package: Plastic bag, master carton

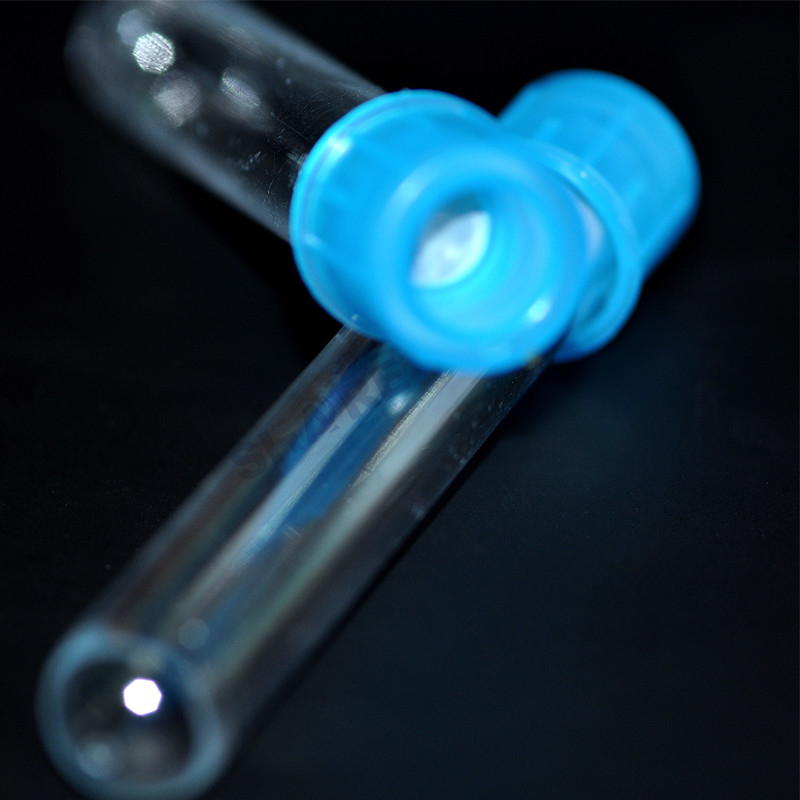

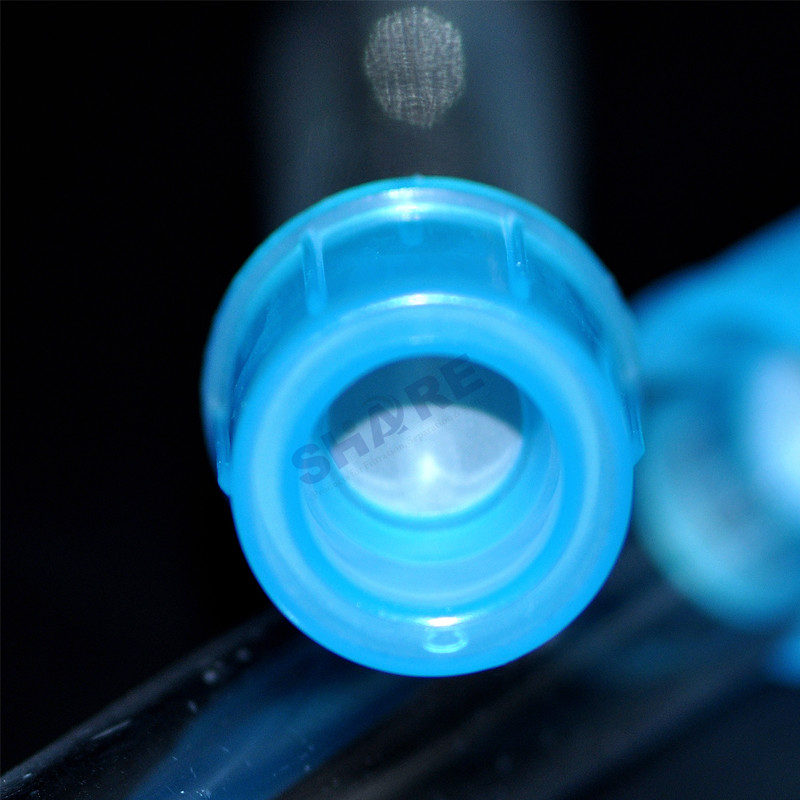

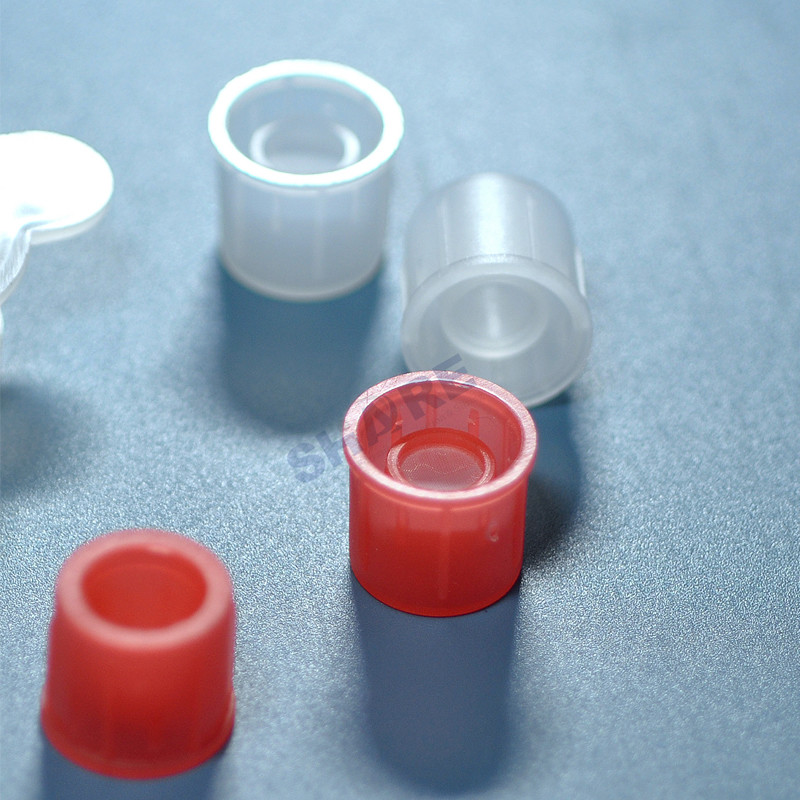

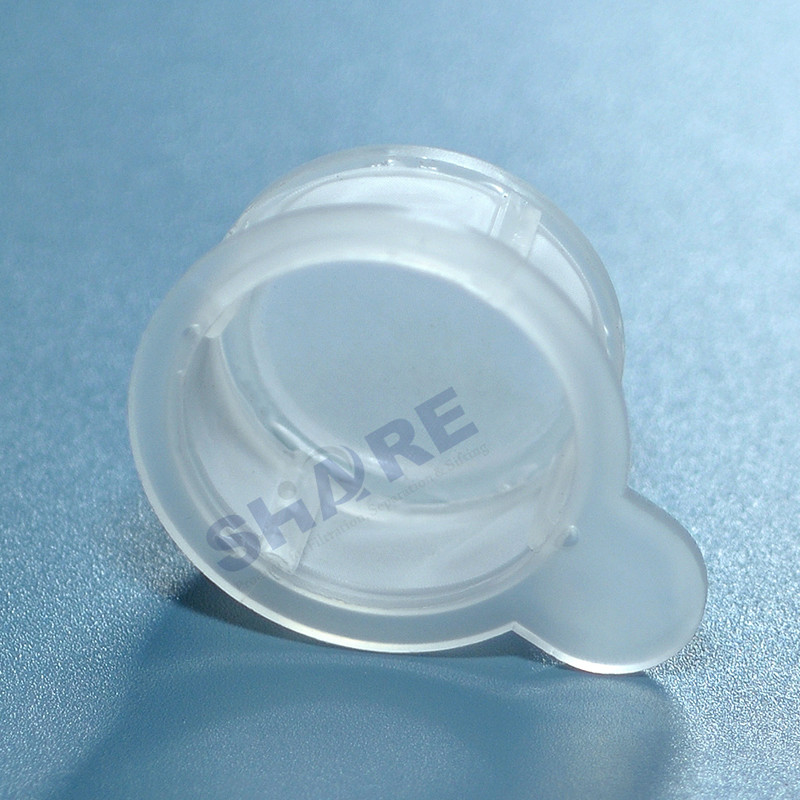

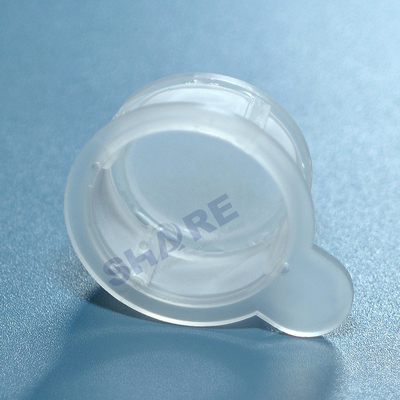

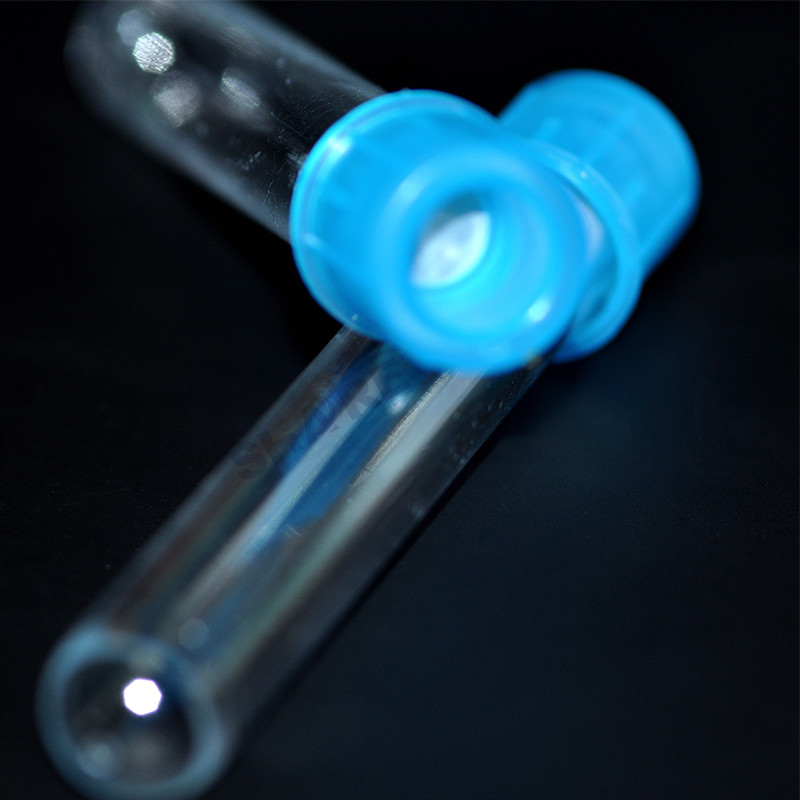

Product Pictures

20μm cell strainer cap 20μm cell strainer cap

cell strainer cap 20μm cell strainer cap


Cell strainer caps come in different pore sizes, usually ranging from 20 to 100 microns, allowing to choose the appropriate mesh size depending on the size of the cells working with. It is important to select a pore size that will effectively eliminate any unwanted particles while not clogging or impeding the flow of cells.



Nylon Filter Mesh Datasheet for Cell Strainer Cap


Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 300/36 20 50 200 300 36 385 173
PA 267/41 24 60 150 267 41 285 117
PA 237/44 28 70 120 237 44 215 87
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/43 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/36 100 250 42 60 34 65 35
PA 42/25 120 305 42 42 24 75 42
PA 44/27 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/29 120 305 35 45 33 60 28
PA 55/42 120 305 30 55 40 52 20
PA 40/26 130 330 38 40 25 74 36
PA 42/30 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22
PA 32/20 140 355 38 32 21 68 36
PA 37/26 140 355 35 37 26 65 33
PA 38/28 140 355 30 38 33 53 25
PA 31/21 150 380 38 31 18 68 40
PA 35/27 150 380 30 35 29 57 26
PA 34/26 150 380 30 34 26 50 26
PA 30/25 165 420 30 30 25 59 28
PA 30/19 145 368 38 30 19 64 40
PA 25/21 180 460 30 25 21 60 31
PA 25/15 165 420 38 25 15 75 42
PA 20/16 200 508 30 20 16 65 34
PA 10/4.3 208 530 38 10 4.3 77 53
PA 8/3 220 560 38 8 3 78 56
PA 6/1.7 228 580 38 5 1.7 80 59

This just a part of specifications which commonly used.



Other Medical and Biochemical Filter Components


chamber Liquid Filters 20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 6 cell trainer 20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 8



What Share Filters Do?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.


We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Factory Capabilities


weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,


Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.



Filter Mesh Slitted in Narrow Ribbons


Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

Filter mesh slitted to be ribbons



20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 11

Filter Mesh Pre Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.




Filter Mesh Tubes and Tubular Ribbon


Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

    nylon filter mesh weld tube ribbon


mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing


Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.



Mesh Insert Injection Moulded Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.

 custom mesh insert injection moulded filter


Application of Share Filters Products


Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


injector filter BIOPSY BAG 20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 17 coffee filter 20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 19 20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 20

Fuel filter


Biopsy bag


Air purifier filter


Coffee filter


Irrigation filter


Mesh disc filter


Automotive Laboratory Appliance Food & Beverage Agriculture Power tool



Photos of Factory

Share Filter workshops
Warping Weaving Inspection
20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 22
Whashing Heat setting Injection moulding





Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

  • Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
  • Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
  • SF EXPRESS usually to Hongkong and Southeast Asia countries.
  • Samples are always  sent via express commonly.

20um Small Cell Strainer Cap With Nylon Screen Fit For Flow Cytometry Tube 23





Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.


Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.


Which Port You Ship?

Ningbo port.


Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.


When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.


What's Your Payment Term ?

T/T, LC, PayPal, and others.


What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.


What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.


Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.


How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
