40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS

Minimum Order Quantity : 200pcs Price : USD0.10-USD0.60/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPle Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: 40μm 70μm 100μm Cell Strainer

Detail Information

Product Name: 40μm 70μm 100μm Cell Strainer Keyword: Cell Strainer
Filter Medium: Nylon Mesh Micron Rating: 40, 70, 100μm, Other Pore Sizes Available
Cage Material: Polypropylene, PA Colour: Green, Orange, Purple, Transparent And Other Color
Application: Cell Suspension Straining
High Light:

FACS Cell Separation Strainer Cap


100um Cell Strainer Cap

Product Description


40μm 70μm 100μm Cell Strainer Nylon Mesh for Cell Separation FACS


Cell Strainers are intended as a fast, easy and simple alternative to traditional filtration when dissociating stem cells and other tissue-derived primary cells. The exclusive pestle design improves manipulation of material in the strainer during operation. They yield consistently uniform single-cell suspensions that are ideal for preparation of samples for flow cytometry, Fluorescence-Activated Cell Sorting (FACS), and other applications related to cell separation.

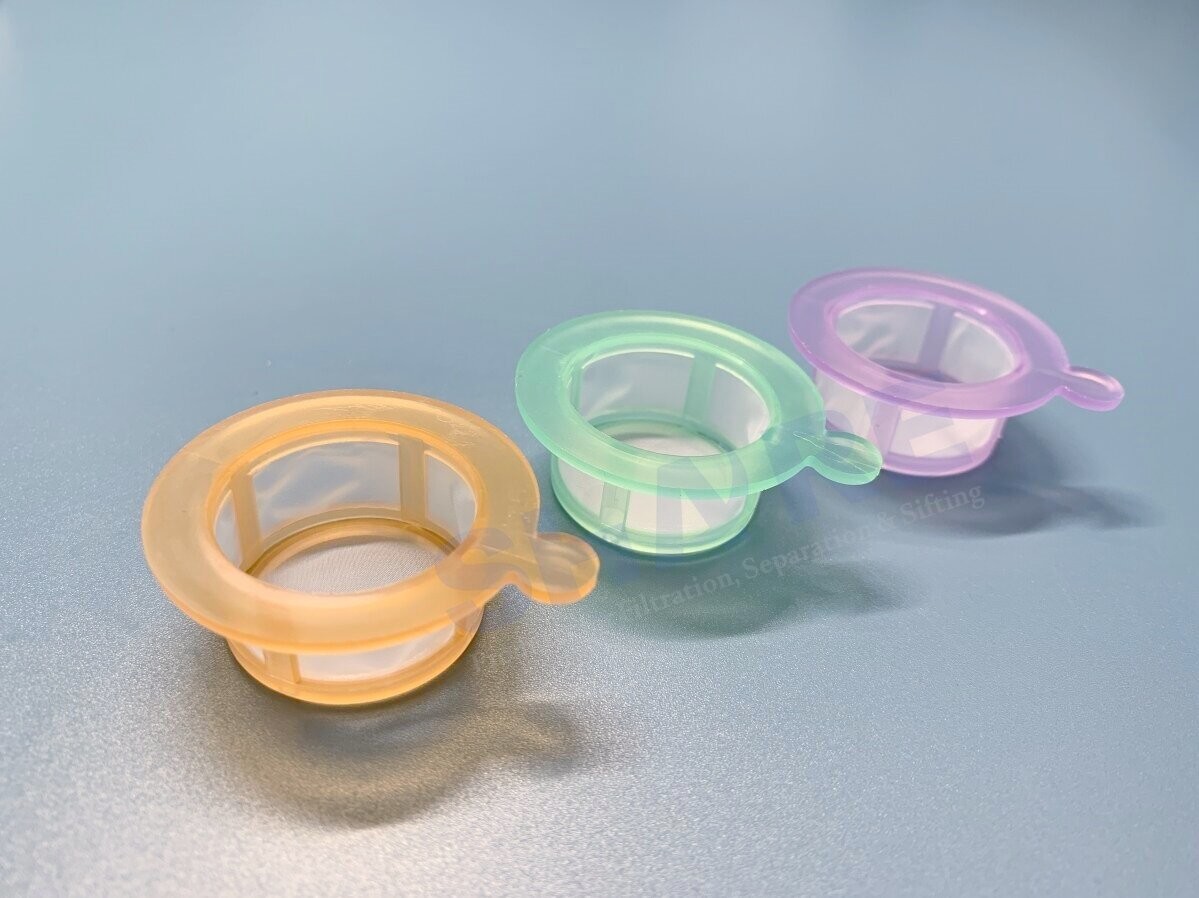

Share Filters' cell strainers are manufactured from precise nylon mesh with evenly spaced mesh pores and popypropylene(PP) surport cage. Available in 40 µm, 70 µm, and 100 µm color-coded mesh variants. Cell strainers are often sterilized before use to prevent contamination of cell cultures. Cell strainers can be pre-sterilized and individually packaged, while others may be sterilized in bulk.



Feature of Share Filters' Cell Strainer

  • Filter screens in different pore sizes are marked with different colors for easy indentifying;
  • The mesh size is uniformly distributed to consistently obtain uniform single-cell suspensions from tissues;
  • The extended edge at the top facilitates aseptic clamping operations;
  • Compatible for use with 50mLcentrifuge tubes;
  • Can be sterilized by irradiation, and individually packaged for flexible use and to avoid contamination;
  • DNase and RNase Free, Endotoxin Free.
          40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 0



Technical Data


Product name: Cell strainer Cage material: Polypropylene
Application: Use for dissociating stem cells and other primary cells Strainer: Nylon filter mesh
Fit for: 50ml centrifuge tube Micron rating: 40μm 70μm 100μm, ect
Disposable: Yes Color: Purple, orange, green, transparent, other custom color
Dimension: 31.5× 14.5mm, custom size Package: Plastic bag, master carton



Product Pictures

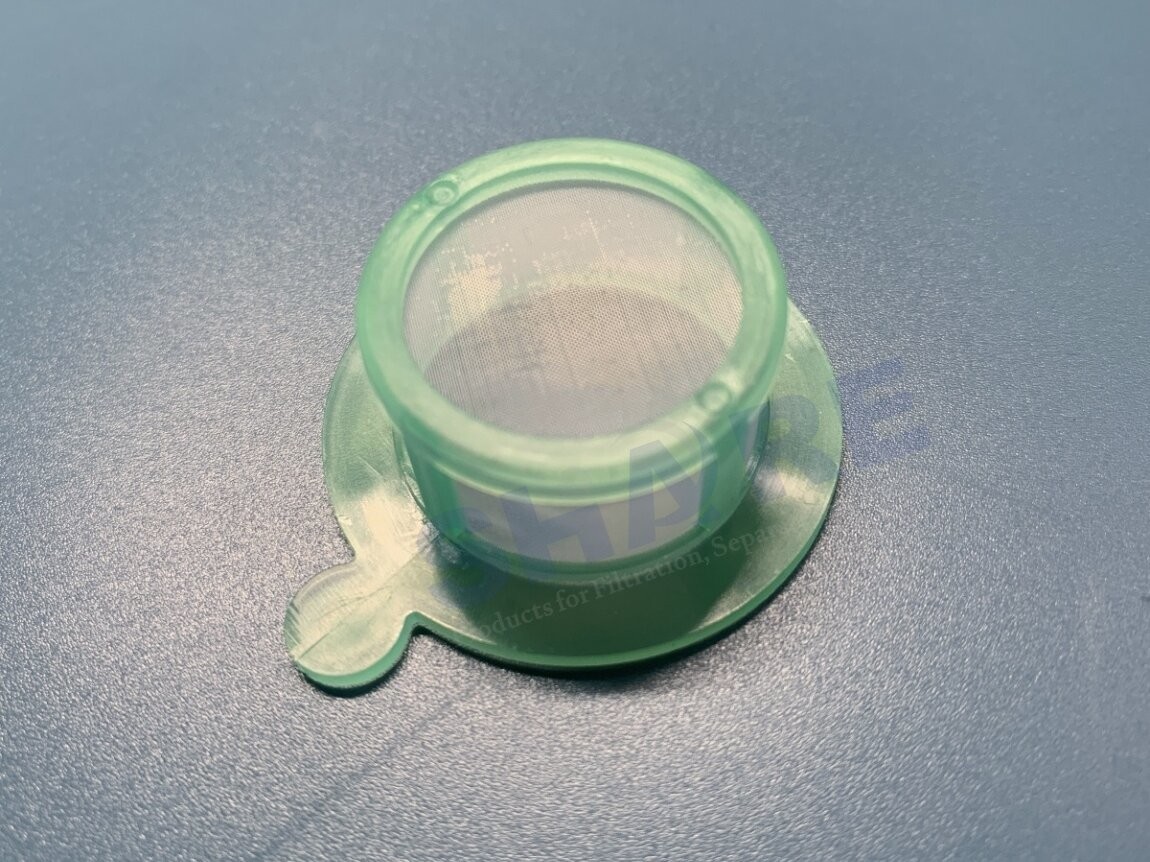

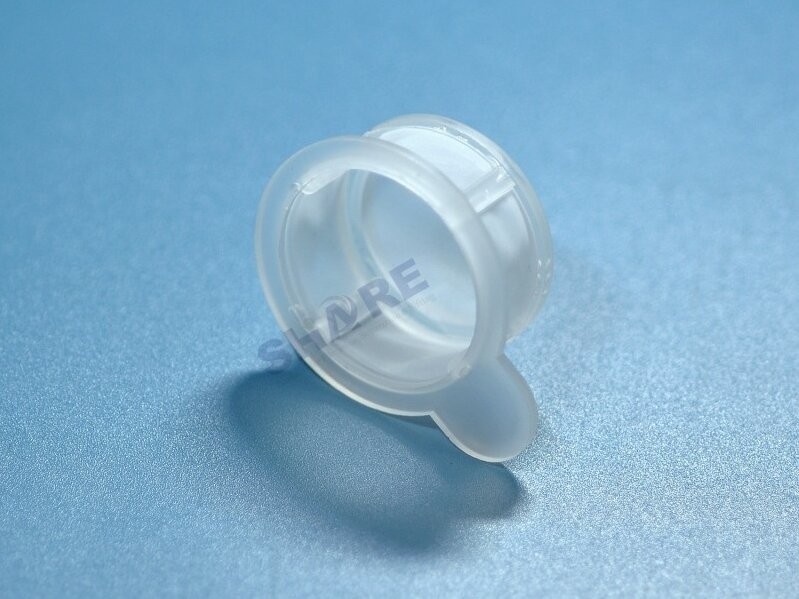

cell strainer 70 μm cell strainer

40 μm cell strainer cell strainer


Choosing the right cell strainer depends on what size test or conical tube that the sample is in. Once this is determined, the cell strainer cap fits right on the top of the tube tightly, so that all the material in the tube must pass through the strainer.



Nylon Filter Mesh Datasheet for Cell Strainer


Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/36 100 250 42 60 34 65 35
PA 42/25 120 305 42 42 24 75 42
PA 44/27 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/29 120 305 35 45 33 60 28
PA 55/42 120 305 30 55 40 52 20
PA 40/26 130 330 38 40 25 74 36
PA 42/30 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22



Other Medical and Biochemical Filter Components


40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 5 40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 6 40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 7 40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 8



What Share Filters Do?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.


We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Factory Capabilities


weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,


Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.



Filter Mesh Slitted in Narrow Ribbons


Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

Filter mesh slitted to be ribbons



40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 11

Filter Mesh Pre Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.




Filter Mesh Tubes and Tubular Ribbon


Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

    nylon filter mesh weld tube ribbon


mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing


Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.



Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

      mesh filter bag


custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.



Application of Share Filters Products


Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


injector filter BIOPSY BAG 40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 18 coffee filter 40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 20 40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 21

Fuel filter


Biopsy bag


Air purifier filter


Coffee filter


Irrigation filter


Mesh disc filter


Automotive Laboratory Appliance Food & Beverage Agriculture Power tool



Photos of Factory

Share Filter workshops
Warping Weaving Inspection
40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 23
Whashing Heat setting Injection moulding





Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

  • Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
  • Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
  • SF EXPRESS usually to Hongkong and Southeast Asia countries.
  • Samples are always  sent via express commonly.

40um 70um 100um Cell Strainer Cap With Nylon Mesh For Cell Separation FACS 24





Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.


Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.


Which Port You Ship?

Ningbo port.


Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.


When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.


What's Your Payment Term ?

T/T, LC, PayPal, and others.


What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.


What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.


Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.


How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
