30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter

Minimum Order Quantity : 500pcs Price : USD0.70-USD1.50/pcs
Packaging Details : Caron, Polybag Delivery Time : 7-20days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Distillers inline filter screen

Detail Information

Product Name: Distillers Inline Filter Stainless Steel Screen Keywords: Distillers Inline Filter Screen
Support Cage: ABS, PA, PE, PP, Etc. Filter Screen: Stainless Steel Mesh, PET Mesh
Mesh Count: From 30 Mesh To 150 Mesh Process: Mesh Insert Injection Moulding
Application: Professional Distillers Inline Filter
High Light:

150 Mesh Stainless Steel Screen

,

Distiller Inline Filter Stainless Steel Screen

Product Description



30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter



The stainless steel screen is a common choice for professional distiller as an inline filter. Stainless steel screens are durable, resistant to corrosion, and can effectively filter out solids and particles from liquids. When selecting the screen for the professional distiller, there are a few factors to consider: mesh size, material, screen diameter and length, filtration efficiency.



Share Filters' distiller filter screen consists of a stainless steel filter mesh held in a polymer ( ABS, PA, PE, PP) by insert injection moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms. Thanks to advance processing equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit customers' needs, as well as, offering any additional advice or service along the way, from filter media selection to final products.





Technical Data



Product name: Stainless steel screen Support cage material: ABS, PA, PP, PE, etc.
Application:

Distiller inline filter

Filter media: Stainless steel mesh, polyester mesh
Dimension: Customized Mesh number: 30 50 80 100 mesh, customized
Process: Mesh insert injection moulding Color: Customize
HS code: 84219910 Package: Plastic bag, master carton

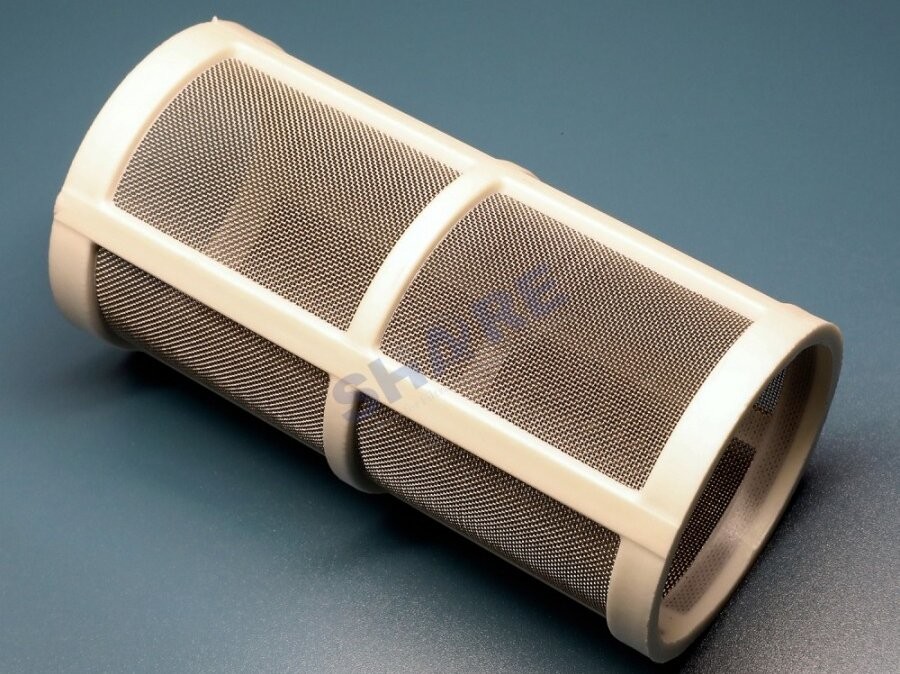

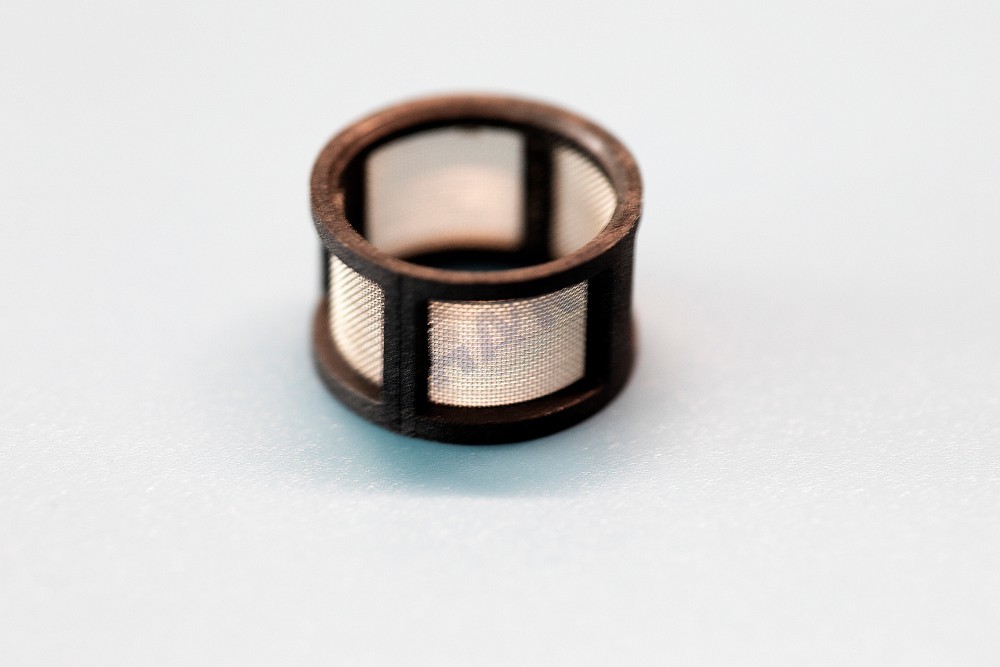

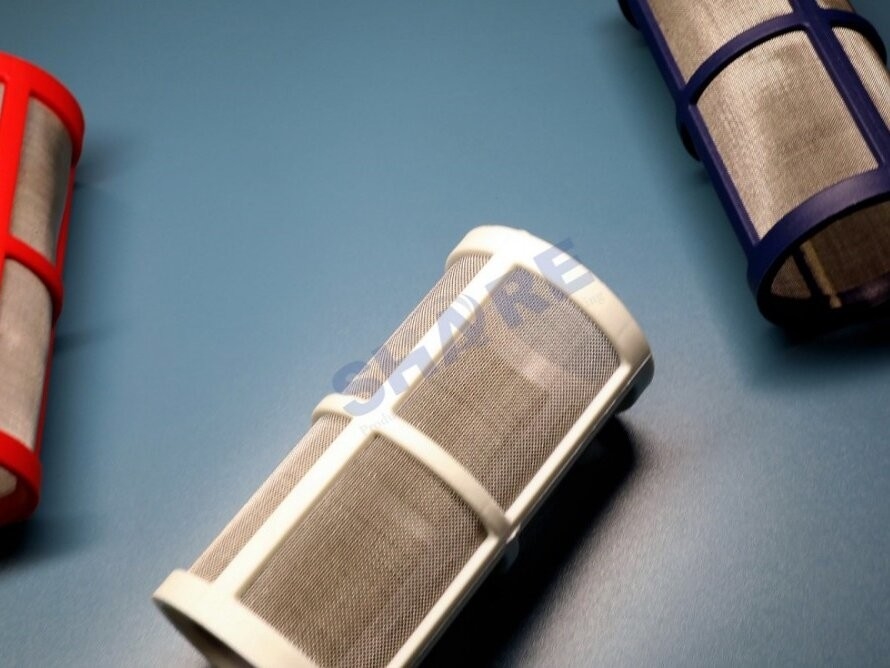

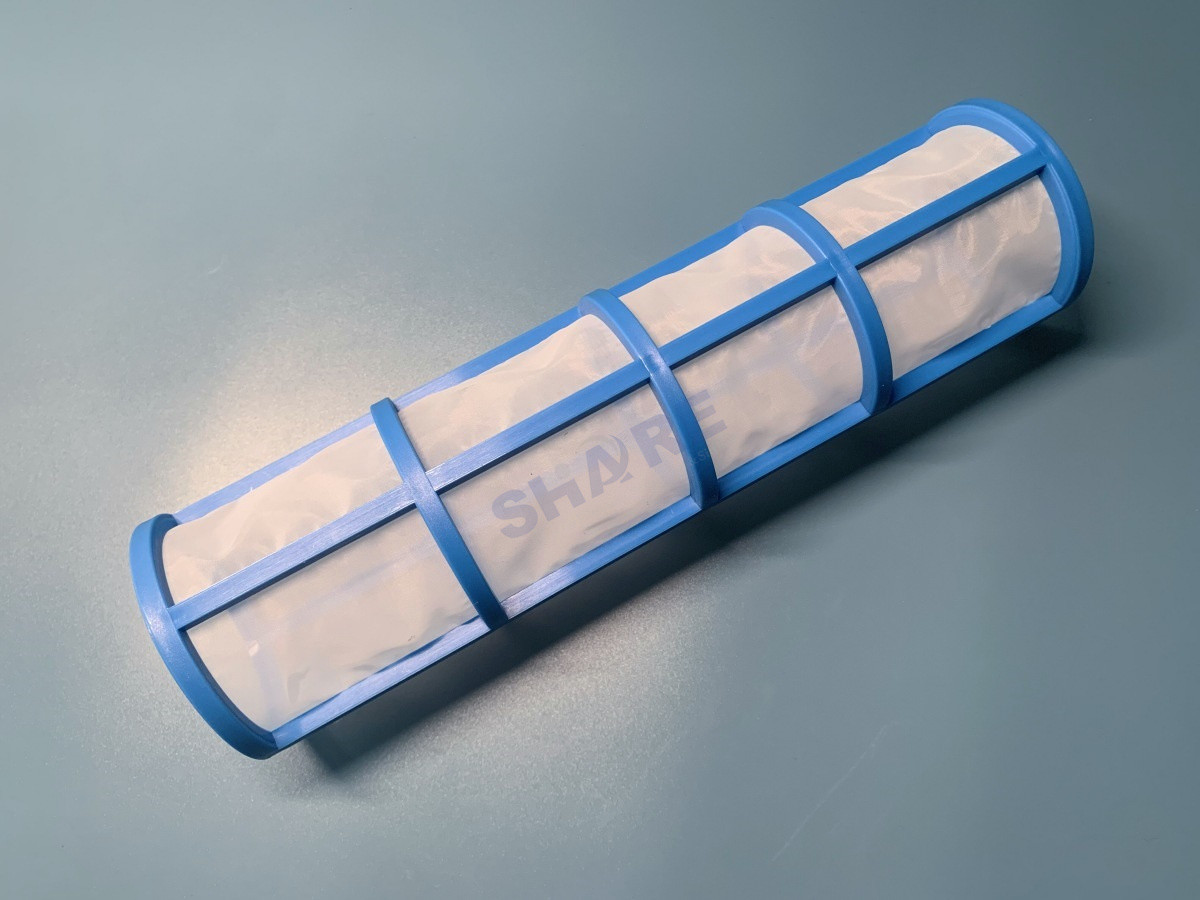

Product Pictures



 30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 0 moulded mesh filter water filter

 tubular filter moulded filter disc filter





 The Advantage of Share Filters Custom Moulded Plastic Filter



  • Quality filter media includes nylon mesh, polyester mesh, PP mesh, stainless steel mesh, brass mesh, felt, suitable for different working condition



  • Full range of precise micron rating from 3μm to 4400 μm for option



  • All the production processes are carried in-house, which keep the quality under control



  • We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions



  • We make serial injection moulding tools, assembly preparations and procedures ourselves



Stainless Steel Filter Mesh Specifications for Distiller Filter



Mesh Count (per inch) Thread Diameter (microns) Mesh Opening Open Area (%) Weight (IB) /100 square foot
  inch mm inch mm
30x30 0.013 0.0330 0.0203 0.52 37.1 34.8
40x40 0.010 0.254 0.0150 0.38 36.0 27.6
50x50 0.009 0.229 0.0110 0.28 30.3 28.4
50x50 0.008 0.203 0.0120 0.31 36.0 22.1
60x60 0.0075 0.191 0.0092 0.23 30.5 23.7
60x60 0.007 0.178 0.0097 0.25 33.9 20.4
70x70 0.0065 0.165 0.0078 0.20 29.8 20.8
80x80 0.0065 0.165 0.0060 0.15 23.0 23.2
80x80 0.0055 0.140 0.0070 0.18 31.4 16.9
90x90 0.005 0.127 0.0061 0.16 30.1 15.8
100x100 0.0045 0.114 0.0055 0.14 30.3 14.2
100x100 0.004 0.102 0.0060 0.15 36.0 11.0
100x100 0.0035 0.089 0.0065 0.17 42.3 8.3
110x110 0.0040 0.1016 0.0051 0.1295 30.7 12.4
120x120 0.0037 0.0940 0.0064 0.1168 30.7 11.6
150x150 0.0026 0.0660 0.0041 0.1041 37.4 7.1

This just a part of specifications which common used.

Mesh Specification Values



  • Mesh count: number of pores per cm/ inch



  • Thread diameter: is measured on the thread before weaving(mm)



  • Mesh opening: distance between threads(mm)



  • Open area: open area percentage (%)



30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 6





Properties of Polymers



Material PA6 PA66 PET PP PEEK
Specific gravity (g/mm²) 1.14 1.14 1.38 0.91 1.30
Tensile strength(daN/mm²) 41-67 41-67 45-75 35-62 33-75
Relative strength at wet conditions(%) 89-90 85-90 100 100 100
Elongation at break (%) 20-35 20-35 15-30 20-50 20-40
Moisture absorption at 20°C / 65% r.h. (%) 3.5-4 3.5-4 0.4 0 0.1
Melting point (°C) 210-220 260-268 250-260 165-175 334
Softening point (°C) - - 220-240 140-155 300
Working temperature dry (°C) - - -75 to +150 -30 to +90 up to 250
Stability to light poor poor poor poor good
Atmospheric influence - - none none none
Abrasion resistance good good limited limited good
Acid resistance limited-poor limited-poor good good good
Alkaline resistance good good limited good good
Stability to solvents limited limited good good good
Hydrolysis resistance good good limited good good





An OEM Mesh Insert Molded Filters Manufacture From China



As a filter meshes and filters manufacture, Share Filters always find the best solution is to work with our OEM customers to collaborate on their filtration product development projects before the final design prints are completed. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:



Consider Area

Factors

Outcoming

Filtration Media
30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 7 Select right material, weave type, pore size, thread diam, heat treatment, coatings Media selected meets the required performance

Component Design
30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 8 Consider supporting media, housing, end caps The filtration components can perform well in working condition

Manufacturing Process
30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 9 Design lends itself to easy manufacture and economic cost? Produced at low cost of manufacture and high efficiency

Quality Control
30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 10 Determine parameters and frequency of measurement High quality, precision filter components





Other Example of Moulded Filters



 proofer cup 30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 12  tubular filter  30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 14





What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 15



Factory Capabilities



weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,



Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of  filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons



Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

      Filter mesh slitted to be ribbons





30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 18

Filter Mesh Pre Cut Pieces and Shapes



Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.







 Filter Mesh Tubes and Tubular Ribbon



Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon




mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing



Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.


Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

    mesh filter bag




custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.






Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Automotive Laboratory Healthcare Appliance Beverage Agriculture
30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 23 30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 24 Transfusion filter 30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 26 30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 27 water strainer

Fuel filter

Biopsy bag

Blood filter

Dryer filter

Coffee filter

Water strainer





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!




Photos of Factory


Share Filter workshops
Warping Weaving Inspection
30-150 Mesh Stainless Steel Screen For Professional Distiller Inline Filter 30
Whashing Heat setting Injection moulding





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.



What's Your Payment Term ?

T/T and LC and more.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
