OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter

Minimum Order Quantity : 500pcs Price : USD0.70-USD1.50/pcs
Packaging Details : Caron, Polybag Delivery Time : 7-20days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 5000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: 80 Mesh Wire Screen Cartridge For Irrigation Sprayer

Detail Information

Product Name: 80 Mesh Wire Screen Cartridge For Irrigation Sprayer Keywords: Irrigation Sprayer Screen 80 Mesh
Support Cage: ABS, PA, PE, PP, Etc. Filter Screen: Stainless Steel Mesh, PET Mesh, Nylon Mesh
Mesh Count: From 80 Mesh To 150 Mesh Process: Mesh Insert Injection Moulding
Application: Irrigation Sprayer Filter
High Light:

PA Insert Molding Plastic Filters


Stainless Steel Screen 150 Mesh


Irrigation Sprayer Filter Stainless Steel Screen

Product Description

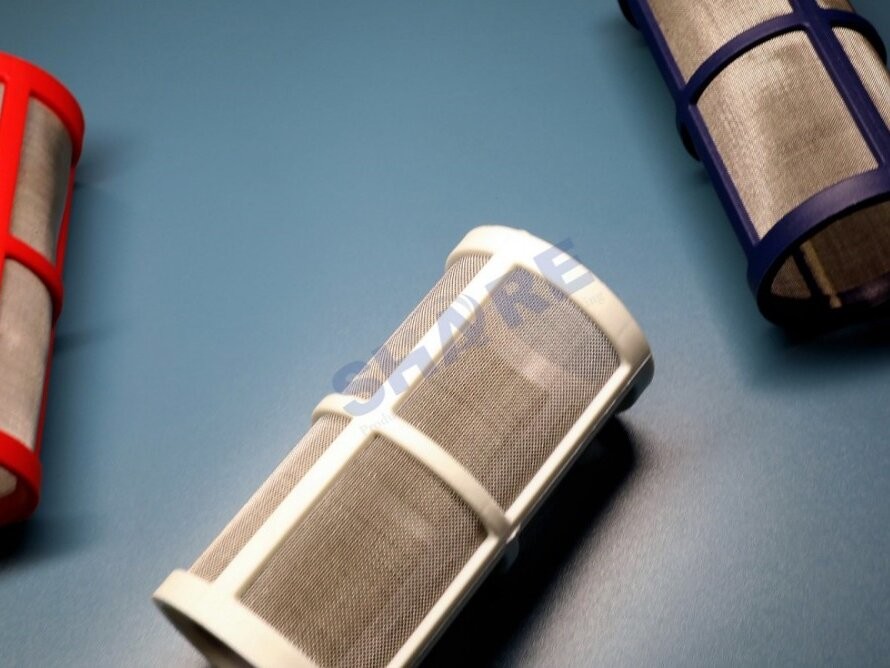

OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter


The cartridge screen for an irrigation sprayer filter is a common component used to prevent debris and particles from entering the irrigtion sprayer system, ensuring the smooth flow of water and protecting the sprayer from clogging. It acts as a filter, allowing water to pass through while trapping larger particles. When selecting a screen for an irrigation sprayer filter, there are a few factors to consider: mesh size, material, screen diameter and length, filtration efficiency.

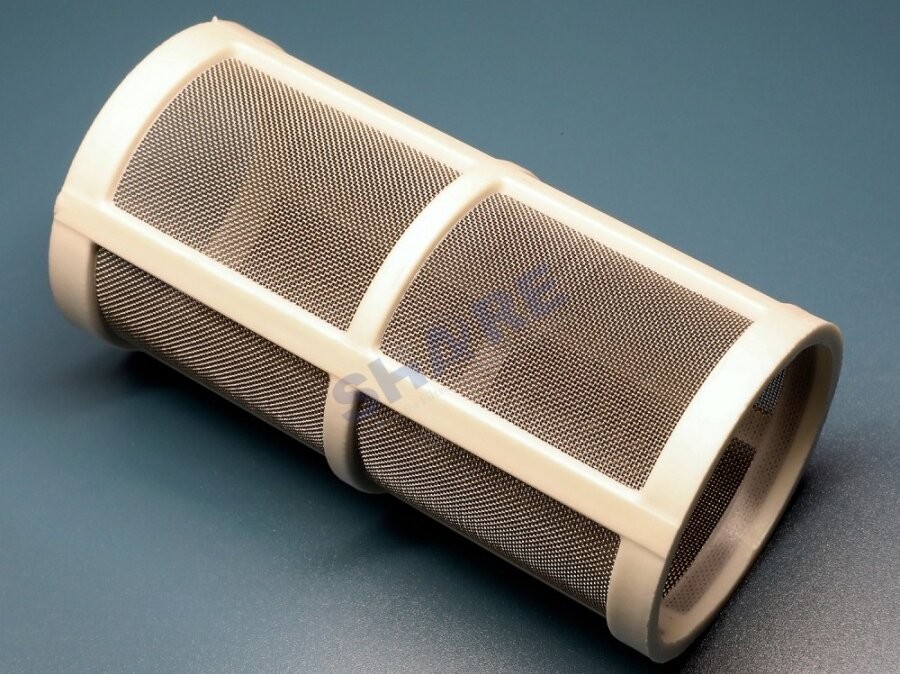

          OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 0


Share Filters' irrigation sprayer cartridge screen consists of a stainless steel filter mesh held in a polymer ( ABS, PA, PE, PP) by insert injection moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms. Thanks to advance processing equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way, from tool making to final products.



Technical Data


Product name: 150 mesh wire screen Support cage material: ABS, PA, PP, PE, etc.

Irrigation sprayer filter

Filter media: stainless steel mesh, polyester mesh, nylon mesh
Dimension: Customized Mesh number: From 80 mesh to 150 mesh
Process: Mesh insert injection moulding Color: Customize
HS code: 84219910 Package: Plastic bag, master carton


Product Pictures


 moulded mesh filter stainless steel screen water filter

 disc filter tubular filter moulded filter



 How To Select a Mesh Screen for an Irrigation Sprayer Filter ?


  • Mesh Size: The mesh size refers to the number of openings per linear inch in the screen. It determines the size of particles that can pass through the screen. Choose a mesh size that suits the specific requirements.


  • Material: Wire screens are available in various materials, including stainless steel, brass, and nylon. Stainless steel screens are durable and resistant to corrosion, making them a popular choice.


  • Screen Diameter and Length: Consider the diameter and length of the screen to ensure it fits the irrigation sprayer's filter housing properly.


  • Filtration Efficiency: The filtration efficiency refers to the screen's ability to remove particles of a specific size. Some screens have higher filtration efficiency, which means they can effectively remove smaller particles.

Stainless Steel Filter Mesh Specifications for Irrigation Sprayer Filter


Mesh Count (per inch) Thread Diameter (microns) Mesh Opening Open Area (%) Weight (IB) /100 square foot
  inch mm inch mm
40x40 0.010 0.254 0.0150 0.38 36.0 27.6
50x50 0.009 0.229 0.0110 0.28 30.3 28.4
50x50 0.008 0.203 0.0120 0.31 36.0 22.1
60x60 0.0075 0.191 0.0092 0.23 30.5 23.7
60x60 0.007 0.178 0.0097 0.25 33.9 20.4
70x70 0.0065 0.165 0.0078 0.20 29.8 20.8
80x80 0.0065 0.165 0.0060 0.15 23.0 23.2
80x80 0.0055 0.140 0.0070 0.18 31.4 16.9
90x90 0.005 0.127 0.0061 0.16 30.1 15.8
100x100 0.0045 0.114 0.0055 0.14 30.3 14.2
100x100 0.004 0.102 0.0060 0.15 36.0 11.0
100x100 0.0035 0.089 0.0065 0.17 42.3 8.3
110x110 0.0040 0.1016 0.0051 0.1295 30.7 12.4
120x120 0.0037 0.0940 0.0064 0.1168 30.7 11.6
150x150 0.0026 0.0660 0.0041 0.1041 37.4 7.1
160x160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180x180 0.0023 0.0584 0.0033 0.0838 34.7 6.70
200x200 0.0021 0.0533 0.0029 0.0737 33.6 6.2

This just a part of specifications which common used.

Mesh Specification Values


  • Mesh count: number of pores per cm/ inch


  • Thread diameter: is measured on the thread before weaving(mm)


  • Mesh opening: distance between threads(mm)


  • Open area: open area percentage (%)


OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 7



An OEM Mesh Insert Molded Filters Manufacture From China

As a filter meshes and filters manufacture, Share Filters always find the best solution is to work with our OEM customers to collaborate on their filtration product development projects before the final design prints are completed. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:


Consider Area



Filtration Media
OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 8 Select right material, weave, pore, thread diam, heat treatment, coatings Media selected meets the required performance

Component Design
OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 9 Consider supporting media, housing, end caps The filtration components can perform well in working condition

Manufacturing Process
OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 10 Design lends itself to easy manufacture and economic cost? Produced at low cost of manufacture and high efficiency

Quality Control
OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 11 Determine parameters and frequency of measurement High quality, precision filter components



Other Example of Moulded Filters


 proofer cup OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 13  tubular filter  OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 15



What Share Filters Do?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.


We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.


OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 16


Factory Capabilities


weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,


Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of  filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.



Filter Mesh Slitted in Narrow Ribbons


Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

      Filter mesh slitted to be ribbons



OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 19

Filter Mesh Pre Cut Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.




 Filter Mesh Tubes and Tubular Ribbon


Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon


mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing


Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.



Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

    mesh filter bag


custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters


Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.


Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.



Application of Share Filters Products


Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


Automotive Laboratory Healthcare Appliance Beverage Agriculture
OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 24 OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 25 Transfusion filter OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 27 OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 28 water strainer

Fuel filter

Biopsy bag

Blood filter

Dryer filter

Coffee filter

Water strainer



Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!


Photos of Factory

Share Filter workshops
Warping Weaving Inspection
OEM 150 Mesh Stainless Steel Screen For Irrigation Sprayer Filter 31
Whashing Heat setting Injection moulding





Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.


Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.


Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.


When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.


What's Your Payment Term ?

T/T and LC and more.


What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.


What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.


Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.


How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
