Drinking Fountain Inline Filter Part Custom Order Mesh Insert Plastic Molded Filters
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 500pcs | Price : | USD0.70-USD1.50/pcs |
|---|---|---|---|
| Packaging Details : | Caron, Polybag | Delivery Time : | 7-20days |
| Payment Terms : | T/T, L/C, D/P, Western Union, PayPal | Supply Ability : | 5000pcs/day |
| Place of Origin: | China | Brand Name: | Share Filters |
|---|---|---|---|
| Certification: | RoHS REACH | Model Number: | Pressure Washer Filter 100 Mesh |
|
Detail Information |
|||
| Product Name: | 100 Mesh High Pressure Washer Screen | Keywords: | 100 Mesh Stainless Steel Screen |
|---|---|---|---|
| Support Cage: | ABS, PA, PE, PP, Etc. | Filter Screen: | Stainless Steel Mesh, Nylon Mesh, PET Mesh, |
| Opening: | From 100 μm To 600 μm | Process: | Mesh Insert Injection Moulding |
| Application: | High Pressure Washer | ||
| High Light: | Pressure Washer Insert Molding Plastic Filters,Stainless Steel Screen Filter 100 Mesh,Insert Molding Water Pump Filter |
||
Product Description
Water Pump Filter 100 Mesh Stainless Steel Screen For High Pressure Washer
The high pressure washer is a powerful tool used for cleaning various surfaces, and it typically includes a stainless steel screen or sythetic mesh filter to protect the pump from debris and prevent clogging. The stainless steel screen acts as a barrier, allowing water to pass through while capturing larger particles and contaminants. The screen usually has a specific mesh size (from 40 mesh to 200 mesh). The inline screen is suitable for for garden hoses, pressure washers and RV, which can effectively filter impurities and increase the service life of water equipment.
|
|
Share Filters' high-pressure washer screen consists of a stainless steel filter mesh held in a polymer ( ABS, PA, PE, PP) by insert injection moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms. Thanks to advance processing equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way, from tool making to final products.
Technical Data
| Product name: | OEM 100 mesh stainless steel strainer | Support cage material: | ABS, PA, PP, PE, etc. |
| Application: |
Garden Hose High Pressure Washer |
Filter media: | Stainless steel mesh, nylon mesh, PET mesh |
| Dimension: | φ4.2x8.3cm, customized | Mesh count: | 32 mesh - 200 mesh |
| Process: | Mesh insert injection moulding | Color: | Customize |
| HS code: | 84219910 | Package: | Plastic bag, master carton |

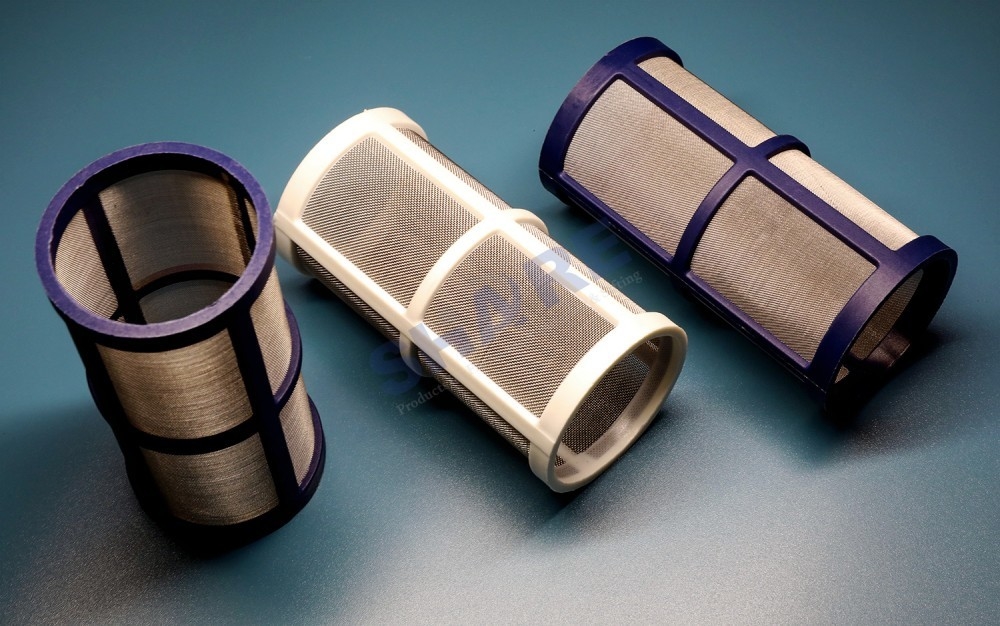

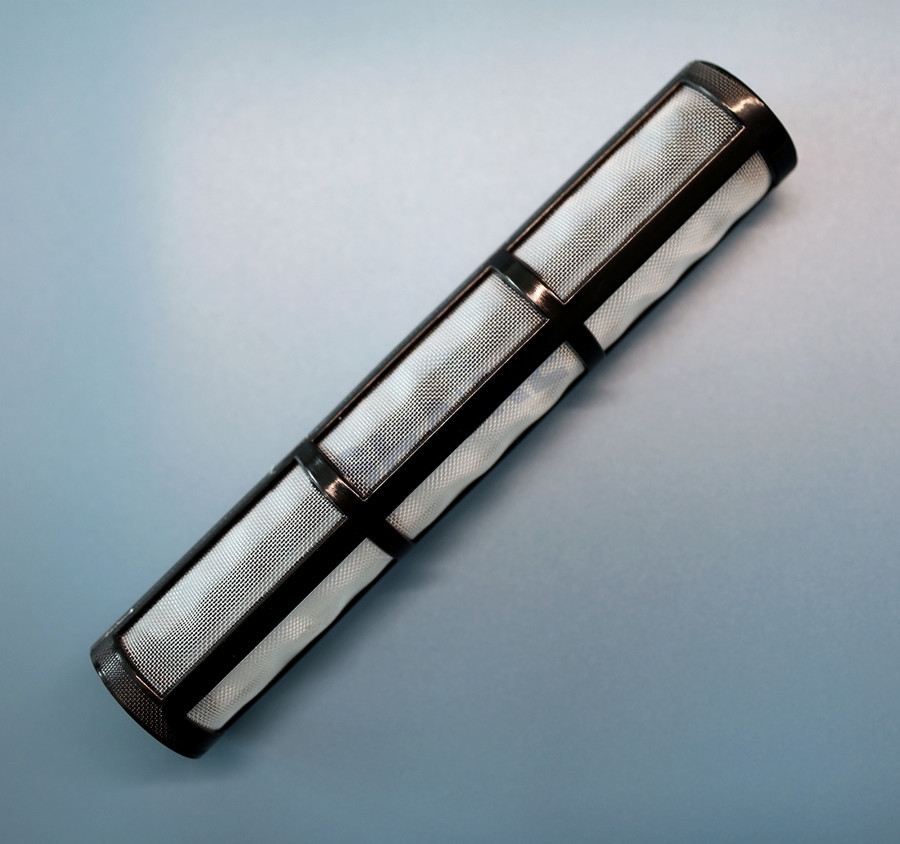

Product Pictures
|
How To Select the Right Filter Mesh?
|
Benefits of Injection Moulding Filter
|
Stainless Steel Filter Mesh Specifications for Pressure Washer Screen
|
Mesh Count (per inch) |
Thread Diameter (microns) |
Mesh Opening |
Open Area (%) |
Weight (IB) /100 square foot |
||
|
|
inch |
mm |
inch |
mm |
|
|
|
20x20 |
0.016 |
0.406 |
0.0340 |
0.86 |
46.2 |
34.4 |
|
24x24 |
0.014 |
0.356 |
0.0277 |
0.70 |
44.2 |
31.8 |
|
30x30 |
0.013 |
0.330 |
0.0203 |
0.52 |
37.1 |
34.8 |
|
30x30 |
0.012 |
0.305 |
0.0213 |
0.54 |
40.8 |
29.4 |
|
30x30 |
0.009 |
0.229 |
0.0243 |
0.62 |
53.1 |
16.1 |
|
35x35 |
0.011 |
0.279 |
0.0176 |
0.45 |
37.9 |
29.0 |
|
40x40 |
0.010 |
0.254 |
0.0150 |
0.38 |
36.0 |
27.6 |
|
50x50 |
0.009 |
0.229 |
0.0110 |
0.28 |
30.3 |
28.4 |
|
50x50 |
0.008 |
0.203 |
0.0120 |
0.31 |
36.0 |
22.1 |
|
60x60 |
0.0075 |
0.191 |
0.0092 |
0.23 |
30.5 |
23.7 |
|
60x60 |
0.007 |
0.178 |
0.0097 |
0.25 |
33.9 |
20.4 |
|
70x70 |
0.0065 |
0.165 |
0.0078 |
0.20 |
29.8 |
20.8 |
|
80x80 |
0.0065 |
0.165 |
0.0060 |
0.15 |
23.0 |
23.2 |
|
80x80 |
0.0055 |
0.140 |
0.0070 |
0.18 |
31.4 |
16.9 |
|
90x90 |
0.005 |
0.127 |
0.0061 |
0.16 |
30.1 |
15.8 |
|
100x100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
30.3 |
14.2 |
|
100x100 |
0.004 |
0.102 |
0.0060 |
0.15 |
36.0 |
11.0 |
|
100x100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
|
110x110 |
0.0040 |
0.1016 |
0.0051 |
0.1295 |
30.7 |
12.4 |
|
120x120 |
0.0037 |
0.0940 |
0.0064 |
0.1168 |
30.7 |
11.6 |
|
150x150 |
0.0026 |
0.0660 |
0.0041 |
0.1041 |
37.4 |
7.1 |
|
160x160 |
0.0025 |
0.0635 |
0.0038 |
0.0965 |
36.4 |
5.94 |
|
180x180 |
0.0023 |
0.0584 |
0.0033 |
0.0838 |
34.7 |
6.70 |
|
200x200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
This just a part of specifications which common used.
|
Mesh Specification Values
|
|
Other Example of Moulded Filters
What Share Filters Do?
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.
We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.
Factory Capabilities
|
Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,
Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes. |
|
Filter Mesh Slitted in Narrow Ribbons Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare. |
|
|
Filter Mesh Pre Cut Pieces and Shapes Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities. |
|
Filter Mesh Tubes and Tubular Ribbon
Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength. |
|
|
Custom Filter Mesh Bag by Welding and Sewing
Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days. |
|
Standard Filter Bags Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.
Top design: plastic collar, metallic ring Filter media: filter mesh, felt |
|
|
Mesh Insert Injection Moulded Filters
Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.
Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.
|
Application of Share Filters Products
Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.
|
|
|
|
|
|
|
Fuel filter
|
Biopsy bag
|
Air purifier filter
|
Coffee filter
|
Irrigation filter
|
Mesh disc filter
|
| Automotive | Laboratory | Appliance | Food & Beverage | Agriculture | Power tool |
Contact Us
Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.
Please connect with us now so we can learn more about your application and design specifications!
Photos of Factory
|
||
| Warping | Weaving | Inspection |
|
||
| Whashing | Heat setting | Injection moulding |
FAQ
Are You Factory or Trade Company ?
We're factory, and manufacture our products in-house.
Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.
Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.
When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.
What's Your Payment Term ?
T/T and LC and more.
What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.
What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.
Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.
How To Delivery the Order?
Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
