Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh

Minimum Order Quantity : 1000pcs Price : USD0.50-USD1.50/pcs
Packaging Details : Caron, Polybag Delivery Time : 15-20days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 1000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Square Proofer Cup Size 114.7x109.2mm

Detail Information

Product Name: Square Bakery Proofer Cup Out Size 114.7x109.2mm Keywords: Bakery Proofer Cup
Rim: PP, PA, PE, PP, Etc. Gauze: Nylon Mesh, Polyester Mesh
Opening: From 100μm To 860μm Process: Mesh Insert Injection Moulding
Application: Bakery Dough Proofer Cup
High Light:

Nylon Mesh Square Proofer Cups

,

Rim PP Square Proofer Cups

Product Description



Square Bakery Proofer Cup Out Size 107.6x89mm Rim PP with Nylon Mesh



The bakery proofer cup refers to a measuring cup specifically designed for proofing or measuring dough during the fermentation process. It is used to accurately measure the volume of dough and monitor its rise. Normally the shape of proofer cup is in round or square according the proofing machines. In Share Filters, the rim of the proofer cups is made of high quality polypropylene (PP), which complies to FDA and EU regulations. The cups come standard with a high quality nylon mesh or polyester mesh. Both the mesh and rim are suitable for direct contact with foodstuff.



Share Filters' proofer cup consists of a nylon filter mesh held in PP by insert moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms. Thanks to advance equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way, from tool making to final products.



Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 0





Advantage of Share Filters' Proofer Cup



  • Cost Effective: many size availabe, save the cost of tooling
  • User Friendly: designed for quick assembly and disassembly
  • High Quality Materials: carefully selected materials with the best performence
  • Food Grade: both the mesh and rim are suitable for direct contact with foodstuff
  • Mould Repellent: due to the design and use of high-quality materials
Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 1



Technical Data



Product name: Square bakery proofer cup Rim material: PP, PA, PE, etc.
Application: Proofing or measuring dough Filter media: Nylon mesh, PET mesh
Dimension: 107.6x89mm, customized size Micron rating: From 100μm to 860μm
Process: Mesh insert injection moulding Color: Customize
HS code: 84219910 Package: Plastic bag, master carton




Product Pictures

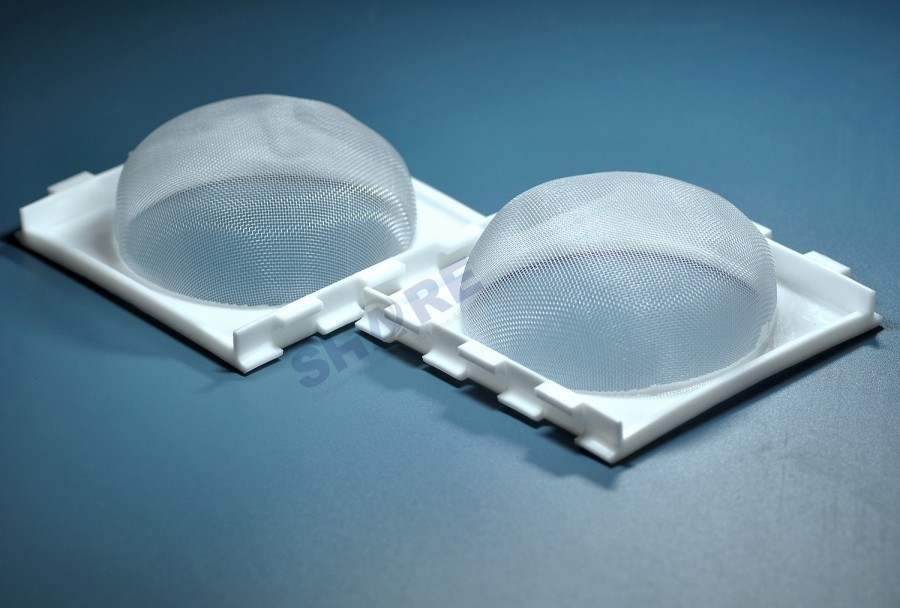

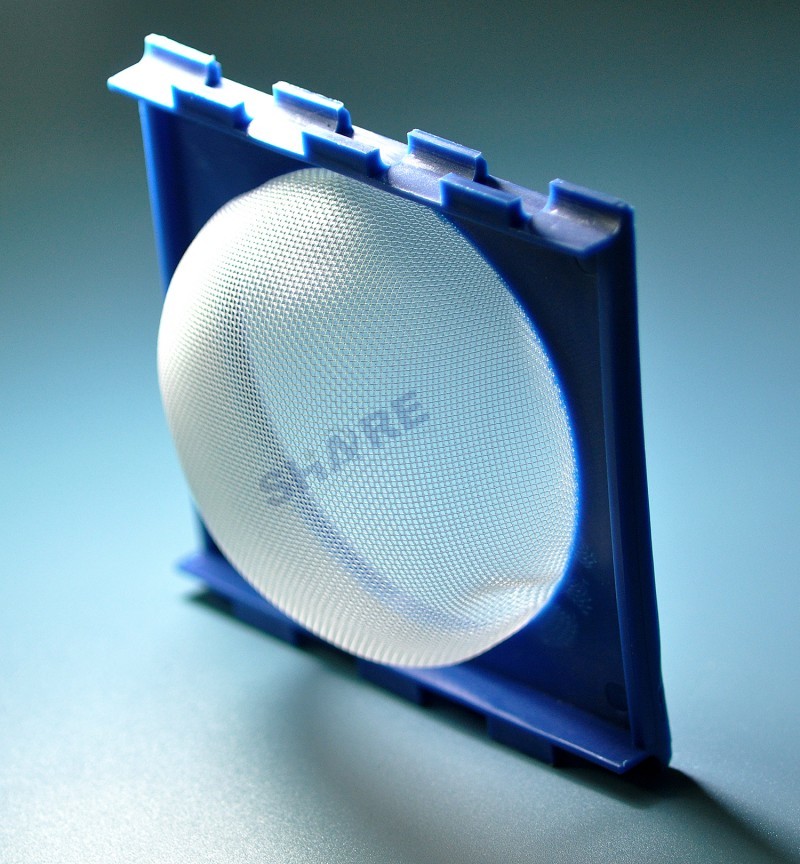

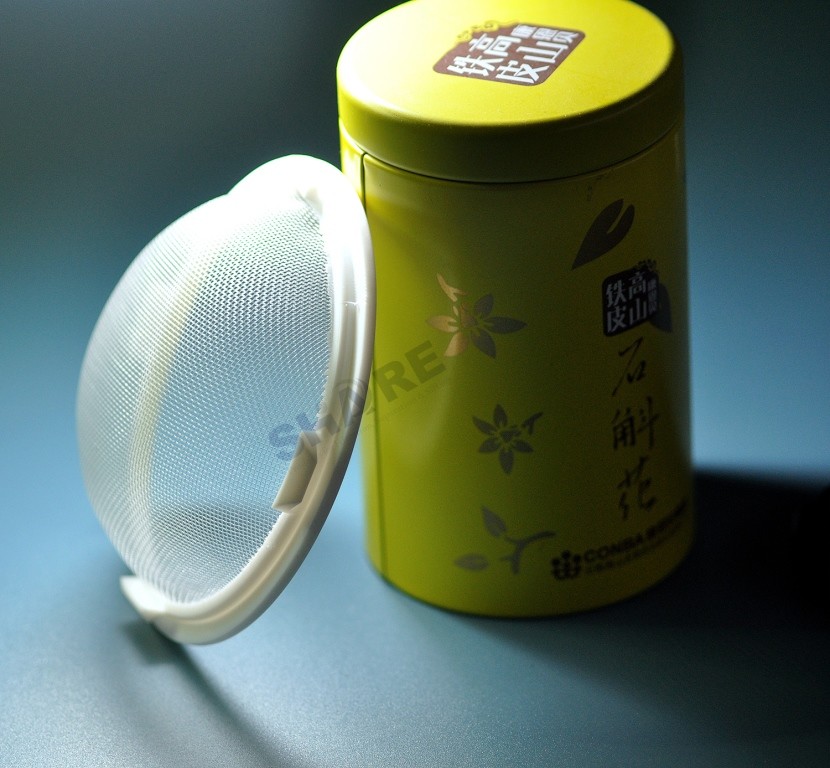

square proofer cup proofer cup round proofer cup





Steps in The Making of a Custom-made Filter Element


Share Filters can take action at any stage of the custom filter element design process, either :

  • In consulting: which is the right filter media for a bag, a cartridge, a strainer, a static part?
  • In study: how to implement the filter mesh in a simple and economical way. Is it necessary to stitch, weld or inject?
  • In production: prototyping, test and then mass production.






Nylon Filter Mesh Datasheet for Bakery Proofer Cup



Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
  n/cm n/inch μm μm % μm g/m2
PA 860/60 9 24 250 860 58 455 145
PA 700/49 10 25 300 700 49 576 195
PA 583/49 12 30 250 583 49 470 162
PA 533/41 12 30 300 533 41 585 234
PA 414/34 14 35 300 414 34 595 273
PA 425/46 16 40 200 425 46 370 139
PA 375/36 16 40 250 375 36 485 217
PA 350/49 20 50 150 350 49 375 98
PA 300/36 20 50 200 300 36 385 173
PA 267/41 24 60 150 267 41 285 117
PA 237/44 28 70 120 237 44 215 87
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/43 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/42 59 150 60 110 41 98 46
PA 100/37 64 160 60 100 38 105 50

This just a part of specifications which common used.

Mesh Specification Values



  • Mesh count: number of pores per cm/ inch



  • Mesh Specification Values: diameter of a thread(㎛)



  • Mesh opening: distance between threads(㎛)



  • Open area: open area percentage (%)



  • Mesh thickness: thickness of finished mesh(㎛)



 Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 5



Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 6





Other Moulded Filters for Food & Beverage Industry



plant essential oil filter coffee filter water bottle filter  beer filter






What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.





Factory Capabilities



weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,



Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of  filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons



Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

      Filter mesh slitted to be ribbons





Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 13

Filter Mesh Pre Cut Pieces and Shapes



Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.







 Filter Mesh Tubes and Tubular Ribbon



Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon




mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing



Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.


Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

    mesh filter bag




custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.






Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 20 coffee filter Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 22 Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 23

Fuel filter



Biopsy bag



Air purifier filter



Coffee filter



Irrigation filter



Mesh disc filter



Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!




Photos of Factory


Share Filter workshops
Warping Weaving Inspection
Square Bakery Proofer Cups Out Size 107.6x89mm Rim PP With Nylon Mesh 25
Whashing Heat setting Injection moulding





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.



What's Your Payment Term ?

T/T and LC and more.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
