Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade

Minimum Order Quantity : 500pcs Price : USD0.60-USD2.00/pcs
Packaging Details : Caron, Polybag Delivery Time : 15-20days
Payment Terms : T/T, L/C, D/P, Western Union, PayPal Supply Ability : 10000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Beer Analysis Filter

Detail Information

Product Name: Beer Analysis Filter Keywords: Beer Analysis Filter
Support Cage: ABS, PA, PE, PP, Etc Filter Screen: PP Mesh, Nylon Mesh, PET Mesh
Opening: From 3 μm To 3200 μm Process: Mesh Insert Injection Moulding
Application: Bottle Filter Element For Cold Brew Coffee Tea

Product Description



Custom Beer Analysis Filter Polyamide Cage With PP Mesh Screen Food Grade



Share Filters' custom beer analysis filter consists of a PP filter mesh held in a polymer ( ABS, PA, PE, PP) by insert moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms. Thanks to advance  equipments and more than 20 years of experience, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way, from tool making to final products.

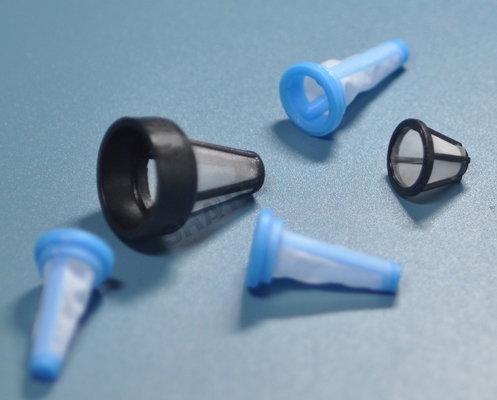

Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 0





Steps in The Making of a Custom-made Filter Element


Share Filters can take action at any stage of the custom filter element design process, either :

  • In consulting: which is the right filter media for a bag, a cartridge, a strainer, a static part?
  • In study: how to implement the filter fabric in a simple and economical way. Is it necessary to stitch, weld or inject?
  • In production: prototyping and then mass production.





Technical Data



Product name: Custom beer analysis filter Support cage material: ABS, PA, PP, PE, etc.
Application: Beer production analysis Filter media: PP mesh, nylon mesh, PET mesh
Dimension: Customized Micron rating: From 75μm to 250 μm
Process: Mesh insert injection moulding Color: Customize
HS code: 84219910 Package: Plastic bag, master carton




Product Pictures



  Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 1 Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 2 Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 3





How to select the right filter mesh?

  • Opening size or the size of the particle you need to filter

  • Mesh material (consider the working condition)

  • Mesh thread diameter, mesh thickness

  • Opening area

Benefits of Injection Molding Filter

  • Faster assembly time

  • Reduced part size

  • Lower component weight

  • High-volume orders are possible

  • Cost-effective production process





PP Filter Mesh Datasheet



ITEM MESH COUNT THREAD DIAMETER OPENING WEAVIING TYPE
PP30 30tpi 300um 540um Plain Weave
PP40 40tpi 220um 410um Plain Weave
PP60 60tpi 150um 270um Plain Weave
PP80 80tpi 100um 200um Twill Weave
PP100 100tpi 100um 150um Twill Weave
PP200 200tpi 48um 75um

Twill Weave

This just a part of specifications which common used.



Mesh Specification Values



  • Mesh count: number of pores per cm/ inch



  • Mesh Specification Values: diameter of a thread(㎛)



  • Mesh opening: distance between threads(㎛)



  • Open area: open area percentage (%)



  • Mesh thickness: thickness of finished mesh(㎛)



 Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 4



Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 5





Other Filters for Food & Beverage Industry



proofer cup coffee filter water bottle filter  beer filter





What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.





Factory Capabilities



weaving filter mesh

Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,



Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of  filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons



Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.

      Filter mesh slitted to be ribbons





Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 12

Filter Mesh Pre Cut Pieces and Shapes



Share Filters cutting method include Laser cutting, Cold cutting, Heat cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cutting technology convinces mainly with smaller and medium quantities.







 Filter Mesh Tubes and Tubular Ribbon



Share Filters offers to produce and deliver filter mesh tube parts cut to length ready for further processing. Depending on the required edge quality, different fabrication methods are available such as laser, heat , sonic or cold sectioning. With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams, which provide the necessary seam strength. These pre cut tubes are convenient for injection moulding. The ultrasonic welded tubes with one overlapping weld has more strength.

nylon filter mesh weld tube ribbon




mesh filter bag

Custom Filter Mesh Bag by Welding and Sewing



Share Filters has the capacity to manufacture mesh filter bags by welding or sewing according to custom's design. Our full range of filter media (nylon, polyester, polypropylene) can be manufactured into bags of almost in any requested dimensions and shape. If the media is already kept in stock, we can have a quick turnaround time and can fulfil most customised orders within 7- 15 working days.





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.


Top design: plastic collar, metallic ring

Filter media: filter mesh, felt

    mesh filter bag




custom mesh insert injection moulded filter

Mesh Insert Injection Moulded Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.



Filtration devices with integrated mesh inserts are an effective way to keep out unwanted pollutants and contaminants. We’re a trusted manufacture of precision injection-moulded plastic parts with mesh filters for critical practices.






Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 19 coffee filter Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 21 Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 22

Fuel filter



Biopsy bag



Air purifier filter



Coffee filter



Irrigation filter



Mesh disc filter



Automotive Laboratory Appliance Food & Beverage Agriculture Power tool





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!




Photos of Factory


Share Filter workshops
Warping Weaving Inspection
Custom Beer Analysis Filter Polyamide frame with PP mesh screen Food Grade 24
Whashing Heat setting Injection moulding





FAQ



Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.



Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.



Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.



When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.



What's Your Payment Term ?

T/T and LC and more.



What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.



What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.



Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.



How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
