Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter

Minimum Order Quantity : 1000pcs Price : USD0.02-USD1.20/pc
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS, RoHS Model Number: 150-300μm nylon mesh piece, ribbon

Detail Information

Product Name: 150-300μm Nylon Mesh Piece, Ribbon Keywords: Filter Mesh Piece Ribbon
Material Option: Nylon Mesh, Polyester Mesh, PP Filter Mesh Micron Rating: 149μm-300μm
Thread Diameter: 55μm-150μm Size: Any Custom Size Or Shapes
Application: Tumble Dryer Filter, Other Appliance Filter
High Light:

Tumble Dryer Nylon Filter Mesh Piece

,

Micron 200 Nylon Filter Mesh

Product Description

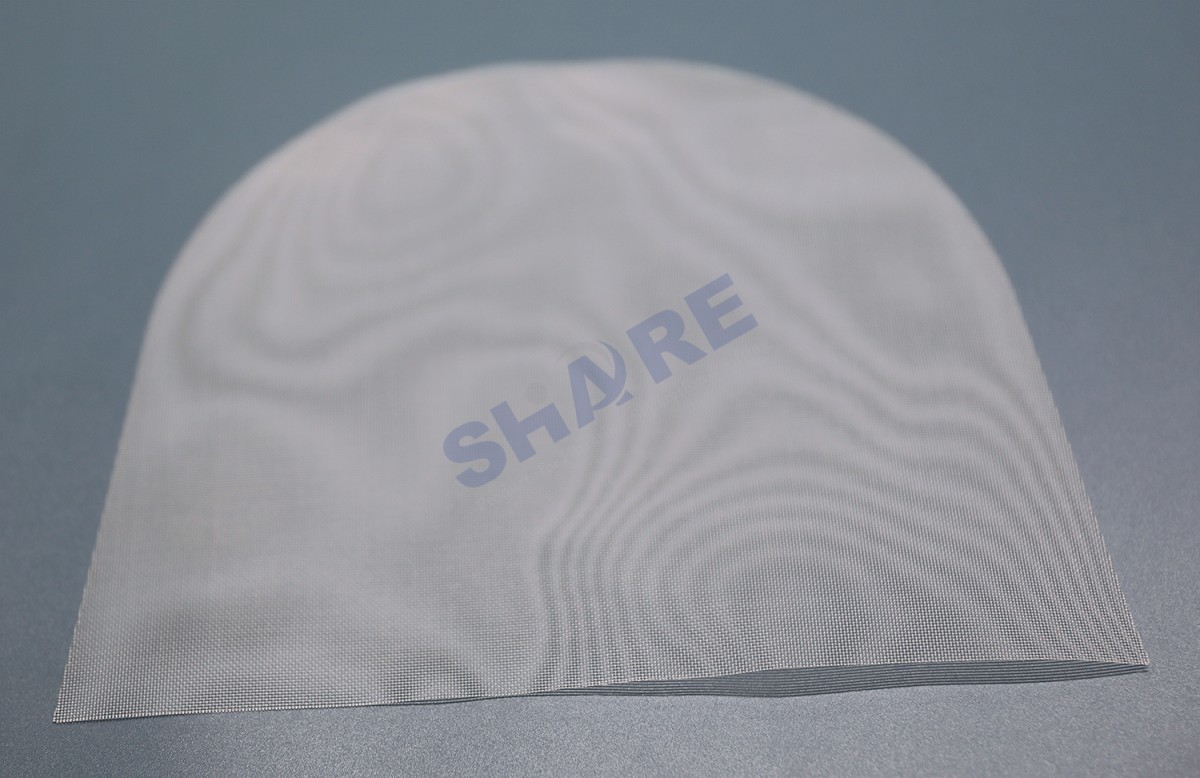

Micron 150 200 250 300 Nylon Filter Mesh Piece Shape for Tumble Dryer Filter



The tumble dryer lint filter's purpose is to capture lint, fibers, and other debris that are released from the clothes during the drying process. The filter prevents these particles from circulating in the dryer and potentially causing blockages or damage to the appliance.  Share Filters nylon mesh and polyester mesh resist the hot air flow and mechanical stress while remaining durable and easy to clean.



Nylon filter mesh is the most popular and economical synthetic filtration mesh. Share Filters not only offers nylon filter mesh in rolls, we also convert the mesh into all kinds of filter components. With the advanced process equipments, Share Filters' filter mesh pieces and shapes can be tailored to any shape or dimension.



Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The mesh pieces can be also produced in single or double layers. The high-precision laser cut parts are characterized by closed edge quality. These customized mesh shapes and pieces are convenient for injection moulding or directly installed in the equipments.





Share Filters' Filter Mesh Pieces Used for Tumble Dryer Filters Options



Material Options: Monofilament woven nylon mesh, polyester mesh, PP mesh
Mesh Opening: From 150 micron to 300 micron
Thread Diameter: From 80 micron to 150 micron
Open Area: From 36% to 49%
Weave Type: Plain Weave
Fabricated Part:  Mesh ribbons, sheets, shapes, pieces
Dimension: Can be tailored to  any shape or dimension
Colour: White, or customize



Product Details



Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 0 Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 1

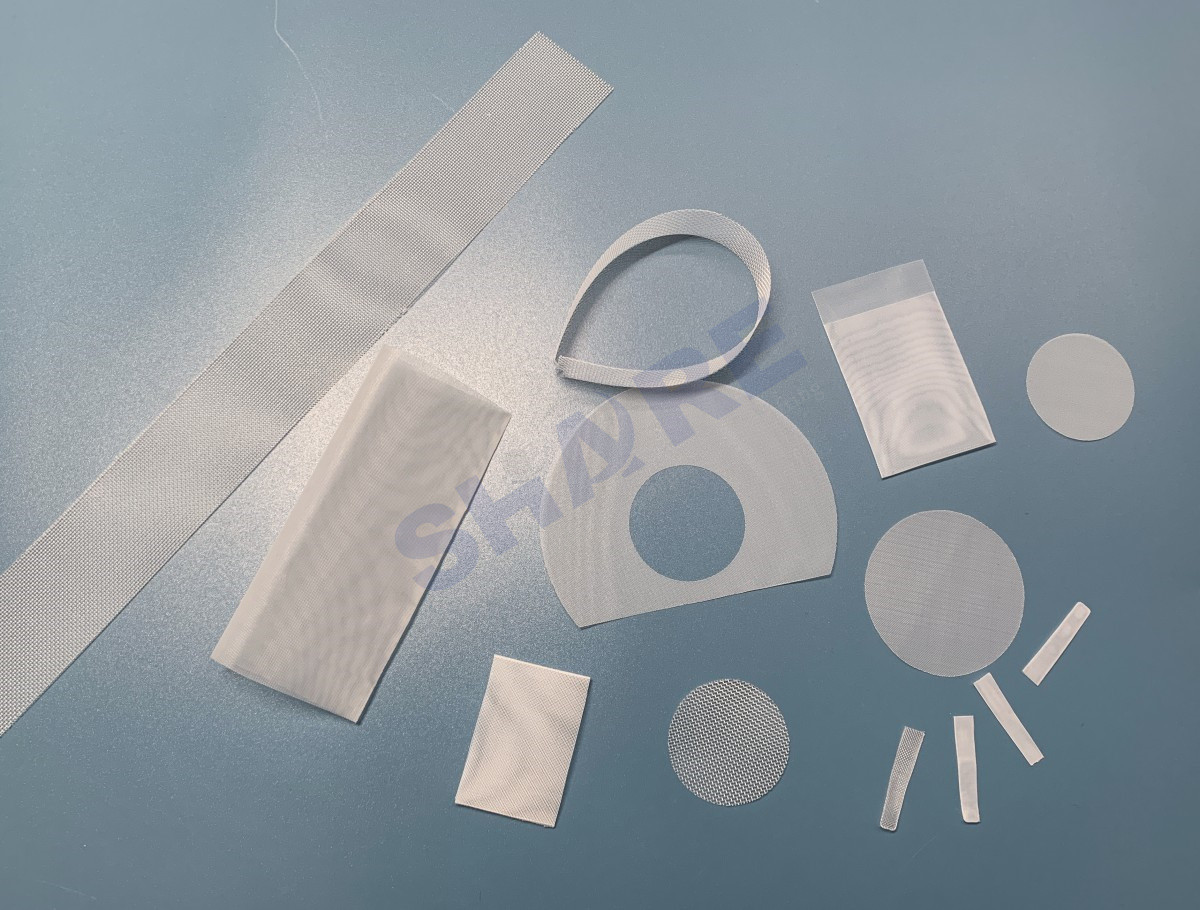

nylon filter mesh pieces ribbons



The Benefits from Share Filters' Precut Nylon Mesh Pieces:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Convenient for insert molding
  • High productivity
  • Nylon mesh resistance to chemicals and alkline
  • Nylon mesh is abrasion resistance and cleanable
              Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 3



Nylon(PA) Filter Mesh Specifications For Tumble Dryer Filter



Fabric
number
Mesh count Thread
diameter
Mesh
opening
Open
area
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62

This just a part of specifications which common used.





Share Filter Other Fabricated Filter Mesh Parts



filter mesh ribbon nylon filter mesh discs Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 6 nylon filter tube Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 8





Why Work With Us ?


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed in house.



Filter mesh woven

Precise Filter Mesh Weaving



The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

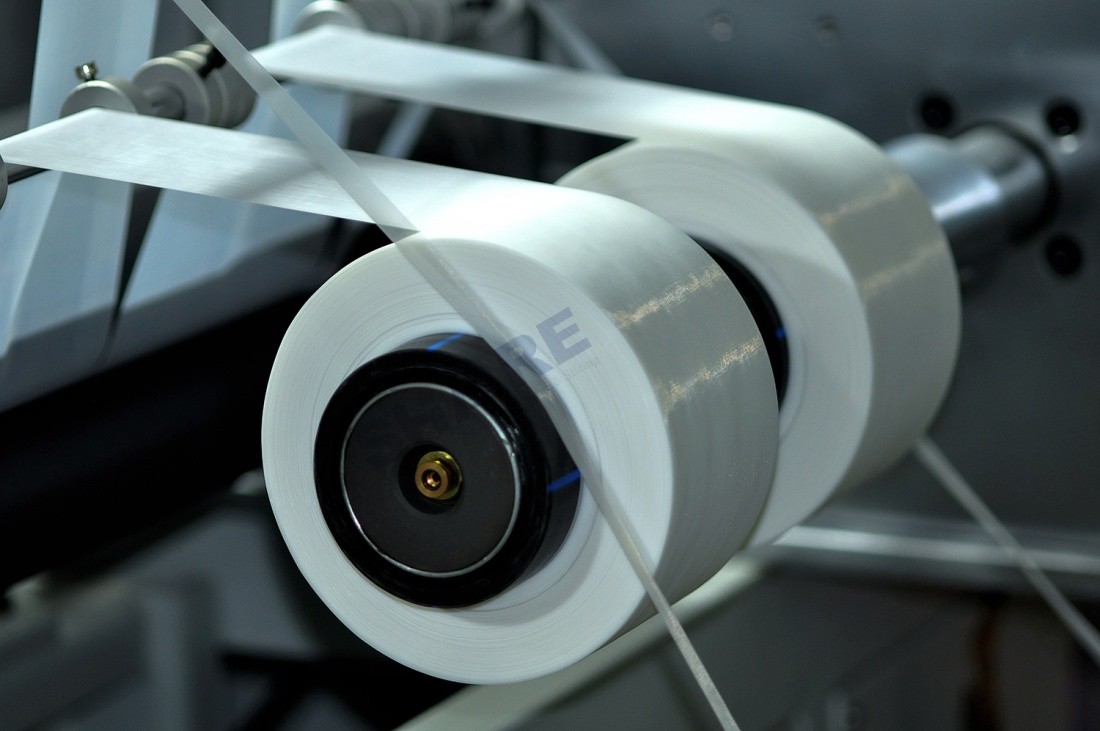

Woven Filter Mesh Slitted in Narrow Ribbons


Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.
      Filter mesh slitted to be ribbons





Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 11

Filter Mesh Cutting Pieces and Shapes


Share Filters cutting method include Laser cutting, Cold cutting, Heatt cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs






Ultrasonic Cutting and Welding Tubes



With our heat and ultrasonic cutting technologies, we can create tubes equipped with one or two functional seams according to the requirement, which provide the necessary seam strength. The ultrasonic welded tubes have one overlapping weld with more strength.

   Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 12




  Ultrasonic Welded Mesh Bag   Sewn Mesh Bag

Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 13

sewn filter mesh bag





Standard Filter Bags


Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

Top design: plastic collar, metallic ring

Material: Filter mesh, felt

      Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 15




mesh insert injection moulded filter

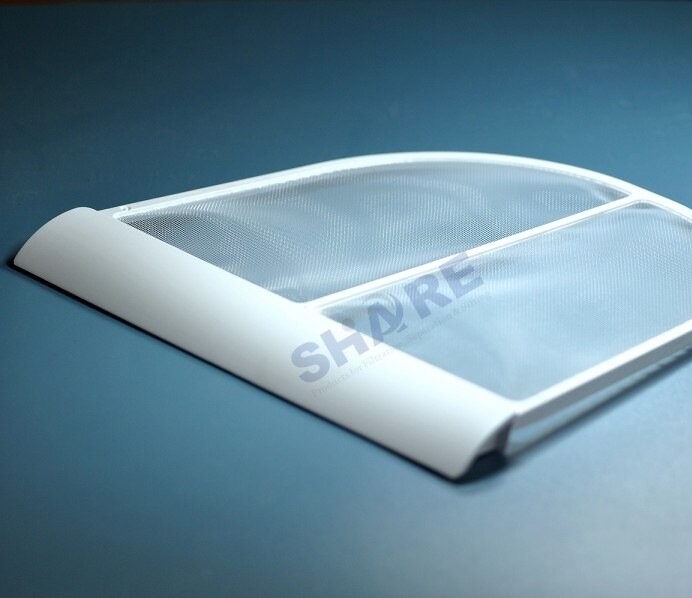

Custom Mesh Insert Injection Moulded Plastic Filters



Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



injector filter BIOPSY BAG Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 19 coffee filter Micron 150 200 250 300 Nylon Filter Mesh Piece Shape For Tumble Dryer Filter 21 MESH DISC FILTER
Fuel filter Biopsy bag Air purifier filter Coffee filter  Irrigation filter Mesh disc filter
Automotive Laboratory Appliance Food & Beverage Agriculture Eletronic device





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.


Please connect with us now so we can learn more about your application and design specifications!
