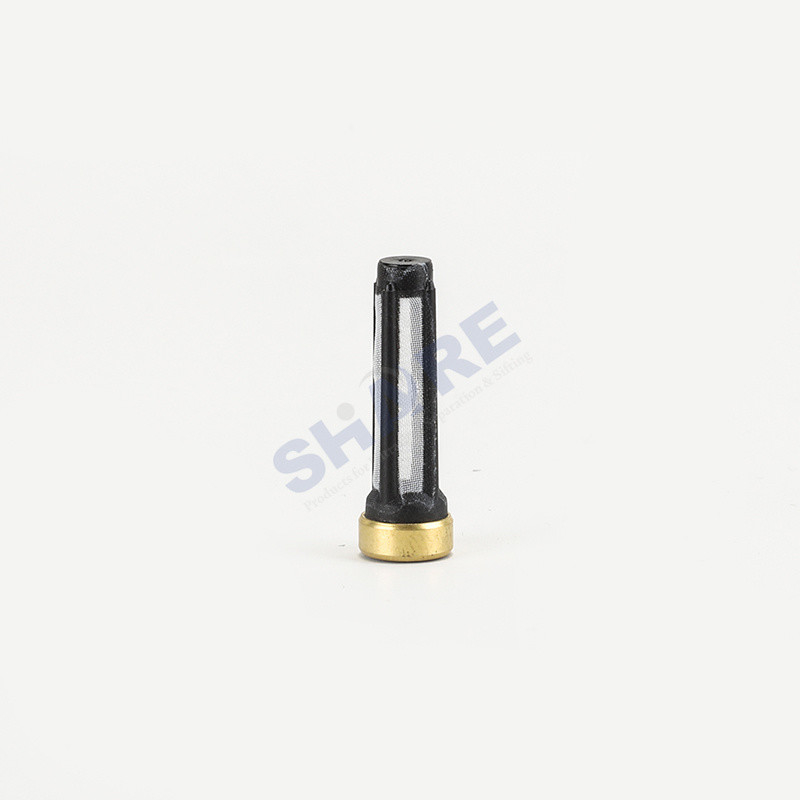

Inlet Fuel Top Feed Injector Micro Filter Basket Size 6.6×2.8×25mm

Product Description

Vehicle Inlet Fuel Top Feed Injector Micro Filter Basket Size 6×3×13mm

The fuel injector filter is a component in fuel injection systems of internal combustion engines. Its function is to prevent contaminants and debris from entering the fuel injector and clogging it. The injector filter is typically a small mesh screen or filter element that is situated at the inlet of the fuel injector. Share Filters injector filter protects the injection valves from damage and malfunction and ensures reliable operation of the injection system. Fine woven fabrics and a clamping ring ensure reliable particle protection and optimum fixation.

Share Filters' injector filters consist of a nylon or polyester filter mesh held in a polymer or brass frame by insert moulding, allowing for a more robust part giving more reliability and longevity in its usage. This injection moulding processing can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit your needs, as well as, offering any additional advice or service along the way.

Share Filtes Fuel Injector Filters Materials Options

	Support rim material	PA6, PA66, PET, PP, ABS, brass, and other High-Performance Thermoplastics
	Filter media	Nylon mesh, polyester mesh, PP mesh, metallic mesh
	Micron rating	8μm - 500μm
	Mesh parts fabrication	Laser cutting, sonic cutting, sonic stamping
	Process	Injection moulding
	Specification	ø6*7, 6*10, 6*12, 6*14, 5.5*8.5mm, ect.
	Colour	Custom

Product Details

The Feature of Share Filters Fuel Injector Filters

• Filter media in PA, PE, or stainless steel to offer different flow capacities according to the specifications required
• Filter macron rating range between 8 and 500 micron
• High filter surface, even in extremely small volumes, respecting the specifications or increasing the performance
• Quality and experience acquired in the sector enable innovative solutions

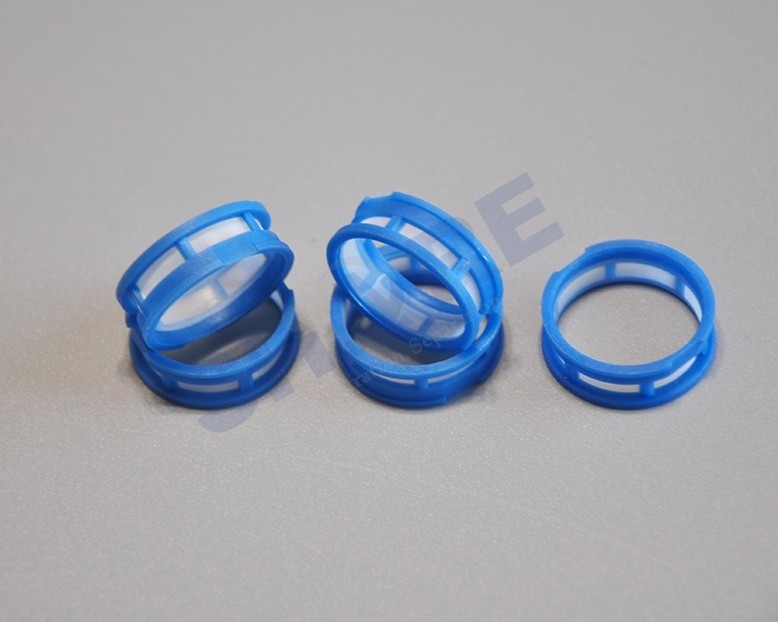

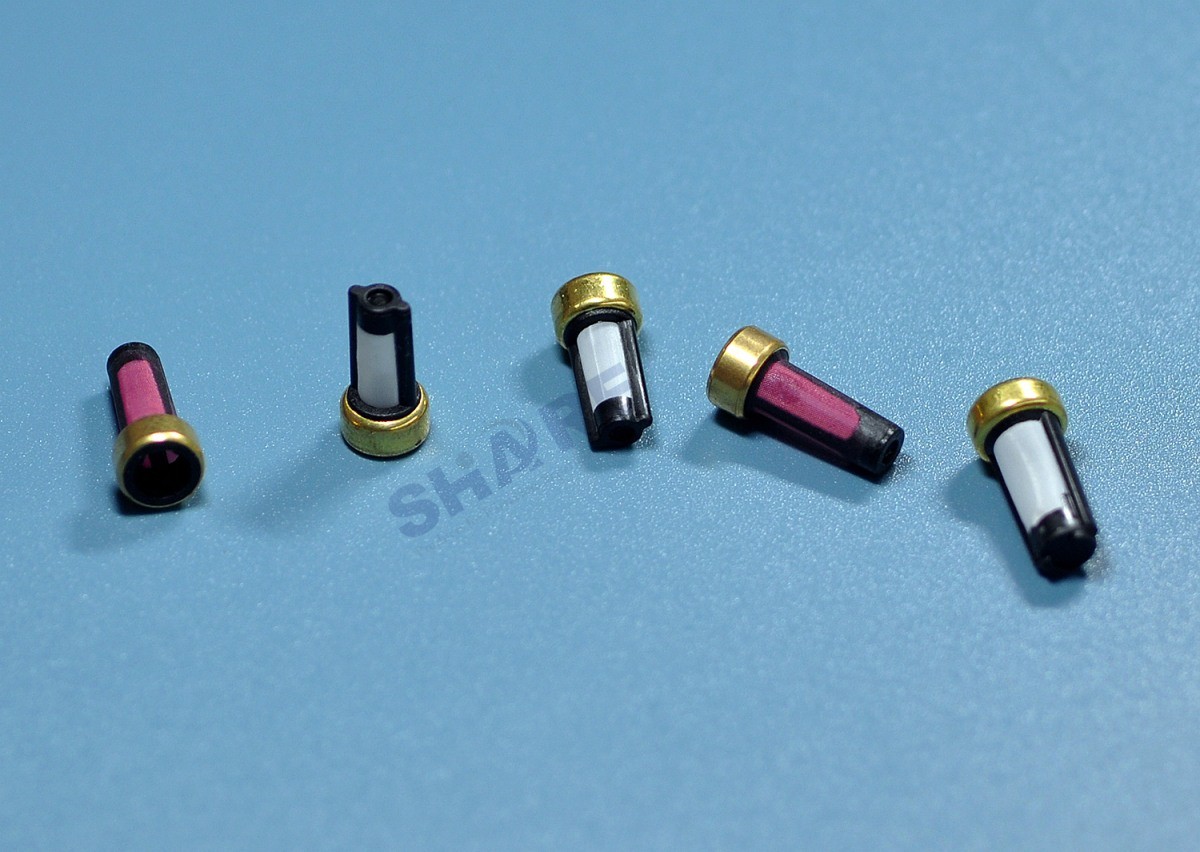

Other Fuel Injector Filters

How To Select The Right Filter Mesh? You Can Follow These Points

Pore size or the size of the particle you need to filter Mesh material (consider the working condition) Mesh thread diameter, mesh thickness Opening area

PA(nylon) Filter Mesh Specification

This data sheet just include our common specification, please contact us if you have other custom specification

About Us

Share Filters has over 20 years of experience developing and manufacturing filter mesh and solutions for our customer's screen and filtration needs. Our monofilament filter mesh includes nylon mesh, polyester mesh, polypropylene mesh, stainless steel mesh. Thanks to the advanced processing equipments and extensive experience, Share Filters has the capability to convert these filter media into all kinds of mesh shapes, discs, ribbons, tubes, bags and plastic moulded filters.

Many of our custom filter products are moulded from mesh and plastic, utilizing our insert injection molding or pot molding capabilities. These processes allow for flexibility in design and material selection. They also offer significant advantages in cost and ease of manufacture over other potential solutions.

Factory Capabilities

Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.	Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.	Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.	Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.	Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.

Share Filters Products Applications

Automotive	Appliance	Health care	Food & Beverage	Chemical

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and process for your specific projects.
