Home ProductsPolyester Filter MeshDiameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration
Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration

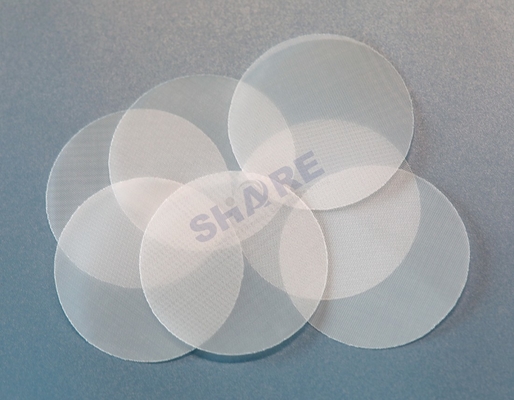

Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration
Contact Now

Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration

Minimum Order Quantity : 200pcs Price : USD0.025-USD1.200/pc
Packaging Details : Caron, Polybag Delivery Time : 3-7 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Laboratory Polyester Mesh Disc filter 90mm 300mm

Detail Information
Product Name: Laboratory Polyester Mesh Disc Filter 90mm 300mm Keywords: Polyester Mesh Disc Filter
Material Option: Polyester Mesh, Nylon Mesh, PP Mesh Micron Rating: 5μm-400μm
Diam: 5mm-300mm Weave Type: Plain Weave, Twill Weave
Processing: Laser Cutting, Punching
Highlight:

300mm Polyester Mesh Disc Screen

,

Laboratory Polyester Mesh Disc Screen

Product Description



Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration



Polyester filter mesh is known for having a mechanical and chemical resistance greater than that of polyamide (nylon). In industrial filtration, polyester filter mesh is often used in chemically aggressive environments. The mesh properties provide solutions for wide range of industries applications. Share polyester filter mesh is available in a broad range of widths and with mesh opening between 3 micron and 2000 microns.



Share Filters not only manufactures a wide range of specifications of polyester filter mesh in rolls, we also process filter mesh into customized designs based on the customer's needs. We can convert the polyester mesh in to all kinds of filter components. Thanks to the special-made processing machines and equipments, Share Filters is capable of slitting, cutting, and punching filter mesh into different custom destinated shapes and discs. The various of diameter and pore size of mesh discs are applied in the laboratory filtration.




Share Filters' Filter Mesh for Cutting Discs Options



Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 0 Material Options: Polyester mesh, Nylon mesh,  PP mesh, stainless steel mesh
Mesh Opening: From 5 micron to 400 micron
Thread Diameter: From 27 micron to 110 micron
Open Area: From 10% to 64%
filter mesh Weave Type: Plain Weave, twill weave
After Treatment Options: Calendaring, Water-repellent, etc
Dimension: Can be tailored to  any shape or dimension
Colour: White, or customize



Product Pictures

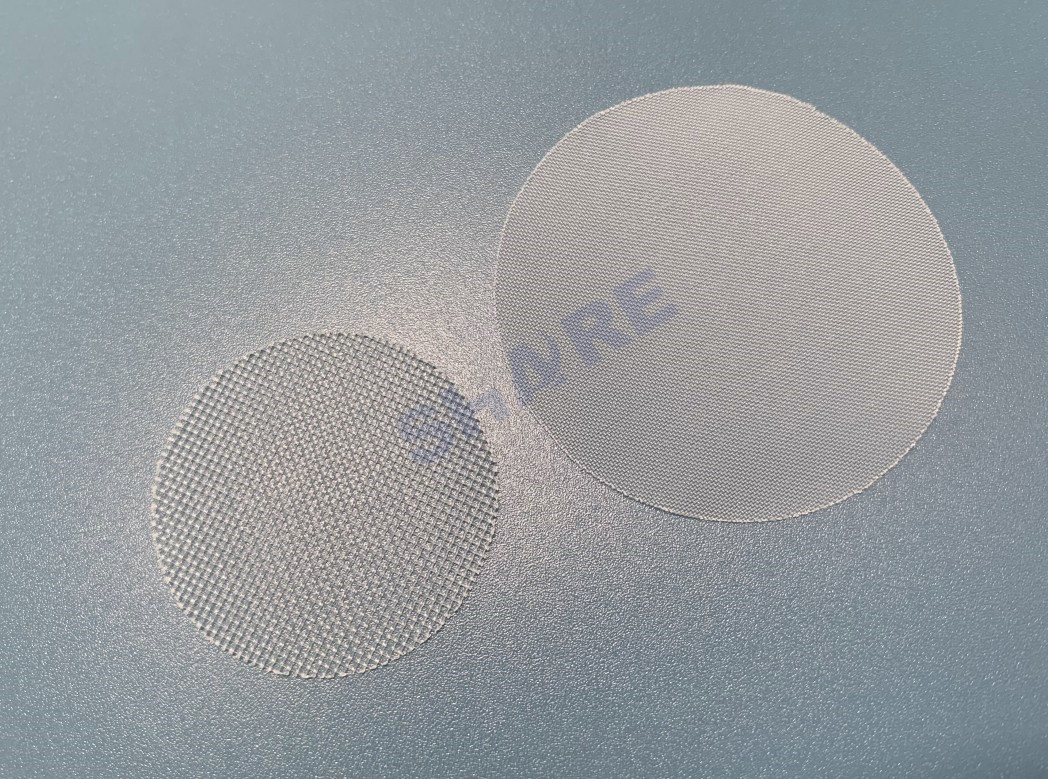

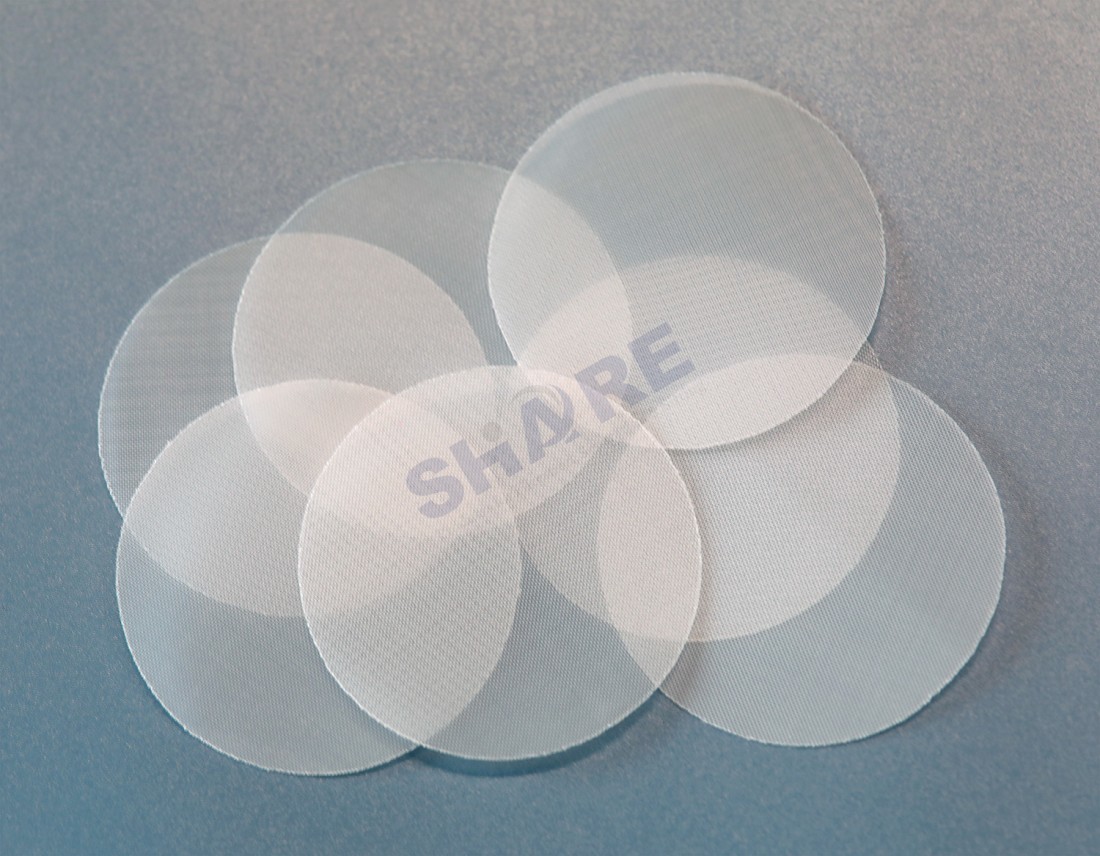

polyester filter mesh disc 90mm 300mm polyester mesh disc filter




The Benefits from Share Filters' Pre-Cut Polyester Mesh Discs:

  • Specific to the customer’s design needs
  • Non-fraying edges(depends on the technology)
  • Convenient for insert molding
  • Polyester mesh resistance to chemicals and acids
  • Polyester mesh feature with excellent dimensional stability

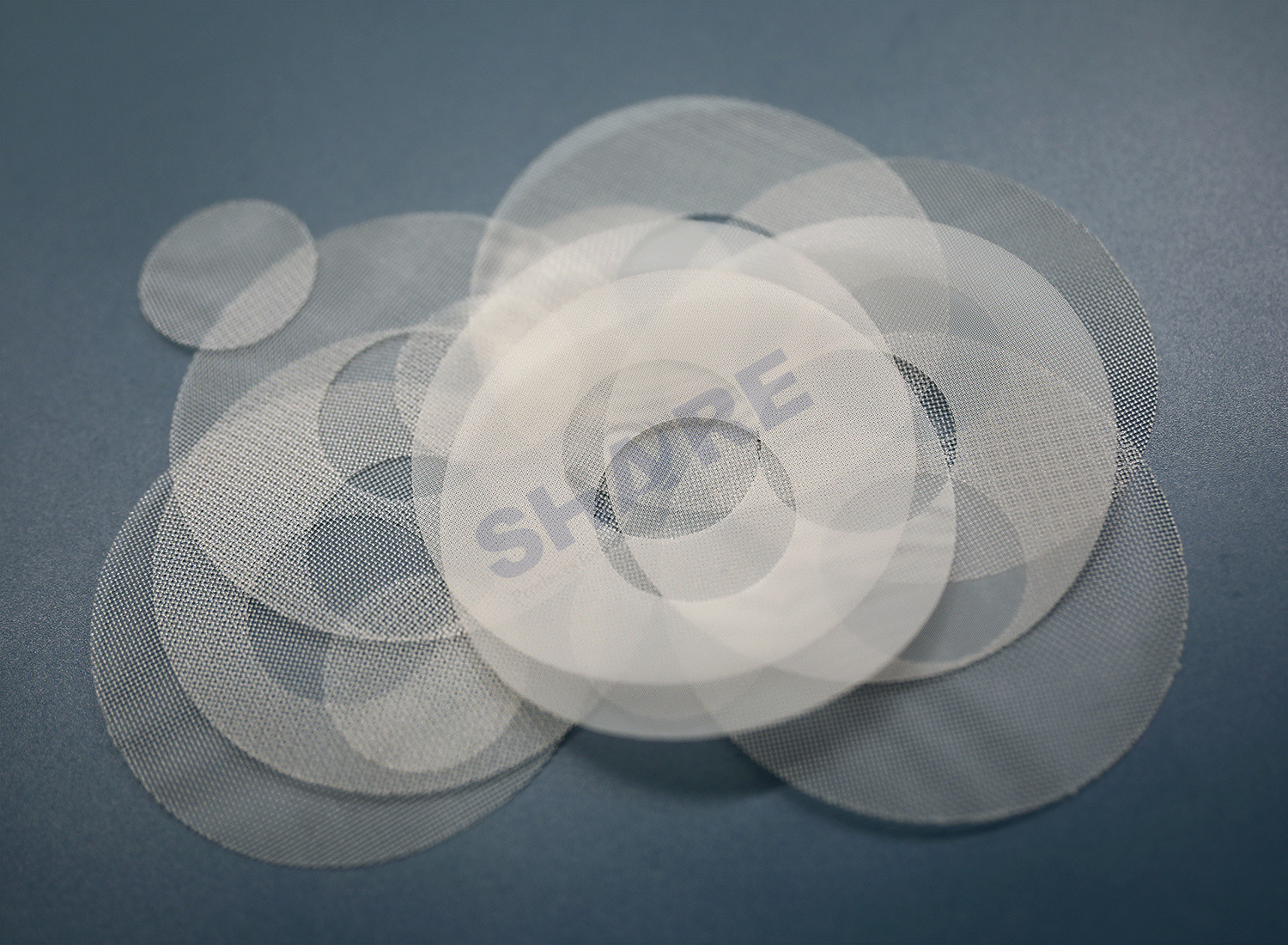

 filter mesh discs





OEM Filters Made from Filter Mesh Discs, Shapes, Pieces



 Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 5 mesh filter  mesh filter Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 8





Polyester Filter Mesh Specifications



Fabric
number		 Mesh count Thread
diameter		 Mesh
opening		 Open
surface		 Fabric
thickness		 Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
PES 400/64 20S 50 110 400 64 180 51
PES 350/49 20T 50 150 350 49 260 115
PES 325/47 21T 53 150 325 47 270 121
PES 340/67 24S 61 120 340 67 220 88
PES 270/42 24T 61 150 270 42 280 138
PES 250/46 27T 68 120 250 46 230 100
PES 280/62 28S 71 80 280 62 150 46
PES 240/45 28T 71 120 240 45 230 103
PES 225/43 29T 74 120 225 43 230 107
PES 215/42 30T 76 120 215 42 230 111
PES 230/54 32S 80 80 230 54 150 52
PES 210/45 32T 80 100 210 45 180 82
PES 215/53 34S 86 80 215 53 150 56
PES 195/44 34T 86 100 195 44 180 87
PES 180/42 36T 91 100 180 42 180 92
PES 200/61 39S 99 55 200 61 95 30
PES 190/55 39T 99 64 190 55 115 40
PES 150/36 40T 102 100 150 36 190 103
PES 150/42 43T 110 80 150 42 155 71
PES 160/57 47S 120 55 160 57 96 36
PES 150/50 47T 120 64 150 50 120 48
PES 140/43 47HD 120 71 140 43 130 59
PES 140/47 49S 125 64 140 47 120 50
PES 135/44 49T 125 71 135 44 130 62
PES 144/55 53S 135 45 144 55 76 27
PES 135/51 53S 135 55 135 51 97 40
PES 125/44 53T 135 64 125 44 122 54
PES 117/39 53T 135 71 117 39 132 67
PES 115/46 59S 150 55 115 46 99 45
PES 105/38 59T 150 64 105 38 123 61
PES 100/41 64S 160 55 100 41 100 48
PES 90/33 64T 160 64 90 33 125 66
PES 95/47 72S 180 45 95 47 78 37
PES 85/38 72T 180 55 85 38 102 55
PES 75/33 77T 195 55 75 33 105 58
PES 80/41 80S 200 45 80 41 80 41
PES 85/44 80T 200 48 85 44 86 44
PES 70/40 90M 230 39 70 40 68 34
PES 68/34 90T 230 45 68 34 80 46
PES 65/33 90T 230 48 65 33 82 49
PES 60/36 100T 250 39 60 36 69 38
PES 56/38 110T 280 34 56 38 62 34
PES 52/33 110HD 280 39 52 33 70 42
PES 52/40 120S 300 31 52 40 48 32
PES 48/33 120T 300 34 48 33 63 37
PES 44/28 120HD 300 39 44 28 72 46
PES 47/37 130S 330 31 47 37 50 35
PES 42/30 130T 330 34 42 30 58 40
PES 43/34 140S 350 31 43 34 50 37
PES 36/25 140T 355 34 36 25 62 43
PES 37/30 150S 380 31 37 30 50 40
PES 32/24 150 381 34 32 24 56 43
PES 33/31 165S 420 27 33 31 40 26
PES 32/23 165T 420 31 32 23 50 36
PES 25/16 165 419 34 25 16 66 49
PES 24/18 180 457 27 24 18 43 33
PES 23/17 180 457 31 23 17 56 40
PES 18/18 235x245 597x622 24 18 18 44 32
PES 18/13 200 508 31 18 13 60 48
PES 23/25 200T 500 27 23 25 45 32
PES 15/10 200x215 508x546 31 15 10 59 50

This just a part of specifications which commonly used.



Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Mesh Opening =25400÷Mesh Count(per inch)−Wire Diameter
Mesh Opening =10000÷Mesh Count(per cm)−Wire Diameter
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Open Area %=(Opening Size)2÷(Opening Size+Wire Diameter)2×100		 Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 9





What Share Filters Do


Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.



Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 10



Factory Capabilities



Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh, polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to mesh ribbons, mesh shapes , discs, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.



filter mesh weaving   filter mesh slitting   filter mesh cutting shapes
Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.   Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.   Our cutting method include Laser cutting, Cold cutting, Heatt cutting, punching. Professional cutting using custom made tools that will not damage the materials.
welded filter mesh tube, bag   sewn filter mesh bags   mesh insert injection moulded filters
Sonic cutting and welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.   Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.   Custom plastic moulded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.



The Process of Filter Mesh Production

filter mesh production process




Application of Share Filters Products



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Automotive Laboratory Healthcare Appliance Beverage Agriculture
Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 18 Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 19 Transfusion filter Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 21 Diameter 90mm 300mm Polyester Mesh Disc Filter For Laboratory Filtration 22 water strainer
Fuel filter Biopsy bag Blood filter Dryer filter Coffee filter Water strainer





Contact Us


Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.





Packing and Transportation

packing
delivery method
