20 Mesh 900 Micron Polyester Filter Mesh Pieces Cutted PET Mesh Discs

Contact Now

20 Mesh 900 Micron Polyester Filter Mesh Pieces Cutted PET Mesh Discs

Name: 20 Mesh 900 Micron Polyester Filter Mesh Pieces Cutted PET Mesh Discs
Brand: Share Filters
SKU: 900 Micron Polyester Filter Mesh Pieces Discs
Price: 0.02 USD
Availability: InStock
Rating: 5 (187 reviews)

Minimum Order Quantity :	200pcs	Price :	USD0.02-USD1.20/pc
Packaging Details :	Caron, Polybag	Delivery Time :	3-7 days
Payment Terms :	T/T, L/C, D/P, Western Union, PayPay	Supply Ability :	50000pcs/day

Place of Origin:	China	Brand Name:	Share Filters
Certification:	SGS	Model Number:	900 Micron Polyester Filter Mesh Pieces Discs

Detail Information
Product Name:	900 Micron Polyester Filter Mesh Pieces Discs	Keywords:	Polyester Mesh Filter Pieces
Material:	Polyester Filter Mesh, Nylon Filter Mesh, PP Filter Mesh	Micron Rating:	15μm-4400μm
Thread Diameter:	31μm-600μm	Application:	Liquid, Air Filtration
High Light:	20 Mesh Polyester Screen Disc Filter , 900 Micron Polyester Filter Mesh , PET Mesh Disc Filter

Product Description

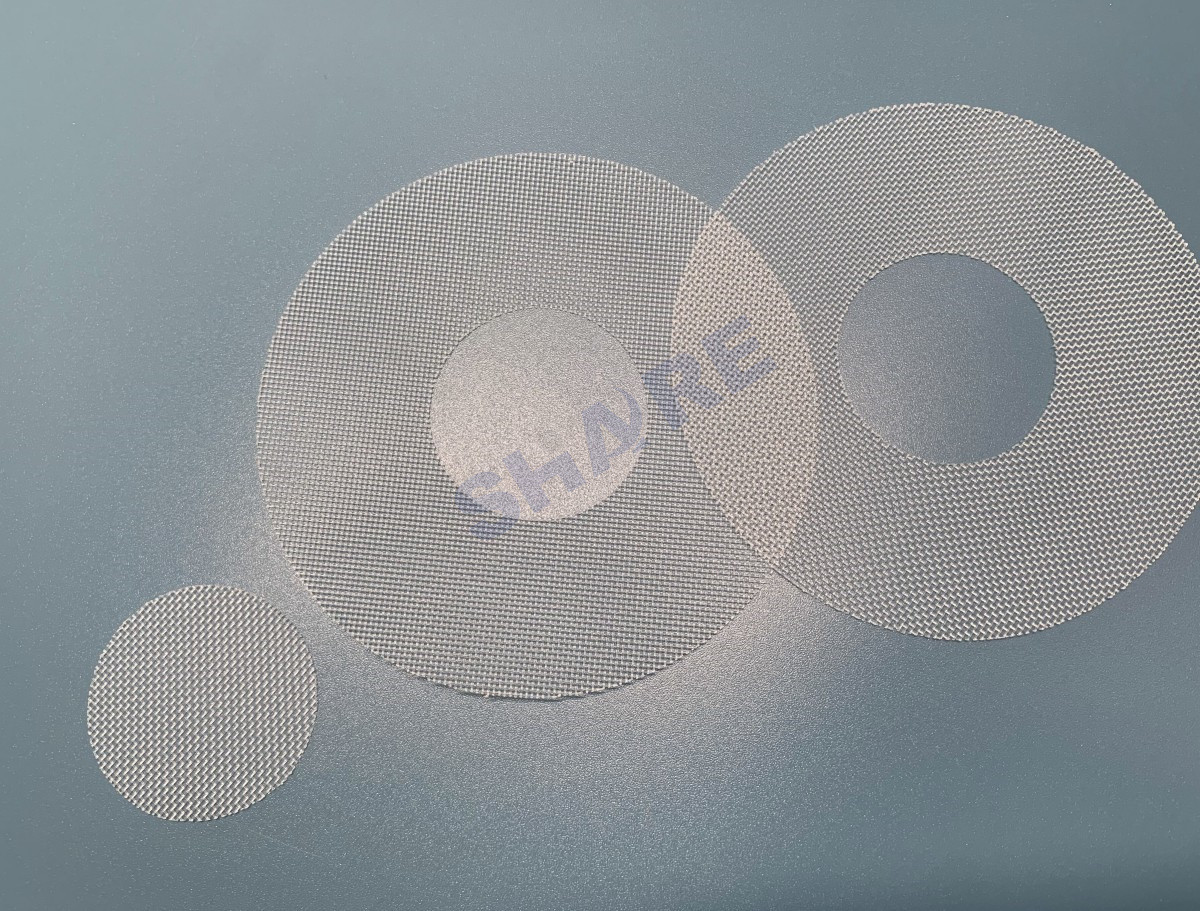

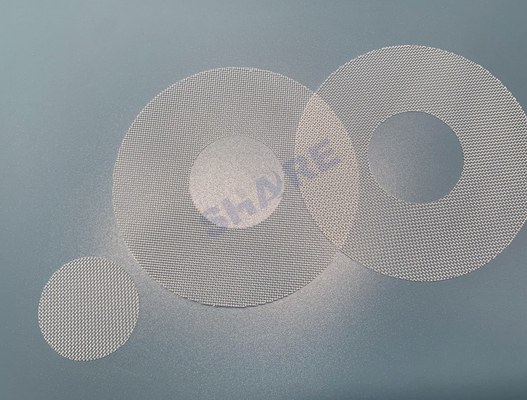

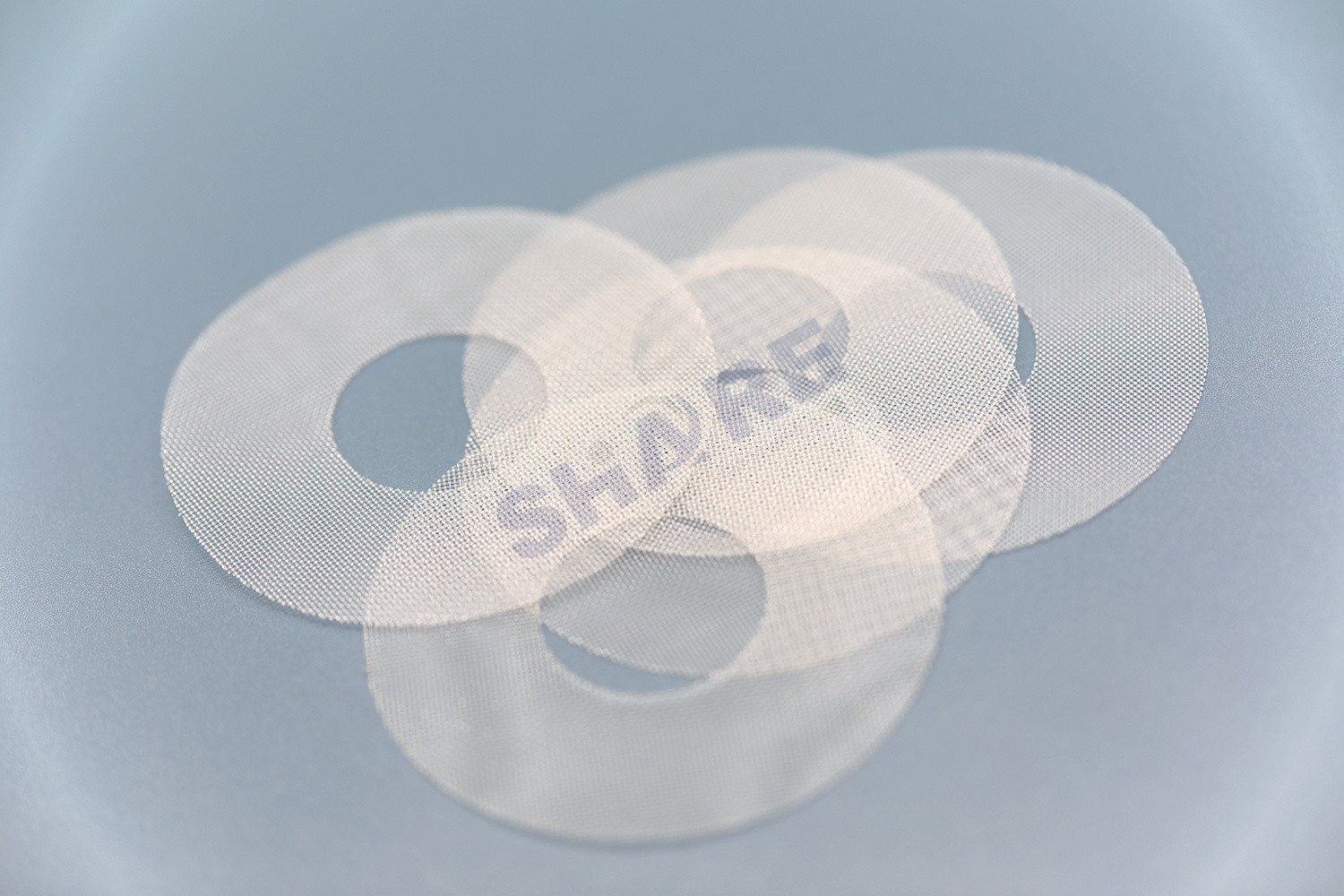

20 Mesh 900 Micron Polyester Filter Mesh Pieces Cutted PET Mesh Discs

Share Filters supplies a wide range of specifications of woven polyester filter mesh. Polyester mesh is widely used in everyday surroundings. Examples are dishwasher filters, lime filters in kettles, dust filters in dryers or vacuum cleaners, or filter mesh in the speaker or mobile phone. Besides that, polyester filter mesh is used in a wide range of industrial filters like oil filters and interior filters in the automotive industry and blood and liquid filters in the medical industry.

Share Filters' filter mesh pieces can be tailored to any shape or dimension according to custom's design. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. The pieces parts can be also produced in single or multiple layers. The high-precision laser cut parts are characterized by closed edge quality. Ultrasonic punching enables precisely defined openings to be made in filter mesh in the highest quality.

Share Filters Filter Mesh Options for Cutting Pieces

Material Options	Polyester mesh, Nylon mesh, PP mesh, stainless steel mesh
Mesh Opening	From 16 micron to 4400 micron
Thread Diameter	From 31 micron to 600 micron
Open Area	From 10% to 77.5%
Weave Type	Plain Weave
After Treatment Options	Calendaring, Water-repellent, etc
Dimension	Can be tailored to virtually any shape or dimension
Colour	White, or customize

nylon filter mesh pieces

The Benefits from Share Filters' Pre-Cut PET Mesh Pieces:

• Convenient for insert molding

• Specific to the customer’s design needs

• Non-fraying edges(depends on the technology)

Polyester Filter Mesh Specifications

Fabric number	Mesh count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
Fabric number	Mesh count		Thread diameter	Mesh opening	Open surface	Fabric thickness	Weight
No.	mesh/cm	mesh/inch	micron	micron	%	micron	g/m²
PES 900/52	8T	20	350	900	52	660	251
PES 760/47	9T	23	350	760	47	670	282
PES 800/64	10S	25	200	800	64	360	87
PES 750/56	10	25	250	750	56	450	160
PES 700/49	10T	25	300	700	49	570	231
PES 720/74	12S	30	120	720	74	215	44
PES 680/67	12	30	150	680	67	260	69
PES 580/48	12	30	250	580	48	460	192
PES 530/40	12T	30	300	530	40	580	277
PES 515/52	14S	36	200	515	52	360	143
PES 470/50	15S	38	200	470	50	380	154
PES 420/40	15T	38	250	420	40	470	240
PES 525/92	16S	41	100	525	92	180	36
PES 425/46	16T	41	200	425	46	380	164
PES 405/53	18S	46	150	405	53	260	104
PES 375/46	18T	46	180	375	46	330	150
PES 375/51	19T	48	150	375	51	260	110
PES 420/71	20S	50	80	420	71	140	33
PES 400/64	20S	50	110	400	64	180	51
PES 350/49	20T	50	150	350	49	260	115
PES 325/47	21T	53	150	325	47	270	121
PES 340/67	24S	61	120	340	67	220	88
PES 270/42	24T	61	150	270	42	280	138
PES 250/46	27T	68	120	250	46	230	100
PES 280/62	28S	71	80	280	62	150	46
PES 240/45	28T	71	120	240	45	230	103
PES 225/43	29T	74	120	225	43	230	107
PES 215/42	30T	76	120	215	42	230	111
PES 230/54	32S	80	80	230	54	150	52
PES 210/45	32T	80	100	210	45	180	82
PES 215/53	34S	86	80	215	53	150	56
PES 195/44	34T	86	100	195	44	180	87
PES 180/42	36T	91	100	180	42	180	92
PES 200/61	39S	99	55	200	61	95	30
PES 190/55	39T	99	64	190	55	115	40
PES 150/36	40T	102	100	150	36	190	103
PES 150/42	43T	110	80	150	42	155	71
PES 160/57	47S	120	55	160	57	96	36
PES 150/50	47T	120	64	150	50	120	48
PES 140/43	47HD	120	71	140	43	130	59
PES 140/47	49S	125	64	140	47	120	50
PES 135/44	49T	125	71	135	44	130	62
PES 144/55	53S	135	45	144	55	76	27
PES 135/51	53S	135	55	135	51	97	40
PES 125/44	53T	135	64	125	44	122	54
PES 117/39	53T	135	71	117	39	132	67
PES 115/46	59S	150	55	115	46	99	45
PES 105/38	59T	150	64	105	38	123	61
PES 100/41	64S	160	55	100	41	100	48
PES 90/33	64T	160	64	90	33	125	66
PES 95/47	72S	180	45	95	47	78	37
PES 85/38	72T	180	55	85	38	102	55
PES 75/33	77T	195	55	75	33	105	58
PES 80/41	80S	200	45	80	41	80	41
PES 85/44	80T	200	48	85	44	86	44
PES 70/40	90M	230	39	70	40	68	34
PES 68/34	90T	230	45	68	34	80	46
PES 65/33	90T	230	48	65	33	82	49
PES 60/36	100T	250	39	60	36	69	38
PES 56/38	110T	280	34	56	38	62	34
PES 52/33	110HD	280	39	52	33	70	42
PES 52/40	120S	300	31	52	40	48	32
PES 48/33	120T	300	34	48	33	63	37
PES 44/28	120HD	300	39	44	28	72	46
PES 47/37	130S	330	31	47	37	50	35
PES 42/30	130T	330	34	42	30	58	40
PES 43/34	140S	350	31	43	34	50	37
PES 36/25	140T	355	34	36	25	62	43
PES 37/30	150S	380	31	37	30	50	40
PES 32/24	150	381	34	32	24	56	43
PES 33/31	165S	420	27	33	31	40	26
PES 32/23	165T	420	31	32	23	50	36
PES 25/16	165	419	34	25	16	66	49
PES 24/18	180	457	27	24	18	43	33
PES 23/17	180	457	31	23	17	56	40
PES 18/18	235x245	597x622	24	18	18	44	32
PES 18/13	200	508	31	18	13	60	48
PES 23/25	200T	500	27	23	25	45	32
PES 15/10	200x215	508x546	31	15	10	59	50

This just a part of specifications which common used.

Factory Capabilities

Share Filters sepcialize in manufacturing and offering filter mesh in different materials including polyester mesh, nylon mesh, PP mesh, metallic mesh, and with the special made machines, we can also convert these filter meshes into filter mesh ribbons, mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' filtration demands.

Filter Mesh Weaving

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

woven filter mesh

Filter Mesh Slitted in Narrow Ribbons

Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic slitting is used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.

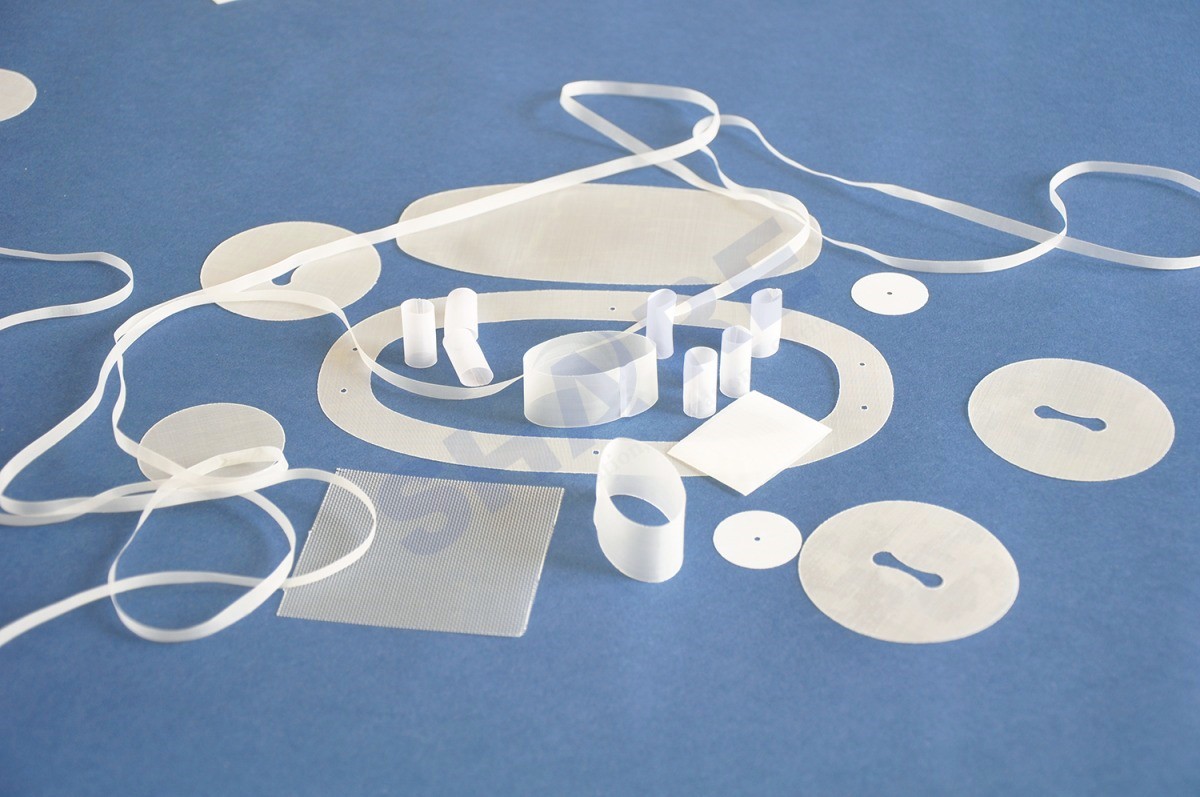

Filter Mesh Cutting Pieces and Shapes.

Share Filters cutting method include Laser cutting, Cold cutting, Heatt cutting, Punching. Professional cutting using custom-made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs

Ultrasonic Cutting and Welding

Ultrasonic cutting and welding are accurate and clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.

Sewn Bag

Standard Filter Bags

Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well as custom designed bags where requested. The constituent materials have been chosen for their purity, with consistent high quality and repeatable performance.

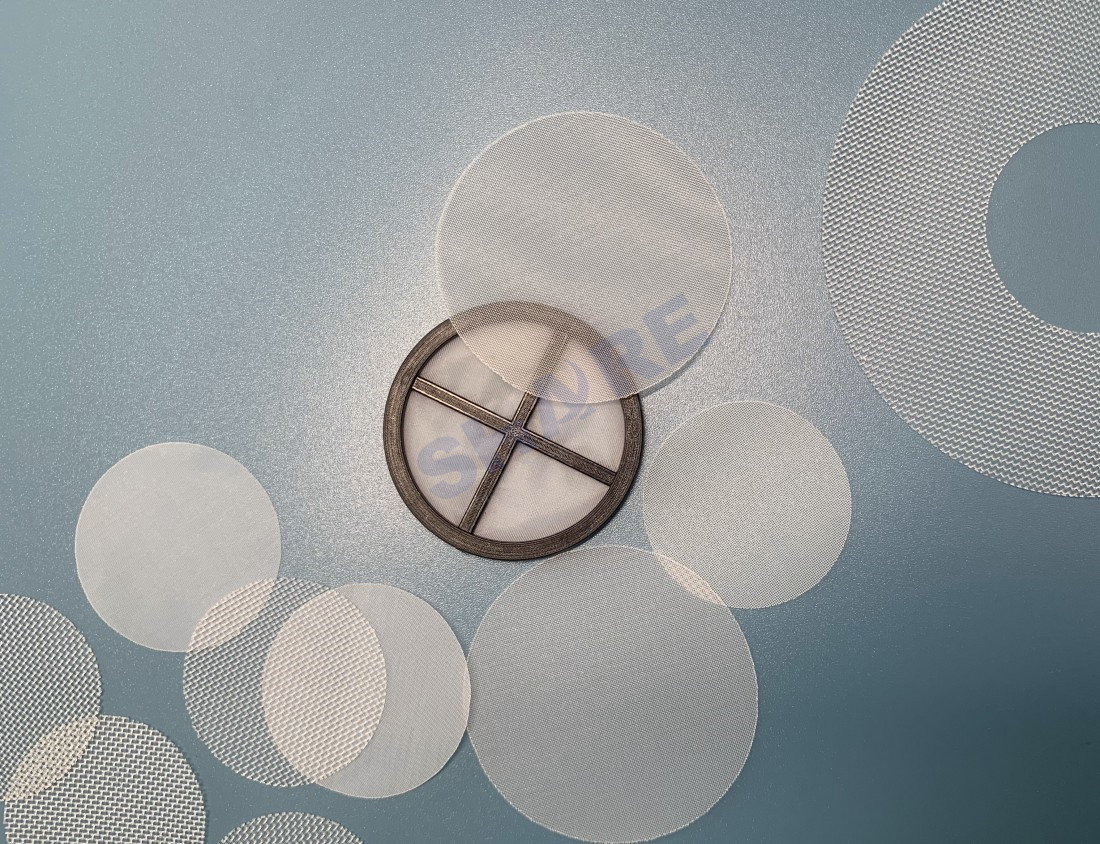

Mesh Insert Injection Moulded Plastic Filters

Our injection moulded filters products consist of a filter mesh held in a plastic frame. Injection moulding will drop hot plastic in a custom made mould with a synthetic or metallic mesh inside. Once cooled and solid, it can produce a very robust and reliable part or product that can be used for filters or screens.

What We Do
Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters.

Application of Share Filters Products


Injector filter	Cell strainer	Air purifier filter	Coffee filter	Drip irrigation filter
Automotive	Healthcare	Appliance	Food & Beverage	Agriculture

Contact Us
Please connect with us so we can learn more about your application and design specifications!

Packing and Transportation
