20um - 200um Suction Filter For Indirect Oil Fired Space Heater Nylon Mould Screen

Minimum Order Quantity : 1000pcs Price : USD0.05-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram, PayPal Supply Ability : 10000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Suction Filter For Indirect Oil Fired Space Heater

Detail Information

Product Name: Suction Filter For Indirect Oil Fired Space Heater Keyword: Suction Filter
Rim Material: PA, PP,PET, ABS, POM, PE, PC, Etc. Filter Media: Nylon Mesh, Polyester Mesh, Metallic Mesh
Micron Rating: 20μm-200μm Colour: White, Black, Customised
High Light:

Indirect Oil Fired Space Heater Filter

,

Nylon Mould Screen Suction Filter

,

20um Suction Filter

Product Description

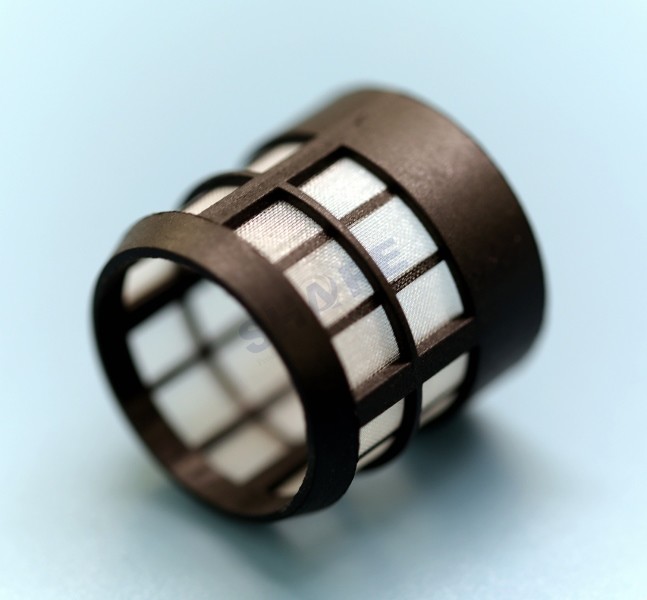

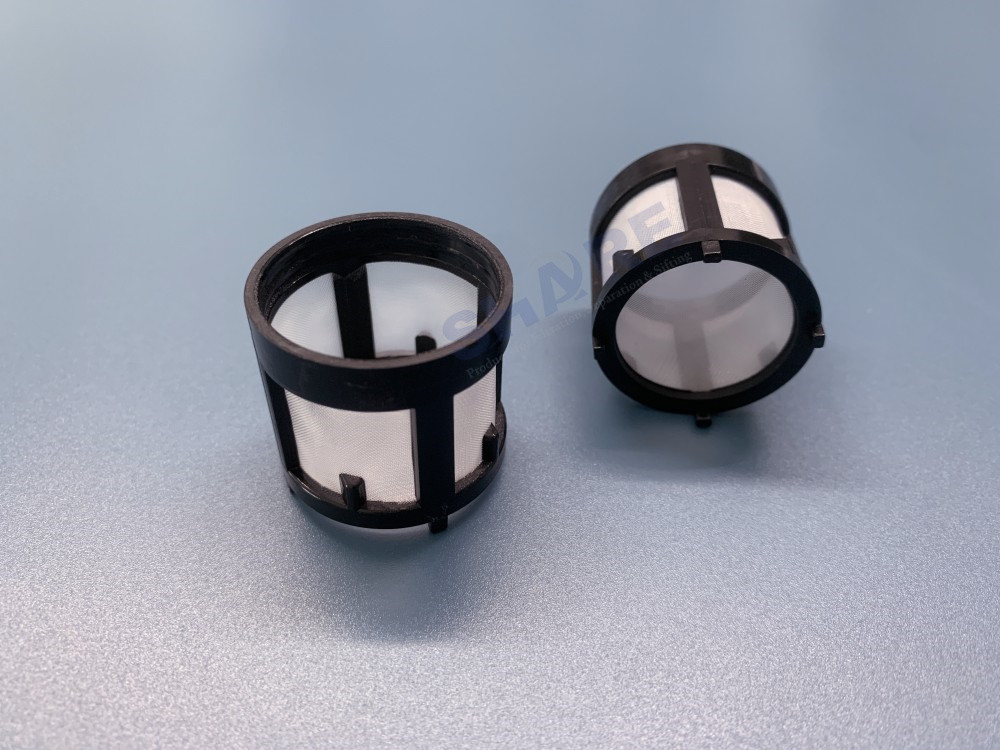

Suction Filter For Indirect Oil Fired Space Heater Nylon Mould Screen



Share Filters' suction filter for indirect oil fired space heater combines the nylon or polyester filter mesh with thermoplastic, allowing for a more robust part giving more reliability and longevity in its use. Injection moulding can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter products according your drawing that will best suit your needs, as well as, offering any additional advice or service along the way.



Share filters value added serve



Share Filters Suction Filter For Indirect Oil Fired Space Heater Material Options



20um - 200um Suction Filter For Indirect Oil Fired Space Heater Nylon Mould Screen 1 Support rim material PA, PET, PP, PC ABS, PE, POM, etc.
Filter media Nylon mesh, polyester mesh, PP mesh, metallic mesh
Micron rating 20μm - 200μm
plastic Mesh parts fabrication Laser cutting, sonic cutting, sonic welding, heat welding
Process Mesh insert injection moulding
Specification Custom
Colour Custom






























suction filter

suction filter

suction filter





Nylon Filter Mesh Specification For Suction Filter For Indirect Oil Fired Space Heater



Fabric
number
Mest count Thread
diameter
Mesh
opening
Open
surface
Fabric
thickness
Weight
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 42 60 36 65 35
JPP120 120 305 30 55 42 52 20
JPP120 120 305 35 45 29 60 28
JPP120 120 305 38 42 25 67 35
JPP120 120 305 42 42 25 75 42
JPP130 130 330 30 47 37 55 22
JPP130 130 330 35 42 30 62 30
JPP130 130 330 38 40 26 74 36
JPP140 140 355 30 38 28 53 25
JPP140 140 355 35 37 26 65 33
JPP140 140 355 38 32 20 68 36
JPP145 145 368 38 30 19 64 40
JPP150 150 380 30 34 26 50 26
JPP150 150 380 38 31 21 68 40
JPP165 165 420 30 30 25 59 28
JPP165 165 420 38 25 15 75 42
JPP180 180 460 30 25 21 60 31
JPP200 200 508 30 20 16 65 34





Plastic Material Selection


When selecting the plastic, the application and the requirements for the plastic part are decisive. We process all common polymers from PA, PE, PP, ABS, PC, POM, PBT, PPA, PPS to PEEK.





polymer performance







Share Filters OEM Mesh Insert Plastic Moulded Filters

 transfusion filter20um - 200um Suction Filter For Indirect Oil Fired Space Heater Nylon Mould Screen 8 inline filter inline filter





Why Work With Share Filters ?



Manufacturing - High quality materials, precise workmanship



In our factory we process all types of meshes for screens and filters in all sizes and designs. Our business activities span from cutting or punching to sewing, welding to mesh insert-moulding.



We manufacture according to customer drawing as well as to freehand sketch or model, considering the underlying standard tolerances and customized manufacturing standards. Experience and knowledge of our employees guarantee high-quality implementation.



Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.



Share Filters Factory Capabilities



Synthetic Mesh Slitting Cutting Welding Sewing Injection Moulding
Filter mesh weaving filter mesh slitting 20um - 200um Suction Filter For Indirect Oil Fired Space Heater Nylon Mould Screen 13 filter mesh welding filter mesh bag sewing Mesh insert injection moulded filter
Share Filters synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. Ultrasonic slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge. Our cutting method include Laser cutting, cold cutting, heat cutting, slitting, stamping. professional cutting using custom made tools that will not damage the meshes. Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. Custom plastic molded filters combine precise filter mesh with plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.





Photos of Share Filters Workshops

Share Filters workshops
