Toilet Flush Valve Piston Assembly Filter OEM Nylon Mesh Moulded Screen

Minimum Order Quantity : 1000pcs Price : USD0.050-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 10000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Toilet Flush Valve Piston Assembly Filter

Detail Information

Product Name: Toilet Flush Valve Piston Assembly Filter Keyword: Toilet Flush Valve Piston Filter
Rim Material: PA, PP, ABS, POM, PE, Etc. Filter Media: Nylon Mesh, Polyester Mesh
Micron Rating: 150μm-600μm Colour: White, Black, Customised
High Light:

Toilet Flush Valve Piston Assembly Filter


Nylon Mesh Moulded Screen Piston Filter

Product Description

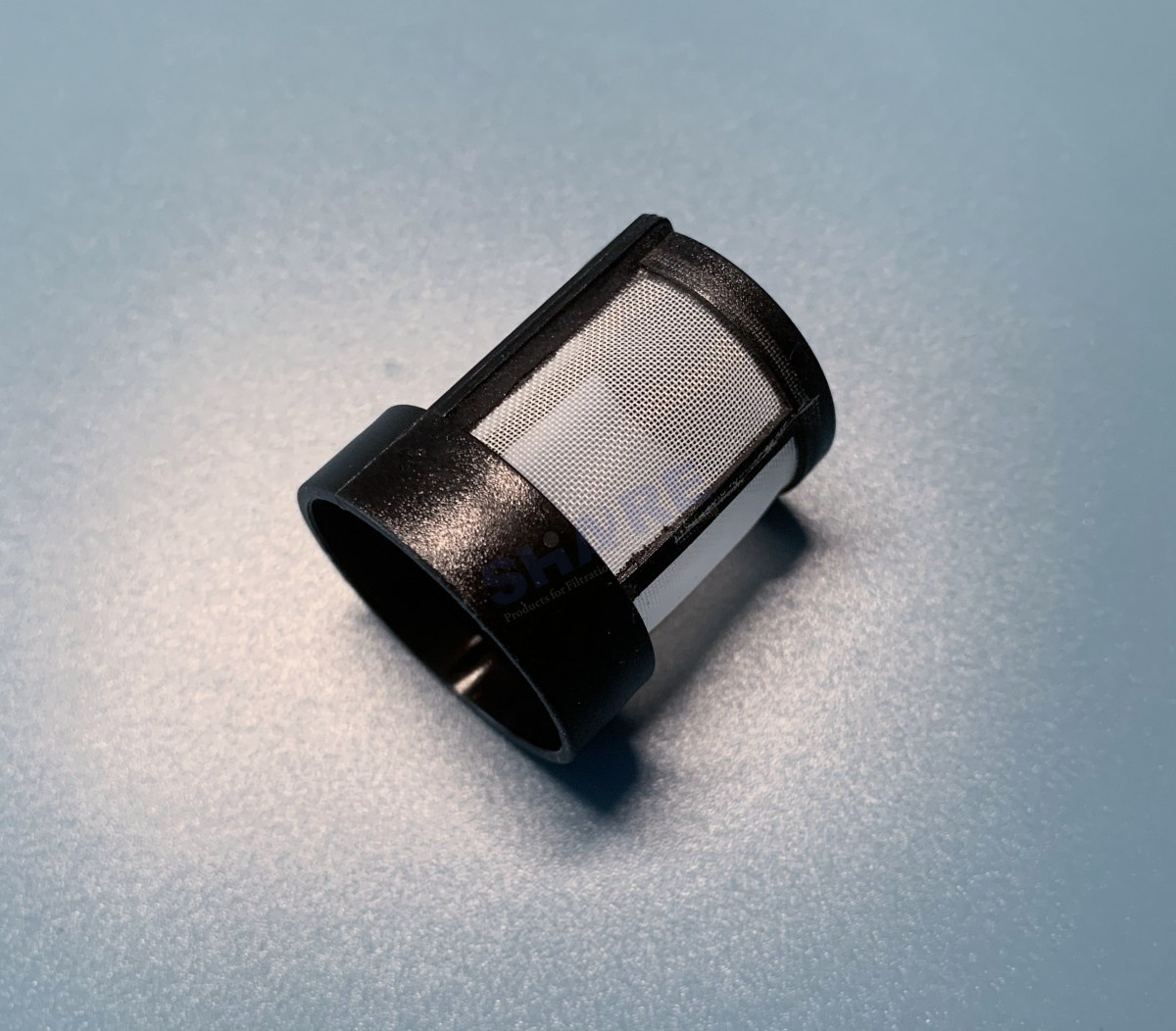

Toilet Flush Valve Piston Assembly Filter OEM Nylon Mesh Moulded Screen


The flush valve is responsible for controlling the release of water from the toilet tank into the bowl during flushing. The piston filter is a small screen or mesh located within the flush valve assembly. The purpose of the piston filter is to prevent debris, sediment, or other particles from entering the flush valve and potentially causing clogs or malfunctions.


Share Filters' piston filter combine the nylon or polyester filter mesh with plastic, allowing for a more robust part giving more reliability and longevity in its use. Injection moulding can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter products according your drawing that will best suit your needs, as well as, offering any additional advice or service along the way.

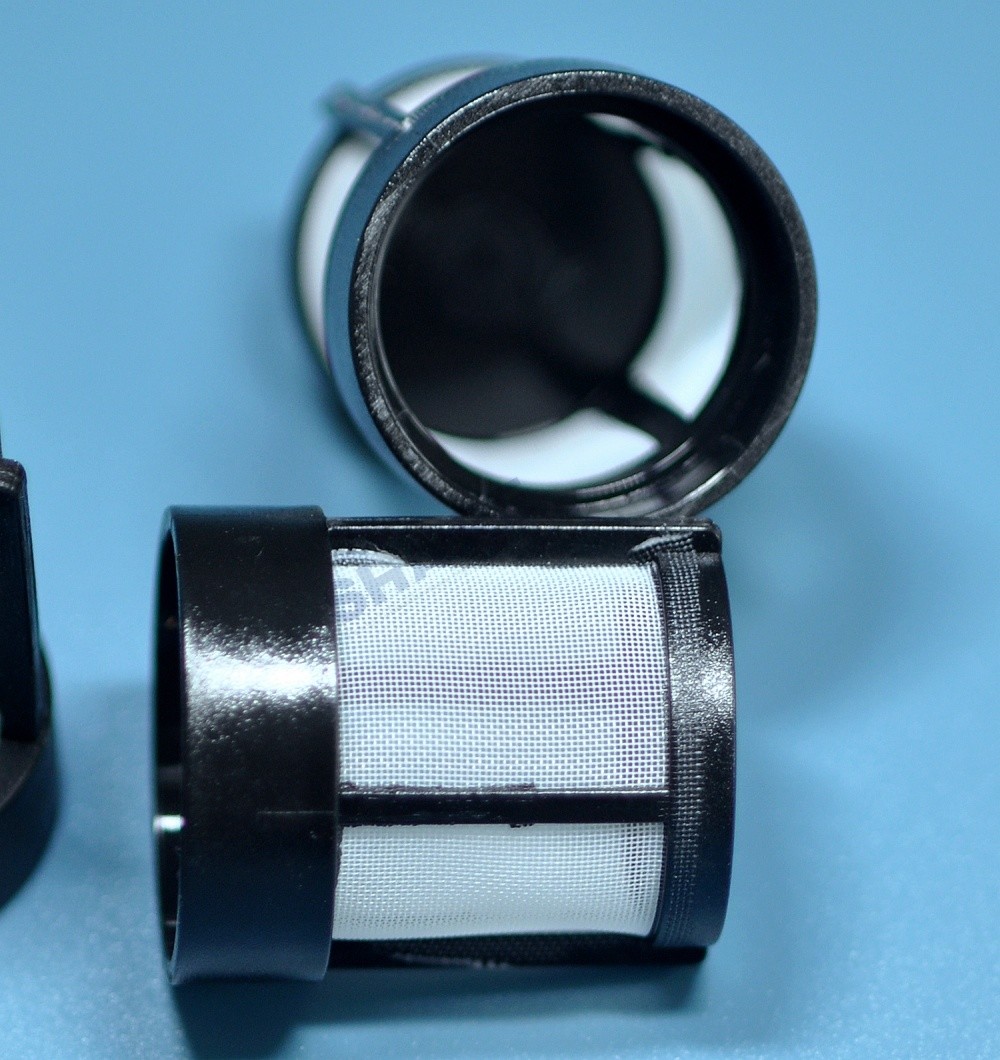

Toilet Flush Valve Piston Assembly Filter

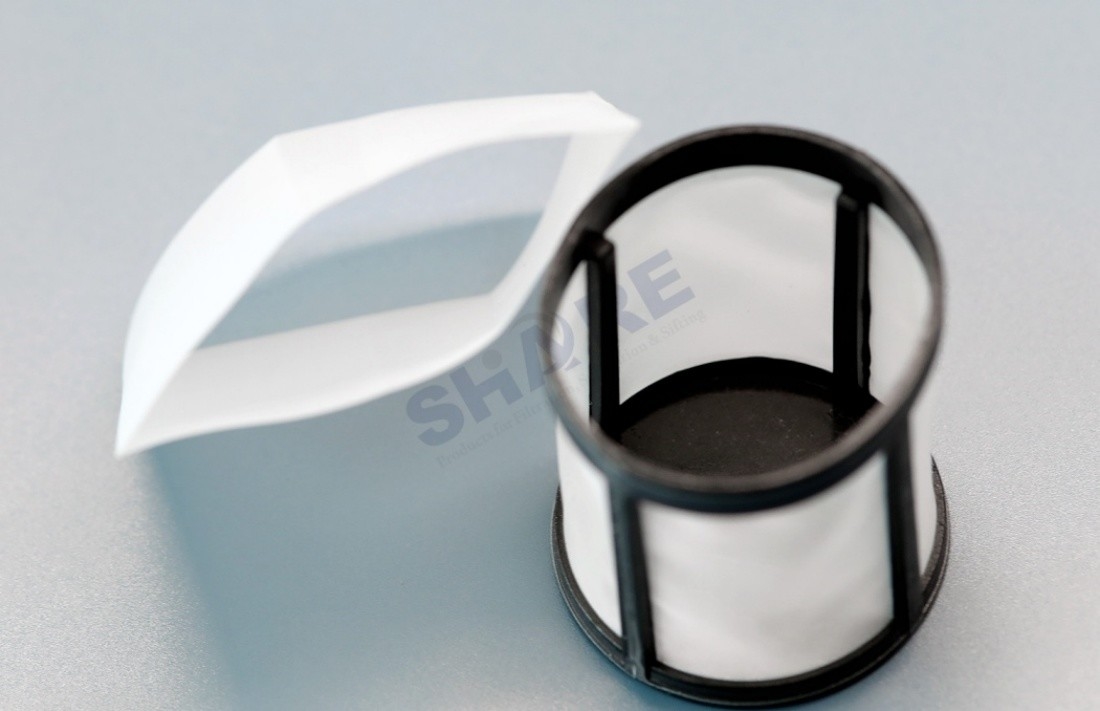

Toilet Flush Valve Piston Assembly Filter



Share Filters Piston Filter Material Options


Toilet Flush Valve Piston Assembly Filter OEM Nylon Mesh Moulded Screen 2 Support rim material PA, PET, PP, PC ABS, PE, POM, etc.
Filter media Nylon mesh, polyester mesh, PP mesh, metallic mesh
Micron rating 20μm - 500μm
plastic Mesh parts fabrication Laser cutting, sonic cutting, sonic welding, heat welding
Process Mesh insert injection moulding
Specification Custom
Colour Custom















Nylon Filter Mesh Specification For Piston Filter


Mest count Thread
No. mesh/cm mesh/inch micron micron % micron g/m2
JPP12 12 30 250 583 49 470 162
JPP12 12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60



Mesh Insert Injection Moulding

Share Filters' insert injection molding is the process of molding or forming thermoplastic parts around the filter media, especially the filter mesh. Moreover, insert molding combines the plastic support and filter mesh into a single unit. The process makes use of engineering plastics for improved wear resistance, tensile strength and weight reduction as well as using metallic materials for strength and conductivity.



Share Filters Custom Plastic Moulded Filters Examples

 inline filterproofer cup inline filter inline filter



Benefits of Mesh Insert Injection Molded Filters Include:
  • Control flow rates
  • Improve process media purity
  • Reduces assembly and labor costs
  • Better productivity
  • Improved strength & structure of  filter mesh
  • Lower contamination frequency
  • Prolong equipment lifespan


Share Filters has a variety of manufacturing processes at our facility. Our current capabilities include filter mesh weaving, mesh slitting, laser die cutting, punching, sonic welding, heat welding, horizontal and vertical injection molding, etc.


Share Filters Factory Capabilities


Synthetic Mesh Slitting Cutting Welding Sewing Injection Moulding
Filter mesh weaving filter mesh slitting Toilet Flush Valve Piston Assembly Filter OEM Nylon Mesh Moulded Screen 10 filter mesh welding filter mesh bag sewing Mesh insert injection moulded filter
Share Filters synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. Ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge. Our cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Stamping. Professional cutting using custom made tools that will not damage the materials. Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.



If you want a mesh insert manufacturing partner capable of providing you with the experience support system, look no further than Taizhou Share Filters Co., Ltd.
