Drinking Fountain Inline Filter Part Custom Order Mesh Insert Plastic Molded Filters
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 200pcs | Price : | USD0.05-USD1.50/pc |
---|---|---|---|
Packaging Details : | Caron, Polybag | Delivery Time : | 7-20 days |
Payment Terms : | T/T, L/C, Western Union, Payple | Supply Ability : | 20000pcs/day |
Place of Origin: | China | Brand Name: | Share Filters |
---|---|---|---|
Certification: | SGS | Model Number: | Boold filter in ABS with nylon mesh |
Detail Information |
|||
Product Name: | Blood Filter 263µm PA6 Mesh PP Frame Transfusion | Keyword: | Blood Transfusion Filters |
---|---|---|---|
Filter Mesh: | PA6(nylon) Mesh, PET Mesh | Micron Rating: | 40, 150, 170, 263, 200μm |
Processing: | Mesh Insert Injection Molding | Application: | Transfusion Set |
High Light: | PA6 Mesh Blood Tubular Filter,263um Blood Tubular Filter,Clear Insert Molding Plastic Filters |
Product Description

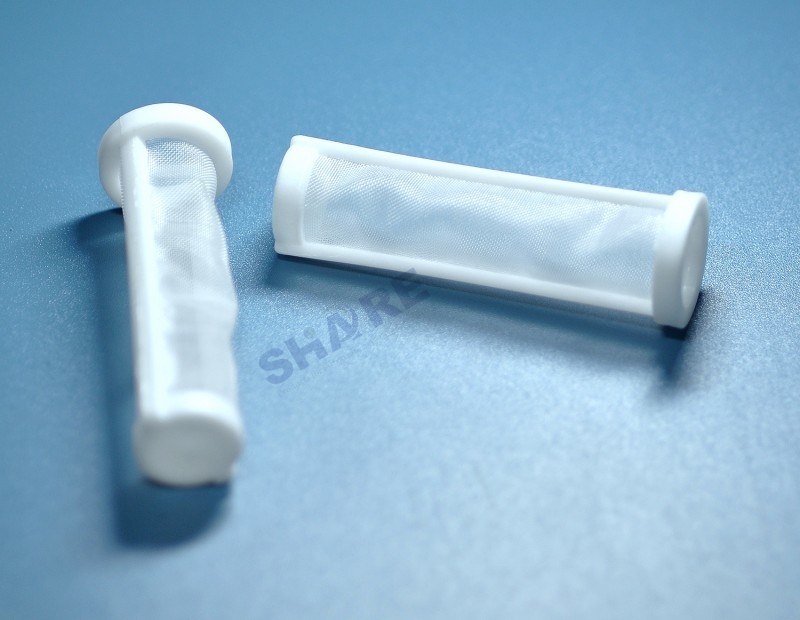

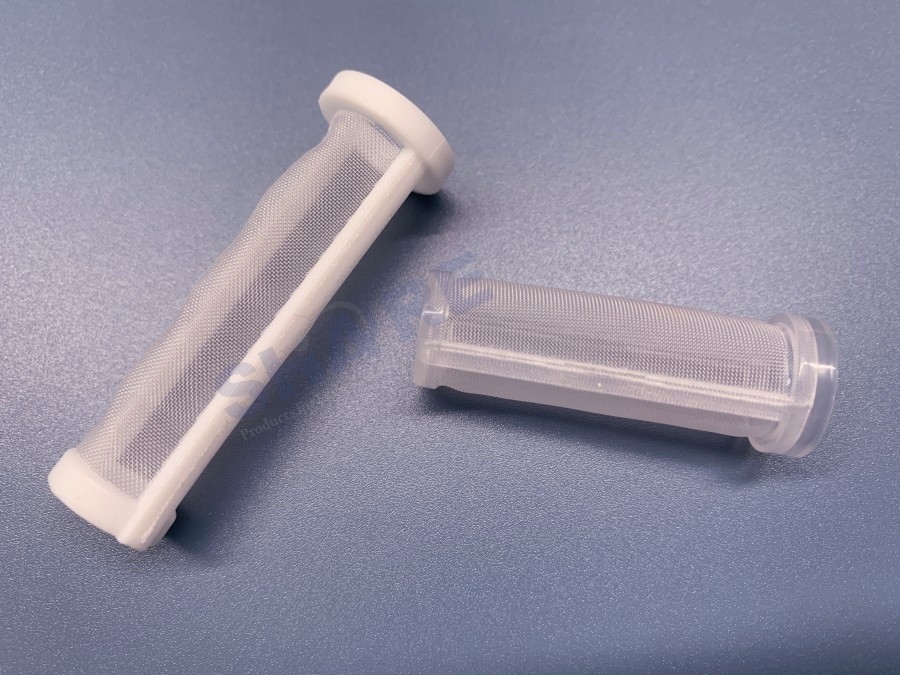

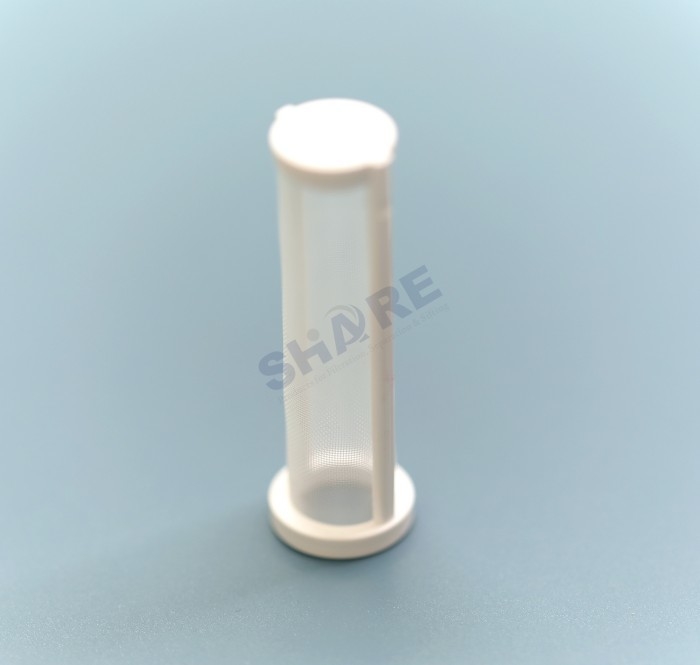

Blood Tubular Filter 263µm PA6 Mesh With Clear PP Frame For Transfusion
The blood transfusion tubular filter is a medical device used during the process of blood transfusion to remove any potential contaminants or particles from the blood before it is administered to a patient. Share Filters blood filters are manufactured with semi-automatic insert-molding technology that guarantees superior quality in manufacturing parts with high cavity molds.
The wide range of available filter mesh (PA6 and PET mesh) provides high flexibility and covers many requirements of the market, available mesh pores are from 20µmto 300 µm. Thanks to the wide choice of sizes and wide variety of materials and filter media used, blood tubular filters manufactured by Share Filter are compatible with most existing or new devices applied to the transfusion market, they can also easily meet the requirements of many other different medial and Healthcare applications.
Blood Transfusion Filter Material Options
Support rim material | PA6, PA66, PET, PP, ABS | |
Filter media | Nylon filter mesh, polyester filter mesh | |
Micron rating | 40μm - 300μm | |
Mesh parts fabrication | Laser cutting, sonic cutting, sonic welding | |
Processing | Mesh insert injection moulding | |
Specification | Custom tailored |
PA(nylon) Filter Mesh Specification For Blood Transfusion Filter
Ref. No. | Mesh Count | Thread Diam. | Mesh Opening | Opening Area | |
mesh/cm | mesh/inch | µm | µm | % | |
JPP20 | 20 | 50 | 200 | 300 | 36 |
JPP24 | 24 | 60 | 150 | 267 | 41 |
JPP28 | 28 | 70 | 120 | 237 | 44 |
JPP30 | 30 | 76 | 120 | 213 | 41 |
JPP32 | 32 | 80 | 100 | 213 | 46 |
JPP36 | 36 | 90 | 100 | 178 | 41 |
JPP40 | 40 | 100 | 100 | 150 | 36 |
JPP43 | 43 | 110 | 80 | 152 | 43 |
JPP48 | 48 | 120 | 80 | 130 | 38 |
JPP56 | 56 | 140 | 60 | 120 | 44 |
JPP59 | 59 | 150 | 60 | 110 | 42 |
JPP64 | 64 | 160 | 60 | 100 | 37 |
JPP72 | 72 | 180 | 50 | 90 | 41 |
JPP80 | 80 | 200 | 50 | 75 | 36 |
JPP100 | 100 | 250 | 40 | 60 | 36 |
JPP120 | 120 | 305 | 40 | 43 | 25 |
JPP130 | 130 | 330 | 40 | 37 | 23 |
JPP140 | 140 | 355 | 30 | 38 | 33.7 |

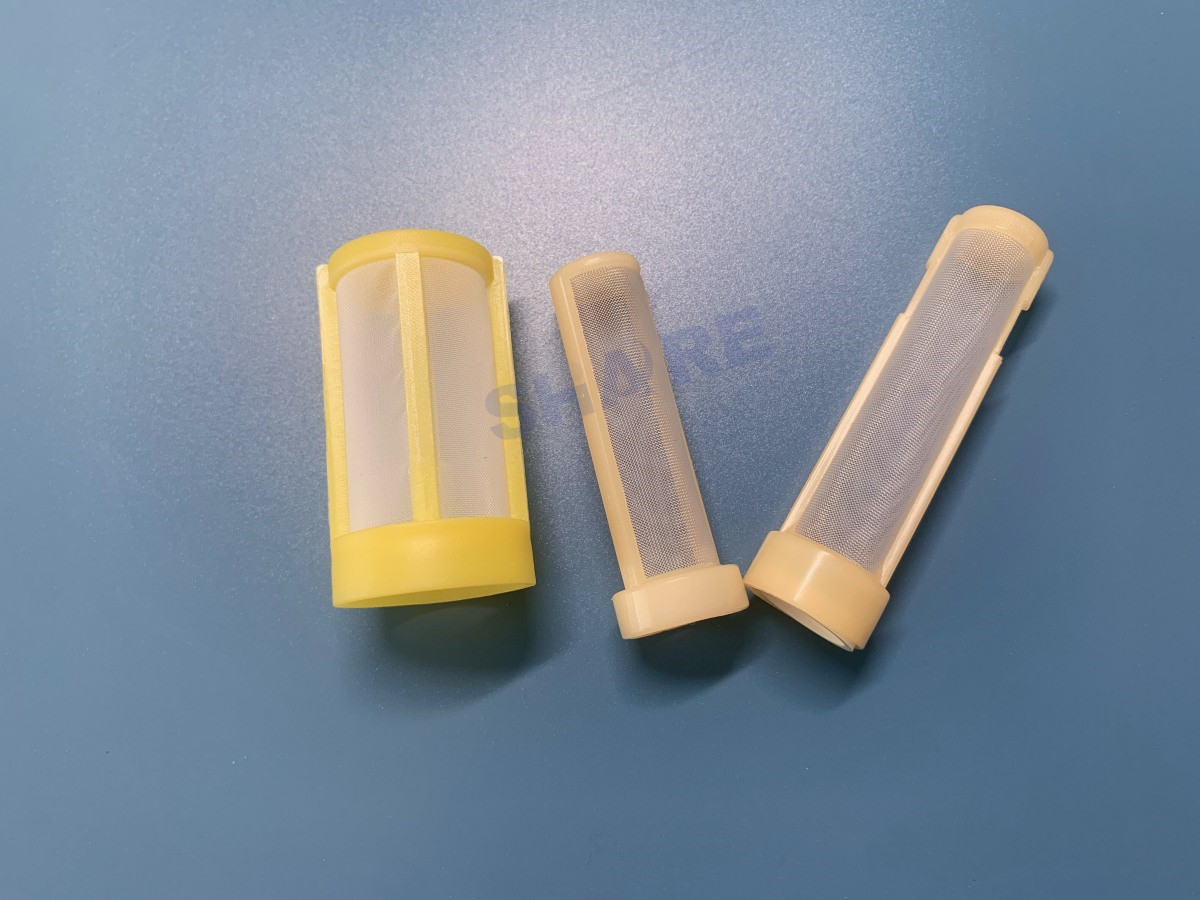

Other Custom-made Medical Device Filter Components
Why Work With Share Filters?
Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom tailored filter elements. We have a variety of manufacturing processes at our facility. Our current production lines include filter mesh weaving, mesh slitting, laser cutting, punching, sonic welding, horizontal and vertical injection molding, etc.
Share Filters Factory Capabilities
Synthetic Mesh | Slitting | Cutting | Welding | Sewing | Injection Moulding |
Share Filters synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape. | Ultrasonic slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up at the edge. | Our cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Stamping. Professional cutting using custom made tools that will not damage the materials. | Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology. | Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality. | Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory. |
Share Filters Products Serve Industries
Automotive | Food & Beverage | Healthcare | Appliance | Hydraulic |
Photos of Share Filters' Workshops
Packing and Shipment
