Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter

Minimum Order Quantity : 200pcs Price : USD0.08-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 10000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Volkswagen Throttle Body Injector Side Feed Filter

Detail Information

Product Name: Volkswagen Throttle Body Injector Side Feed Filter Keyword: TBI Side Feed Filter
Frame Material: PA, PET, PE, PP, ABS, POM, Etc. Filter Media: Nylon Mesh, PET Mesh, PP Mesh, Metallic Mesh
Micron Rating: 20μm-500μm Specification: Custom OEM
High Light:

Throttle Body Injector Feed Blue Filter

,

OEM Volkswagen Fuel Filter

Product Description



Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter



The main function of a throttle-body injection (TBI) side feed fuel injector filter is to prevent contaminants and debris from entering the fuel injectors in a TBI system. Throttle-Body Injection side feed fuel Injector filter is a crucial component in the TBI system that helps to ensure the proper functioning of the fuel injectors and prevent damage to the engine.



Share Filters' injection moulded throttle-body injection side feed fuel injector filter for volkswagen consist of a nylon filter mesh held in a thermoplastic frame, allowing for a more robust part giving more reliability and longevity in its use. Injection moulding can take many forms and Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit our customers' needs, as well as, offering any additional advice or service along the way.

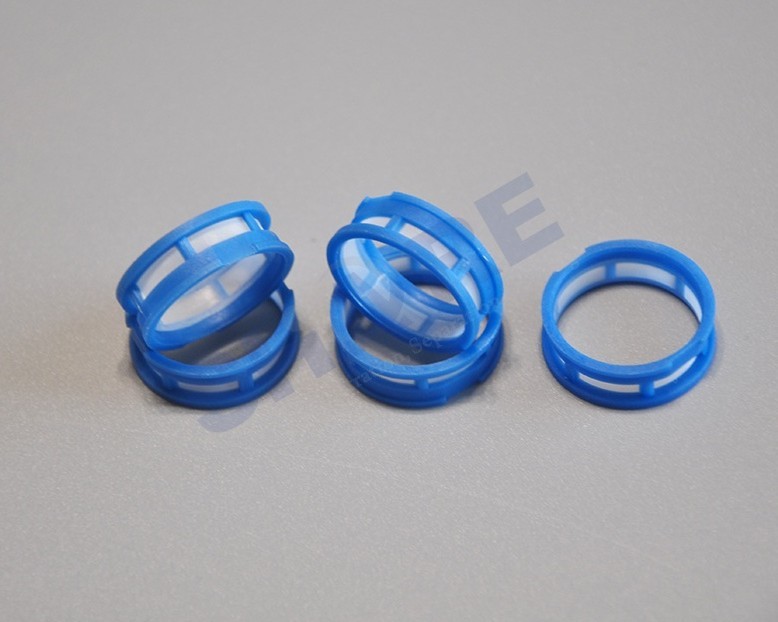

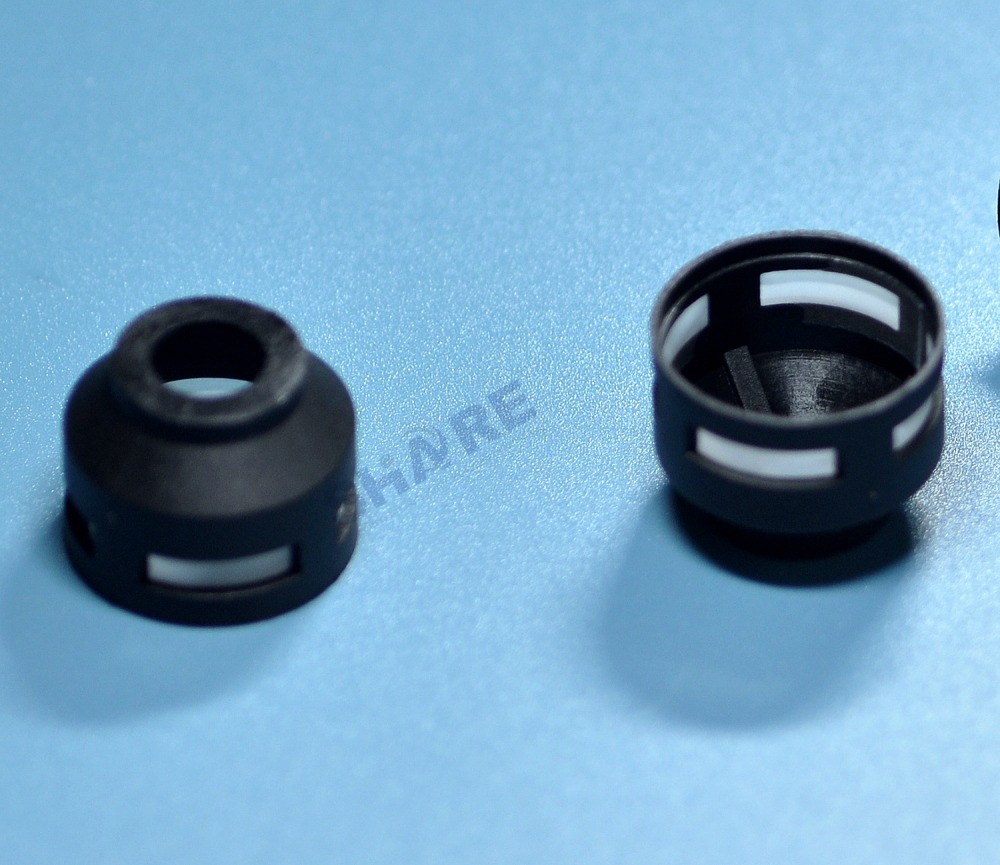

Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 0  Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 1





The Features of Share Filters TBI Side Feed Fuel Injector Filters Include:

  • High filtration efficiency: TBI Side Feed Fuel Injector Filters are designed to effectively trap and remove contaminants and debris from the fuel system to prevent clogging of the fuel injectors and damage to the engine.
  • Durability: TBI Side Feed Fuel Injector Filters are typically made from high-quality materials that are resistant to wear and tear, ensuring long-term reliable performance.
  • Easy installation: Most TBI Side Feed Fuel Injector Filters are designed to be easy to install and replace, with simple mounting and connection features that make it easy for mechanics or vehicle owners to perform maintenance.
  • Cost-effective: TBI Side Feed Fuel Injector Filters are typically affordable and cost-effective, making them an accessible option for vehicle owners and mechanics who want to ensure proper fuel system performance without breaking the bank.



Other OEM Fuel  Filters

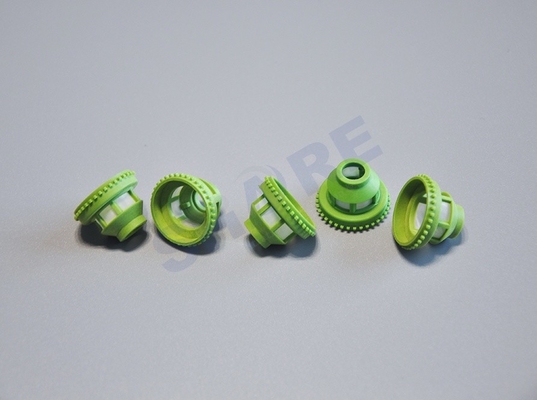

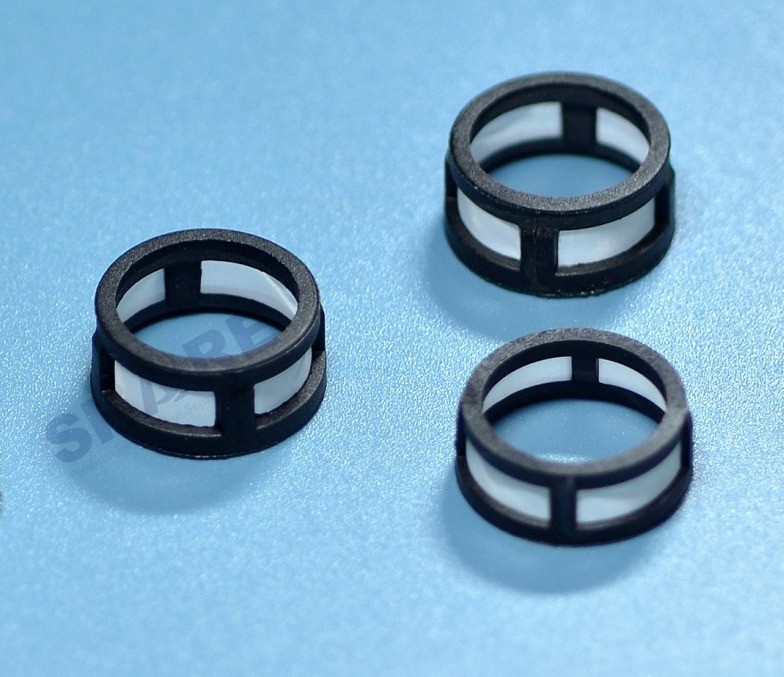

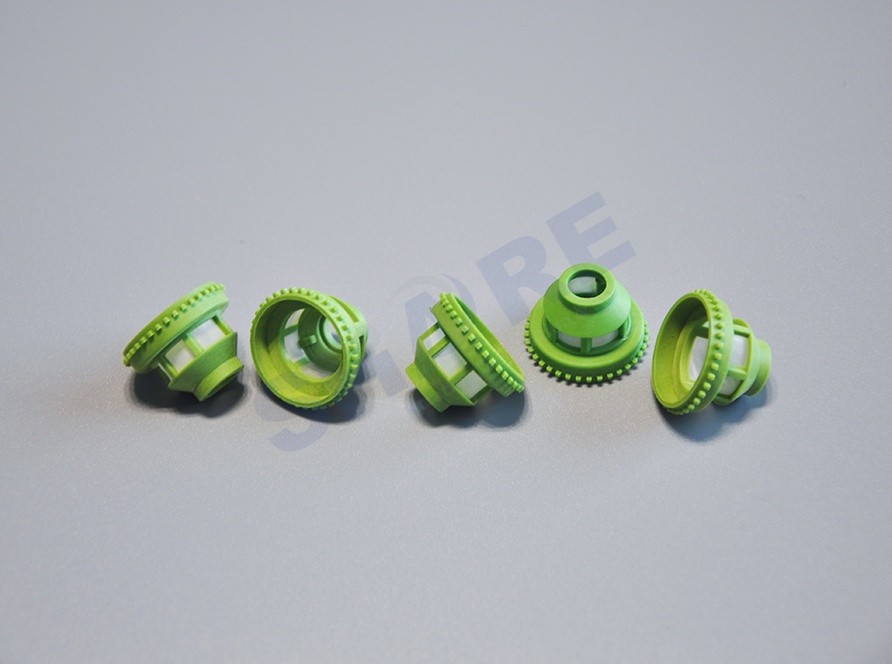

fuel filter fuel filter fuel filter  Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 5





Share Filters Fuel Filters Materials Options



Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 6  Support rim material  PA6, PA66, PET, PP, ABS, brass, and other high-performance thermoplastics
 Filter media  Nylon mesh, polyester mesh, PP mesh, metallic mesh
 Micron rating  20μm - 500μm
plastic  Mesh parts fabrication  Laser cutting, sonic cutting, sonic welding
 Process  Injection moulding
 Specification  Custom
 Colour  Custom





Properties of Polymer Plastic



PA6 (polyamide 6)                     Tough, abrasion-resistant, good vibration damping, resistant to solvents, fuels and lubricant
PA66 (polyamide6.6)                 Rigid, stiff, abrasion-resistant, dimensionally stable at heat exposure.
PET (polyethyleneterehthalate) High rigidity, high hardness, high chemical resistance, good dimensional stability.
PP (polypropylene)                    Good chemical resistance, more heat resistant than PVC

ABS (Acrylonitrile, Butadiene and Styrene) Toughness and impact resistance, good stiffness and machinability even at low temperatures
PEEK (polyetheretherketone)    High mechanical strength, stiffness, toughness, temperature, chemical and radiation resistance





Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 8





How To Select The Right Filter Mesh? You Can Follow These Points.

  • Mesh size or the size of the particle you need to filter
  • Mesh material (consider the working condition)
  • Mesh thread diameter, Mesh thickness
  • Opening area



PA(nylon) Filter Mesh Specification for Fuel Filter



Ref. No. Mesh Count Thread Diam. Mesh Opening Opening Area
  mesh/cm mesh/inch µm µm %
JPP5 5 12 500 1500 56
JPP6 6 16 400 1267 58
JPP7 7 18 350 1079 57
JPP8 8 20 350 900 52
JPP9 9 24 250 860 60
JPP10 10 25 300 700 49
JPP12 12 30 250 583 49
JPP12 12 30 300 533 41
JPP14 14 35 300 414 34
JPP16 16 40 200 425 46
JPP16 16 40 250 375 36
JPP20 20 50 150 350 49
JPP20 20 50 200 300 36
JPP24 24 60 150 267 41
JPP28 28 70 120 237 44
JPP30 30 76 120 213 41
JPP32 32 80 100 213 46
JPP36 36 90 100 178 41
JPP40 40 100 100 150 36
JPP43 43 110 80 152 43
JPP48 48 120 80 130 38
JPP56 56 140 60 120 44
JPP59 59 150 60 110 42
JPP64 64 160 60 100 37
JPP72 72 180 50 90 41
JPP80 80 200 50 75 36
JPP100 100 250 40 60 36
JPP120 120 305 40 43 25
JPP130 130 330 40 37 23
JPP140 140 355 30 38 33.7
JPP150 150 381 30 34 30.25
JPP165 165 420 30 28 20.7
JPP180 180 460 30 25 19.5
JPP200 200 510 30 16 10.2


This data sheet just include our common specification, please contact us if you have other custom specification






About Share Filters



Share Filters has over 20 years of experience developing and manufacturing filter mesh and mesh filter solutions for our customer's screen and filtration needs. Many of our custom product solutions are molded from mesh and plastic, utilizing our insert injection molding or pot molding capabilities. These processes allow for flexibility in design and material selection. They also offer significant advantages in cost and ease of manufacture over other potential solutions.



Photos of Share Filters Workshop

Share Filters work shop





Share Filters Products Applications



Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 10 Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 11 Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 12 Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 13 Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 14 Throttle Body Injector Side Feed Blue Filter OEM Volkswagen Fuel Filter 15
Automotive Appliance Medical Food & Beverage Chemical Environmental
