OEM Automobile Transmission Valve Body Internal Filter With Wire Screen

Product Description

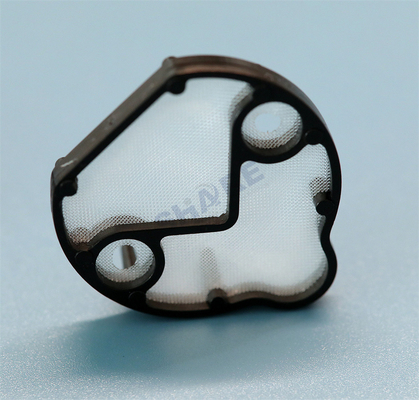

OEM Automobile Transmission Valve Body Internal Filter With Wire Screen



The Valve body internal filter is designed to capture and remove contaminants, such as dirt, debris, and metal particles, from the automatic transmission fluid as it circulates through the valve body. It helps ensure that the transmission operates smoothly and efficiently by preventing these contaminants from entering the sensitive components of the transmission.



Share Filters' OEM injection moulded valve filters consist of a stainless steel mesh or synthetic filter mesh held in a polymer frame, allowing for a more robust part/product giving more reliability and longevity in its use. Injection moulding can take many form and shape, Share Filters is fully capable to help develop and produce the injection moulded filter product that will best suit our cuatomers' needs, as well as, offering any additional advice or service in every stage, from the material selection to final products.





Technical Data



Product name:	Transmission filter	Rim material:	ABS, PP, PA, PE, etc.
Application:	Automobile transmission valve body	Mesh:	Stainless steel mesh, nylon mesh, PET mesh
OEM:	Acceptable	Micron rating:	From 25μm to 500μm
Processing:	Mesh insert injection moulding	Color:	Customize
Dimension:	Customize	Package:	Plastic bag, master carton





Product Picture











Injection Moulding Process


Injection moulding can provide a part or product that carries a more complex shape for more specific functionality, as well as, still being cost-effective and able to be produced in larger numbers consistently and within a deadline.





Share Filters OEM Filters for Automobile









Property of Thermoplastic



PA6 (polyamide 6)	Tough, abrasion-resistant, good vibration damping, resistant to solvents, fuels and lubricant
PA66 (polyamide6.6)	Rigid, stiff, abrasion-resistant, dimensionally stable at heat exposure.
PET (polyethyleneterehthalate)	High rigidity, high hardness, high chemical resistance, good dimensional stability.
PP (polypropylene)	Good chemical resistance, more heat resistant than PVC
ABS (Acrylonitrile Butadiene Styrene)	Toughness and impact resistance, good stiffness and machinability even at low temperatures.





Stainless Steel Filter Mesh Datasheet



Mesh Count (per inch)	Thread Diameter (microns)		Aperture		Open Area (%)	Weight (IB) /100 Square Foot
	inch	mm	inch	mm
8x8	0.028	0.71	0.097	2.46	60.2	41.1
10x10	0.025	0.64	0.075	1.91	56.3	41.2
10x10	0.020	0.51	0.080	2.03	64.0	26.1
12x12	0.023	0.584	0.060	1.52	51.8	42.2
12x12	0.020	0.508	0.063	1.60	57.2	31.6
14x14	0.023	0.584	0.048	1.22	45.2	49.8
14x14	0.020	0.508	0.051	1.30	51.0	37.2
16x16	0.018	0.508	0.0445	1.13	50.7	34.5
18x18	0.017	0.432	0.0386	0.98	48.3	34.8
20x20	0.020	0.508	0.0300	0.76	36.0	55.2
20x20	0.016	0.406	0.0340	0.86	46.2	34.4
24x24	0.014	0.356	0.0277	0.70	44.2	31.8
30x30	0.013	0.330	0.0203	0.52	37.1	34.8
30x30	0.012	0.305	0.0213	0.54	40.8	29.4
30x30	0.009	0.229	0.0243	0.62	53.1	16.1
35x35	0.011	0.279	0.0176	0.45	37.9	29.0
40x40	0.010	0.254	0.0150	0.38	36.0	27.6
50x50	0.009	0.229	0.0110	0.28	30.3	28.4
50x50	0.008	0.203	0.0120	0.31	36.0	22.1
60x60	0.0075	0.191	0.0092	0.23	30.5	23.7
60x60	0.007	0.178	0.0097	0.25	33.9	20.4
70x70	0.0065	0.165	0.0078	0.20	29.8	20.8
80x80	0.0065	0.165	0.0060	0.15	23.0	23.2
80x80	0.0055	0.140	0.0070	0.18	31.4	16.9
90x90	0.005	0.127	0.0061	0.16	30.1	15.8
100x100	0.0045	0.114	0.0055	0.14	30.3	14.2
100x100	0.004	0.102	0.0060	0.15	36.0	11.0
100x100	0.0035	0.089	0.0065	0.17	42.3	8.3
110x110	0.0040	0.1016	0.0051	0.1295	30.7	12.4
120x120	0.0037	0.0940	0.0064	0.1168	30.7	11.6
150x150	0.0026	0.0660	0.0041	0.1041	37.4	7.1
160x160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180x180	0.0023	0.0584	0.0033	0.0838	34.7	6.70
200x200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250x250	0.0016	0.0406	0.0024	0.0610	36.0	4.4
270x270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300x300	0.0015	0.0381	0.0018	0.0457	29.7	3.04
325x325	0.0014	0.0356	0.0017	0.0432	30.0	4.40
400x400	0.0010	0.0254	0.0015	0.370	36.0	3.32
500x500	0.0010	0.0254	0.0010	0.0254	25.0	3.80
635x635	0.0008	0.0203	0.0008	0.0203	25.0	2.63





Share Filters, An OEM Mesh Insert Moulded Filters Manufacture From China



As a filter meshes and moulded filters manufacture, Share Filters always find the best solution is to work with our OEM customers to collaborate on their mesh filtration product development projects before the final design prints are completed. Our experienced engineers are able to not only to meet your functional requirements, but also to recommend design alterations to improve performance and manufacturability. We will concentrate on the following:



Consider Area		Factors	Outcoming
Filtration Media		Select right material, weave type, pore size, thread diam, heat treatment, coatings	Media selected meets the required performance
Component Design		Consider supporting frame media, housing, end caps	The filtration components can perform well in working condition
Manufacturing Process		Design lends itself to easy manufacture and economic cost	Produced at low cost of manufacture and high efficiency
Quality Control		Determine parameters and frequency of measurement	High quality, precision filter components





Contact Us



Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!



---



What Share Filters Do?



Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world. As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure – from simple components like mesh pieces to complex devices like custom combination plastic moulded filters. Filter mesh ribbons, shapes, tube, bags, Injection-moulded filters and similar products of various shapes, sizes and fine meshes are our primary business.



We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions. The molding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.





Factory Capabilities



Precision Woven Filter Mesh in Nylon, Polyester, Polypropylene,   Selecting the high-quality monofilament thread, Share weaves filter mesh with Sulzer P7100 looms. The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 170cm, 365cm or other custom width. Length of roll can be 30m, 50m, 70m, or custom length. Mesh openings can vary from 3 micron to 4400 microns, giving these mesh filter fabrics the versatility to be used in many different liquid-solid separation processes.





Filter Mesh Slitted in Narrow Ribbons   Mesh ribbons are often the basis for various further processing steps in numerous manufacturing processes for piece, tubes and bags. A wide range of hot and ultrasonic cutting equipments enables the versatile production of ribbons from Share Filters. Share Filters ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters, electronic devices, healthcare.
