Synthetic Mesh Injection Molded Filters For Household Appliance Washing Machine
Synthetic Mesh Injection Molded Filters For Household Appliance Washing Machine Synthetic Mesh Injection Molded Filters For Household Appliance Washing Machine
Contact Now

Synthetic Mesh Injection Molded Filters For Household Appliance Washing Machine

Minimum Order Quantity : 100pcs Price : USD2.10-USD3.50/pc
Packaging Details : Caron, Polybag Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, Payple Supply Ability : 10000pcs/day
Place of Origin: China Brand Name: SHARE
Certification: SGS Model Number: Custom

Detail Information
Mesh Material: Synthetic Mesh Support Gasket: PA, PP, And Other Thermoplastic
Micron Rating: 25μm - 1200μm Thread Diam: 30μm - 400μm
Colour: Custom
High Light:

Household Injection Molded Filters

,

Washing Machine Insert Molding Plastic Filters

,

Synthetic Mesh Injection Molded Filters

Product Description

Molded Filter For Household Appliance Filtration Washing Machine



Share has over 20 years of experience developing and manufacturing custom product solutions for our customer's screen and filtration needs. We have engineers and toolmakers to assist in the design of, and frequently build the tooling necessary to manufacture custom products combining synthetic mesh or metallic mesh with thermo-plastic. Our current production lines include filter mesh weaving, mesh slitting, laser die cutting, sonic welding, stamping, injection molding, etc.



Share's custom plastic molded filters combine industrial mesh technologies with decades of technical manufacturing expertise. This allows Share to take each customer’s design and bring it to reality, in a consistent, reliable, and cost effective way.





The molded filters in washing machines protect the pump from unwanted particles. This extends the life of the washing machines while also contributing to its consistent performance. Our fabrics with wide range of pore sizes are the ideal solution for all washing machines.

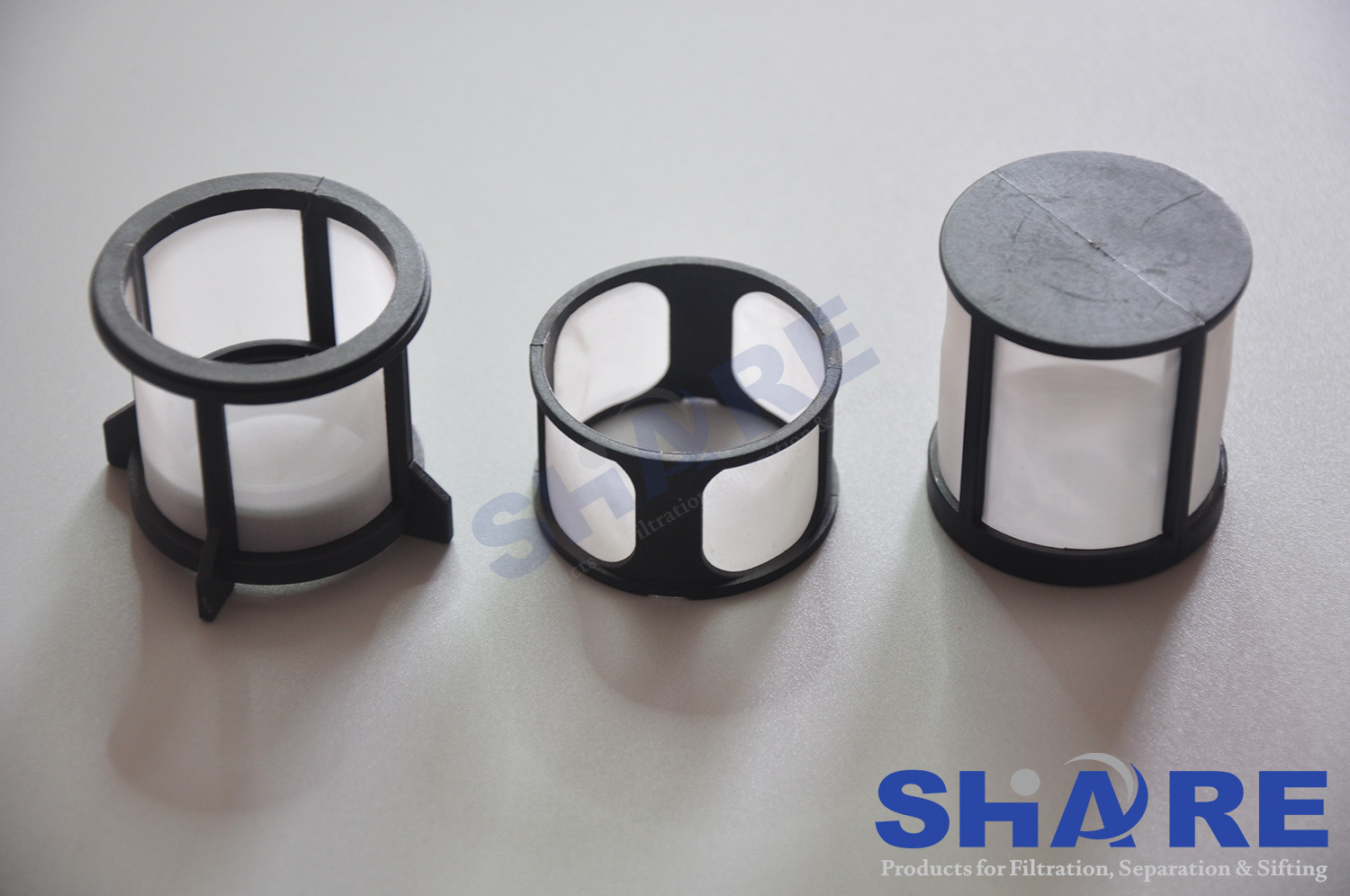

Synthetic Mesh Injection Molded Filters For Household Appliance Washing Machine 0

The synthetic mesh insert filter make Cleaning and Reinstalling more easy.

Polyester Filter Mesh Datasheet

Mesh count

(per cm/inch)

Type of weave

(tw or pw)

 Thread diameter (microns) Mesh opening (microns) Overall fabric thickness (microns) % Open area Theoretical
ink deposit (cm3/m2)		 Mesh Weight (gsm)

8/20-300W PW 300 950 560 57.8 323.5 169
10/25-260W PW 260 739 498 54.6 272.0 158
12/30-140W PW 140 688 256 68.2 174.7 55
15/40-200W PW 200 465 353 48.6 171.5 141
18/45-180w PW 180 375 330 45.5 145.5 128
21/54-140W PW 140 333 250 49.0 122.5 96
24/60-120W PW 120 294 210 49.7 104.3 81

27/70-120W PW 120 249 210 45.3 95.0 91
30/76-120W PW 120 211 212 40.2 82.4 101
32/83-70W PW 70 240 117 58.7 68.7 37
32/83-100W PW 100 209 166 44.5 72.1 75
36/92-90W PW 90 183 147 43.3 64.9 68
36/92-100W PW 100 174 162 39.1 62.6 84

40/103-80W PW 80 166 133 44.1 58.6 60
43/110-80W PW 80 149 130 40.8 53.0 64
45/115-80W PW 80 138 130 38.7 50.3 67
48/123-80W PW 80 122 130 34.5 44.8 72
48/123-55W PW 55 151 90 52.8 47.5 34
51/131-70W PW 70 121 114 38.1 43.5 58
54/137-64W PW 64 115 103 38.7 39.8 51
61/156-64W PW 64 90 101 30.1 30.4 58
68/175-55W PW 55 85 87 33.5 28.4 48
68/175-64W PW 64 78 98 28.2 27.6 65
71/180-55W PW 55 79 90 31.5 28.4 51
77/195-48W PW 48 77 80 35.0 28.0 42

77/195-55W PW 55 67 87 26.5 23.3 55
82/206-48W PW 48 68 79 30.8 24.3 44
90/230-40W PW 40 68 65 37.6 24.4 33
90/230-48W PW 48 55 78 24.6 19.2 49
100/255-40W PW 40 57 64 32.5 21.1 37
