Nylon / Polyester / Polypropylene Precision Woven Filter Mesh For Filtration

Minimum Order Quantity : 50m Price : USD0.20-USD3.50/meter
Packaging Details : Polybag,Plastic woven bag, Carton Delivery Time : 7-20 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 2000m / seven days
Place of Origin: China Brand Name: SHARE
Certification: SGS Model Number: Woven Filter Mesh

Detail Information

Material: Nylon, Polyester, Polypropylene , Stainless Steel Micron Rating: From 3μm To 3000μm
Width: 80cm, 100cm,12cm, 145cm,165cm, 220cm,258cm,305cm,335cm Length: 30m, 50m, 100m In Rolls
Hole Shape: Square Thread Diam: From 500μm-30μm
High Light:

Polyester Woven Filter Mesh

,

Polypropylene Woven Filter Mesh

,

Nylon Filter Mesh Fabric

Product Description

Precision Woven Filter Mesh In Nylon, Polyester, Polypropylene For Filtration



Highlights of Mesh Filters



Share has over 20 years of experience developing and manufacturing filter mesh and custom product solutions for our customer's screen and filtration needs. We employ experienced staffs of engineers and toolmakers to assist in the design of, and frequently build the tooling necessary to manufacture custom products combining synthetic mesh or metallic mesh with thermo-plastic.



MESH OPENINGS                           MATETIALS                                 SHAPPING                                CERTIFICATION

From 1micron to 3000 Microns                  Polyamide(nylon), polyester,                   Rolls, cutting, sewing, ultrasonic          SGS, FDA, CE

and more                                                polypropylene, stainless steel,                 welding, injection molding                   and other more

                                                                   and more

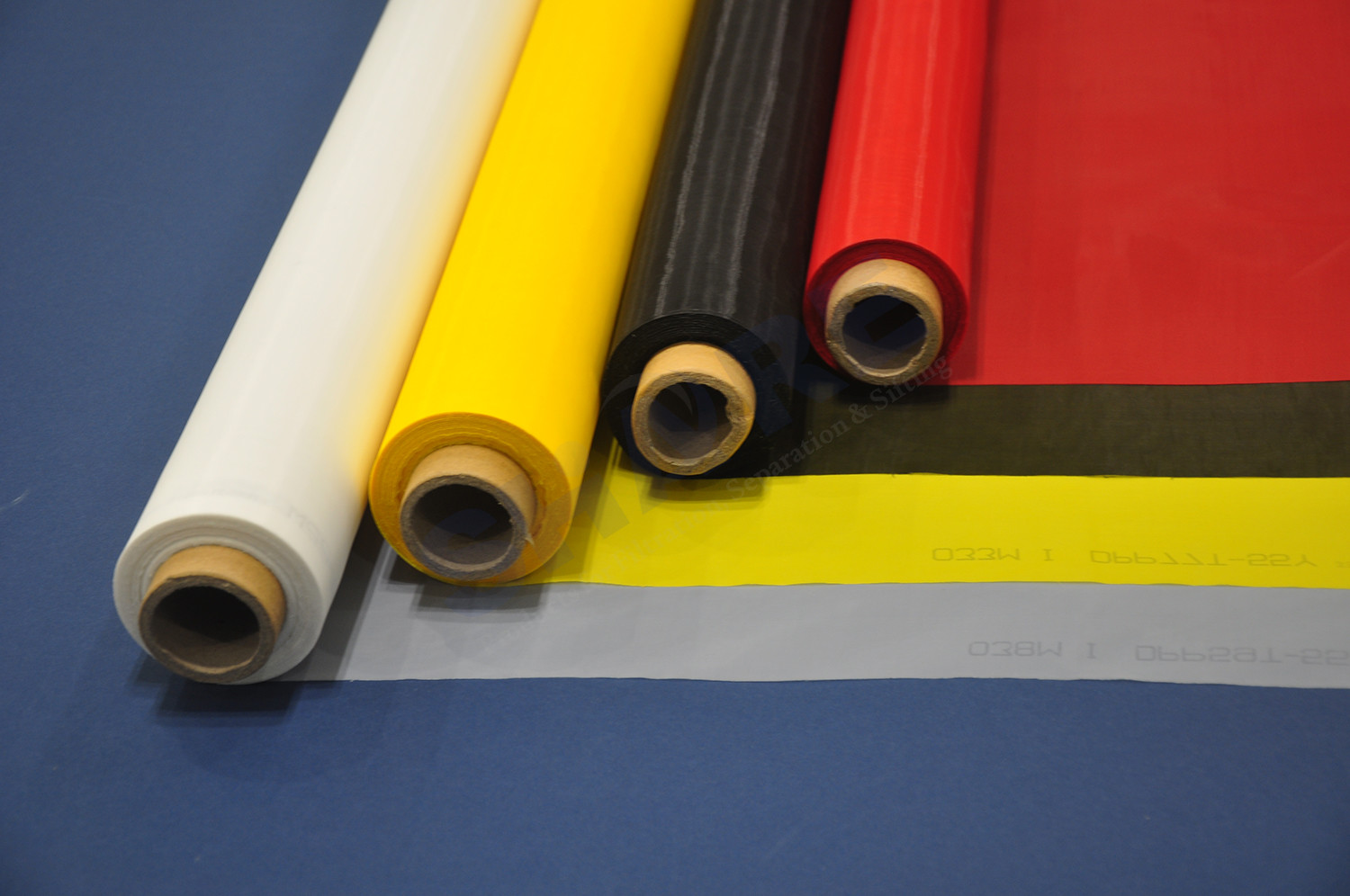

Nylon / Polyester / Polypropylene Precision Woven Filter Mesh For Filtration 0 Nylon / Polyester / Polypropylene Precision Woven Filter Mesh For Filtration 1




Mesh Material:

Share’s precision filter mesh is made from an extruded synthetic yarn. This so-called monofilament fiber can be made from a variety of materials such as polyamide (nylon), polyester, polyethylene, polypropylene, PTFE (Teflon), PVDF, PEEK.



How to select the mesh material?

Each of these materials has unique properties and costs, directly related to their performance. It is important to define the conditions in which the filter mesh will be used and its expected performance to best meet the environmental and economic demands of your specific industrial filtration application.



Application:

Thanks to the wide variety of precision woven synthetic fabrics, the industrial applications of Share’s mesh filter fabrics are very extensive: from automotive fuel filters to medical devices filters, to home appliances like dishwasher filters. These precision woven fabrics can also be sold in rolls or ribbons for industrial sieving, and virtually in any kind of screen filter.




Nylon Filter Mesh Datesheet



  Mesh count Thread Diameter Mesh Opening Open Area Fabric Thickness Weight
No. cm mesh/inch micron micron % micron g/m2
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
JPP12 12 30 300 533 41 585 234
JPP14 14 35 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 40 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 40 60 36 65 35
JPP120 120 305 40 43 25 70 29
JPP130 130 330 40 37 23 75 31
JPP140 140 355 30 38 33.7 60 33
JPP150 150 381 30 34 30.25 52 26
JPP165 165 420 30 28 20.7 51 29
JPP180 180 460 30 25 19.5 58 31
JPP200 200 510 30 16 10.2 58 35
