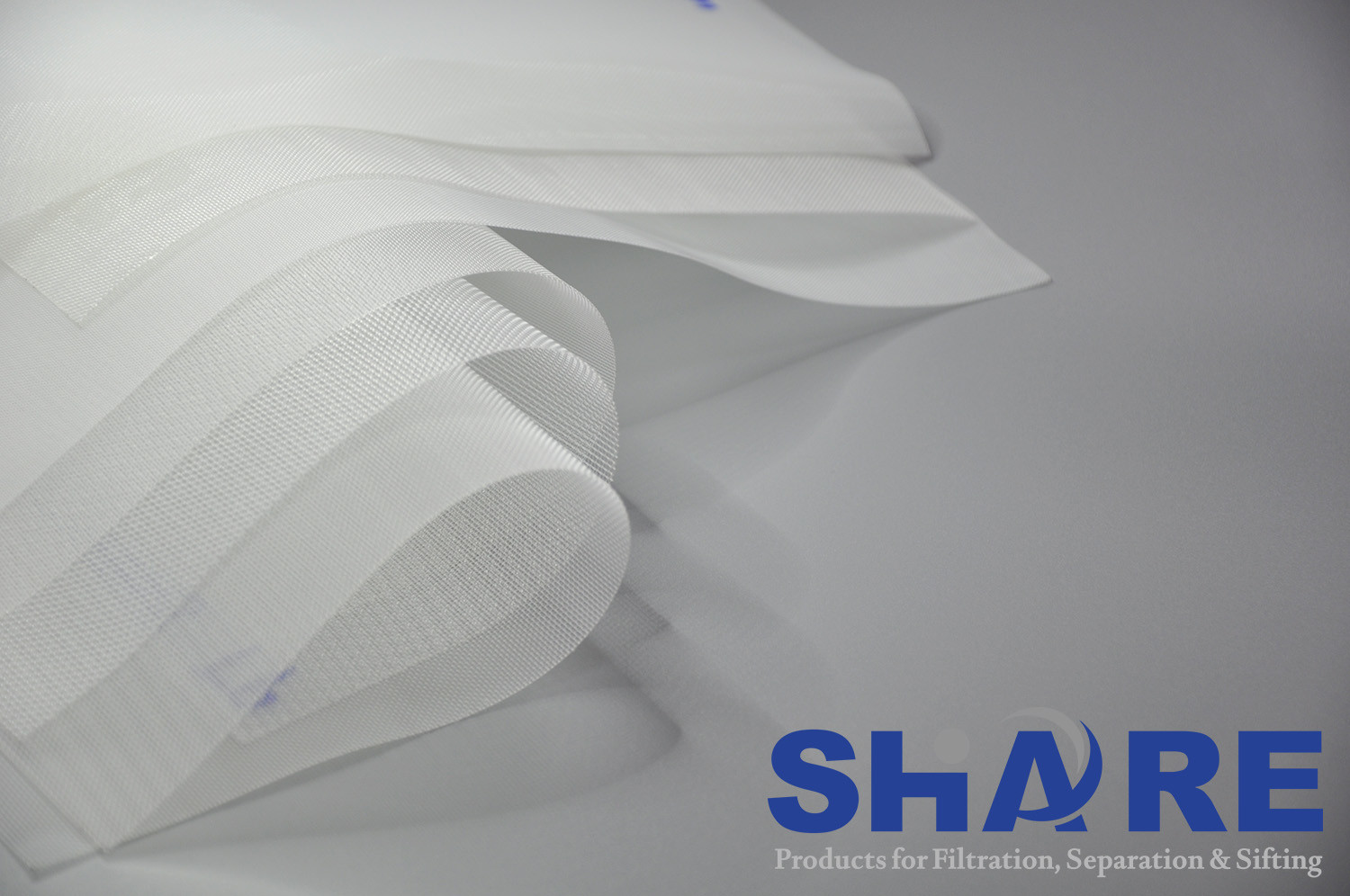

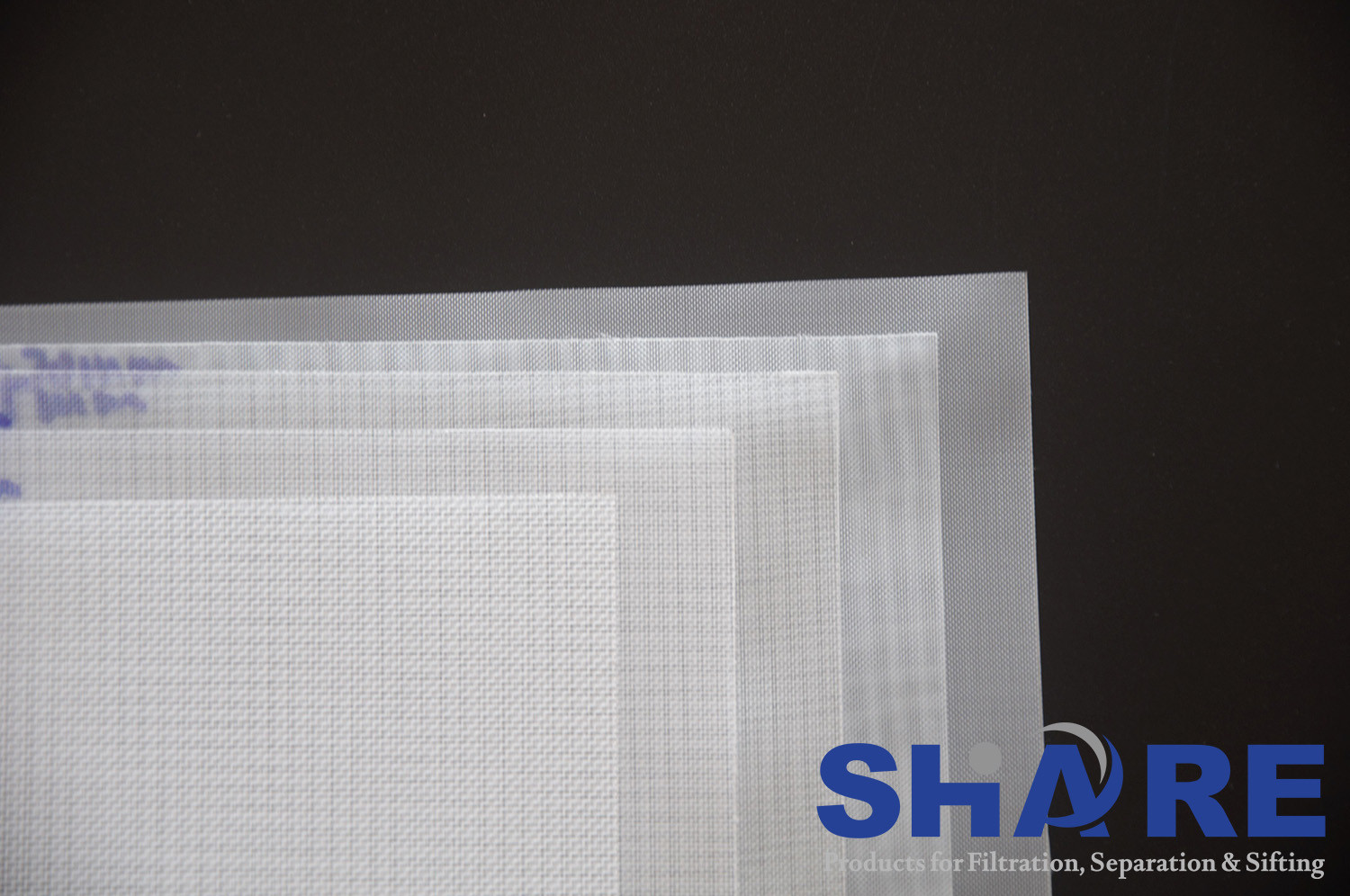

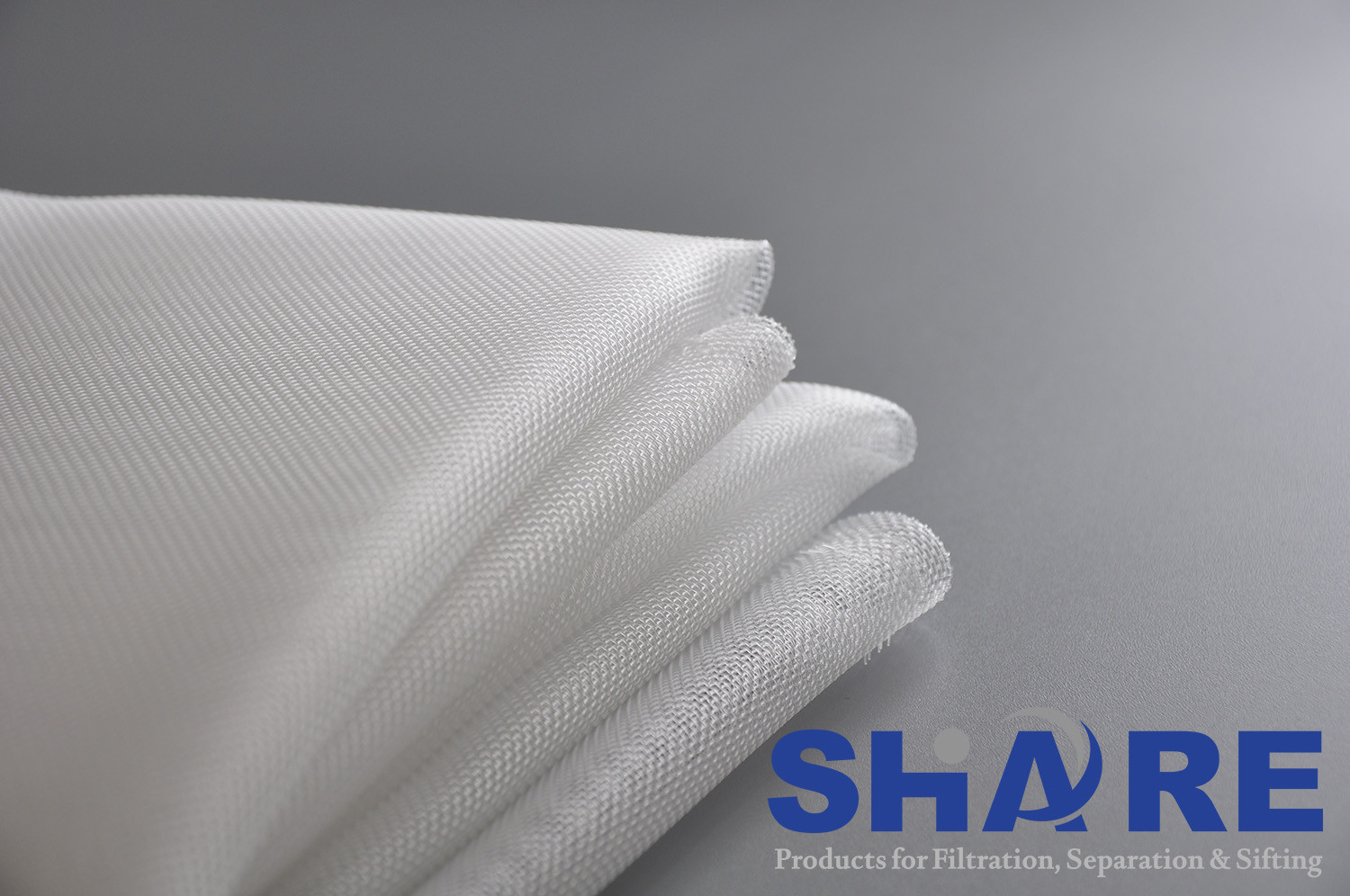

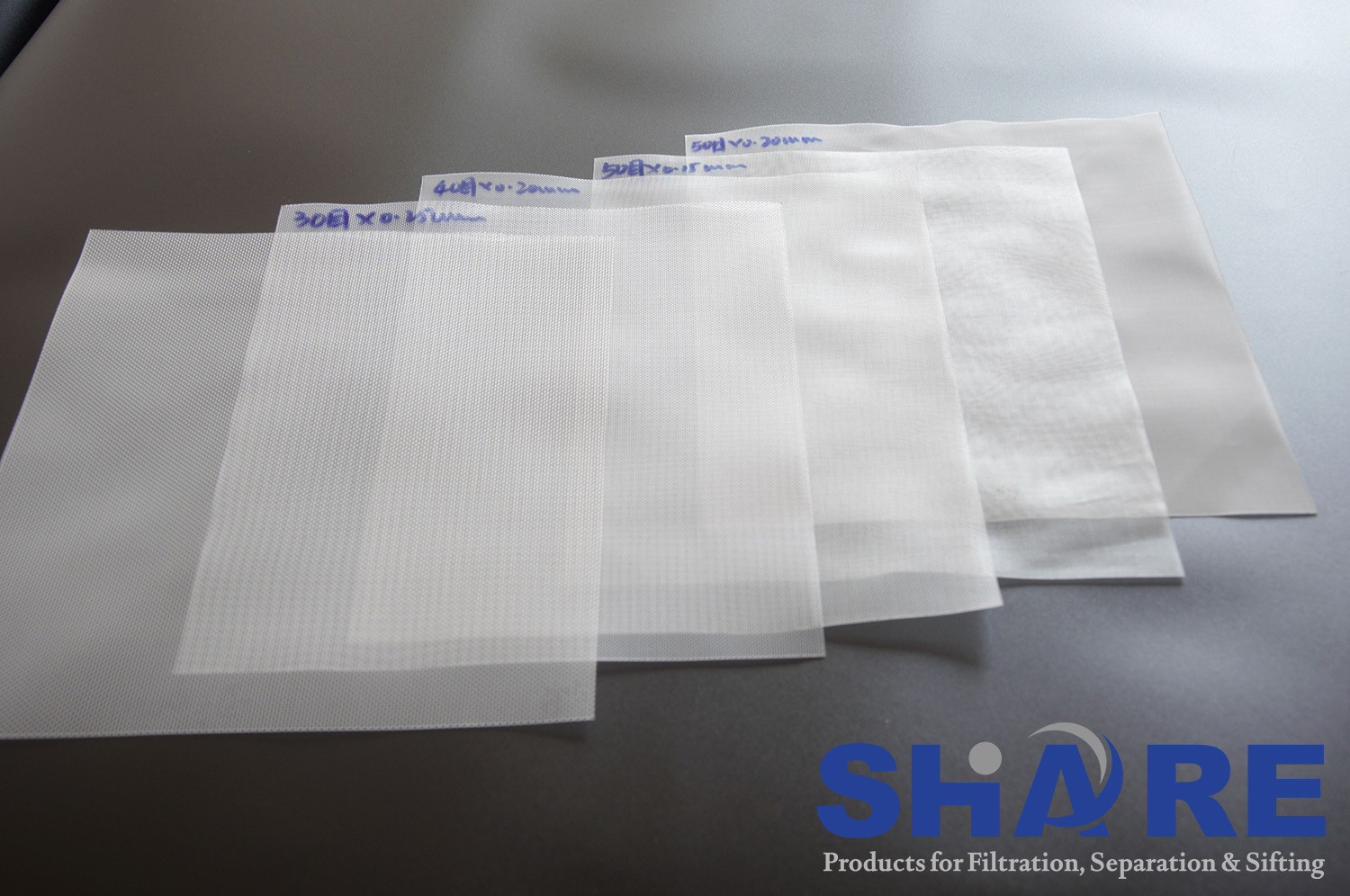

Plain Weave Polyester Filter Mesh Width 100-360CM With Monofilament Yarns

Minimum Order Quantity : 100meters Price : USD0.2-USD3.5/m2
Packaging Details : Cartons Delivery Time : 5-30
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 1000000
Place of Origin: CHINA Brand Name: SHARE
Certification: SGS Model Number: Monofilament

Detail Information

Yarn: Mono-filament Material: PA6, PA66, PE, PP
Weave: Plain Woven Width: 100cm-360cm
Weave Type: 1:1 Weave Color: White, Black, Yellow, Red, Orange
Roll Length: 50meters-90meters Name: Monofilament Polyester Screen Fabric
High Light:

polyester filter fabric

,

polyester mesh filter

Product Description

Mono-filament Yarn Woven Filter Meshes to screen particles in liquid filtration



Introduction of Mono-filament Filter Fabrics/meshes

Monofilament filter fabrics/Meshes are ideal materials for sieving, straining or filtering most liquids, pow-ders or sludges. The term ‘Monofilament’ means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together, as in a spun or multifilament material. These monofilament threads are perfectly round in section and are extruded to very precise and uniform diameters.

Filter Fabrics/Meshes Terms

Fabric number: The fabric number is composed of:
Mesh-count n 110-80W PW
Thread ∅ dnom 110-80W PW
Fabric colour 110-80W PW
(white = W; yellow = Y)
Type of weave 110-80W PW
(Plain Weave = PW)

Weave: The type of weave is either
PW (plain weave 1:1),
TW (twill weave 2:1, 2:2 etc.)
or AW (Panama weave 1×1, Two threads positioned one beside the other).

Mesh-count n [n ⁄ cm]
The mesh-count n stands for the number of threads per cm.
The tolerance is the accepted band-width of the statistically ascertained mean values of mesh-counts.

Mesh-opening w [μm]:
The mesh-opening w is
the distance between two
contiguous warp or weft
threads.

The percentage of open area αo is the cumulation of all the mesh-openings expressed in % of the total screen area. It is calculated from the mean value of mesh-openings and the
actual thickness of the threads.
