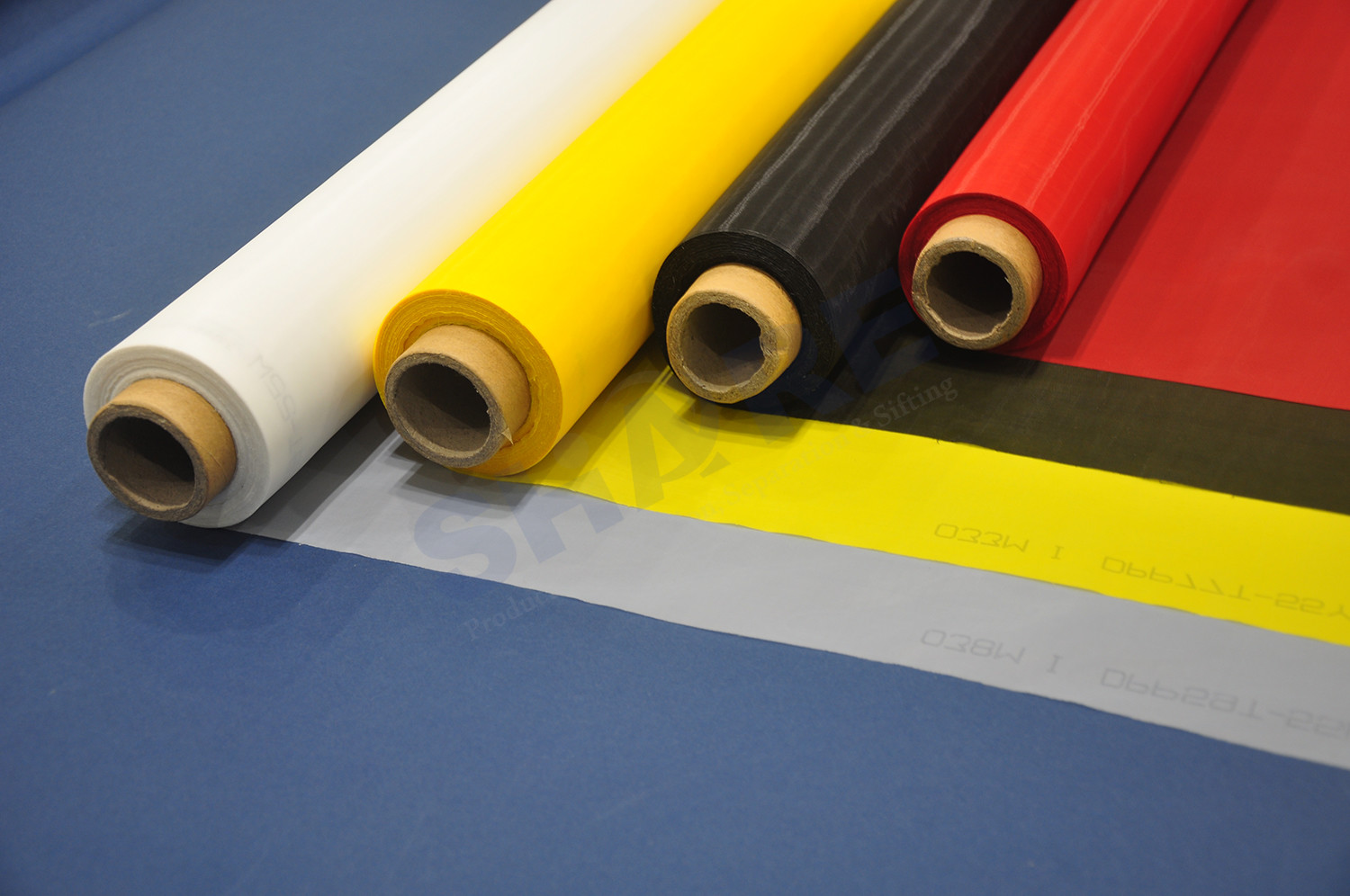

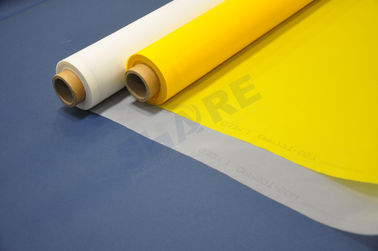

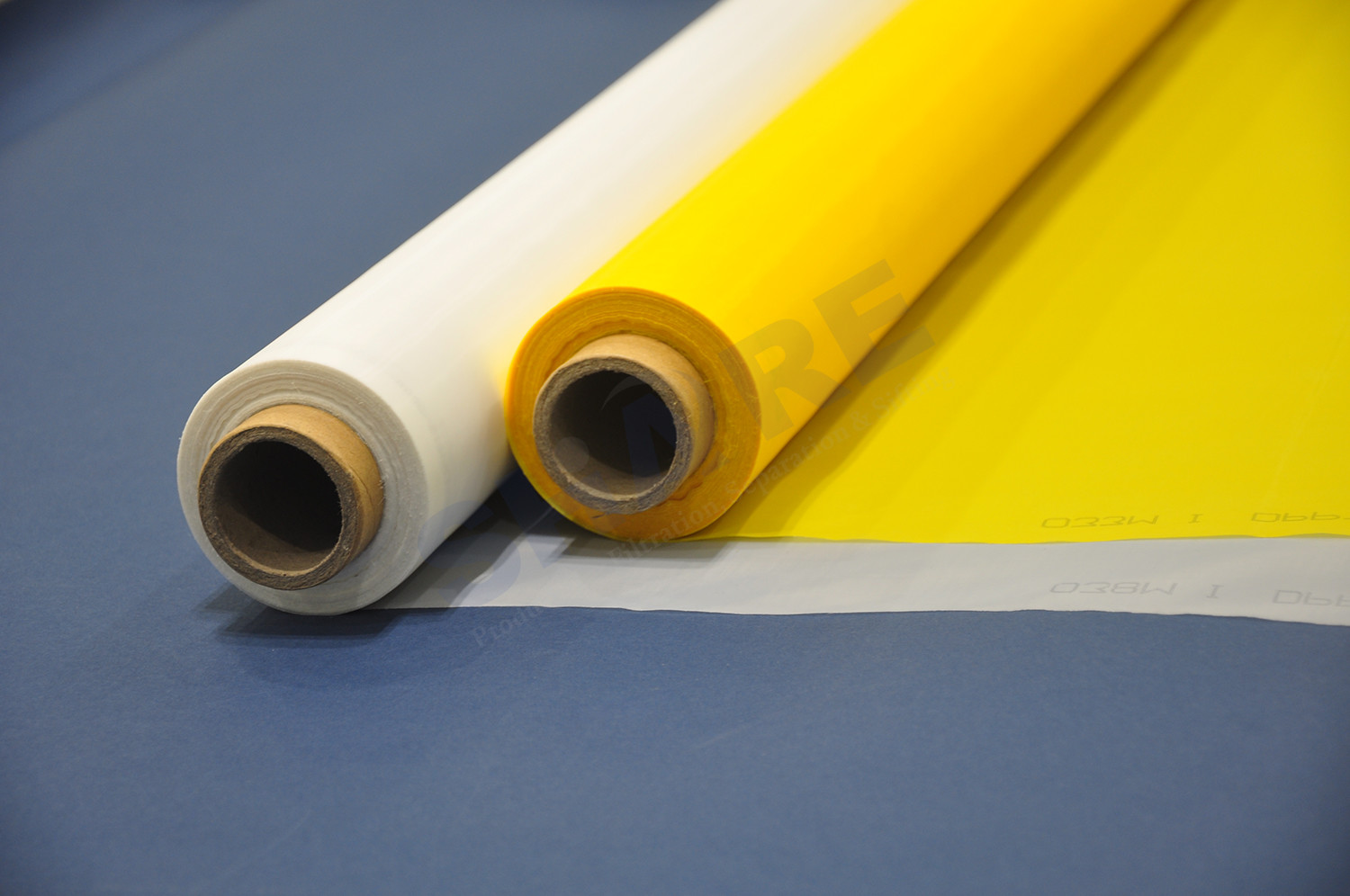

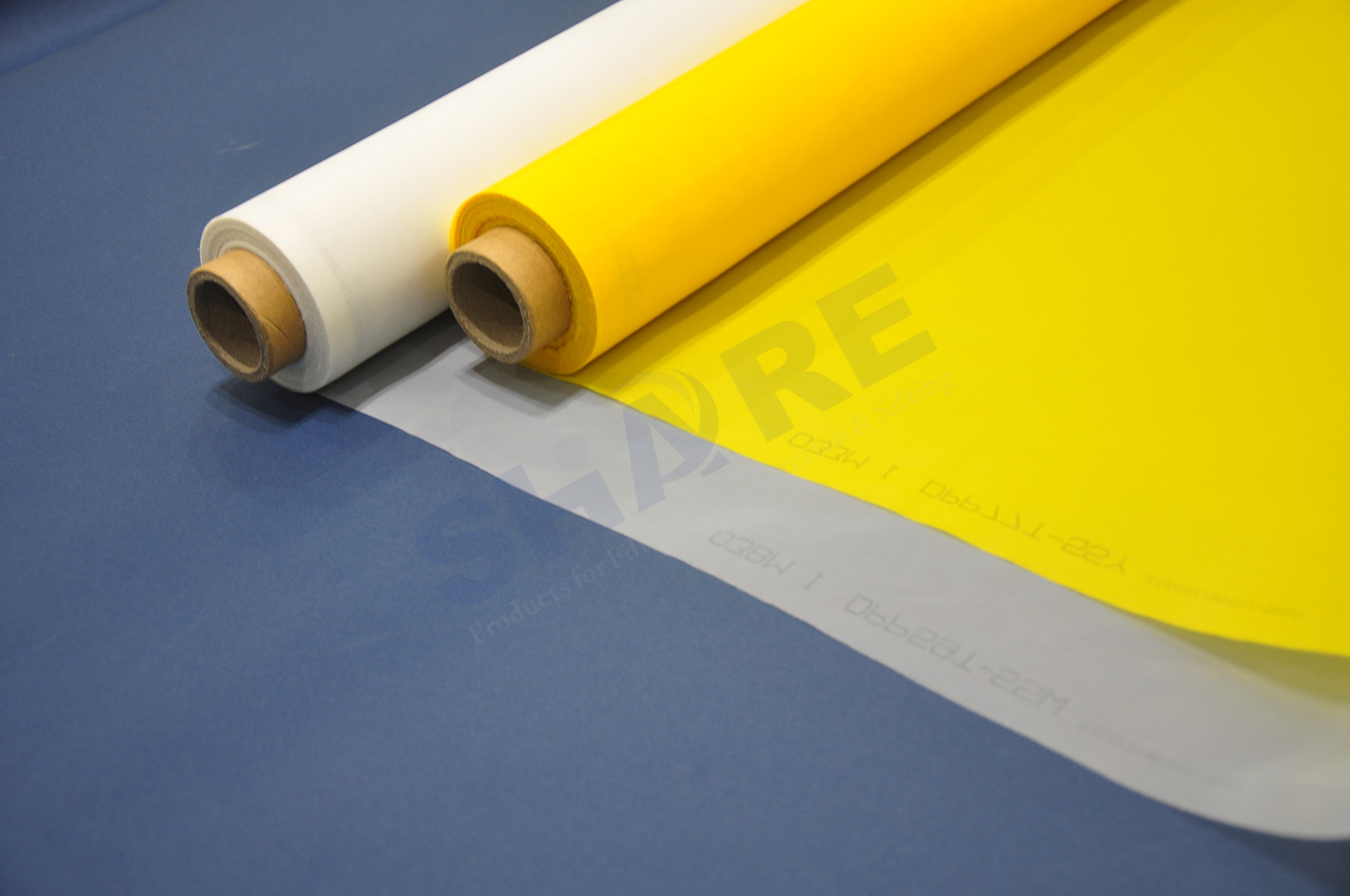

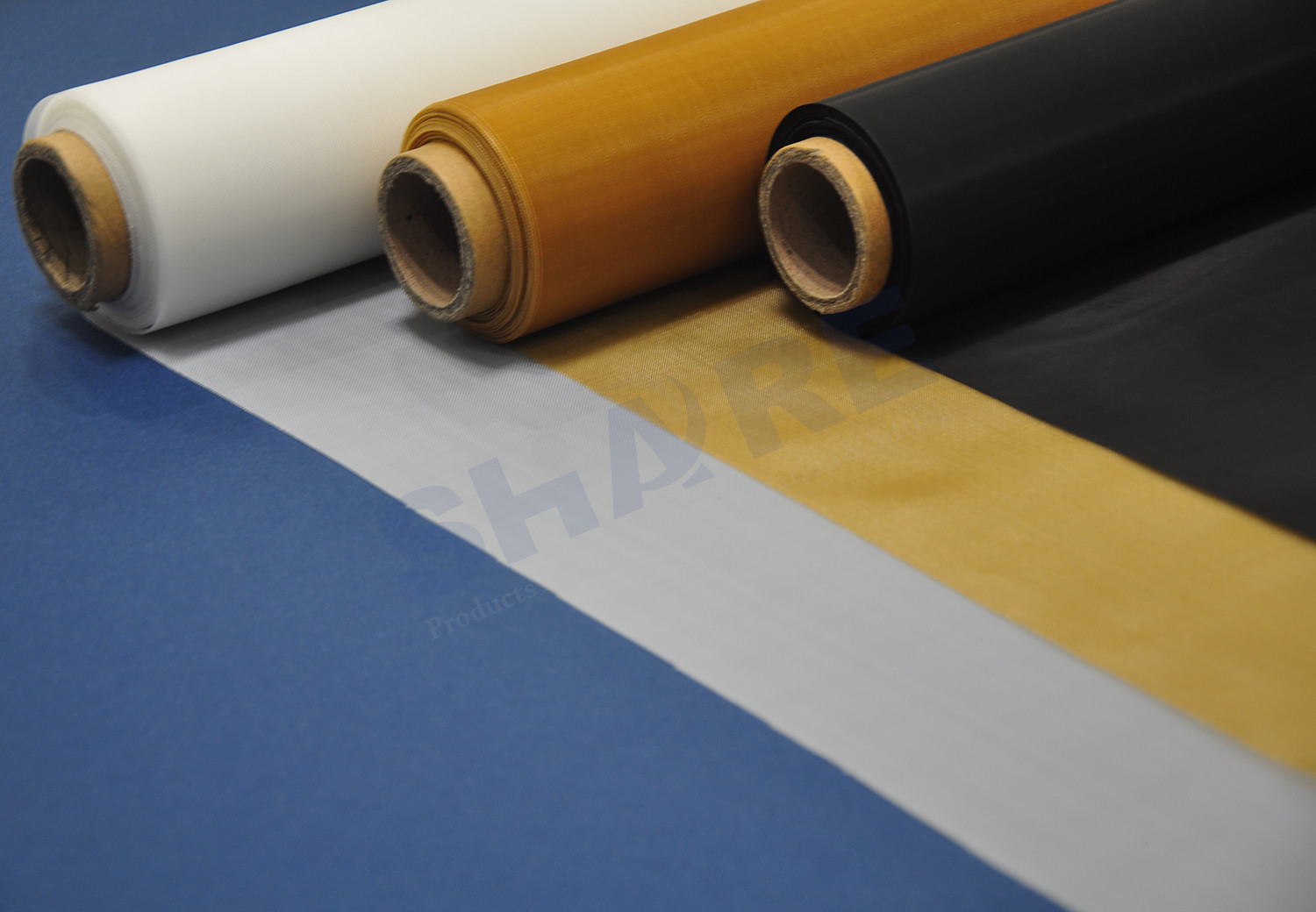

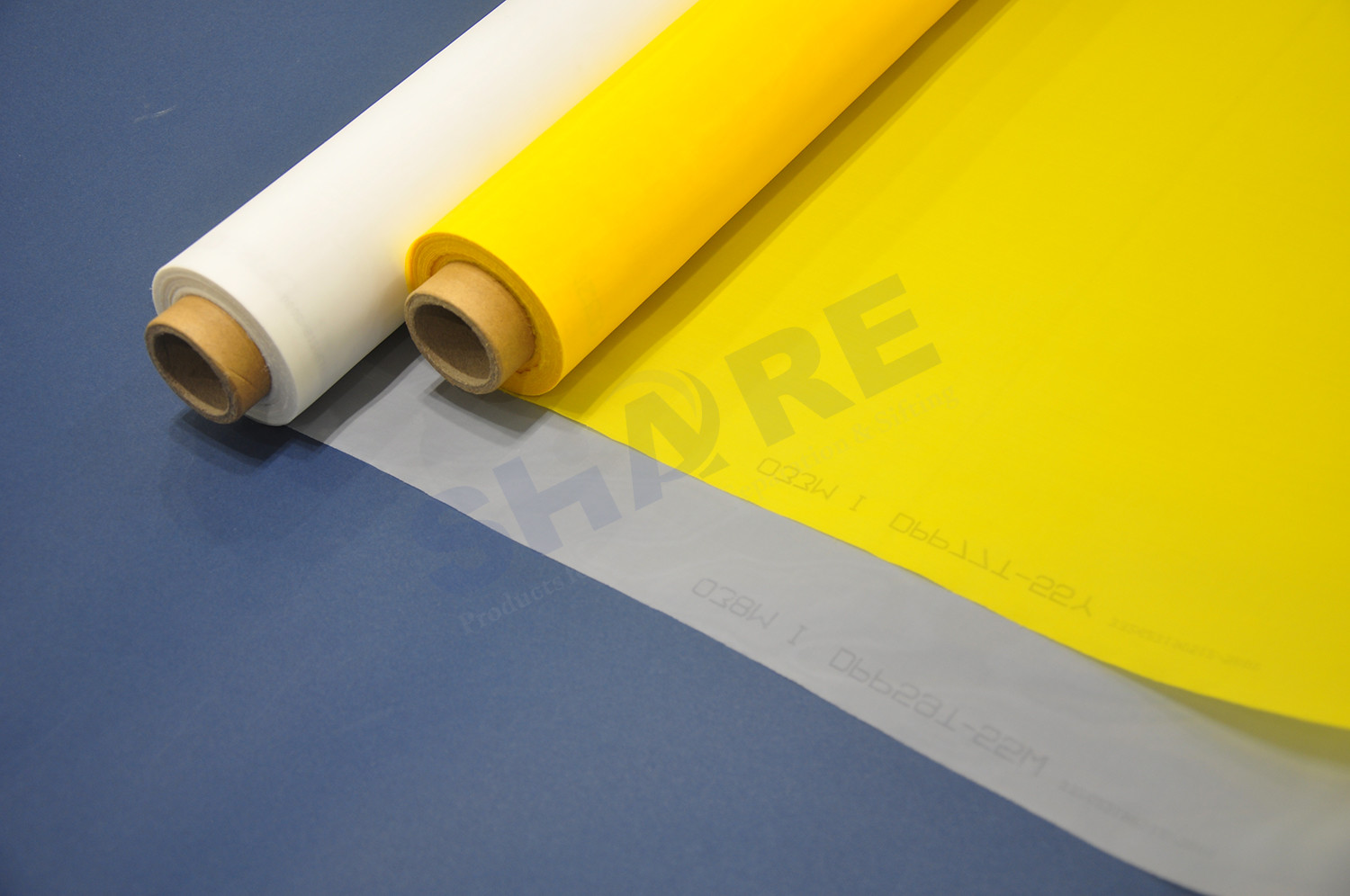

High Modulus Tight Tolerances Screen Printing Meshes For Electronic Industry
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 100meters | Price : | USD0.2-USD3.5/meter |
---|---|---|---|
Packaging Details : | Carton + PP Bags | Delivery Time : | 3-30days |
Payment Terms : | L/C, T/T, Western Union, MoneyGram | Supply Ability : | 10,000meters/day |
Place of Origin: | CHINA | Brand Name: | SHARE |
---|---|---|---|
Certification: | SGS | Model Number: | DPP5T-DPP180T |
Detail Information |
|||
Material: | Mono-filament Polyester Yarn | Yarn Type: | Monofilament |
---|---|---|---|
Mesh Count: | DPP5T-DPP180T | Thread Diameter: | 27um-250um |
Color: | White, Yellow | Width: | 127cm, 145cm, 165cm, 240cm, 360cm |
Application: | Glass Industry, Electronic Industry, Textile Industry... | Name: | Polyester Screen Printing Mesh |
Highlight: | screen printing mesh roll,screen printing fabric mesh |
Product Description
Mesh count (per cm/inch) |
Type of weave (TW or PW) |
Thread diameter (microns) | Mesh opening (microns) |
Overall fabric thickness (microns) |
% Open area | Theoretical ink deposit (cm3/m2) |
Mesh Weight (gsm) |
8/20-300W | PW | 300 | 950 | 560 | 57.8 | 323.5 | 169 |
10/25-260W | PW | 260 | 739 | 498 | 54.6 | 272.0 | 158 |
12/30-140W | PW | 140 | 688 | 256 | 68.2 | 174.7 | 55 |
15/40-200W | PW | 200 | 465 | 353 | 48.6 | 171.5 | 141 |
18/45-180w | PW | 180 | 375 | 330 | 45.5 | 145.5 | 128 |
21/54-140W | PW | 140 | 333 | 250 | 49.0 | 122.5 | 96 |
24/60-120W | PW | 120 | 294 | 210 | 49.7 | 104.3 | 81 |
27/70-120W | PW | 120 | 249 | 210 | 45.3 | 95.0 | 91 |
30/76-120W | PW | 120 | 211 | 212 | 40.2 | 82.4 | 101 |
32/83-70W | PW | 70 | 240 | 117 | 58.7 | 68.7 | 37 |
32/83-100W | PW | 100 | 209 | 166 | 44.5 | 72.1 | 75 |
36/92-90W | PW | 90 | 183 | 147 | 43.3 | 64.9 | 68 |
36/92-100W | PW | 100 | 174 | 162 | 39.1 | 62.6 | 84 |
40/103-80W | PW | 80 | 166 | 133 | 44.1 | 58.6 | 60 |
43/110-80W | PW | 80 | 149 | 130 | 40.8 | 53.0 | 64 |
45/115-80W | PW | 80 | 138 | 130 | 38.7 | 50.3 | 67 |
48/123-80W | PW | 80 | 122 | 130 | 34.5 | 44.8 | 72 |
48/123-55W | PW | 55 | 151 | 90 | 52.8 | 47.5 | 34 |
51/131-70W | PW | 70 | 121 | 114 | 38.1 | 43.5 | 58 |
54/137-64W | PW | 64 | 115 | 103 | 38.7 | 39.8 | 51 |
61/156-64W | PW | 64 | 90 | 101 | 30.1 | 30.4 | 58 |
68/175-55W | PW | 55 | 85 | 87 | 33.5 | 28.4 | 48 |
68/175-64W | PW | 64 | 78 | 98 | 28.2 | 27.6 | 65 |
71/180-55W | PW | 55 | 79 | 90 | 31.5 | 28.4 | 51 |
77/195-48W | PW | 48 | 77 | 80 | 35.0 | 28.0 | 42 |
77/195-55W | PW | 55 | 67 | 87 | 26.5 | 23.3 | 55 |
82/206-48W | PW | 48 | 68 | 79 | 30.8 | 24.3 | 44 |
90/230-40W | PW | 40 | 68 | 65 | 37.6 | 24.4 | 33 |
90/230-48W | PW | 48 | 55 | 78 | 24.6 | 19.2 | 49 |
100/255-40W | PW | 40 | 57 | 64 | 32.5 | 21.1 | 37 |
110/280-34W | PW | 34 | 54 | 55 | 35.2 | 19.3 | 31 |
110/280-40W | PW | 40 | 47 | 65 | 26.6 | 17.3 | 40 |
120/305-34W | PW | 34 | 45 | 55 | 29.6 | 16.3 | 34 |
120/305-40W | PW | 40 | 37 | 64 | 20.1 | 13.0 | 44 |
130/330-34W | PW | 34 | 40 | 55 | 26.9 | 14.3 | 37 |
140/355-34W | PW | 34 | 31 | 55 | 19.4 | 10.6 | 39 |
150/380-34W | PW | 34 | 23 | 55 | 12.1 | 6.6 | 42 |
165/420-27W | PW | 27 | 29 | 43 | 22.3 | 9.6 | 29 |
Fabric number
The fabric number is composed of:
Mesh-count n 110-80W PW Thread ∅ dnom 110-80W PW Fabric colour 110-80W PW
(White = W; yellow = Y) Type of weave 110-80W PW (Plain Weave = PW
