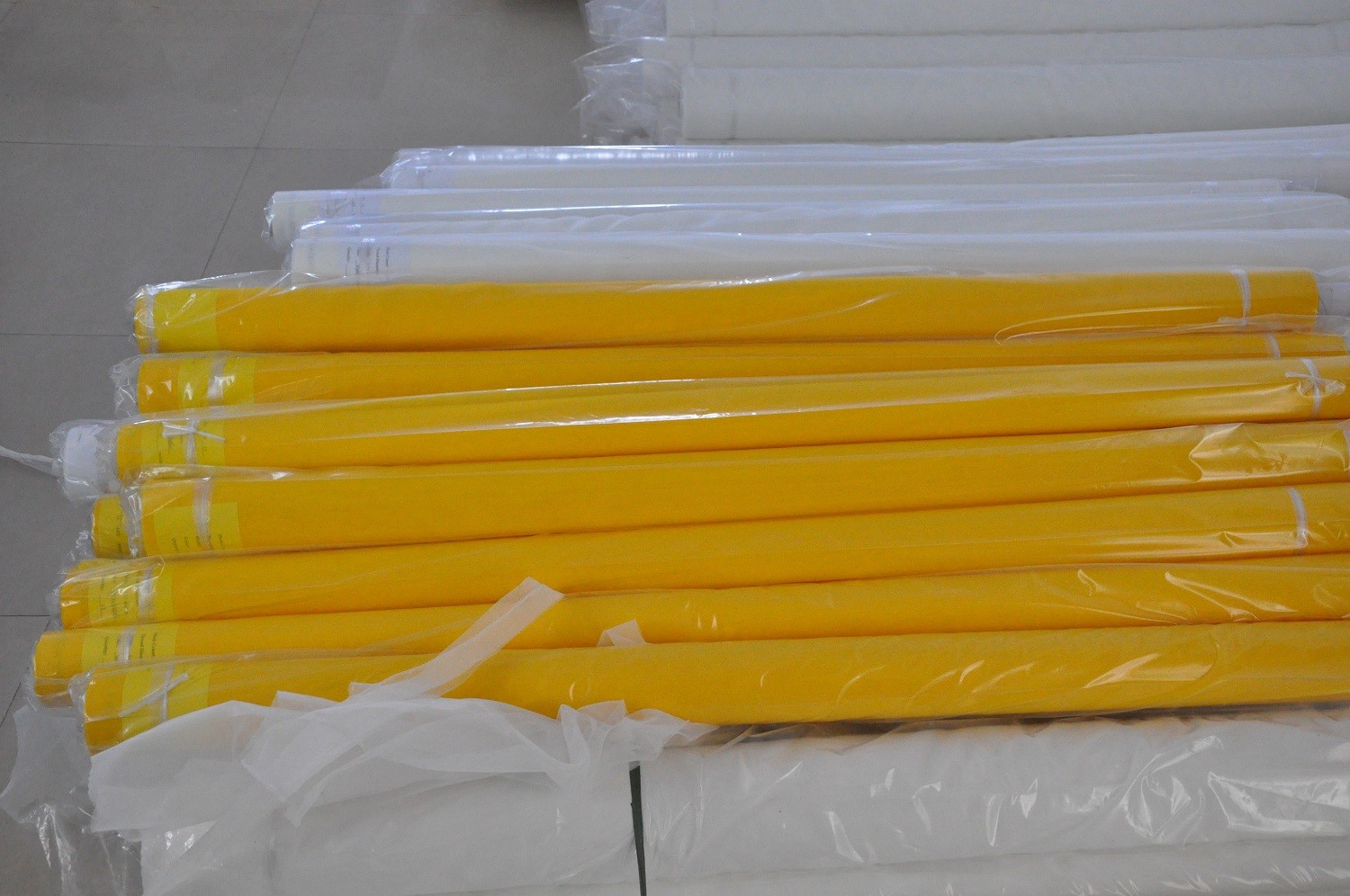

High Modulus Tight Tolerances Screen Printing Meshes For Electronic Industry
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
Minimum Order Quantity : | 100meters | Price : | USD0.2-USD3.5/m |
---|---|---|---|
Packaging Details : | Carton | Delivery Time : | 5-20 |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 10000m/day |
Place of Origin: | CHINA | Brand Name: | SHARE |
---|---|---|---|
Certification: | SGS | Model Number: | 10T-180T |
Detail Information |
|||
Material: | Mono-filament Polyester | Mesh Count: | 10T-180 |
---|---|---|---|
Thread Diameter: | 27um-150um | Width: | 360mm Maximum |
Color: | White, Yellow | Treatment: | Washing, Heat-setting |
Application: | Electronics Printing, Circuit Board Printing, Aerocrafts Printing | Name: | Silk Screen Printing Mesh |
Highlight: | screen printing mesh roll,screen printing fabric mesh |
Product Description
Monofilament Silk Screen Printing Mesh made of Monofilament Polyester Yarn in electronic printing
Introduction:
High Quality Monofilament Polyester Screen Printing Mesh of DPP165T-27um/127cm, 145cm, 165cm, 190cm, 240cm Woven by monofilament Polyester Yarn/threads, polyester screen printing mesh is seen wide applications in different industrial printing, such as glass printing, graphic printing, ceramic printing, paper printing, circuited board printing, plastics and packaging printing...
SHARE has been dedicating herself in research, development and production of high quality polyester printing mesh since 1983, importing Swiss Weave Looms and German Reeds to produce mono-filament polyester printing mesh, other than equipment, we also import quality yarns to weave mesh; Our trained workers, together with advanced machines, equipment, can weave high quality printing mesh; By improving our quality, we also are thinking of ways to reduce costs, so we can give our clients' lower price to reduce their production cost.
Advantages:
Characteristics:
Applications:
Screen printing are being used for various substrates in various fields. Ink does not adhere to some kinds of substrates with other printing methods. Screen printing can be used on some of these substrates.
Production Procedure:
Mesh count (per cm/inch) |
Type of weave (TW or PW) |
Thread diameter (microns) | Mesh opening (microns) |
Overall fabric thickness (microns) |
% Open area | Theoretical ink deposit (cm3/m2) |
Mesh Weight (gsm) |
8/20-300W | PW | 300 | 950 | 560 | 57.8 | 323.5 | 169 |
10/25-260W | PW | 260 | 739 | 498 | 54.6 | 272.0 | 158 |
12/30-140W | PW | 140 | 688 | 256 | 68.2 | 174.7 | 55 |
15/40-200W | PW | 200 | 465 | 353 | 48.6 | 171.5 | 141 |
18/45-180w | PW | 180 | 375 | 330 | 45.5 | 145.5 | 128 |
21/54-140W | PW | 140 | 333 | 250 | 49.0 | 122.5 | 96 |
24/60-120W | PW | 120 | 294 | 210 | 49.7 | 104.3 | 81 |
27/70-120W | PW | 120 | 249 | 210 | 45.3 | 95.0 | 91 |
30/76-120W | PW | 120 | 211 | 212 | 40.2 | 82.4 | 101 |
32/83-70W | PW | 70 | 240 | 117 | 58.7 | 68.7 | 37 |
32/83-100W | PW | 100 | 209 | 166 | 44.5 | 72.1 | 75 |
36/92-90W | PW | 90 | 183 | 147 | 43.3 | 64.9 | 68 |
36/92-100W | PW | 100 | 174 | 162 | 39.1 | 62.6 | 84 |
40/103-80W | PW | 80 | 166 | 133 | 44.1 | 58.6 | 60 |
43/110-80W | PW | 80 | 149 | 130 | 40.8 | 53.0 | 64 |
45/115-80W | PW | 80 | 138 | 130 | 38.7 | 50.3 | 67 |
48/123-80W | PW | 80 | 122 | 130 | 34.5 | 44.8 | 72 |
48/123-55W | PW | 55 | 151 | 90 | 52.8 | 47.5 | 34 |
51/131-70W | PW | 70 | 121 | 114 | 38.1 | 43.5 | 58 |
54/137-64W | PW | 64 | 115 | 103 | 38.7 | 39.8 | 51 |
61/156-64W | PW | 64 | 90 | 101 | 30.1 | 30.4 | 58 |
68/175-55W | PW | 55 | 85 | 87 | 33.5 | 28.4 | 48 |
68/175-64W | PW | 64 | 78 | 98 | 28.2 | 27.6 | 65 |
71/180-55W | PW | 55 | 79 | 90 | 31.5 | 28.4 | 51 |
77/195-48W | PW | 48 | 77 | 80 | 35.0 | 28.0 | 42 |
77/195-55W | PW | 55 | 67 | 87 | 26.5 | 23.3 | 55 |
82/206-48W | PW | 48 | 68 | 79 | 30.8 | 24.3 | 44 |
90/230-40W | PW | 40 | 68 | 65 | 37.6 | 24.4 | 33 |
90/230-48W | PW | 48 | 55 | 78 | 24.6 | 19.2 | 49 |
100/255-40W | PW | 40 | 57 | 64 | 32.5 | 21.1 | 37 |
110/280-34W | PW | 34 | 54 | 55 | 35.2 | 19.3 | 31 |
110/280-40W | PW | 40 | 47 | 65 | 26.6 | 17.3 | 40 |
120/305-34W | PW | 34 | 45 | 55 | 29.6 | 16.3 | 34 |
120/305-40W | PW | 40 | 37 | 64 | 20.1 | 13.0 | 44 |
130/330-34W | PW | 34 | 40 | 55 | 26.9 | 14.3 | 37 |
140/355-34W | PW | 34 | 31 | 55 | 19.4 | 10.6 | 39 |
150/380-34W | PW | 34 | 23 | 55 | 12.1 | 6.6 | 42 |
165/420-27W | PW | 27 | 29 | 43 | 22.3 | 9.6 | 29 |
Fabric number
The fabric number is composed of:
Mesh-count n 110-80W PW Thread ∅ dnom 110-80W PW Fabric colour 110-80W PW
(White = W; yellow = Y) Type of weave 110-80W PW (Plain Weave = PW
