DPP10T-250UM / 750UM Polyester Filter Mesh Monofilament Yarn For Industrial Silk Printing

Minimum Order Quantity : 100m Packaging Details : Carton
Delivery Time : 7-15 days Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 10000m/month
Place of Origin: CHINA. Brand Name: SHARE
Certification: SGS Model Number: 10T-250

Detail Information

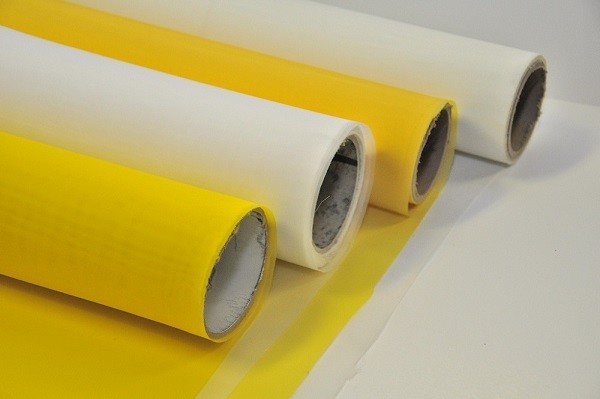

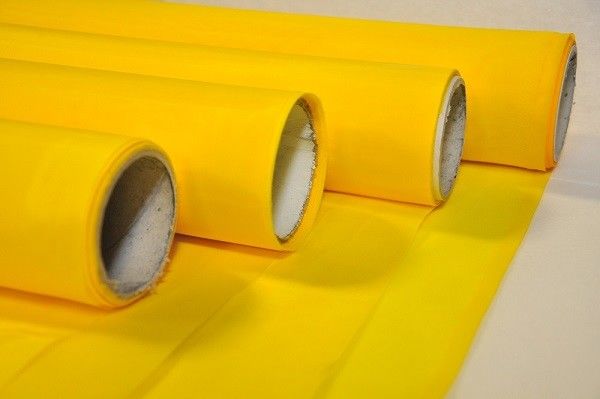

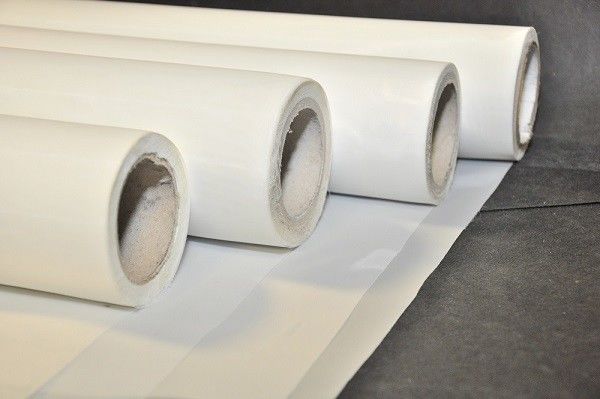

Material: Monofilament Polyester Yarn Color: White Yellow
Width: 127cm, 145cm, 165cm, 210cm Weave Type: Plain Weave
Opening: 750um Treatment: Washing, Heat-setting
Roll Length: 50meters-100meters Name: Polyester Filter Mesh
Highlight:

monofilament polyester mesh

,

polyester mesh filter

Product Description

DPP10T-250um/750um Monofilament Polyester Screen Printing Mesh for industrial silk printing



Introduction:

Woven by monofilament Yarn/threads, polyester screen printing mesh is seen wide applications in different industrial printing, such as glass printing, graphic printing, ceramic printing, paper printing, circuited board printing, plastics and packaging printing...

SHARE has been dedicating herself in research, development and production of high quality polyester printing mesh since 1983, importing Swiss Weave Looms and German Reeds to produce mono-filament polyester printing mesh, other than equipment, we also import quality yarns to weave mesh; Our trained workers, together with advanced machines, equipment, can weave high quality printing mesh; By improving our quality, we also are thinking of ways to reduce costs, so we can give our clients' lower price to reduce their production cost.

Advantages:

  • Faster Tensioning without damage to the threads
  • Improved fabric strength
  • Faster Tension Stabilization
  • Higher Tension threshold and breaking point
  • Less tension loss during the stretching process
  • Faster turnaround time from the screen room to the press room
  • Improved registration due to stable tension
  • Faster print speed

Characteristics:

  1. Screen printing makes it possible to print on wide range of substrates.
  2. Screen printing makes it possible to print on the substrates with various shapes and sizes.
  3. Many kinds of ink are available.
  4. Thick coating is possible. (General stencil: 10-30 microns, Special stencil: more than 100 microns)
  5. Thick coating makes colors more vivid, finish more opaque and light-fastness better.
  6. As printing pressure is small, it is possible to print on fragile matters.
  7. As the stencil is soft, it is possible to print on hard materials such as glass and metal as well as soft materials such as paper and fabrics.
  8. The stencil is cheap, which is the advantage in case of production of small quantity.

Applications:

Screen printing are being used for various substrates in various fields. Ink does not adhere to some kinds of substrates with other printing methods. Screen printing can be used on some of these substrates.

  1. Commercial applications:
    Posters, billboards, POP, displays, stickers, signs, flags
  2. Daily necessaries:
    Toys, stationery, sports goods, bags, T-shirts, cosmetic containers, toiletry containers, packages, wooden products, glass, ceramics.
  3. Industrial applications:
    Automobile meters, CDs, parts of electric appliances, membrane switches, liquid crystal display (LCD), automatic vendors, name plates, print circuit boards, thick ICs.

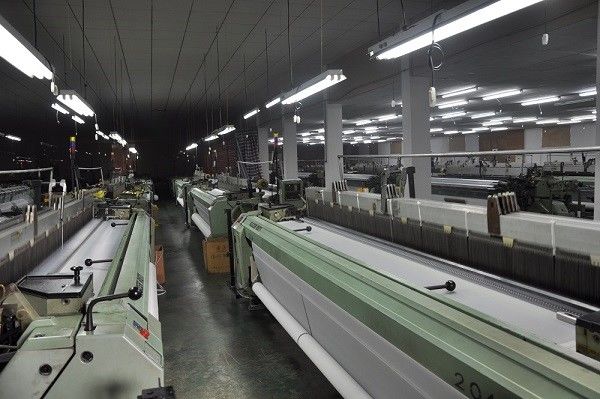

Production Procedure:

DPP10T-250UM / 750UM Polyester Filter Mesh Monofilament Yarn For Industrial Silk Printing 0

Product Datasheet

Mesh count

(per cm/inch)

Type of weave

(TW or PW)

Thread diameter (microns) Mesh opening (microns)

Overall fabric thickness

(microns)

% Open area Theoretical
ink deposit (cm3/m2)
Mesh Weight (gsm)
8/20-300W PW 300 950 560 57.8 323.5 169
10/25-260W PW 260 739 498 54.6 272.0 158
12/30-140W PW 140 688 256 68.2 174.7 55
15/40-200W PW 200 465 353 48.6 171.5 141
18/45-180w PW 180 375 330 45.5 145.5 128
21/54-140W PW 140 333 250 49.0 122.5 96
24/60-120W PW 120 294 210 49.7 104.3 81

27/70-120W PW 120 249 210 45.3 95.0 91
30/76-120W PW 120 211 212 40.2 82.4 101
32/83-70W PW 70 240 117 58.7 68.7 37
32/83-100W PW 100 209 166 44.5 72.1 75
36/92-90W PW 90 183 147 43.3 64.9 68
36/92-100W PW 100 174 162 39.1 62.6 84

40/103-80W PW 80 166 133 44.1 58.6 60
43/110-80W PW 80 149 130 40.8 53.0 64
45/115-80W PW 80 138 130 38.7 50.3 67
48/123-80W PW 80 122 130 34.5 44.8 72
48/123-55W PW 55 151 90 52.8 47.5 34
51/131-70W PW 70 121 114 38.1 43.5 58
54/137-64W PW 64 115 103 38.7 39.8 51
61/156-64W PW 64 90 101 30.1 30.4 58
68/175-55W PW 55 85 87 33.5 28.4 48
68/175-64W PW 64 78 98 28.2 27.6 65
71/180-55W PW 55 79 90 31.5 28.4 51
77/195-48W PW 48 77 80 35.0 28.0 42

77/195-55W PW 55 67 87 26.5 23.3 55
82/206-48W PW 48 68 79 30.8 24.3 44
90/230-40W PW 40 68 65 37.6 24.4 33
90/230-48W PW 48 55 78 24.6 19.2 49
100/255-40W PW 40 57 64 32.5 21.1 37

110/280-34W PW 34 54 55 35.2 19.3 31
110/280-40W PW 40 47 65 26.6 17.3 40
120/305-34W PW 34 45 55 29.6 16.3 34
120/305-40W PW 40 37 64 20.1 13.0 44
130/330-34W PW 34 40 55 26.9 14.3 37
140/355-34W PW 34 31 55 19.4 10.6 39
150/380-34W PW 34 23 55 12.1 6.6 42
165/420-27W PW 27 29 43 22.3 9.6 29

Fabric number
The fabric number is composed of:
Mesh-count n 110-80W PW Thread ∅ dnom 110-80W PW Fabric colour 110-80W PW
(White = W; yellow = Y) Type of weave 110-80W PW (Plain Weave = PW
