Home ProductsWoven Filter MeshPA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections
PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections
PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections
PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections
Contact Now

PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections

Minimum Order Quantity : 500 PCS Price : $1 for 500 pcs, $0.9 for 10,000 pcs, $0.7 for 50, 000 pcs
Packaging Details : PE bag and carton Delivery Time : 5 working days
Payment Terms : L/C, T/T, Paypal Supply Ability : 1, 0000 pcs / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, California Proposition 65 Model Number: SG-FS-06

Detail Information
Features: Great Precision Smooth Surface Abrasion Resistance Material: PA, PET, PP, PE Filter Mesh
Shape: Stampings, Discs, Pieces, Strips, Ribbons, Tubes.. Sample: Free
Process Method: Ultrasonic, Heat Cutting, Laser, Cold Punching Applications: Liquid Filtration, Fuel Filtration, Medical Filtration, Etc.

Product Description

At SHARE, we manufacture high-quality precision open mesh filter fabrics from synthetic fibers in nylon, polyester, polypropylene and polyethylene. Our filter mesh are with great accuration and regular even square holes, food grade, very good dimensional stability and no any chemicals treatment in the production process.

We are able to convert filter mesh fabrics into various specific sizes and shapes such as discs, stampings, tubes, ribbons, shapes, cut-to-size sections, pleated elements, bags, plastic molded products and many more. We customize mesh components to fit our customers' needs and enhance our fabrics with special treatments to improve their performance.



Specifications



Item name Mesh Filter Stampings, Discs, Pieces
Manufacturer Taizhou Share Filters Co. Ltd.
Brand SHARE FILTERS
Material Nylon, polyester, polypropylene, polyethylene and stainless steel
Color White
Fabrication shape Round, square, rectangular, trapezoidal, circular, etc. It can be customized according to your drawings
Micron Rating 3-4400 microns
Product process Cold, heat, ultrasonic, laser, mold
Advantages Almost unlimited range of shapes (various technologies)
Suited for healthcare applications (FDA compliant)
Traceability (label)
Non-fraying edges (depending on selected technology)
Samples Free
Certificate ISO19001 SGS ROHS REACH
Application A wide range of industrial applications, such as
liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters

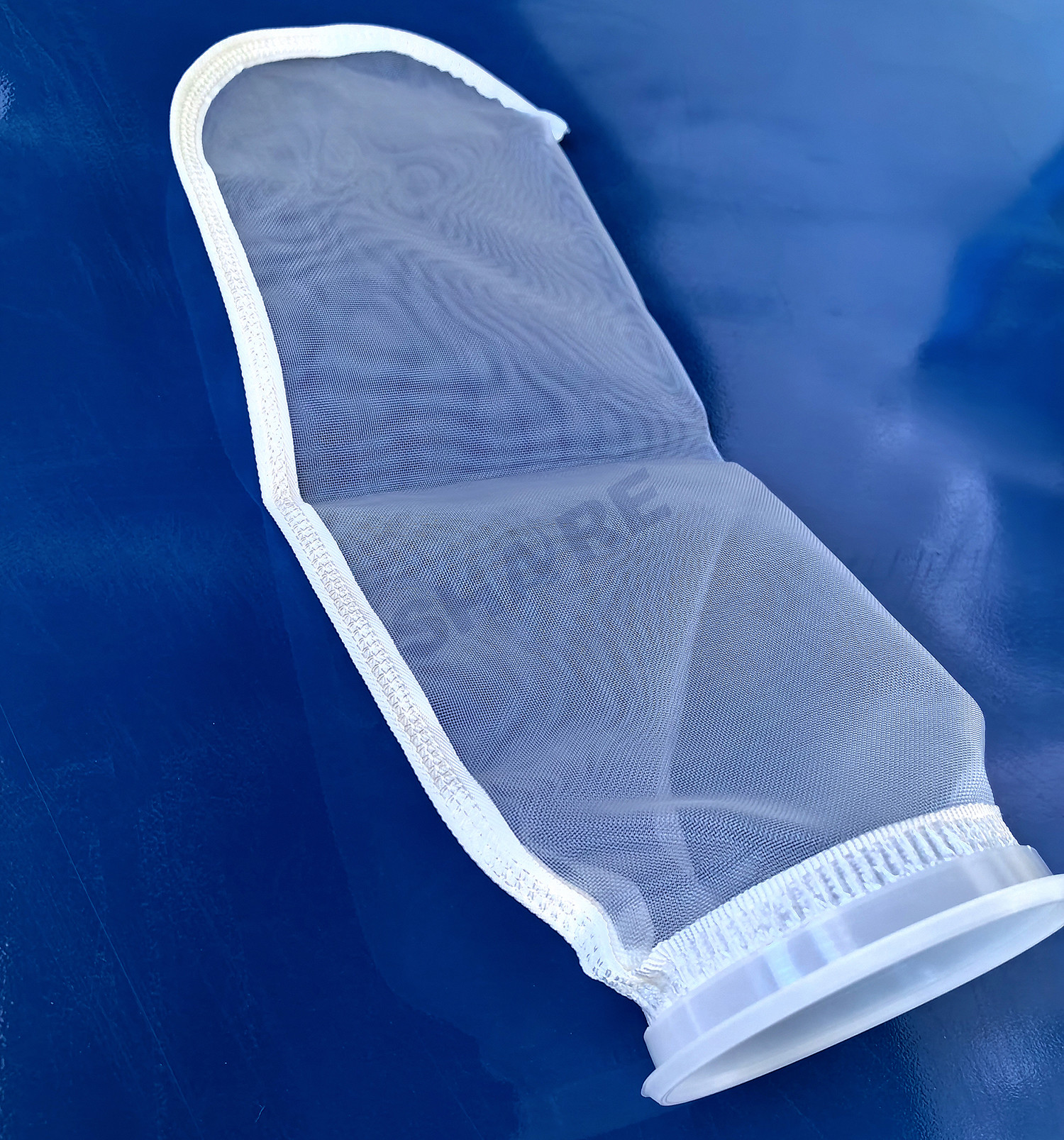

PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 0

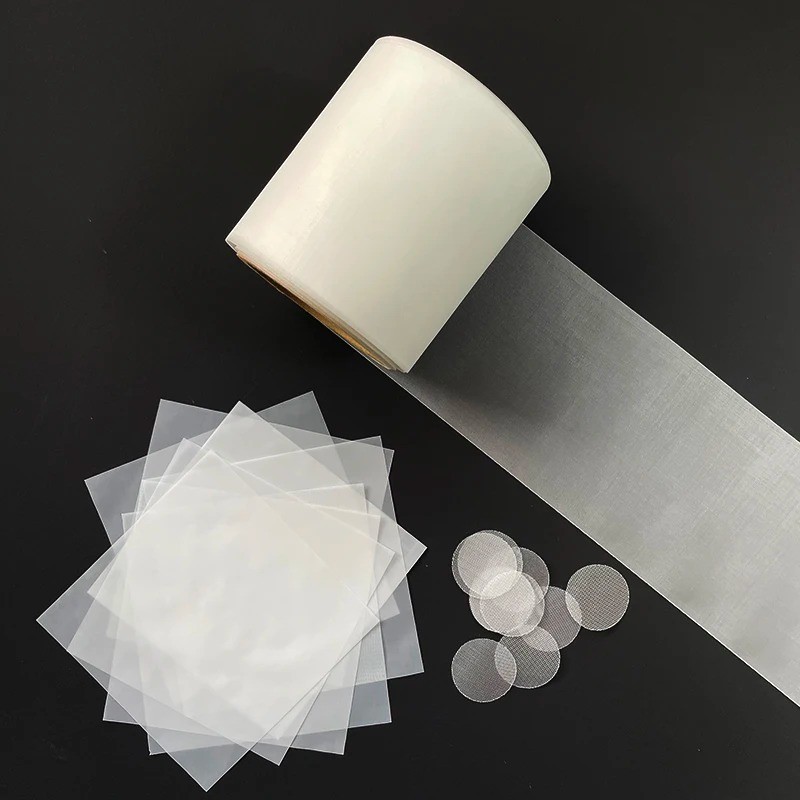

PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 1











Monofilament woven mesh shapes

PA, PET, PP, PE materials
Precise mesh opening

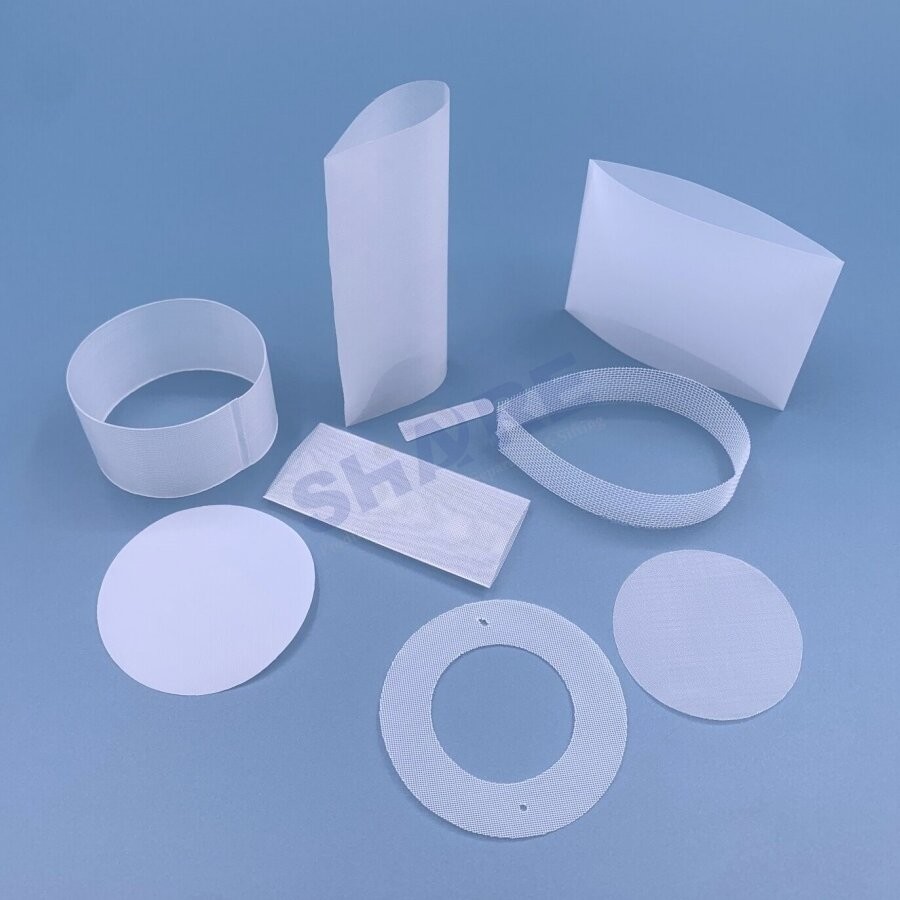

PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 2








Single or multiple layer shapes



Fabrication technologies: Cold, heat, ultrasonics, laser, sew, injection molding etc.

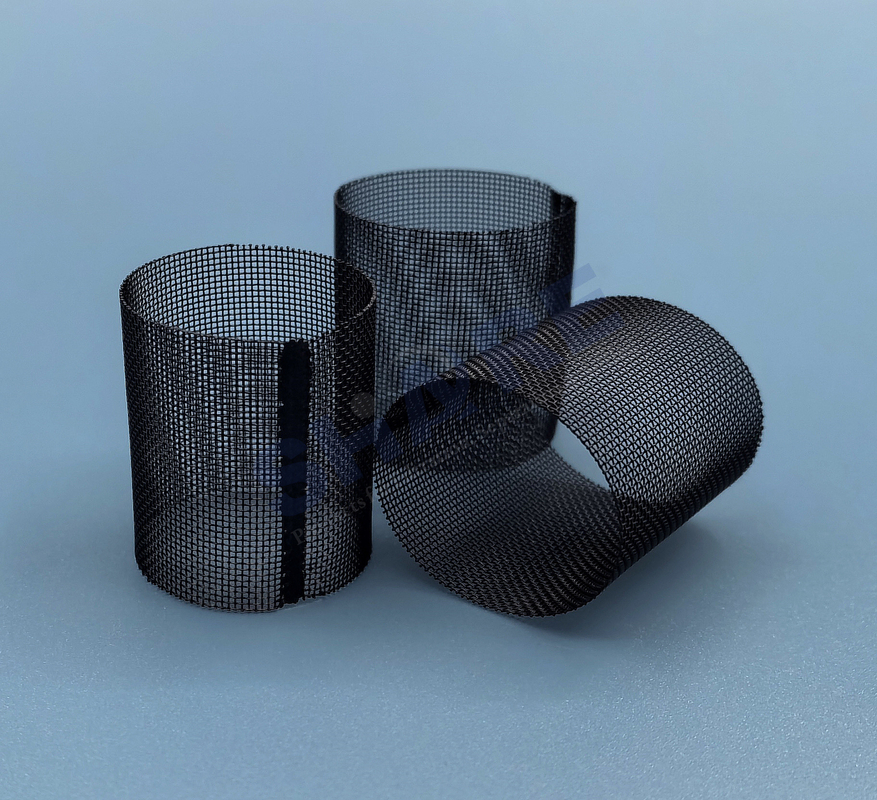

PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 3









Polygons or irregular cut flat pieces

Fabrication capabilities: ribbons, cuts, tubes, shapes, bags, molded filter products, etc.











PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 4

















Injection molding filters



Fabricated filter shapes are essential for injection molding

















Your Benefits

  • Wide range of materials(nylon, polyester, polypropylene, polyethylene) and micron sizes available
  • Supplied in the form of rolls, pieces, shapes, ribbons, tubes, molded products
  • Precision uniform mesh opening and smooth surface
  • Custom cutting service, tight tolerances
  • Unlimited shapes, clean sealed edges
  • Free samples
  • 2 days or less lead time



Gallery



PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 5

PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 6



SHARE Converting Capabilities



PA, PET, PP, PE Filter Discs, Filter Stampings, Filter Tubes, Filter Bags, Ribbons, Filter Shapes, Cut-to-Size Sections 7
SHARE Fabricated Product
 SHARE Fabrication Capabilities
COLD HEAT ULTRASONICS LASER
Continuous & tubular ribbons Ribbon Ribbon Ribbon
  Double seam tubular ribbon Double seam tubular ribbon
  Multiple layer ribbon Multiple Layer ribbon
    Multiple layer tubular ribbon
    Single seam tubular
ribbon
Tubes & Rectangles Filter segment, two sides heat cut,
two sides cold cut		 Rectangle, four sides
ultrasonically cut
  Rectangle, two sides heat cut and two sides ultrasonically cut
Tube, two open ends Tube, two open ends,
hot wire cut
    Tube, one end sealed Tube, two open ends, laser cut
    Tube special execution
(single/double layer)
    Biopsy bag with or
without flaps
Shapes Cold punched part
(single layer)		   Punched part
(single or multiple layer)		 Single layer shapes, laser cut
Pleated Element     Pleated pack
(ultrasonically cross cut)
    Pleated cartridges
(ultrasonically sealed)
Cone Shaped
(Truncated)		     Single seam
  Double seam
(single/double layer)



​

Customers have different requirements for filtration, separation and sifting, and relying only on single fabrication technology is not sufficient to meet the challenges of today's demanding filtration market. Therefore, SHARE has developed expertises and experiences in almost all processing technologies including cutting, stitching, gluing, welding, laser cutting, molding and more after decades of developments.



200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
1. Laser Cutting

Laser cutting produces highly precise fabric parts with
a heat-sealed edge.

Share uses different laser cutting systems to meet
customers various requirements including
semi-automated vision systems
and fully automated with AI programming.
2. Heat Slitting

Heated knives are used to create fabric strips/ribbons for much many applications such as injection molding, and hot-cut mesh edges are melted to enhance durability.

Optical measuring systems measure ribbon width with tight tolerances.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
3. Ultrasonic Slitting

Ultrasonic slitting are often used to produce fabric strips
with closed edge, minimal material build-up.

Ultrasonic cutting is ideal for precise and clean edge
quality, and measurements are conducted using
optical systems too.
4. Ultrasonic Stamping

Often used for highly precise fabric parts.

Ultrasonic stamping ensures tight geometric tolerances. The edges are non-fraying. One tool is used for punching and can be used for larger quantities. Optical measuring systems measure dimensions and tolerances.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
5. Ultrasonic Welding

Ultrasonic welding has accurate, clean welds without
introducing secondary materials.

SHARE produces precision plastic cylindrical filters
by using ultrasonic welded tubes.
6. Pleating

We increase the filter surface through pleating. Fabrics are firstly welded then pleated together, and cut to size of pleats.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
7. Sewing

Sewing and stitching are very suitable for various of mesh
filter bags.

The thread, patch and stitch can be customized
on demand.
8. Plastic Injection Molding

Share plastic filters provide h igh flow rates and low pressure drops by maximum open area.

SHARE process our mesh fabrics to various plastic molded filters for automotive, chemical, medical, home appliance and f ood industry by plastic insert molding and overmolding technologies.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility





Company Profile



Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.

Our products ranges:

  • Monofilament Mesh Rolls
  • Discs, Tubes, Ribbons, Bags
  • Plastic Molded Filters



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.

Contact SHARE today for additional information and how we can help you with your specific filtration requirements.





Packaging & Shipping



For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated&molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.

  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
