Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 200 m2 | Price : | $1 for 500 m2, $0.9 for 10,000 m2, $0.7 for 50, 000 m2 |
|---|---|---|---|
| Packaging Details : | PE bag and carton | Delivery Time : | 5 working days |
| Payment Terms : | L/C, T/T, Paypal | Supply Ability : | 1, 0000 m2 / day |
| Place of Origin: | Zhejiang, China | Brand Name: | SHARE FILTERS |
|---|---|---|---|
| Certification: | Reach Svhc, SGS RoHS, California Proposition 65 | Model Number: | SG-FS-10 |
|
Detail Information |
|||
| Material: | 100% Polyethylene Monofilament Mesh | Mesh Color: | White |
|---|---|---|---|
| Weave Type: | Plain Weave | Custom Shape: | Roll, Disc, Ribbon, Tube, Belt, Molded Filter |
| Micron Rating: | 25-4000 Um | Application: | Home Appliance, Automotive, Irrigation, Medical |
| High Light: | 25-4000 Um polypropylene mesh filter,Irrigation polypropylene mesh filter,Medical polypropylene mesh filter |
||
Product Description
At SHARE, we make high-quality precision open mesh filter fabrics from synthetic fibers in nylon, polyester, polypropylene and polyethylene. Our filter mesh are with great accuration and regular even square holes, food grade, very good dimensional stability and no any chemicals treatment in the production process.
We are able to convert filter mesh fabrics into various specific sizes and shapes such as discs, stampings, tubes, ribbons, shapes, cut-to-size sections, pleated elements, bags, plastic molded filter and many more. We customize mesh components to fit our customers' needs and enhance our fabrics with special treatments to improve their performance.
| Functionality Comparison of SHARE Precision Filter Mesh | ||||||
| Material | Nylon | Polyester | Polyethylene | Polypropylene | ||
| PA6 | PA66 | PET | PE | PP | ||
| Tension (ｇ/D) | Normal conditions | 6.4-9.5 | 6.5-9.5 | 6.3-9.0 | 5.0-9.0 | 7.5-9.0 |
| Humid conditions | 5.9-8.0 | 6.0-8.5 | 6.3-9.0 | 5.0-9.0 | 7.5-9.0 | |
| Strength ratio for humidity (%) | 84-92 | 90-95 | 100 | 100 | 100 | |
| Strength against hooking (g/D) | 10.7-14.3 | 11.0-14.5 | 9.0-11.0 | 6.2-13.0 | 11.0-14.0 | |
| Strength of knot (g/D) | 5.4-6.5 | 4.0-6.0 | 4.3-4.8 | 3.5-5.7 | 4.5-6.0 | |
| Elongation (%) | Normal conditions | 16-25 | 15-22 | 7-17 | 8-35 | 15-25 |
| Humid conditions | 20-30 | 20-28 | 7-17 | 8-35 | 15-25 | |
| Elasticity (%) at 3％ extension | 98-100 | 98-100 | 95-100 | 85-97 | 90-100 | |
| Initial extensional resistance (Apparent Young’s modulus) | (g/D) | 27-50 | 40-60 | 90-160 | 35-100 | 40-120 |
| (kg/m㎡) | 280-510 | 400-600 | 1100-2000 | 300-850 | 330-1000 | |
| Specific gravity | 1.14 | 1.38 | 0.94-0.96 | 0.91 | ||
| Moisture percentage | Nominal value | 4.5 | 0.4 | 0 | 0 | |
| Normal conditions 20℃, 65％ RH | 3.5-5.0 | 0.4-0.5 | 0 | 0 | ||
| Other conditions 20℃ | 20％RH:1.0-1.8 | 20％RH:0.1-0.3 | 20％RH:0 | 20％RH:0 | ||
| 95％RH:8.0-9.0 | 95％RH:0.6-0.7 | 95％RH:0-0.1 | 95％RH:0-0.1 | |||
| Heat resistance | Softening point | 180℃ | 230℃-235℃ | 238℃-240℃ | 100℃-115℃ | 140℃-160℃ |
| Fusion point | 215℃-220℃ | 250℃-260℃ |
255℃-260℃ Combusts gradually while melting. Not self-combustible |
125℃-135℃ Combusts gradually while melting |
165℃-173℃ Combusts gradually while melting |
|
| Weather resistance (influence of exposure) | Strength deteriorates slightly and color may change slightly | Almost no influence | Strength deteriorates slightly | Strength deteriorates slightly | ||
| Acid resistance | Dissolved and partially decomposed by concentrated hydrochloric acid, concentrated sulfuric acid or concentrated nitric acid | Almost no influence by concentrated hydrochloric acid, 75% sulfuric acid or concentrated nitric acid | Almost no influence by concentrated hydrochloric acid or concentrated sulfuric acid | Almost no influence by emperature hydrochloric acid, emperature sulfuric acid or emperature nitric acid | ||
| Alkaline resistance | Shows little variation in strength when exposed to concentrated caustic soda solution and concentrated ammonia solution | Shows little variation in strength when exposed to 10% caustic soda solution and concentrated ammonia solution | Shows little variation in strength when exposed to concentrated caustic soda solution | Shows little variation in strength when exposed to emperature caustic soda solution and emperature ammonia solution | ||
| Resistance to other chemicals | Good chemical resistance | Good chemical resistance | Shows little variation | Shows little variation | ||
|
Solvent resistance General solvent: alcohol, e-ther, benzene, ace tone, gasoline, tetra chloroethylene |
Not soluble by general solvents: phenol(phenol,m-cresol etc.), dissolved by concentrated formic acid, expanded by glacial acetic acid, and melted by heat | Not soluble by general solvents: dissolved by heated m-cresol, heated o-chlorophenol, heated emperature, dimethylformamide or 40℃ phenol/ethane tetrachloride liquid mixture | Insoluble in alcohol, e-ther, and ace tone. Expands when exposed to benzene and gasoline at high emperature. Slowly dissolves in perchloroethylene and ethane tetrachloride at high temperatures | Insoluble in alcohol, e-ther, and ace tone. Expands when exposed to benzene at high emperature. Slowly dissolves in perchloroethylene, ethane tetrachloride, carbon tetrachloride, cyclohexanone, monochlorobenzene, tetrahydronaphthalene, xylene, and toluene at high temperatures | ||
| Generally used dyes | Acid, dispersed, and reactive chrome dyes | Carrier dyeing or high temperature dyeing with dispersed, naphthol, vat, or soluble vat dye | Generally dyed through solution dying with pigments | Generally dyed through solution dying with pigments. Dyeing with dispersed dyes (for polypropylene) is also possible | ||
| Insect and mold resistance | Perfect resistance | Perfect resistance | Perfect resistance | Perfect resistance | ||
| Processing Technologies | Ultrasonic slitting & welding | Heat cutting & slitting | Laser cutting & slitting | Cold cutting & stamping & punching | Sewing |
| Fabrication Method | Mesh materials are slitted while crushing the edge with ultrasonic vibration | Mesh materials are slitted by heat treatment (temperature close to melting point) | Almost all shapes and sizes can be processed with laser beam |
Mesh are cut by cold slitting or punching | Various shapes and sizes can be sewn to meet customer demands |
| Edge Quality | Very clean cut edges | Closed edge due to melting |
Heat-sealed, non-fraying edges | Non-sealed edge | Sewed edge |
| Advantage | Small material build-up Narrow tolerances possible |
Possible for most mesh fabrics |
High flexibility |
The most economical process, possible for all fabrics. |
Very suitable for filter bags, the thread, patch and stitch can be customized on demand. |
Specifications
| Item name | Customer-Specific Fabricated PE Mesh Filter |
| Manufacturer | Taizhou Share Filters Co. Ltd. |
| Brand | SHARE FILTERS |
| Samples availability | Free samples are on demand |
| Material | Polyethylene, other materials such as PES PA PP are available. |
| Color | White or other colors |
| Fabrication shape | Round, square, rectangular, trapezoidal, circular, etc. It can be customized according to your request or drawings |
| Mesh size range | 25-4000 microns for your option. Our application experts will provide professional advices on mesh size if you are unsure about it. |
| Product process | Cold, heat, ultrasonic, laser, sew, injection mold |
| Features | Almost unlimited range of shapes (various technologies) Suited for healthcare applications (FDA compliant, sterile treatment) Traceability (label) Non-fraying edges (depending on selected technology) |
| Certificate | ISO19001 SGS ROHS REACH |
| Application | Liquid filtration, medical filtration, and semi finished fabricated mesh filters are particularly suitable for use in injection molding processes |

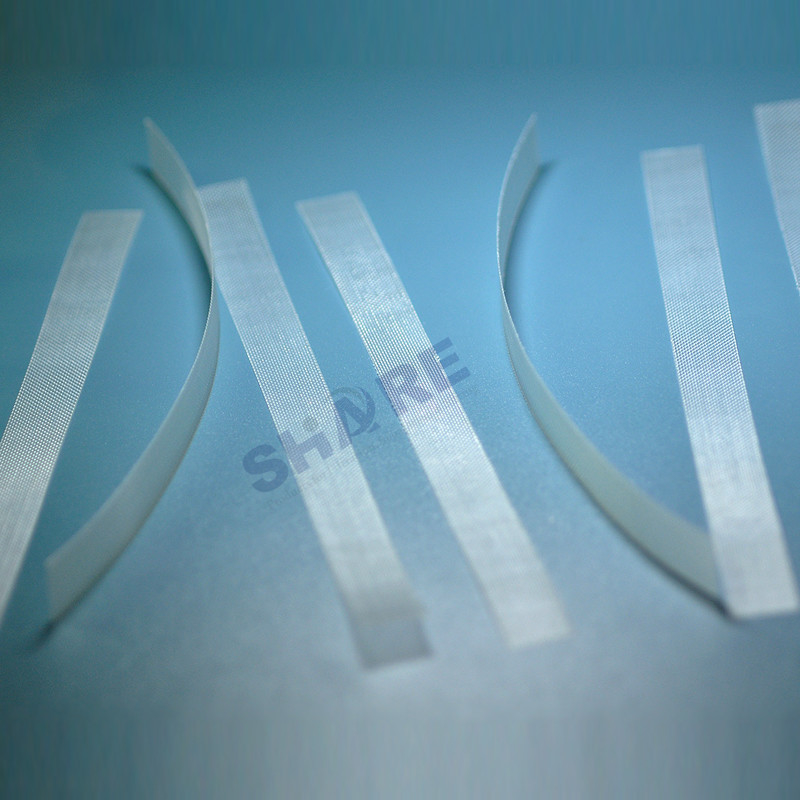

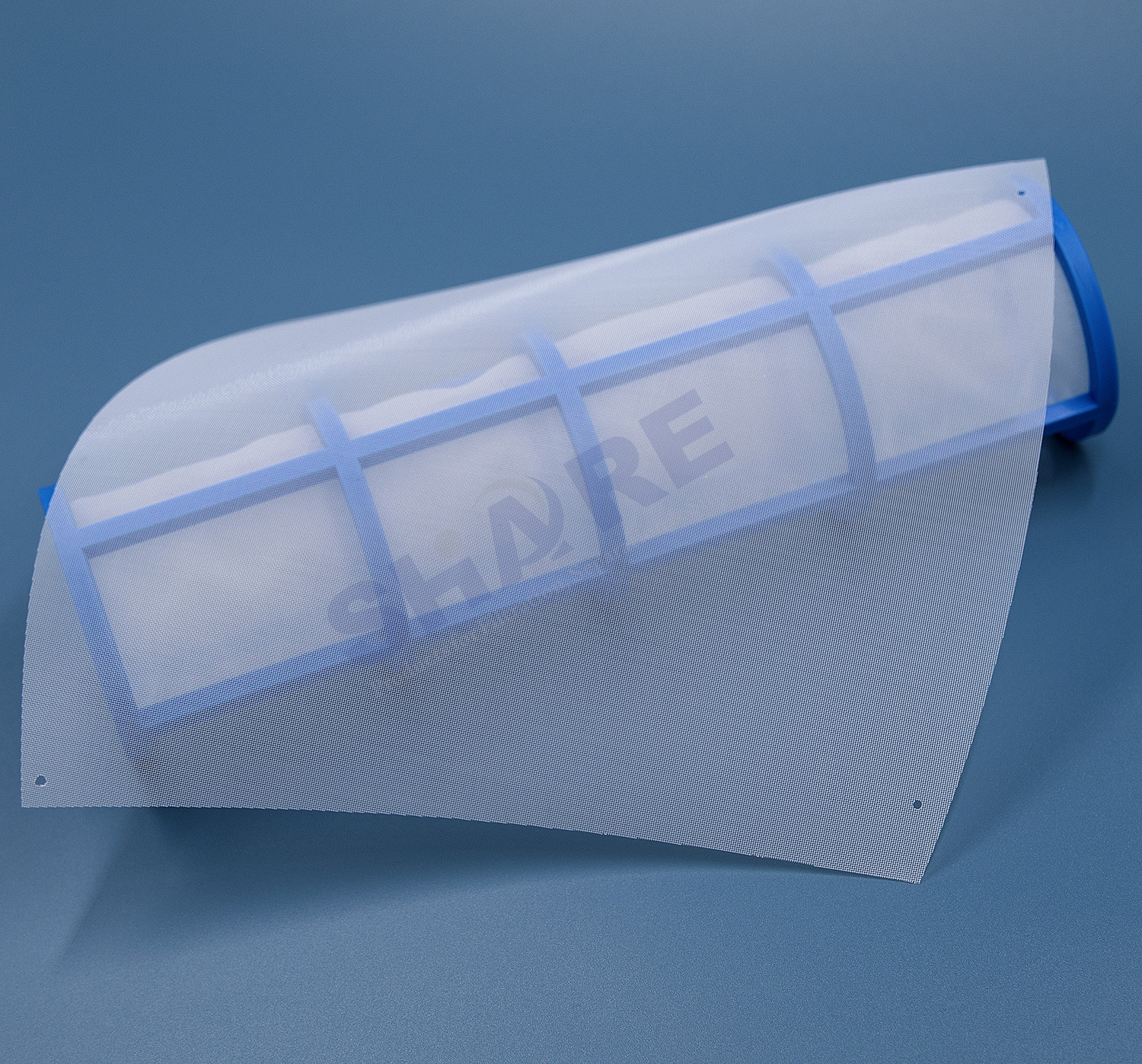

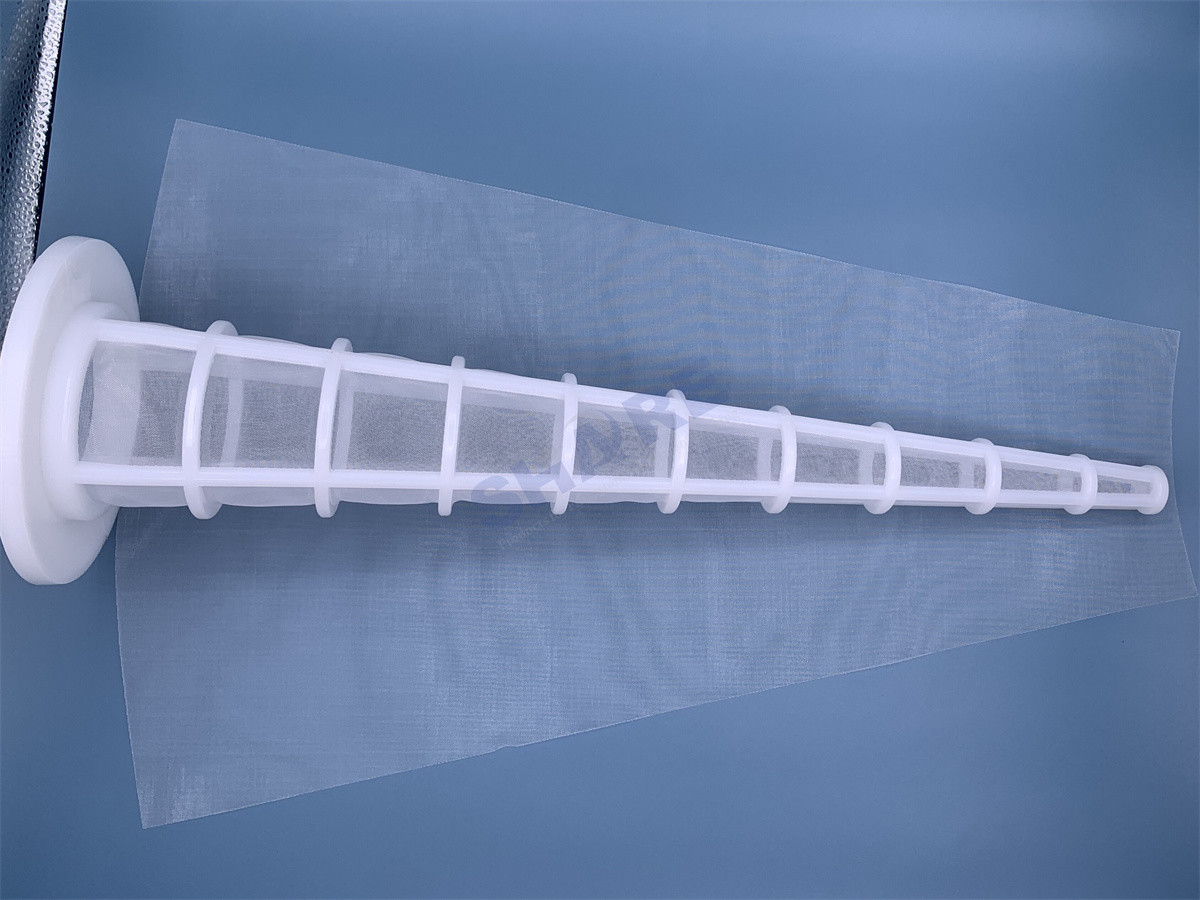

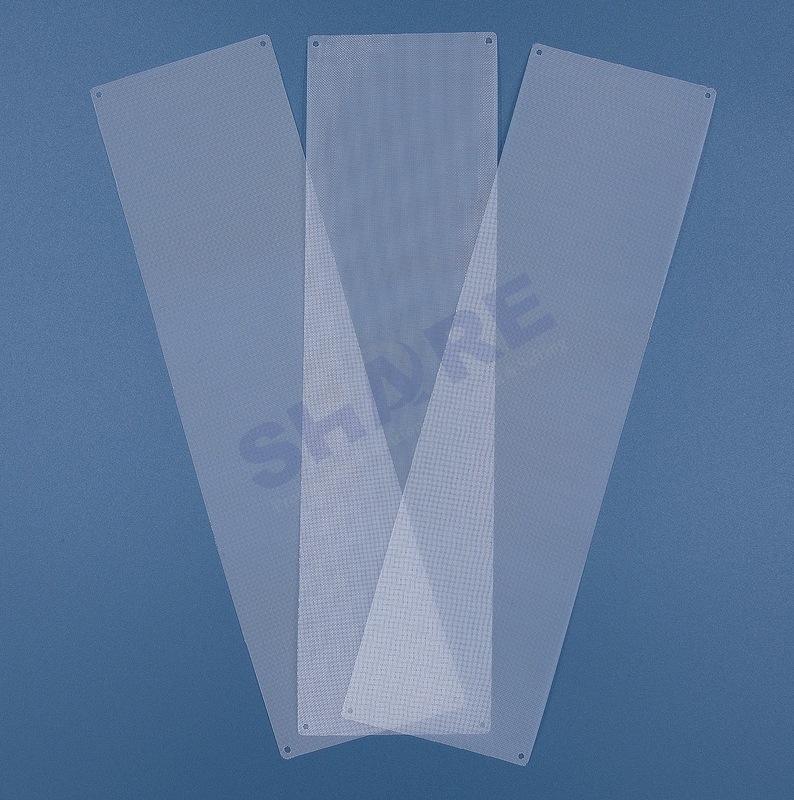

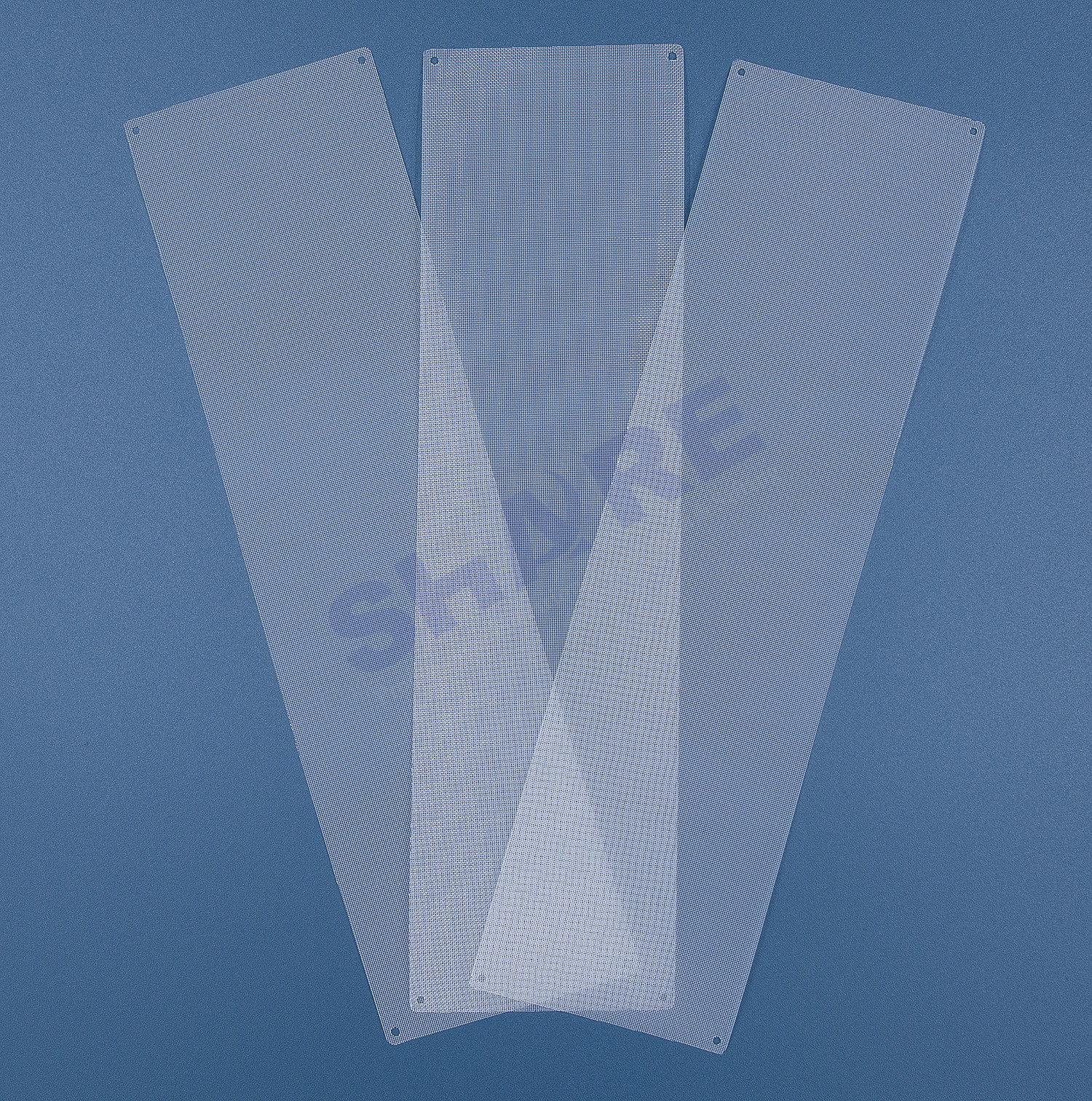

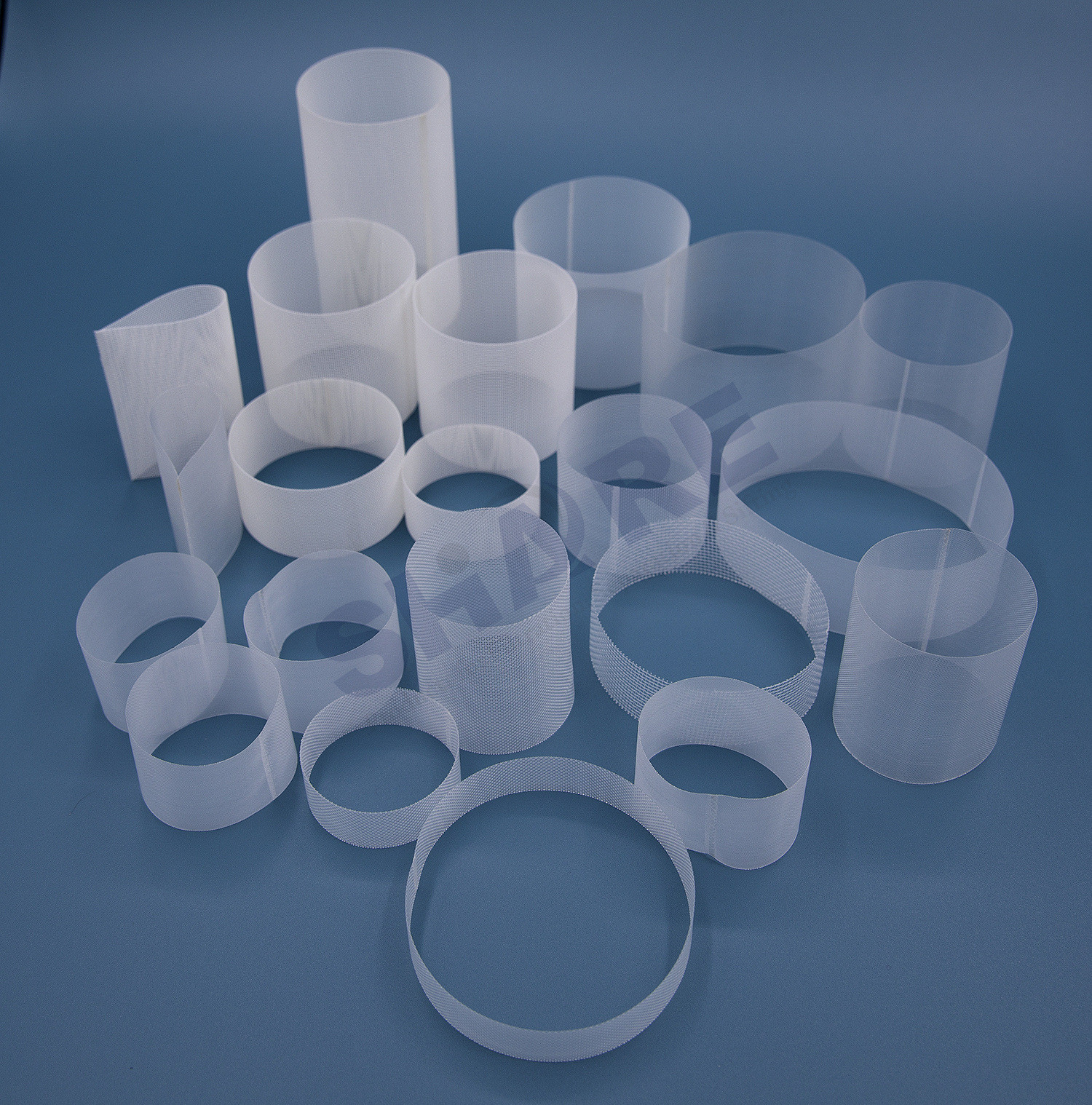

Real Images
Capability
By cold, heat, ultrasonic, laser, injection mold and many more technologies, SHARE can process filter mesh into various specific solutions including colored, coated, thermal treated, sectioned, shaped, pleated, sewed or molded products based on customers' requirements. Contact us now for more information about our filter products.
Production Process
Yarn
Monofilament
Weave
Plain Weave
Plain weave is made by crossing the warp and weft yarns with each other. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.
Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.
Product Procedure
Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated mesh if needed→Plastic molded filters if needed
Mesh
SHARE precision filter mesh has smooth surface, great dimensional stability and strength than other material options, and tighter tolerance. It has different but precise mesh opening from 3um to 4400um. These allow for the different sized filter meshes to be used in different situations and for different purposes, such as home appliance, liquid filtration, dust collection or separation, dry and wet filter bags, sifting, milling, automotive, medical, food, pharmaceutical, molded filters and many more.
SHARE can further processed filter mesh into various forms of custom filters, such as filter pieces, shapes, ribbons, tubes, plastic filters by our state-of-the-art technologies of cutting, stitching, gluing, welding, laser cutting, molding and more, to fuifil customers and markets' demanding filtration and screening needs.
Company Profile
Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.
Our products are categorized into three classes.
|
Monofilament Mesh Rolls
|
|
|
Discs, Tubes, Ribbons, Bags
|
|
|
Plastic Molded Filters
|
|
Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.
Contact SHARE today for additional information and how we can help you with your specific filtration requirements.
Packaging & Shipping
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated filters & molded filters:
1. Packed into sealed PE bags, 10m2 to 500m2/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
| Port to Port | Door to Door | |
| Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
