Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device
Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device
Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device
Contact Now

Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device

Minimum Order Quantity : 200pcs Price : USD0.02-USD1.50/pc
Packaging Details : Caron, Polybag Delivery Time : 5-10 days
Payment Terms : T/T, L/C, D/P, Western Union, PayPay Supply Ability : 50000pcs/day
Place of Origin: China Brand Name: Share Filters
Certification: SGS Model Number: Nylon Filter Mesh Discs

Detail Information
Product Name: Filter Mesh Disc Key Words: Nylon Filter Mesh Disc Custom Diam
Material: Nylon Filter Mesh, Polyester Filter Mesh, PP Filter Mesh Micron Rating: 16μm-1500μm
Thread Diameter: 30μm-500μm Application: Liquid, Air Filtration
Highlight:

Liquid Filter Mesh Disc

,

Custom Nylon Mesh Filter Disc

,

Water Stream Straightener Mesh Filter Disc

Product Description

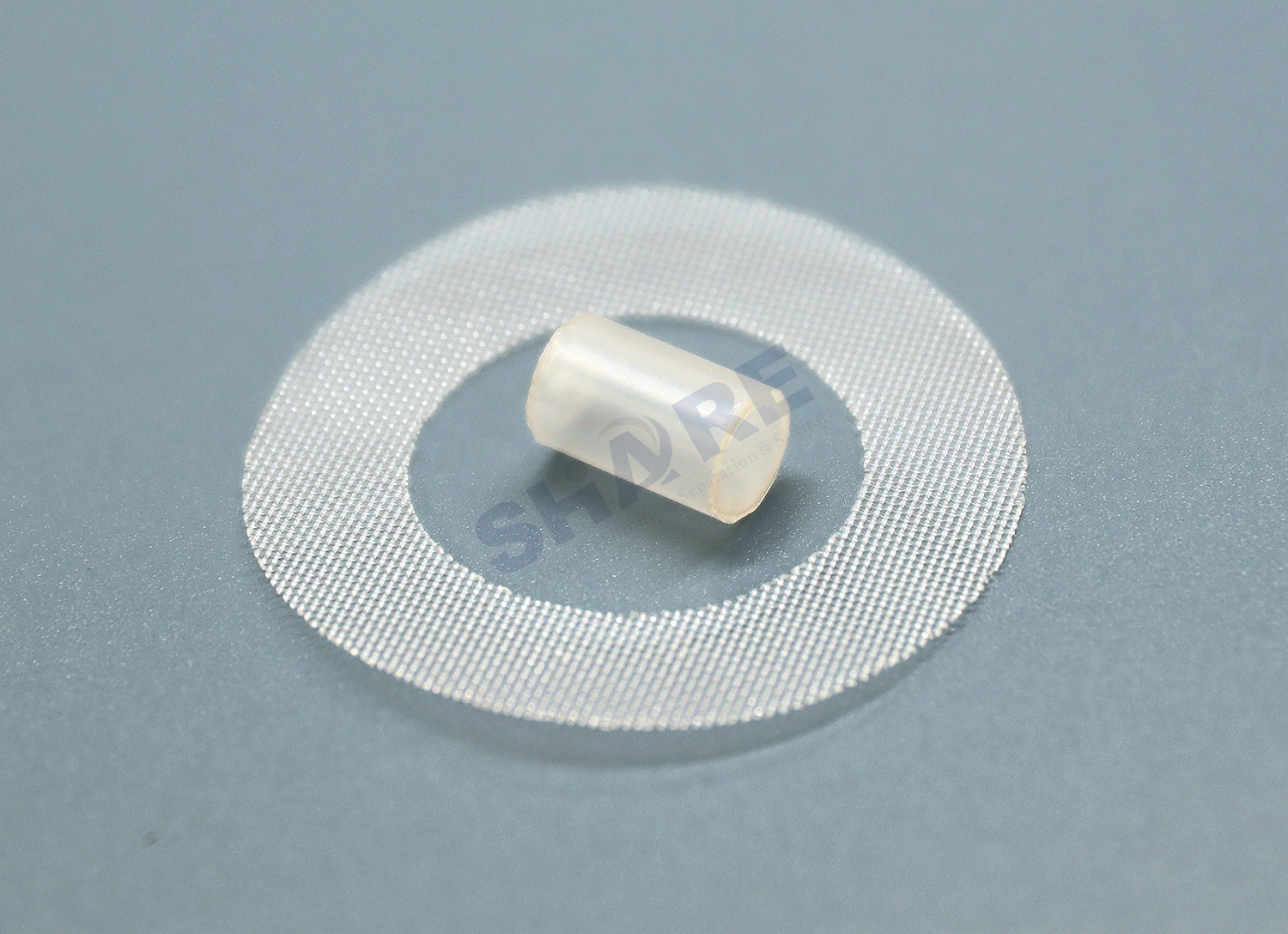

Nylon Filter Mesh Discs Shapes For Water Stream Straightener In Test Device



Share Filters not only manufacture the filter meshes, but also can conver the filter meshes to all kinds of pieces and discs by using cold, state-of-the-art laser and ultrasonic punching equipment. The finished filter mesh pieces can be used as the water stream straightener reduce spray inside some of test devices.

Share filter mesh pieces can be tailored to virtually any shape or dimension. Laser cutting allows for elaborate shapes to be cut that are specific to the customer’s design needs. Laser cut parts can be also produced in multiple layers. The high-precision laser cut parts are characterized by closed edge quality.


Share Filters  Filter Mesh Options for Cutting Discs



Material Nylon mesh, polyester mesh, PP mesh
Mesh Opening From16 micron to 1500 micron
Thread Diameter From 30 micron to 500 micron
Open Area From 10.2% to 60%
Weave Type Plain Weave
After Treatment Washing, Heat-setting, Calendaring, Water-repellent, etc
Size Can cut in custom dimension and shape
Colour White, or customize



nylon filter mesh discs
PP fiter mes discs


The Advantage of Filter Mesh Pieces:
• Convenient for insert molding
• Specific to the customer’s design needs
• Non-fraying edges(depends on the technology)


Nylon Filter Mesh Datasheet
Ref. No. Mesh Count Thread Diam. Mesh Opening Opening Area
  mesh/cm mesh/inch µm µm %
JPP5 5 12 500 1500 56
JPP6 6 16 400 1267 58
JPP7 7 18 350 1079 57
JPP8 8 20 350 900 52
JPP9 9 24 250 860 60
JPP10 10 25 300 700 49
JPP12 12 30 250 583 49
JPP12 12 30 300 533 41
JPP14 14 35 300 414 34
JPP16 16 40 200 425 46
JPP16 16 40 250 375 36
JPP20 20 50 150 350 49
JPP20 20 50 200 300 36
JPP24 24 60 150 267 41
JPP28 28 70 120 237 44
JPP30 30 76 120 213 41
JPP32 32 80 100 213 46
JPP36 36 90 100 178 41
JPP40 40 100 100 150 36
JPP43 43 110 80 152 43
JPP48 48 120 80 130 38
JPP56 56 140 60 120 44
JPP59 59 150 60 110 42
JPP64 64 160 60 100 37
JPP72 72 180 50 90 41
JPP80 80 200 50 75 36
JPP100 100 250 40 60 36
JPP120 120 305 40 43 25
JPP130 130 330 40 37 23
JPP140 140 355 30 38 33.7
JPP150 150 381 30 34 30.25
JPP165 165 420 30 28 20.7
JPP180 180 460 30 25 19.5
JPP200 200 510 30 16 10.2



Manufacture Process of Filter Mesh

filter mesh production process





Factory Capabilities



Share Filters sepcialize in manufacturing and offering filter mesh in different materials including nylon mesh,

polyester mesh, pp mesh, metallic mesh, and we can also convert these filter meshes to filter mesh ribbons,

filter mesh tubes, filter bags and mesh insert plastic molded filters to meet customs' Filtration demands.





Woven Filter Mesh

The width of filter mesh rolls can be in 100cm, 127cm, 150cm, 165cm, 175cm, 183cm, 365cm or

other custom width. Length of roll can be 30m, 50m, 70m, or other custom length.

woven filter mesh





Filter Mesh Slitted in Narrow Ribbons

Our ribbons are used in a multitude of applications such as automotive filters, appliances filters, industrial filters,
electronic devices, diagnostic test strips, perfusion and transfusion filters in healthcare. Share Filters ultrasonic
slitting is also used for manufacturing fabric strips and produces a closed edge with very little material build up
at the edge.
slitting filter mesh


Laser Cutting Filter Mesh Shapes.
Share Filters cutting method include Laser cutting, Cold cutting, Hot cutting, Slitting, Punching. Professional cutting
using custom made tools that will not damage the meshes. Laser cutting allows for elaborate shapes to be cut that
are specific to the customer’s design needs
filter mesh laser cutting


Ultrasonic Welding
Sonic welding are accurate, clean. The tubes are equipped with one or two functional seams, which provide
the necessary seam strength.
Nylon Mesh Filter Disc Custom Diam For Water Stream Straightener In Test Device 6
filter mesh tube


Custom Filter Bags
rosin press bag
Rosin press bag

biopsy
Biopsy bag


Sewn Bag
sewn
cylinder filter
sewn rosin filter bag


Standard Filter Bags
Share Filters produces and provides high quality liquid filter bags to fit standard size filter housing, as well
as custom designed products where requested. The constituent materials have been chosen for their purity,
with consistent high quality and repeatable performance.
filter mesh
felt filter bag


Mesh Insert Plastic Injection Molded Filters
Our injection moulded filters products consist of a filter mesh held in a polymer plastic frame,
allowing for a more robust part/product giving more reliability and longevity in its use.
injection mould
mesh insert injection molded filters



About Us

Share Filters has over 20 years of experience developing and manufacturing filter mesh and custom product solutions

for our customer's screen and filtration needs. We can offer the filter mesh and filter components services including

slitting, cutting, welding, sewing and injection molding. Our customer base comes from a wide variety of industries

– Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical

as well as more general engineering, giving us a wealth of experience in many areas.





Application of Share Filters Products



AUTOMOTIVE FILTER Healthcare filter appliance filter coffee maker filter drip irrigation spray filter
Fuel filter Cell strainer Air purifier filter Coffee filter Drip irrigation filter
Automotive Healthcare Appliance Food & Beverage Agriculture
