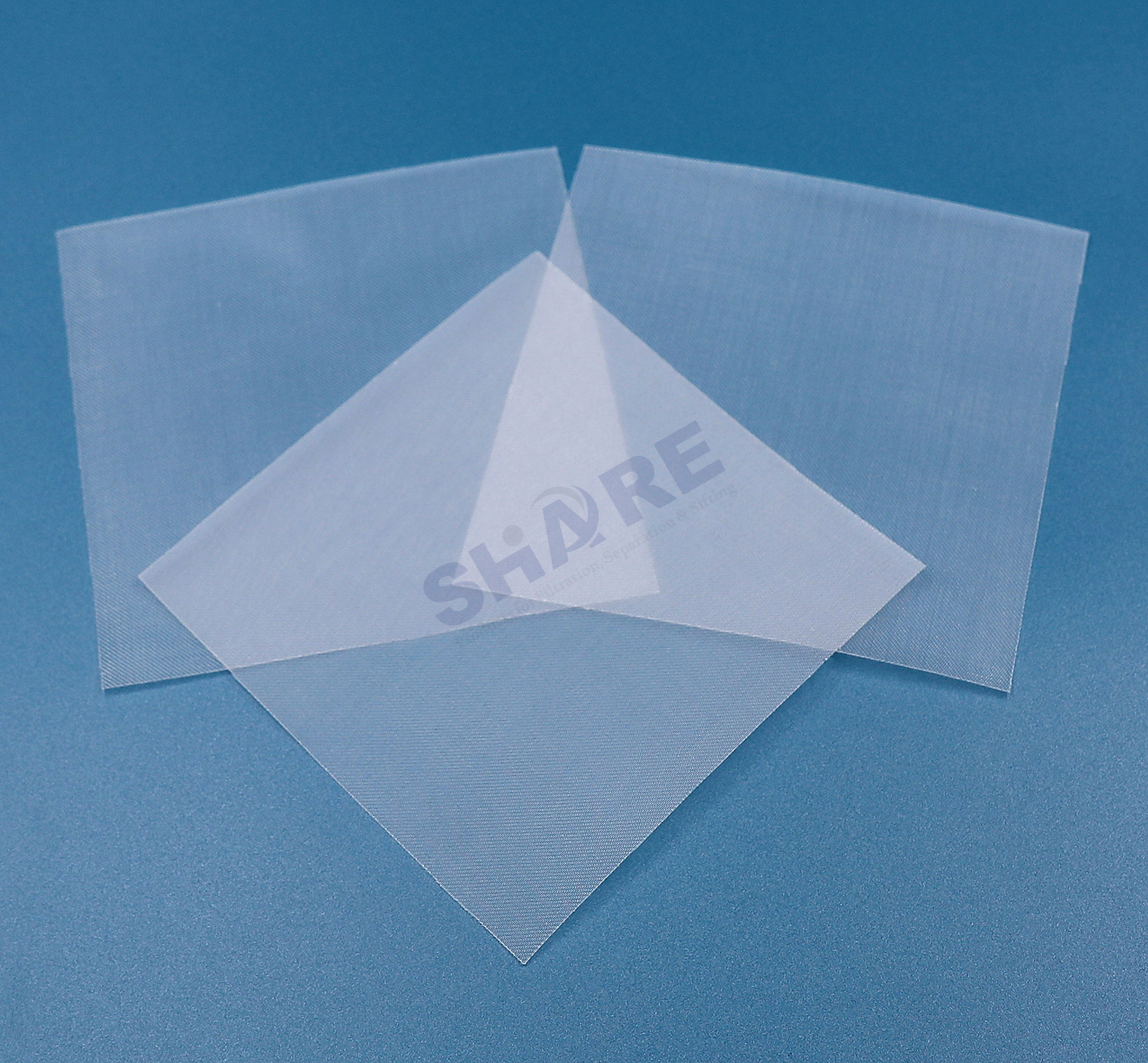

125 Microns Nylon Mesh Paint Strainers For Water And Solvent Based Paints

Product Description



SHARE precision nylon filter mesh is made of mono-filament PA6 or PA66 yarn/thread (1:1 weaving method, plain weave), which is ideal for straining, sieving or filtering most liquids, powders or sludges; The term "mono-filament" means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together, as in a spun or multi-filament material. These mono-filament threads are perfectly round in section and are extruded to very precise and uniform diameters.

Characteristics:

1.Non-toxic, odorless, tasteless, high strength, large elongation, excellent flexibility.
2.With high toughness, good elasticity, resistance to weak acid, oil, alkali, wear resistance, temperature and other characteristics, but also it has good insulation, low coefficient of lubricating properties, wide range of applications.

SHARE processing capabilities:

With 40 years of expertise and experience from precision filter mesh materials to filter components, SHARE has the capability to convert our precision filter mesh to customer-specific fabricated shapes, such as stampings, discs, pieces, strips, ribbons, tubes, pleated element, bags, molded parts etc, by our outstanding manufacturing capabilities and fabrication processes such as cutting, calendering, welding, slitting, sewing, pleating, molding, and many more.





Descriptions



Use SHARE 125 microns nylon mesh paint strainers to filter your paint before putting the paint into the spray gun and applying, it will prevent foreign particles entering the spray gun and causing damage and imperfections in the paintwork strainers come flattened.

Main Features: Oil proof and waterproof. Prevents spray equipment clogging.

Application: All types of paints, varnishes, resins, and stains and even for automotive antifreeze, oil, or loose-leaf tea.





Specifications



Product Name	125 Microns Nylon Mesh, Paint Strainers, Suitable for Water and Solvent Based Paints
Manufacturer	Taizhou Share Filters Co. Ltd.
Brand	SHARE FILTERS
Material	Nylon monofilament pa6 and pa6.6 (Food grade are available)
Color	white or customized
Weave type	plain woven, twill woven, dutch woven
Common width	50cm, 100cm, 127cm, 145cm, 165cm, 182cm, 220cm, 260cm, 280cm, 320cm, 360cm up to 390cm or customized width
Roll length	30-100 mester or customized
Mesh Count/inch	6 mesh/inch to 700 mesh/inch
Thread diameter	30 to 1000 microns
Mesh Opening	125um, 190um or custom microns. 1 to 3233 microns are available
Certificate	ISO9001 ROHS
Samples	1 meters free
Properties	Good dimensional stability, great precision and even mesh opening, smooth surface, excellent strength and elasticity, excellent abrasion resistance, good alkali and chemicals resistance, good solvent, fuel and lubricant resistance, higher moisture absorbency compared with polyester
Advantages	1. High mechanical strength and flexibility 2. Fatigue resistance 3. Available in disc, tube, bag and special shapes 4. Abrasive and corrosive resistance 5. Heat-melting resistance 6. Wide ranges of mesh counts for choice 7. Available for water, air, oil, paint, powder filtration 8. Compliance with FDA food grade
Quality Control	Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, self-inspections, spot inspections and final inspections at every stage of the process
Application	Automotive filters, air purifier filters, air conditioner filter , circulating & waster water filter , cell strainer, blood filter transfusion , wound care, injector filtration, coffee filter, biopsy bag, milling mesh, test/sample sieve, filters for agricultural instruments, filtration of powder and liquid chemicals





Technical Datasheet



The data sheet of meshes listed below are Nylon. Polyester meshes are available upon request.



Precision Nylon Filter Mesh Technical Data Sheet
Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 300/36	20	50	200	300	36	385	173
PA 267/41	24	60	150	267	41	285	117
PA 237/44	28	70	120	237	44	215	87
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/43	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/42	59	150	60	110	41	98	46
PA 100/37	64	160	60	100	38	105	50
PA 90/41	72	180	50	90	41	82	39



Mesh Count: Number of openings per inch or centimeter
Weave Type: Plain Weave (PW) or Twill Weave (TW)
Thread Diameter: The diameter of each thread before weaving
Mesh Thickness: The average thickness of the woven mesh
Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh



The data are compiled to the best of our knowledge.
Subject to change without notice.
Complete product range is available on request.



What is Plain Weave(PW) and Twill Weave(TW) for Filter Mesh?























Plain weave is made by crossing the warp and weft yarns with each other, which is the simplest weave among textile structures. Well-regulated and highly durable textile fabrics can be created as there are many points where the threads cross each other (structure points). It is also resistant to friction.
Since the warp and weft yarns appear on the front and rear surfaces of the textile uniformly, it is sometimes difficult to make a distinction between the front side and the rear side compared to other structures.



































Twill weave is a structure created by intersecting warp and weft yarns. Each yarn is woven by at least skipping two or more of the opposing yarn either over or under. Slanting ribs like "/" can be seen as a diagonal pattern on the fabric surface. This slanting line is called the "twill line."
Twill weave yard has a slightly lower durability, but is more flexible and has a glossy texture compared to plain weave as the warp of a twill weave yarn will cover a larger surface area. (warp yarns are floated in a wider area).
As there are fewer interlacing threads, high-density textile fabrics with fewer spaces can be created.
A weave in which the weft yarns are crossed by two upper and two lower warp yarns is called "2/2 twill weave", and weaves in which weft yarns are crossed by two upper and one lower and three upper and one lower warp yarns are called "2/1 twill weave" and "3/1 twill weave," respectively. A wide variety of structures that cannot be realized with a plain weave can be created.










Gallery



By cold, heat, ultrasonic, laser, injection mold and many more technologies, SHARE can process filter mesh into various specific solutions including colored, coated, thermal treated, sectioned, shaped, pleated, sewed or molded products based on customers' requirements. Contact us now for more information about our filter mesh.

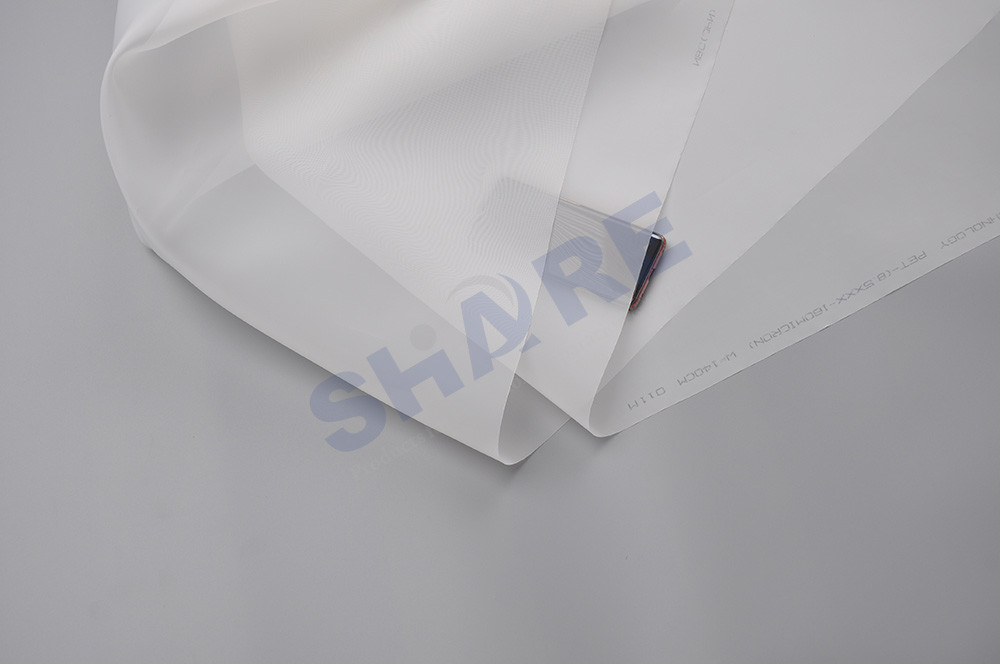

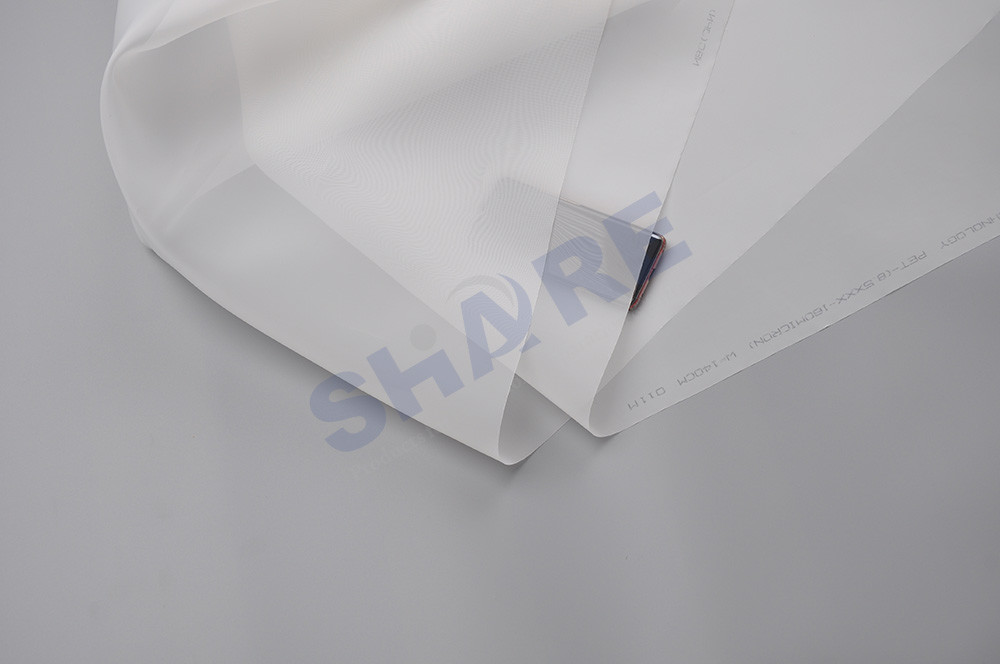

1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:

1. Packed into sealed PE bags, 10m2 to 500m2/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
