Customized Fabricated Nylon Filter Mesh Shape Food Safe Pore Size 125 150 200 250 Micron

Loading zoom

Chat Now

Customized Fabricated Nylon Filter Mesh Shape Food Safe Pore Size 125 150 200 250 Micron

Minimum Order Quantity :	200pcs	Price :	USD0.040-USD0.80/pc
Packaging Details :	Caron, Polybag	Delivery Time :	7-20 days
Payment Terms :	T/T, L/C, Western Union, MoneyGram, PayPle	Supply Ability :	10000pcs/day

Place of Origin:	China	Brand Name:	Share Filters
Certification:	SGS, REACH	Model Number:	Customized Fabricated Nylon Filter mesh shape 125um-250um

Detail Information
Product Name:	Customized Fabricated Nylon Filter Mesh Shape	Keyword:	Nylon Filter Mesh Shape
Mesh Option:	Nylon Mesh, Polyester Mesh, PP Mesh, Stainless Steel Mesh	Micron Range:	3μm - 1500μm, Other Custom Opening
Processing:	Laser Cutting, Ultrasonic Cutting, Punching	Application:	Food And Beverage Filtration
Dimension:	Custom Size	Shape:	Custom Design
Food Contact:	FDA Material, Safe For Food Contact
Highlight:	Food Safe Fabricated Nylon Filter mesh , 250 Micron Fabricated Nylon Filter mesh , Customized Fabricated Nylon Filter mesh

Product Description

Customized Fabricated Nylon Filter mesh shape Food Safe Pore Size 125 150 200 250 Micron

The food industry requires specific attention regarding both the products and the care needed to process and handle them properly. Share Filters works in compliance with cutting-edge Good Manufacturing Practices which, among other things, provides a dedicated area reserved solely for processing fabrics for the food industry.

Share Filters stocks nylon filter mesh with opening sizes ranging from 3 microns to 3233 microns. While we stock large volumes of this product and sell it by rolls, widths for the rolled mesh range from a minimum of 80cm up to 365 cm. We also offer this mesh in custom sizes of pieces and customized laser cuts of various of shapes.

For more information about current available widths and for customized fabricated mesh, please email us for pricing. We strive to bring application-specific functionality to various industries by customizing our products. Please contact us if you have further questions about the customization options of nylon filter mesh.

Features of Share Filters Filter Mesh Pieces

The edge of the mesh piece is closed without fraying
A wide range of micron ratings available, from 3μm to 3233μm
The dimension of mesh piece can be cutted in custom size
The hign-precision laser cutting make the size in tight tolerance
Laser cut parts are characterized by closed edge quality
FAD nylon and polyester mesh make them safe for food contact
Nylon and polyester mesh are chemically resistant, which makes them suitable for a wide range of beverage applications
Nylon and polyester mesh also have high tensile strength, allowing them to withstand pressure during filtration

Filter Mesh Shape Specification

Product name:	Custom-tailored nylon filter mesh piece	Mesh options:	Nylon mesh, polyester mesh, PP mesh
Application:	Directly using, or for mesh insert injection moulding	Edge of piece:	Smooth and closed edge
Fit for:	Food and beverage	Micron rating:	3μm -1500μm, other pore size
Process method:	Laser cutting, punching	Shape:	Customize
Dimension:	customize	Package:	Plastic bag, master carton

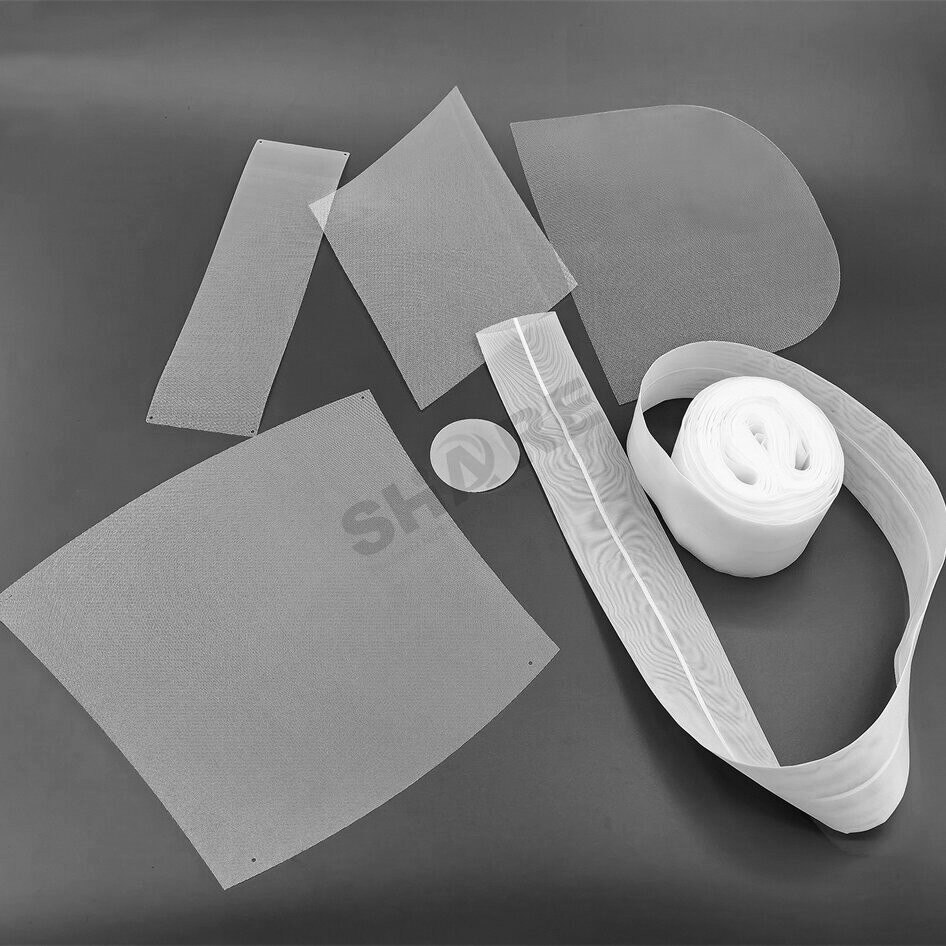

Product Pictures

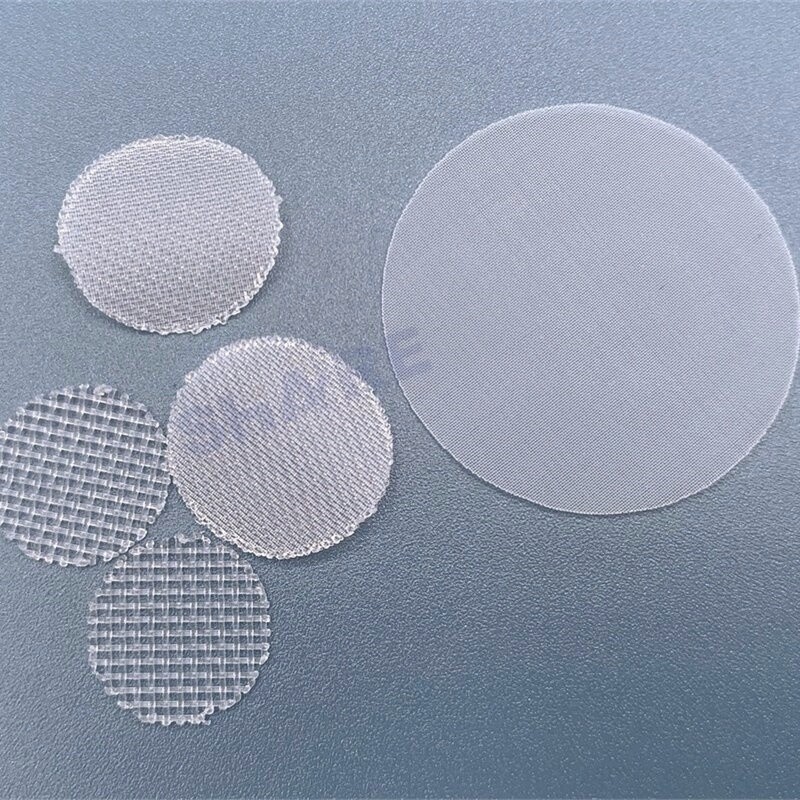

filter mesh disc Customized Fabricated Nylon Filter Mesh Shape Food Safe Pore Size 125 150 200 250 Micron 3

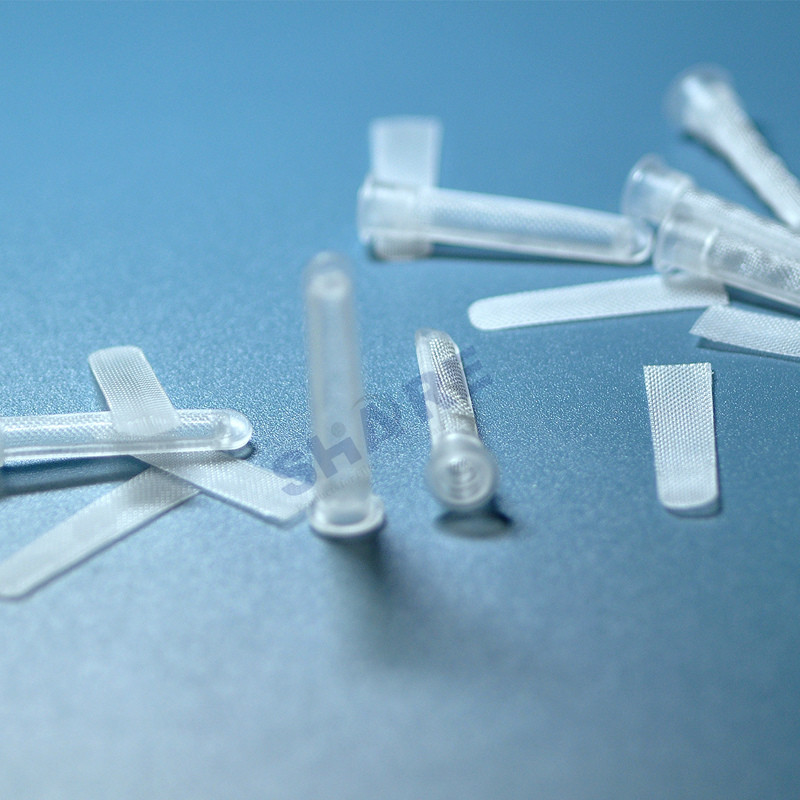

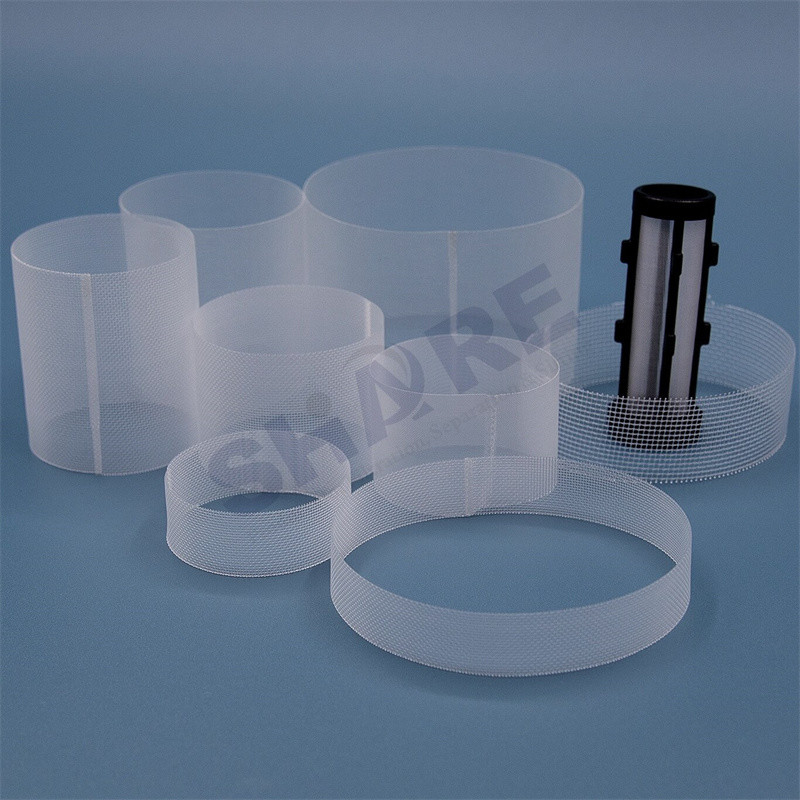

filter mesh strip filter mesh tube

Nylon Filter Mesh Datasheet

Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
	n/cm	n/inch	μm	μm	%	μm	g/m²
PA 900/52	8	20	350	900	52	685	212
PA 860/60	9	24	250	860	58	455	145
PA 700/49	10	25	300	700	49	576	195
PA 583/49	12	30	250	583	49	470	162
PA 533/41	12	30	300	533	41	585	234
PA 414/34	14	35	300	414	34	595	273
PA 425/46	16	40	200	425	46	370	139
PA 375/36	16	40	250	375	36	485	217
PA 350/49	20	50	150	350	49	375	98
PA 300/36	20	50	200	300	36	385	173
PA 267/41	24	60	150	267	41	285	117
PA 237/44	28	70	120	237	44	215	87
PA 213/41	30	76	120	213	41	225	94
PA 213/46	32	80	100	213	46	165	69
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/43	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/42	59	150	60	110	41	98	46
PA 100/37	64	160	60	100	38	105	50
PA 90/41	72	180	50	90	41	82	39
PA 75/36	80	200	50	75	36	90	43
PA 60/36	100	250	42	60	34	65	35
PA 42/25	120	305	42	42	24	75	42
PA 44/27	120	305	38	44	29	72	35
PA 42/25	120	305	38	42	25	67	35
PA 45/29	120	305	35	45	33	60	28
PA 55/42	120	305	30	55	40	52	20
PA 40/26	130	330	38	40	25	74	36
PA 42/30	130	330	35	42	29	62	30
PA 47/37	130	330	30	47	37	55	22
PA 32/20	140	355	38	32	21	68	36
PA 37/26	140	355	35	37	26	65	33
PA 38/28	140	355	30	38	33	53	25
PA 31/21	150	380	38	31	18	68	40
PA 35/27	150	380	30	35	29	57	26
PA 34/26	150	380	30	34	26	50	26
PA 30/25	165	420	30	30	25	59	28
PA 30/19	145	368	38	30	19	64	40

Our Advantage

Our in-house capabilities include enhanced processing such as mesh slitting, stamping, laser cutting sealing, tubing, dyeing, mesh insert injection molding and finishing of products used in various of applications.

factory capabilities

What Share Filters Do?

Share Filters specializes in helping our customers design and manufacture high quality mesh filter components to around the world.

Filter mesh in rolls, shapes, tubes, bags, Injection-moulded filters and similar products of various shapes, sizes are our primary business.

As a supplier combining the filter mesh manufacturing and filter mesh processing according to custom-made design, we are flexible enough to adapt to our customers’ production and delivery needs. Our advanced manufacturing processes and scientific machines allow us to create filtration products in any shape or structure, from simple components like mesh pieces to complex devices like custom combination moulded filters.

We're the supplier who have experience with synthetic filter meshes and are able to use them with plastic injection moulding in good conditions. The moulding technique requires special tools and above all a great deal of know-how. We make serial injection moulding tools, assembly preparations and procedures ourselves. Filters and parts are produced, assembled, quality controlled and packed.

Factory Capabilities


Share Filter synthetic meshes can be made from a variety of materials such as polyamide, polyester, polypropylene, etc. You can order by the roll or cut shape.	Slitting is also used for manufacturing mesh strips and produces a closed edge with very little material build up at the edge.	Our cutting method include Laser cutting, Cold cutting, Heatt cutting, Stamping. Professional cutting using custom made tools that will not damage the materials.

Sonic welding are accurate, clean. Precision sleeves and bags for blood filtration, rosin bag for rosin press are examples of applications that benefit from this technology.	Share Filters sewing products are carried out by highly skilled and experienced machinists, which ensure you get the right level of consistent quality.	Custom plastic molded filter combine precise filter mesh with polymer plastic. Industry serve: Automotive, Appliances, Food and beverage, Medical, Life Science and Laboratory.

Application of Share Filters Products

Our customer base comes from a wide variety of industries including – Automotive, Home appliances, Food and beverage, Milling, Medical, Life Science and laboratory, Electronical as well as more general engineering, giving us a wealth of experience in many areas.


Fuel filter	Biopsy bag	Air purifier filter	Coffee filter	Irrigation filter	Mesh disc filter
Automotive	Laboratory	Appliance	Food & Beverage	Agriculture	Power tool

Photos of Factory


Warping	Weaving	Inspection

Whashing	Heat setting	Ultrasonic cutting, welding

Packing & Transportation

Packing

Share Filters offers different kinds of shipping, we can deliver the goods in different method depends on your order quantity.

Small volume order, you can choose UPS, TNT, DHL, FedEx, EMS
Large quantities to choose shipping by sea is cost economic. Sometimes by air if urgent in need.
SF EXPRESS usually to Hongkong and Southeast Asia countries.
Samples are always sent via express commonly.

Customized Fabricated Nylon Filter Mesh Shape Food Safe Pore Size 125 150 200 250 Micron 26

Contact Us

Share Filters provides some information for filter mesh possible applications, but there are too many functions for comprehensive descriptions of possible uses. Therefore, when considering a potential application in your particular industry, please consider contacting us who will work with engineers and product designers in choosing the right material and processing for your specific projects.

Please connect with us now so we can learn more about your application and design specifications!

FAQ

Are You Factory or Trade Company ?

We're factory, and manufacture our products in-house.

Where Is Your factory Located? How Can I Get There?
We are in Tiantai city, Zhejiang province China. By train, one hour away from Hangzhou and two hours away from Shanghai.

Which Port You Ship?

Ningbo port.

Can I Get Free Samples ?
We are pleased to provide you with free samples for testing, just the freight will be at your account.

When Can I Get the Quotation ?
Normally we can offer the quotation within 48 hours.

What's Your Payment Term ?

T/T, LC, PayPal, and others.

What's the Lead Time of the Order?
The production lead time is dependent on the quantity. It takes 5 to 20 working days for us to complete mass production after receive the payment.

What About Your Quality Control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process, from the raw material to finshed products. Additionally, we have spot inspections and final inspections carried out by our QC team.

Why Choose You ?
One of our core competencies is our excellent processing capabilities, convert the woven filter mesh to mesh ribbons, discs, shapes, tubes, bags, plastic moulded filters, with advanced equipments and professional technical team for more than 20 years. We're the few supplier who have experience with synthetic filter meshes and are able to use them with plastic moulding in good conditions.

How To Delivery the Order?

Small batch is sent by UPS, Fedex, TNT, DHL, EMS, ect, high volume will be shipped by sea and air.
