Polyester Filter Mesh 5um-4000um for Aquaculture and Mariculture

Contact Now

Polyester Filter Mesh 5um-4000um for Aquaculture and Mariculture

Minimum Order Quantity :	200 pcs	Price :	$1 for 500 pcs, $0.9 for 10,000 pcs, $0.7 for 50, 000 pcs
Packaging Details :	PE bag and carton	Delivery Time :	5 working days
Payment Terms :	L/C,T/T,Paypal	Supply Ability :	1, 0000 pcs / day

Place of Origin:	Zhejiang, China	Brand Name:	SHARE FILTERS
Certification:	Reach Svhc, SGS RoHS, California Proposition 65	Model Number:	SG-PF-05

Detail Information
Material:	Polyester(PET) Filter Mesh	Form:	Roll, Disc, Ribbon, Shapes
Micron Ratings:	5um-4000um	Processing Technologies:	Ultrasonic, Laser, Heat Cut, Cold Cut
Edge Quality:	Precise Clean Edge	Feature:	Weather And Chemical Resistance
Application:	Mariculture, Aquaculture Farms, Hatcheries And Lab
Highlight:	Plankton Polyester Filter mesh , Aquaculture Polyester Filter mesh , Micron Polyester Filter mesh

Product Description

High Quality Mariculture Net, Micron Polyester/Nylon Filter Mesh

SHARE woven monofilament polyester mesh is now widely used in aquaculture. Polyester is great because it resists water and chemicals, and it's better than nylon in situations where screens need regular cleaning, face UV rays, or stay underwater for a long time.

Material Properties

Heat Resistance	Softening point: 238-240ºC Melting point: 255-260ºC
Specific Gravity	1.38
Chemical Resistance	Highly resistant and shows little to no change after exposure to concentrated hydrochloric acid, 75% sulfuric acid, concentrated filtered nitric acid, 10% caustic soda solution, and 28% ammonia solution
Weather Resistance	Highly resistant and shows little to no change
Insect and Mold Resistance	Completely resistant

Nylon vs. Polyester Filter Mesh Comparison

Property	Nylon	Polyester
Tensile strength (kg/mm2)	41~67	45~75
Breaking elongation	20~35%	15~30%
Resilience (after 3% fixed elongation)	95~100%	90~95%
Temperature resistance	< 100°C	< 140°C
Humidity absorption (65% relative moisture,20ºC)	3.8%	0.4%
Corrosion resistance	Good	Good
Mass ratio resistance (Ω/cm°g)	4.1×1010	2×1015
Abrasion resistance	Very good	Approx. 2/3 of PA
Water absorption	4.40%	0.40%
Benefit of the fabric	Long lifetime	Less influence in humidity changes
Hydrolysis resistance	Good	Limited
Fabric surface structure	Standard	Slightly rougher
Stability to light	Limited	Limited

Product Specifications

Product name	High Quality Mariculture Net, Micron Polyester Filter Mesh, Monofilament Filter Net Screen, for Aquaculture and Plankton
Manufacturer	Taizhou Share Filters Co. Ltd.
Brand	SHARE FILTERS
Material	100% polyester monofilament mesh
Color	White, yellow, black or other colors
Weave type	Plain woven, twill woven, dutch woven
Common width	50cm, 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 220cm, 260cm, 310cm, 330cm, 365cm or customized
Roll length	30-100 meters or customized
Type	filter mesh, filter cloth, mine sieving mesh, filter elements, filter disc, filter cylinder
Mesh count/cm	DPP8T-DPP200T
Mesh count/inch	20 mesh/inch-508 mesh/inch
Thread diameter	27um to 600um
Micron size	10um to 2000um
Thickness	41um to 1170um
Certificate	ISO9001 SGS ROHS REACH
Samples availability	2 meter free

Key Features

Great dimensional stability, accurate and even mesh opening, smooth surface, excellent tear resistance
High tensile strength, good air permeability, high chemical resistance
Good acid and solvent resistance, temperature resistance, low moisture absorbency
Available in various shapes: disc, ribbon, belt, tube, bag, and special shapes
Compliance with food grade standards
RoHS and REACH certified

Quality Control

Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment

Applications

Mariculture, Aquaculture Farms, Hatcheries and Laboratory

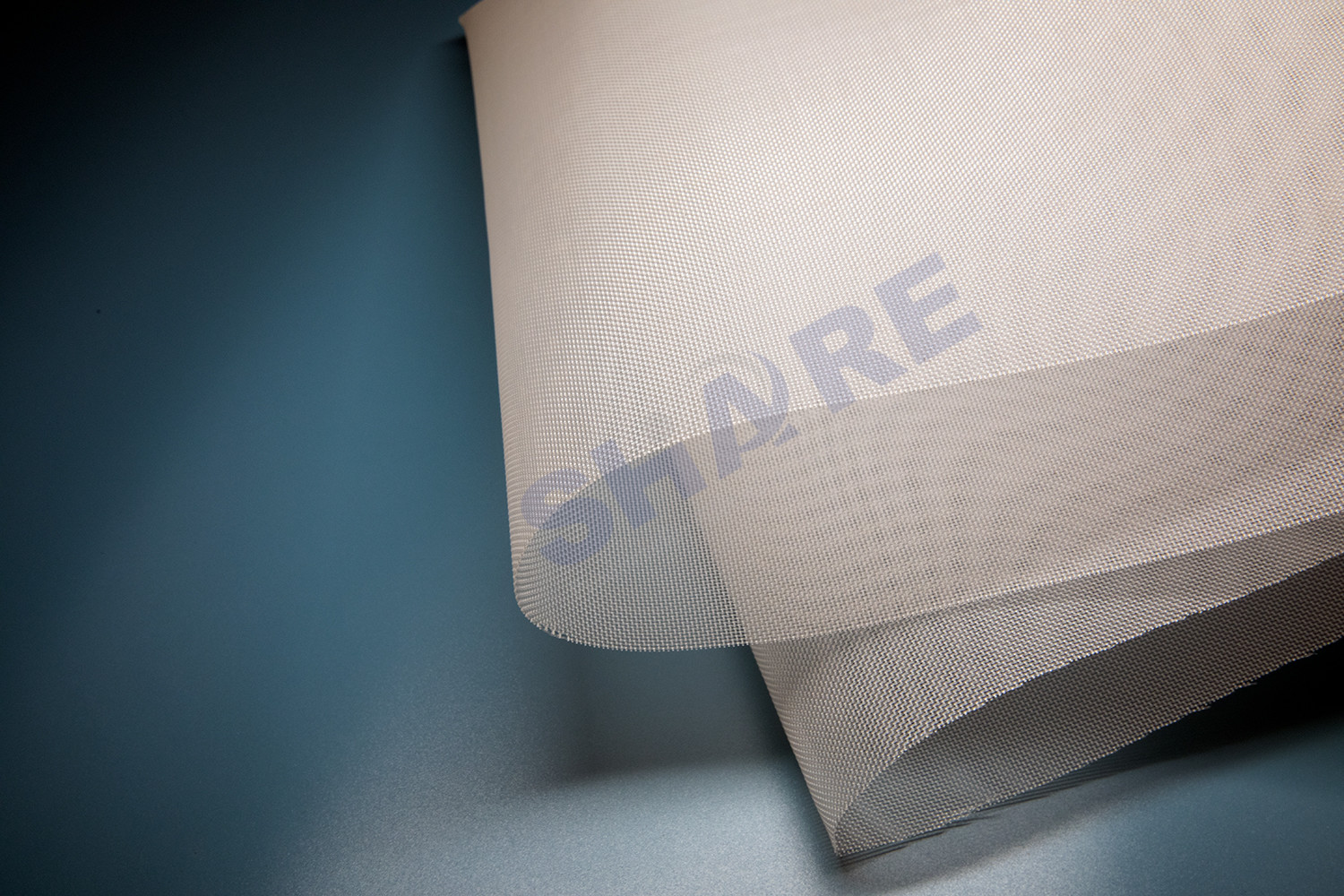

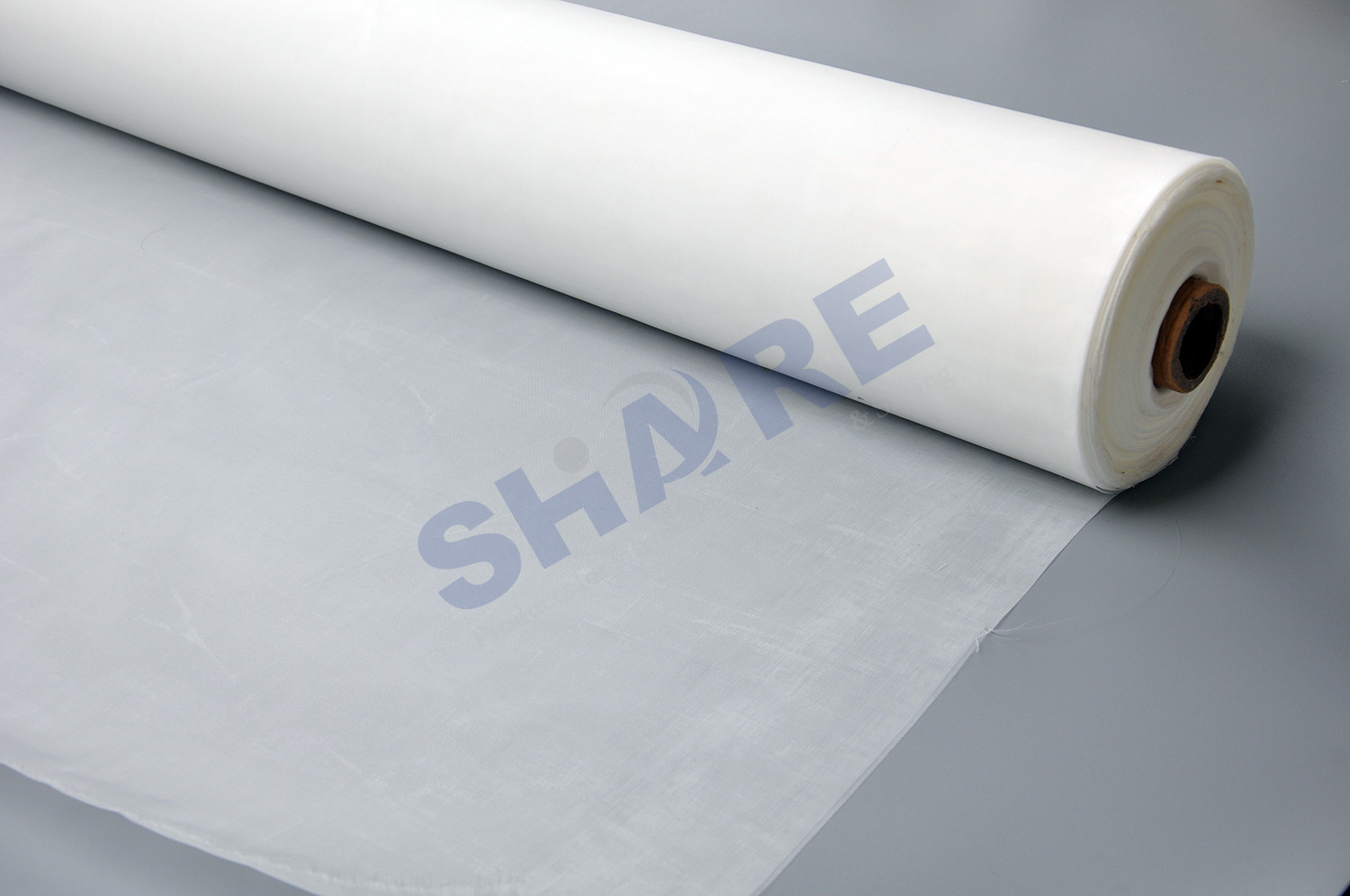

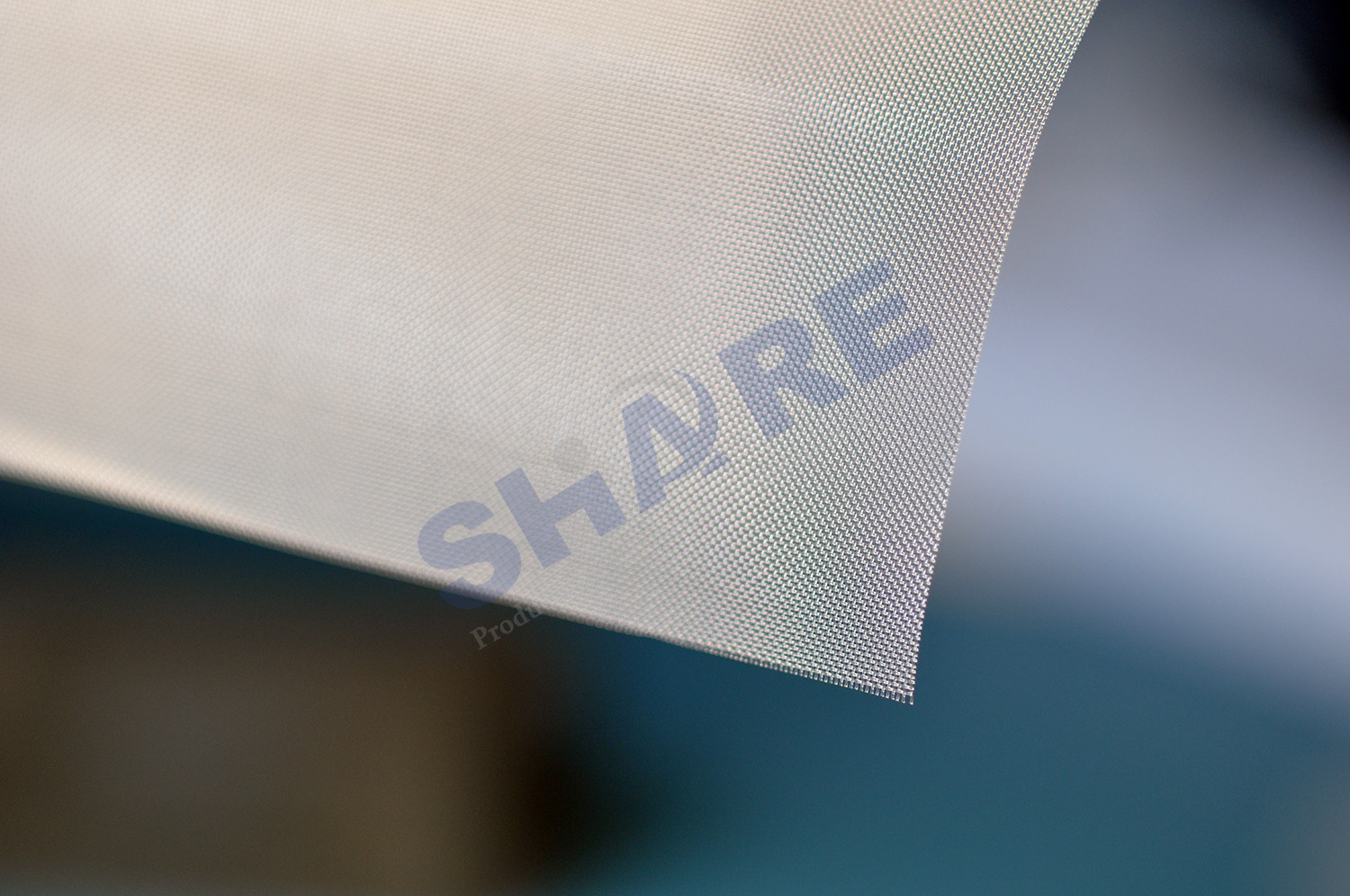

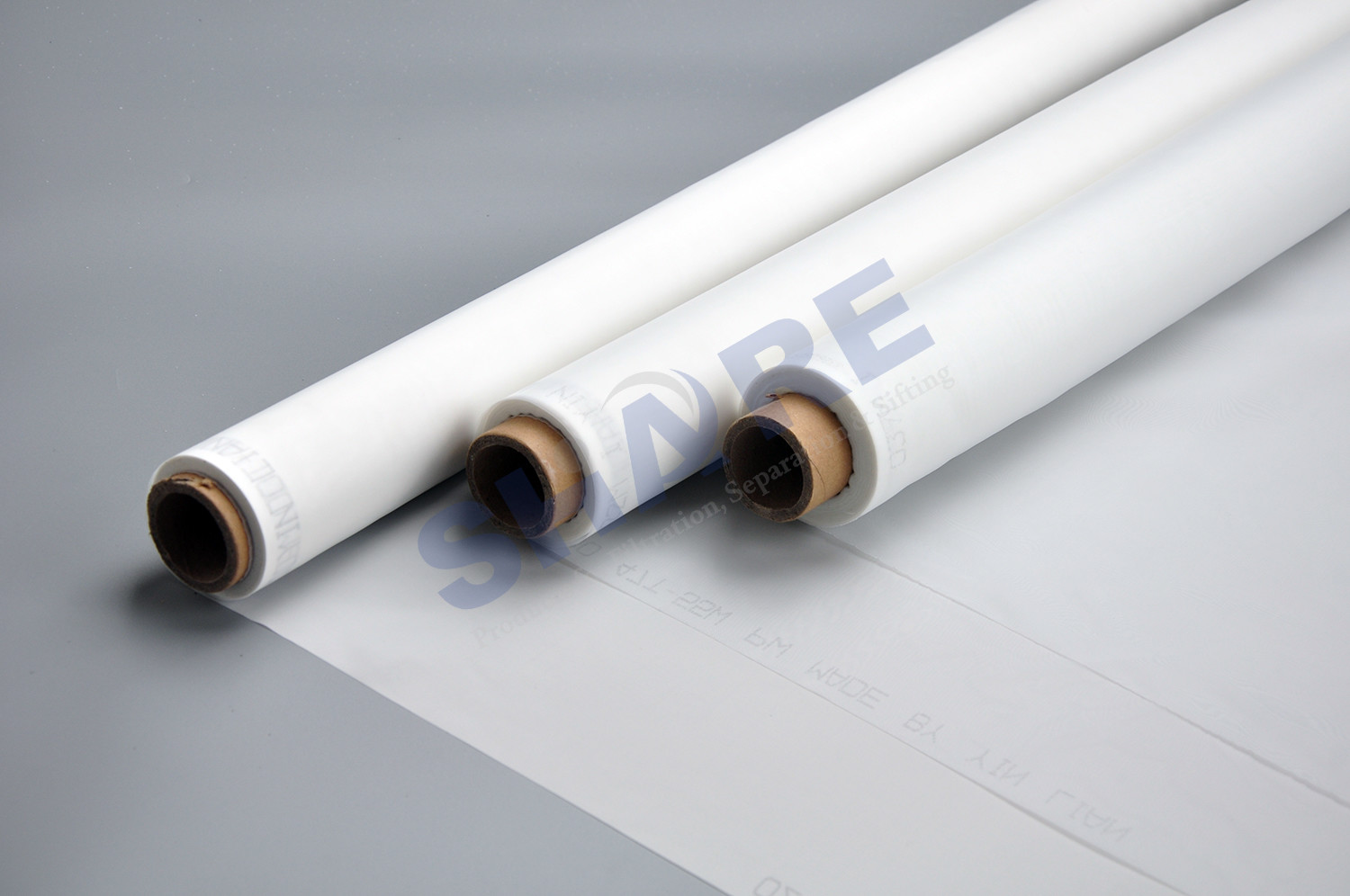

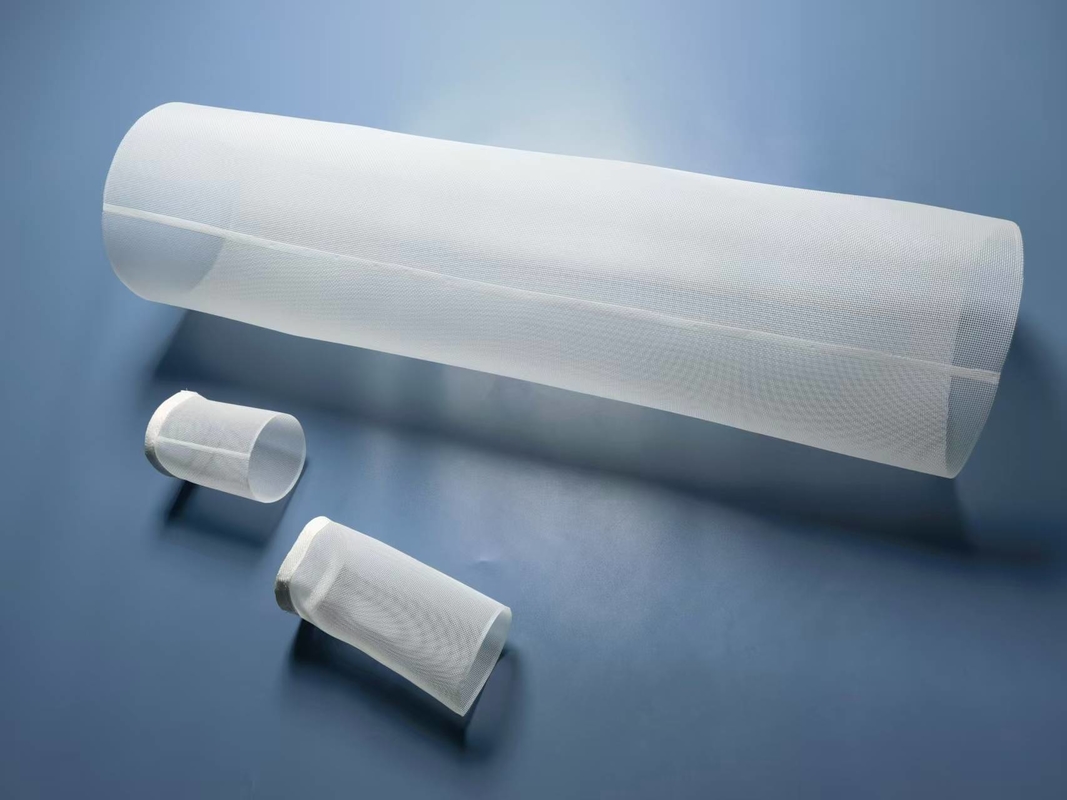

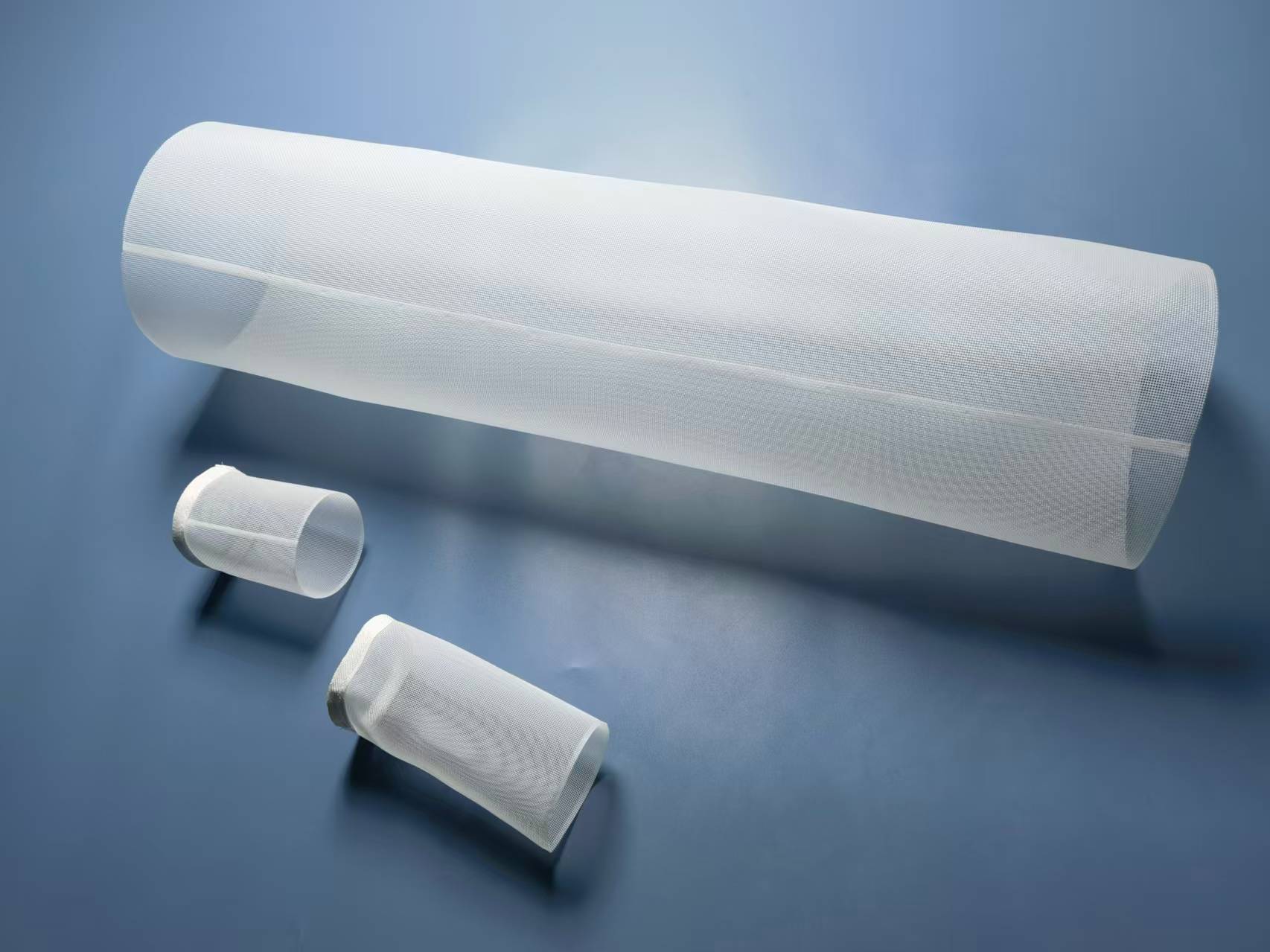

Product Gallery

Polyester is generally preferred in applications where regular cleaning of fouling organisms and other debris is required. It holds up better to scrubbing and mild chemical cleaning better than the other materials. Polyester also outperforms other materials in prolonged wet or sunny applications.

The data sheet of meshes listed below are Polyester. Nylon meshes or polypropylene meshes are available upon request.

Technical Datasheet

SHARE Precision Polyester Filter Mesh Technical Data Sheet

Fabric number	Mesh count/cm	Mesh count/inch	Thread diameter (micron)	Mesh opening (micron)	Open area (%)	Fabric thickness (micron)	Weight (g/m2)
PES 4400/77.5	2T	5	600	4400	77.5	1170	156
PES 2750/67.2	3T	8	600	2750	67.2	1160	234
PES 2000/64	4T	10	500	2000	64	950	217
PES 1550/60	5T	13	450	1550	60	850	2259
PES 1270/58	6T	15	400	1270	58	760	246
PES 1080/57	7T	18	350	1080	57	660	220
PES 900/52	8T	20	350	900	52	660	251
PES 760/47	9T	23	350	760	47	670	282
PES 800/64	10S	25	200	800	64	360	87
PES 750/56	10	25	250	750	56	450	160
PES 700/49	10T	25	300	700	49	570	231
PES 720/74	12S	30	120	720	74	215	44
PES 680/67	12	30	150	680	67	260	69
PES 580/48	12	30	250	580	48	460	192
PES 530/40	12T	30	300	530	40	580	277
PES 515/52	14S	36	200	515	52	360	143
PES 470/50	15S	38	200	470	50	380	154
PES 420/40	15T	38	250	420	40	470	240
PES 525/92	16S	41	100	525	92	180	36
PES 425/46	16T	41	200	425	46	380	164
PES 405/53	18S	46	150	405	53	260	104
PES 375/46	18T	46	180	375	46	330	150
PES 375/51	19T	48	150	375	51	260	110
PES 420/71	20S	50	80	420	71	140	33
PES 400/64	20S	50	110	400	64	180	51
PES 350/49	20T	50	150	350	49	260	115
PES 325/47	21T	53	150	325	47	270	121
PES 340/67	24S	61	120	340	67	220	88
PES 270/42	24T	61	150	270	42	280	138
PES 250/46	27T	68	120	250	46	230	100
PES 280/62	28S	71	80	280	62	150	46
PES 240/45	28T	71	120	240	45	230	103
PES 225/43	29T	74	120	225	43	230	107
PES 215/42	30T	76	120	215	42	230	111
PES 230/54	32S	80	80	230	54	150	52
PES 210/45	32T	80	100	210	45	180	82
PES 215/53	34S	86	80	215	53	150	56
PES 195/44	34T	86	100	195	44	180	87
PES 180/42	36T	91	100	180	42	180	92
PES 200/61	39S	99	55	200	61	95	30
PES 190/55	39T	99	64	190	55	115	40
PES 150/36	40T	102	100	150	36	190	103
PES 150/42	43T	110	80	150	42	155	71
PES 160/57	47S	120	55	160	57	96	36
PES 150/50	47T	120	64	150	50	120	48
PES 140/43	47HD	120	71	140	43	130	59
PES 140/47	49S	125	64	140	47	120	50
PES 135/44	49T	125	71	135	44	130	62
PES 144/55	53S	135	45	144	55
