Nylon Mesh Woven Filters for Industries
SHARE precision nylon filter mesh is made of mono-filament PA6 or PA66 yarn/thread (1:1 weaving method, plain weave), which is ideal for straining, sieving or filtering. The term "mono-filament" means that each thread used in the construction of the cloth is a single smooth solid strand instead of many smaller diameter threads twisted together.
Key Advantages
- Good dimensional stability and precision
- Even mesh opening with smooth surface
- Excellent strength and elasticity
- Superior abrasion resistance
- Good resistance to alkalis, chemicals, solvents, fuels and lubricants
- Higher moisture absorbency compared with polyester
Industry Applications
Photoresist/Semiconductor Manufacturing: Removes particulates and impurities from chemicals used in semiconductor manufacturing.
Electronic Fluid Filtration: Traps particles in cooling systems or hydraulic circuits to protect sensitive components.
Business Machines & Appliances: Prevents dust entry to improve equipment longevity.
Automotive Equipment: Used in air intake systems and fuel filtration for smooth operation.
Pulp & Paper Production: Removes impurities from water or chemical solutions.
Food Processing: Filters particles and impurities from liquids or air.
Cosmetic Processing: Ensures purity of ingredients in cosmetic products.
Wine & Beer Clarification/Sterilization: Removes sediment, yeast and particulate matter.
Product Specifications
| Item Name |
Nylon Mesh Woven Filters for Industries |
| Manufacturer |
Taizhou Share Filters Co., Ltd. |
| Brand |
SHARE FILTERS |
| Material |
100% nylon monofilament mesh |
| Color |
Natural white |
| Weave type |
Plain woven, twill woven, dutch woven |
| Mesh opening |
3um to 2500um |
| Open area |
1% to 67% |
| Thickness |
50um to 1900um |
| Roll width |
1cm to 390cm (standard widths available) |
| Roll length |
30-100 meters or customized |
| Product type |
Roll, disc, ribbon, shapes, bag, pleated components |
| Processing technologies |
Colored, coated, thermal treated, sectioned, shaped, pleated, sewed or molded |
| Certificates |
ISO19001 SGS ROHS REACH |
Technical Data Sheet
Precision Nylon Filter Mesh Technical Specifications:
| Fabric Number |
Mesh Count |
Thread Diameter (μm) |
Mesh Opening (μm) |
Open Area (%) |
Mesh Thickness (μm) |
Weight (g/m²) |
| PA 3233/58.3 |
2.3 n/cm | 6 n/inch |
1000 |
3233 |
58.3 |
1900 |
412 |
| PA 2300/51.3 |
3.1 n/cm | 8 n/inch |
900 |
2300 |
51.3 |
1700 |
450 |

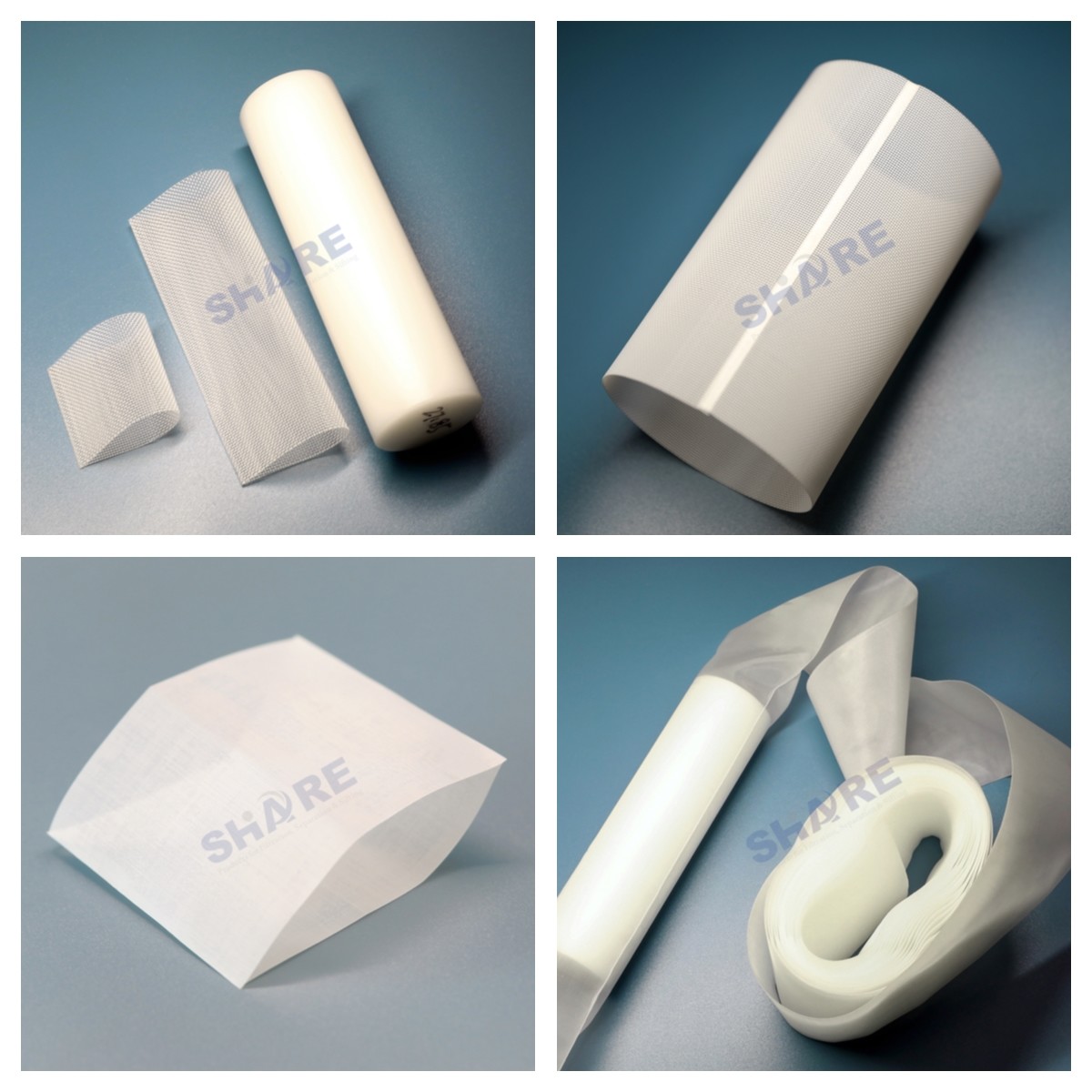

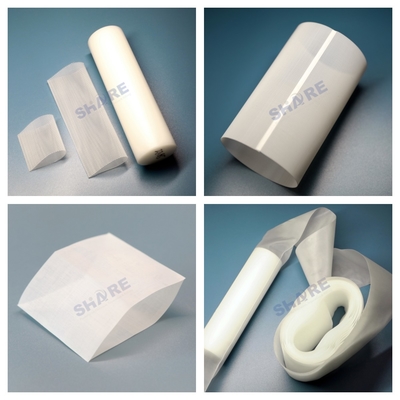

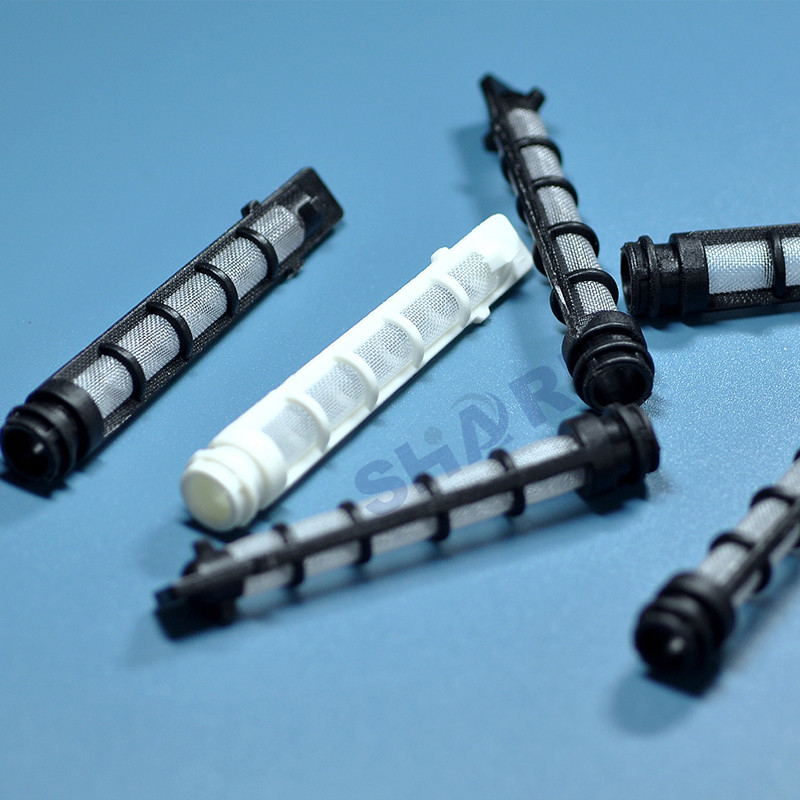

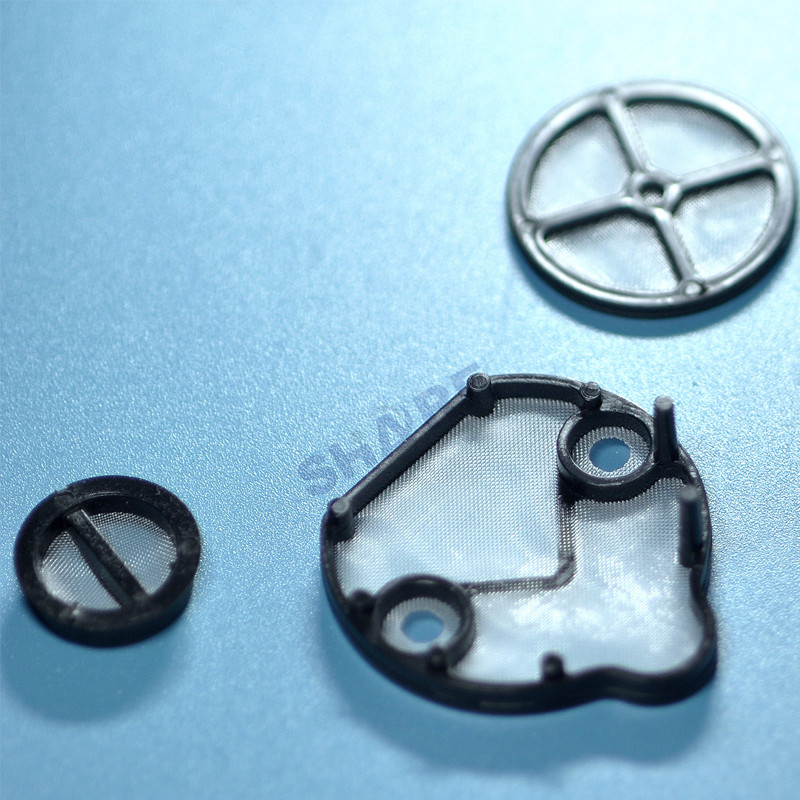

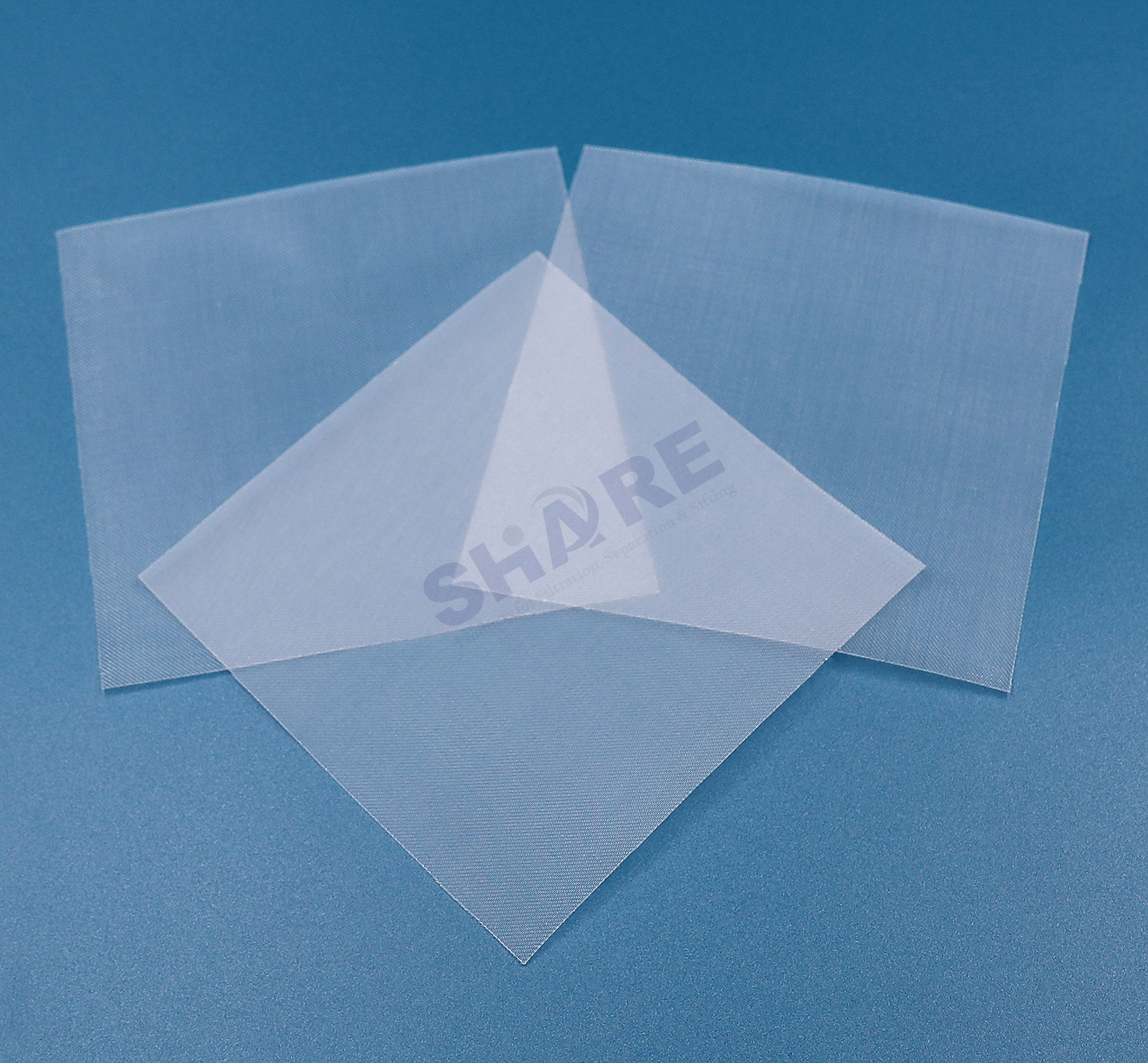

Product Gallery
Production Process
Our manufacturing process ensures high quality and precision:
- Yarn: Monofilament with excellent diameter control
- Weave: Plain weave for durability and friction resistance
- Production Procedure: From yarn inspection to final product testing
Company Profile
Established in 1983, Taizhou Share Filters Co., Ltd. specializes in woven monofilament filter mesh fabrics with micron ratings from 3um to 4mm. Our product categories include:
Monofilament Mesh Rolls
30 years of experience with PA, PET, PP, PE, PPS, PEEK materials
Discs, Tubes, Ribbons, Bags
Various converting capabilities including cutting, welding, and sewing
Plastic Molded Filters
Insert molding and over molding with extensive material options
Packaging & Shipping
We ensure safe delivery with proper packaging:
- Mesh rolls: Packed in PE bags with product labels
- Fabricated filters: Sealed PE bags in export cartons
- Shipping options: Express, Air Freight, or Sea Freight
Frequently Asked Questions
Where is your factory located?
We are in Taizhou city, Zhejiang province China, about one hour from Hangzhou by train.
Can I get free samples?
Yes, we provide free samples which will be sent within 2 days.
How long does production take?
Typically 5 to 15 working days depending on quantity.
