Polyester Filter Mesh Welded Continuous Tube Sleeve For Milling Equipment 23uM
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 100 M2 | Price : | $0.5 for 100 M2, $0.45 for 1,000 M2, $0.4 for 10, 000 M2 |
|---|---|---|---|
| Packaging Details : | PE bag and carton | Delivery Time : | 5 to 20 working days |
| Payment Terms : | L/C, T/T, Paypal | Supply Ability : | 5, 0000 pcs / day |
| Place of Origin: | Zhejiang, China | Brand Name: | SHARE FILTERS |
|---|---|---|---|
| Certification: | Reach Svhc, SGS RoHS, US California Proposition 65 | Model Number: | SG-FS-17 |
|
Detail Information |
|||
| Specification: | Nylon Monofilament Filter Mesh | Micron Opening: | 3um To 2500um |
|---|---|---|---|
| Material: | 100% Polyamide Monofilament Yarn | HS Code: | 59112000 |
| Sample: | Available | Color: | Natural White |
| Forms: | Stampings, Discs, Pieces, Strips, Ribbons, Tubes.. | Benefits: | Great Precision, Smooth Surface, Even Pore Size |
| Application: | Home Appliance, Automotive, Irrigation, Medical | Port: | Ningbo, Shanghai |
| High Light: | Alkaline Resistant Nylon Air Filter Mesh,Nylon Air Filter Mesh,HVAC Systems Nylon Air Filter Mesh |
||
Product Description
Nylon woven mesh filters are frequently used as sieve to filter, trap and capture debris, particles, pollutants and contaminants from the air in air filter applications, such as heating, ventilation, air conditioning (HVAC) systems, cleanrooms, air purifiers, automotives, painting monitor, hospital and healthcare, agricultural industries.
SHARE nylon woven mesh filters is made of monofilament single thread and woven with plain weave, so it provides precise even pore size, excellent air permeability and smooth surface. Woven mesh is surface filtration. For example, mesh filters with 30µm mesh opening (pore size) mesh will hold back all particles larger than 30µm and allow all particles smaller to pass.
Specifications
| Item Name | Custom Size Alkaline Resistant Nylon Air Filter Mesh |
| Manufacturer | Taizhou Share Filters Co. Ltd. |
| Brand | SHARE FILTERS |
| Material | 100% nylon monofilament yarn |
| Color | Natural white |
| Weave type | Plain woven, twill woven, dutch woven |
| Mesh opening | 3um to 2500um |
| Open area | 1% to 67% |
| Thickness | 50um to 1900um |
| Roll width | 1cm to 390cm are available. Commonly roll width 50cm, 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm. |
| Roll length | 30-100 meters or customized |
| Product type | Roll, disc, ribbon, shapes, bag, pleated components in round, square, rectangular, trapezoidal, circular, etc. |
| Processing technologies | Colored, coated, thermal treated, sectioned, shaped, pleated, sewed or molded |
| Features | 1. Non-toxic, no chemicals treatment or additive, odourless, tasteless, high strength, high elongation, good elasticity 2. With high toughness, resistance to weak acid, oil resistance, alkali resistance, heat resistance and other characteristics, it also has good insulation, low lubricating coefficient characteristics, wide application range 3. High quality material, corrosion resistance, wear resistance, long use life, smooth surface high strength, strong elastic 4. Excellent alkaline resistance 5. Great precision, uniform thread diameter and regular square holes 6. Smooth surface for easy particle separation 7. Good dimensional stability 8. Available in disc, shape, piece, tube, ribbon, bag and irregular shapes 9. Available for water, air, oil, paint, powder filtration 10. Compliance with food grade 11. RoHs Reach certificate |
| Quality control | Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment |
| Certificate | ISO19001 SGS ROHS REACH |
| Sample | 2 meter free |
| Applications | Air filter applications, such as heating, ventilation, air conditioning (HVAC) Systems, cleanrooms, air purifiers, automotives, painting monitor, hospital and healthcare, agricultural industries |
Product Gallery
Customers have different requirements for filtration & separation, and relying only on ultrasonics cutting technology is not sufficient to meet the challenges of today's demanding filtration market. Therefore, after years of developments, SHARE has developed expertise in almost all processing technologies, including cold cut&stamping, heat slitting, laser cutting, ultrasonics cutting, sewing, pleating, and injection molding etc.
Filter piece and shapes are essential for insert molding. We are happy to advise the best fabrication technology to customers application and requirement.

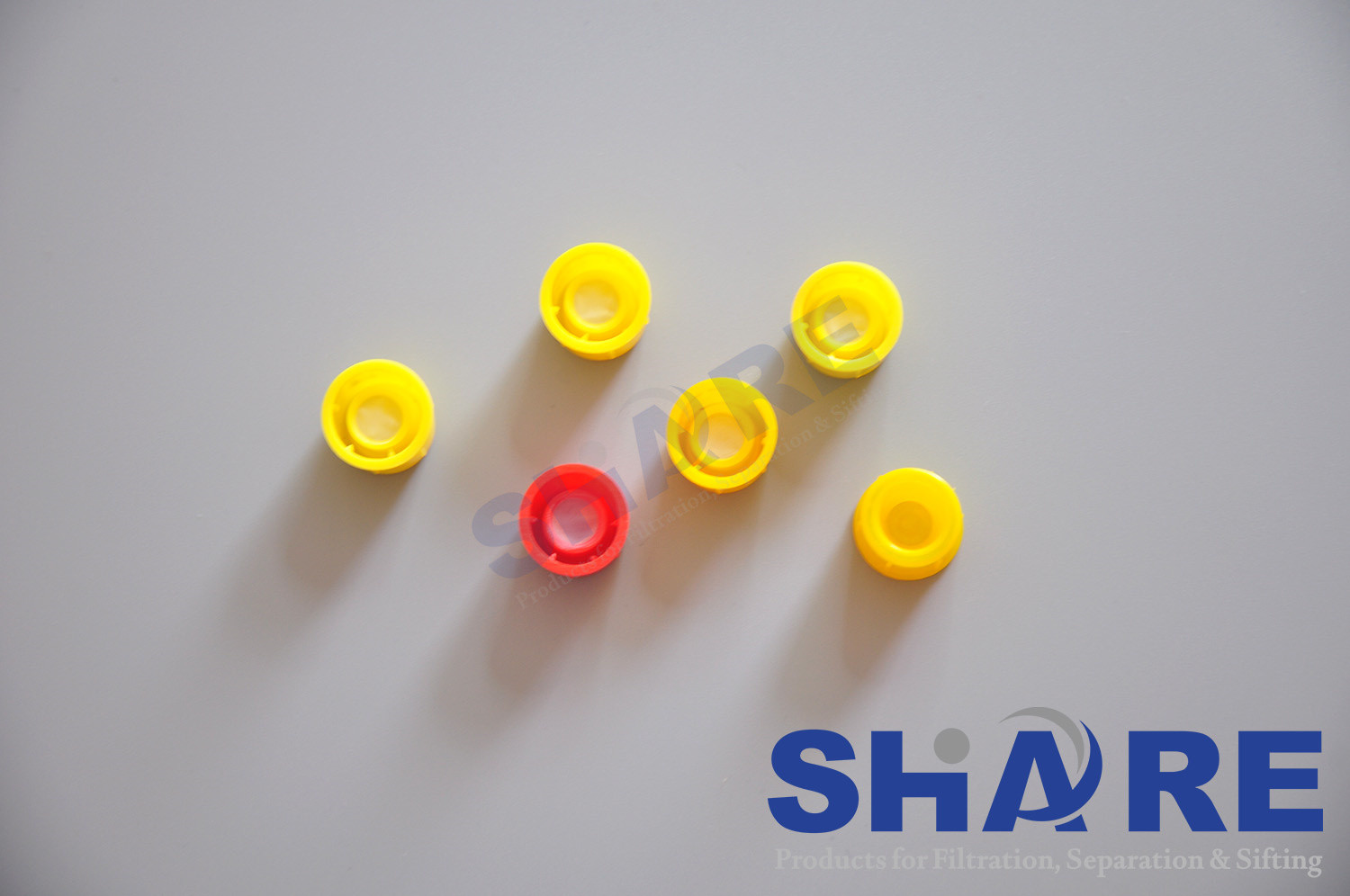

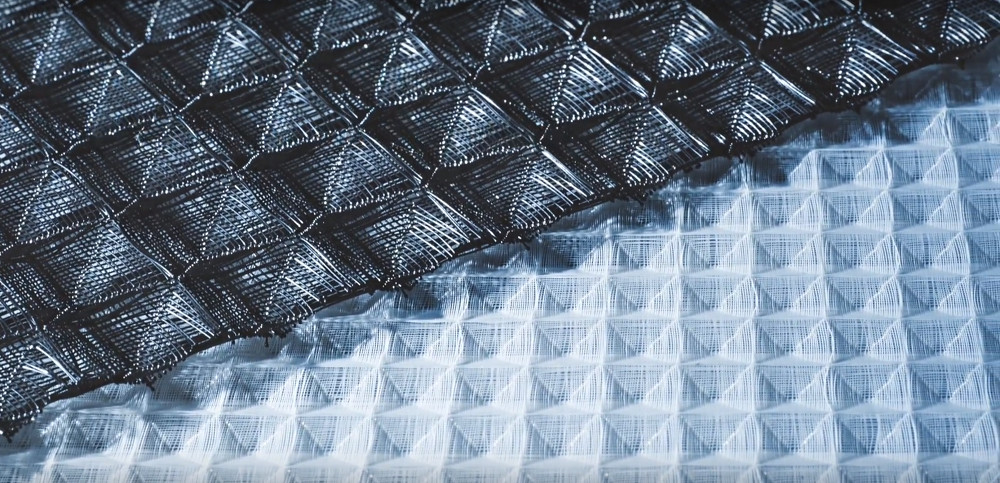

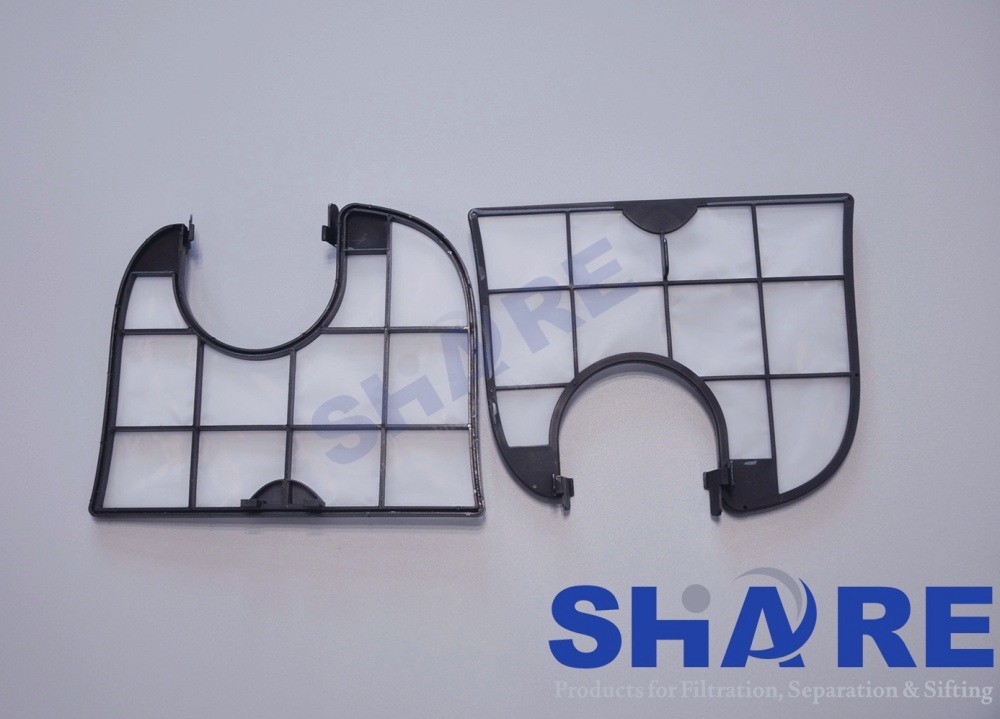

Here are some examples of our nyllon(polyamide) mesh filters for HVAC systems.
We have created thousands of filtration solutions to help customers achieve the best filtration configuration and solution for various applications, including appliance, electronics, medical and healthcare, automotive, food and beverage, mining, architecture, aerospace etc.
Please feel free to contact us for any filtration inquiry, and our application specialists will be glad to provide our best filtration solution for you.
Product Procedure
At Share, from yarn to product, every phase of production is carefully monitored, employing frequent in-house testing and rigorous inspection to ensure consistent quality at every step of production. Mesh thickness, open area, mesh count and air permeability are all subject to strict controls which result in high quality final products.
Each batch of our filter meshes undergoes a meticulous process involving at least twelve distinct steps, ensuring the ultimate production of high-quality filtering products. The steps of SHARE filter mesh production procedure are:
Yarn→Raw yarn inspection→Warping arranging→Drawing in heddle→Drawing in reed→Weaving→Initial survey→Washing→Heat setting treatment→Physical properties inspection→Products inspection→Product→Fabricated filter and screens if needed→Molded plastic filters if needed
Based on customer drawings or requirements, SHARE filter mesh can be further processed into various types of cut-to-size filter stamped discs, pieces, shapes, ribbons, tubes, bags, injection molded filter etc.
What SHARE can do for you?
Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE is here for you. Our specialist problem solving skills are ready to address any challenges you encounter.
By vertical integration of our global supply chain and expertise, our extensive manufacturing and production facilities, our experiences of filtration team, as well as our materials management, we take end-to-end control of all the steps in the manufacturing process, including weaving, fabrication, molding. Our ability to efficiently manufacture products not only ensures repeatable product quality, but also maintains a steady supply chain, reduces production costs and shortens lead times for our customers.
We aim to offer the most reliable and cost effective filter solutions for all filtration applications. SHARE application speciallists with decades of experiences will help you select the best filter solution for your application.
Contact SHARE today for additional information and how we can help you with your specific filtration requirements.
Packaging & Shipping
For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
| Port to Port | Door to Door | |
| Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
