Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory
Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory
Contact Now

Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory

Minimum Order Quantity : 500 pcs Price : $0.1 for 500 pcs, $0.09 for 10,000 pcs, $0.08 for 50, 000 pcs
Packaging Details : PE Bags and Standard Export Cartons Delivery Time : 5 to 20 Days
Payment Terms : L/C, T/T, Paypal Supply Ability : 1, 0000 pcs / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, US California Proposition 65 Model Number: SG-FT-PA-41

Detail Information
Material: 100% Nylon Monofilament Thread Color: White
Micron Ratings: 3 Um To 2500um Available Custom Shape: Roll, Sheets, Circles
Abrasion Resistance: Good Alkaline Resistance: Good
Solvents Resistance: Good Chemicals Resistance: Good
Hydrolysis Resistance: Good Stability To Light: Limited
Moisture Absorbency: Higher Compared With Polyester
High Light:

Cellular Debris Nylon Micron Mesh Sieve

,

Organelles Isolation Nylon Micron Mesh Sieve

,

Cells Isolation Nylon Micron Mesh Sieve

Product Description





SHARE offers monofilament nylon filter mesh pores ranging from 5um to 200um and it is designed for isolation of cells, grganelles, cellular debris in the laboratory.




Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 0

Laboratory Applications

  • Rapid collection of tissue culture cells without centrifugation.
  • Isolation of specific cell types from a dissociated tissue sample, allowing only a single type of cell to pass through.
  • Separation of different sized cells from a mixture of cell types.
  • Concentration and isolation of cells from a bioreactor.
  • Barrier to separate cells or tissues, while allowing free media diffusion.
  • Prefilter to prevent clogging of final filter.



Features

SHARE nylon filter mesh is made of 100% nylon monofilament yarn.

  • Regular apertures, tighter tolerances, dimensional stability, strong strength, and outstanding abrasion
  • Resistant to most chemical or basic conditions and many solvents
  • Contains no dyes, detergents or extractables
  • Can be repeatedly used and washed









Product Form


Micron pore size: 5, 8, 10, 15 20, 25, 35, 50, 70, 100, 200 um
Supplied in the form of:

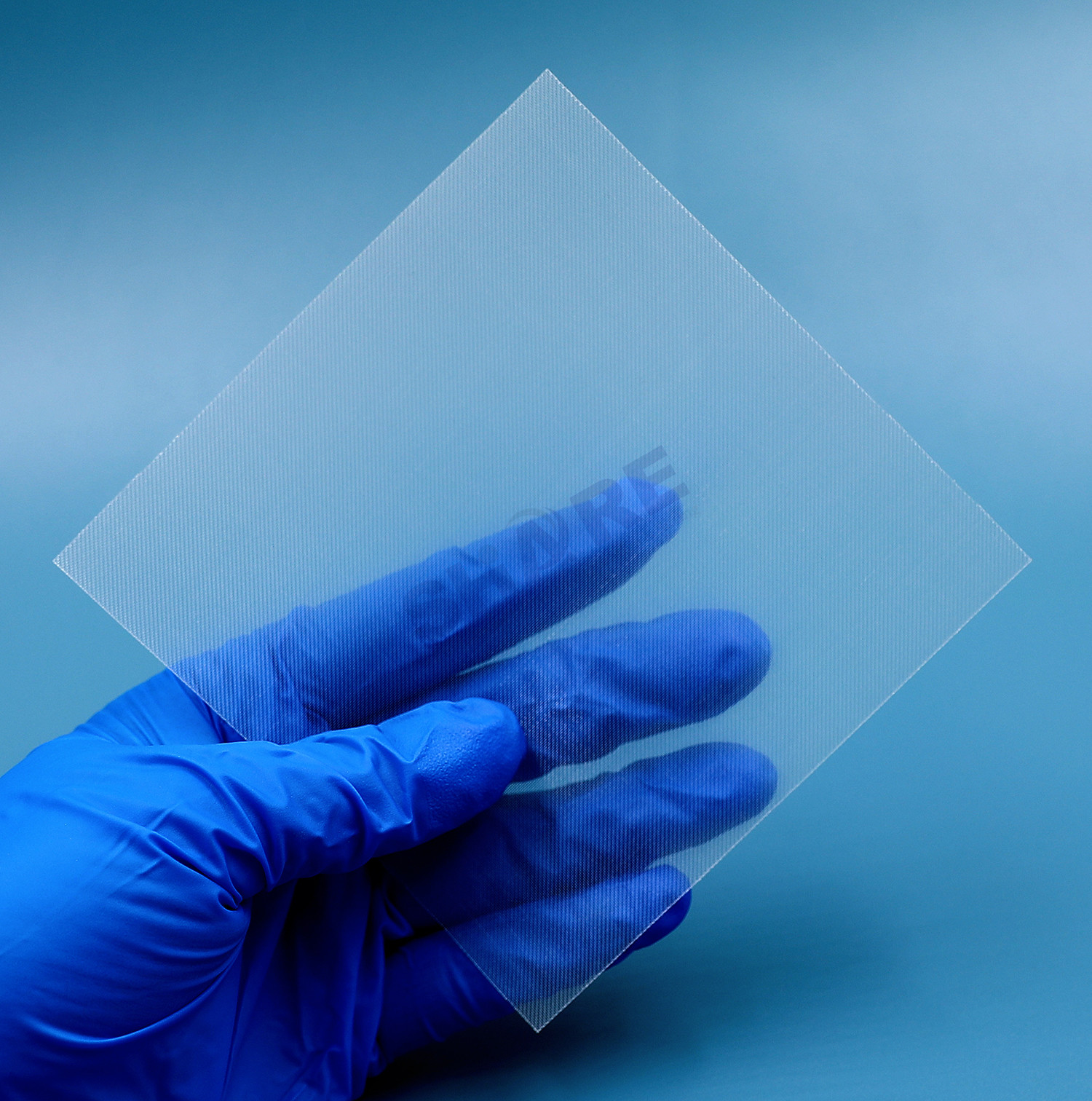

  • Squre sheets: 12*12 inch

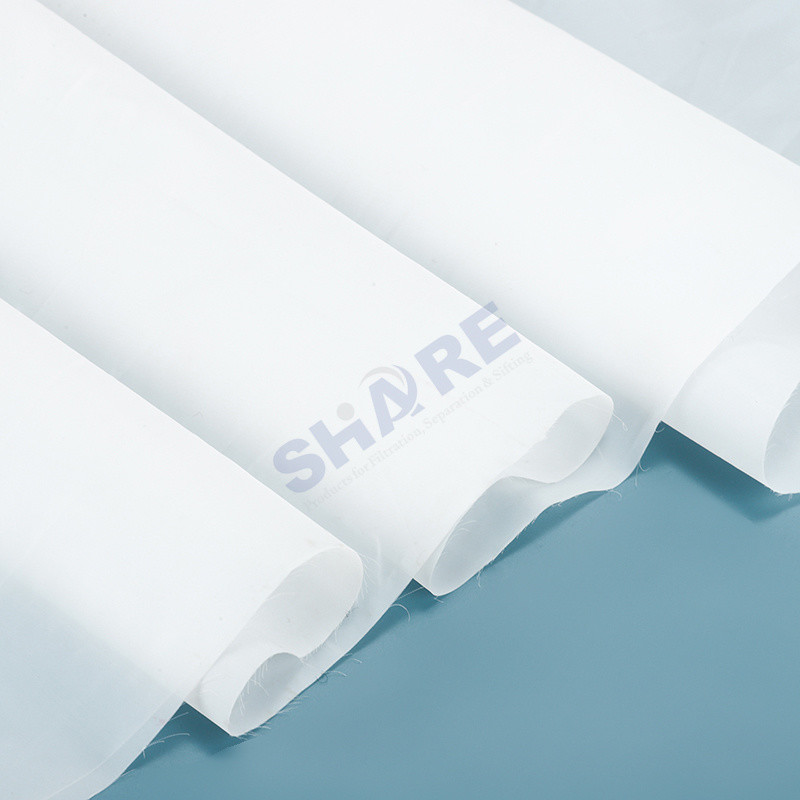

  • Roll: custom size

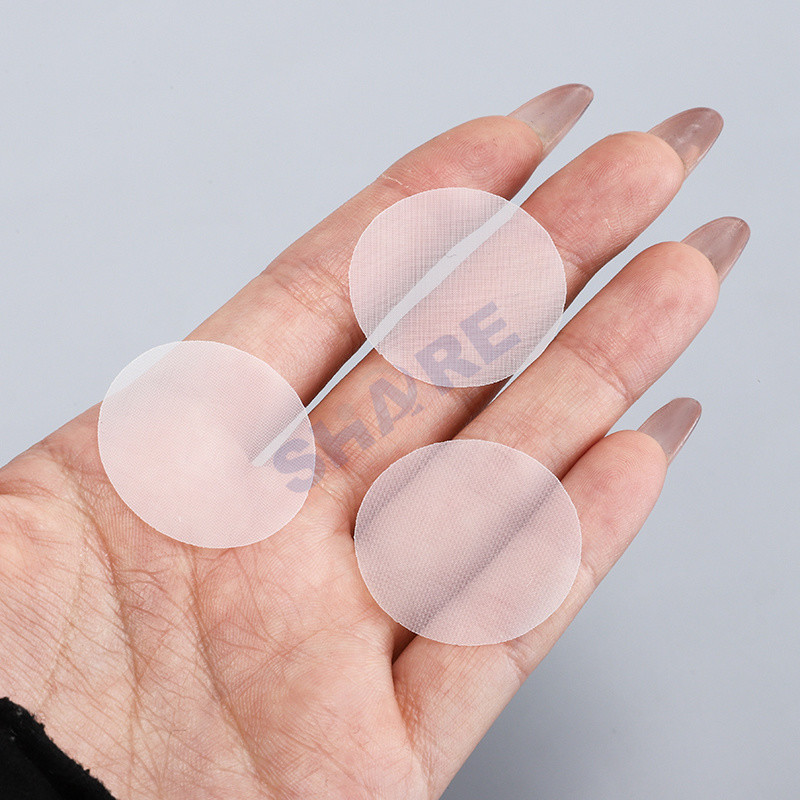

  • Circles: 47mm diameter

Any other customized sizes or shapes are available


Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 1

Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 2



Nylon Filters Technical Datasheet For Laboratory



Precision Nylon Filter Mesh Technical Data Sheet
Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
No. n/cm n/inch μm μm % μm g/m2
PA 860/58 9 24 250 860 58 455 145
PA 700/49 10 25 300 700 49 576 195
PA 583/49 12 30 250 583 49 470 162
PA 533/41 12 30 300 533 41 585 234
PA 414/34 14 35 300 414 34 595 273
PA 425/46 16 40 200 425 46 370 139
PA 375/36 16 40 250 375 36 485 217
PA 350/49 20 50 150 350 49 375 98
PA 300/36 20 50 200 300 36 385 173
PA 267/41 24 60 150 267 41 285 117
PA 237/44 28 70 120 237 44 215 87
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/42 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/41 59 150 60 110 41 98 46
PA 100/38 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/34 100 250 42 60 34 65 35
PA 42/24 120 305 42 42 24 75 42
PA 44/29 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/33 120 305 35 45 33 60 28
PA 55/40 120 305 30 55 40 52 20
PA 40/25 130 330 38 40 25 74 36
PA 42/29 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22
PA 32/21 140 355 38 32 21 68 36
PA 37/26 140 355 35 37 26 65 33
PA 38/33 140 355 30 38 33 53 25
PA 31/18 150 380 38 31 18 68 40
PA 35/29 150 380 30 35 29 57 26
PA 34/26 150 380 30 34 26 50 26
PA 30/25 165 420 30 30 25 59 28
PA 30/19 145 368 38 30 19 64 40
PA 25/21 180 460 30 25 21 60 31
PA 25/15 165 420 38 25 15 75 42
PA 20/16 200 508 30 20 16 65 34
PA 10/4.3 208 530 38 10 4.3 77 53
PA 8/3 220 560 38 8 3 78 56
PA 6/1.7 228 580 38 6 1.7 80 59
PA 3/1 236 600 38 3 1 85 61

The data are compiled to the best of our knowledge.
Subject to change without notice.
Complete product range is available on request.



Nylon Monofilament

Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 3

  • Excellent diameter control for precise openings
  • High flow rates and low pressure drops
  • Filtration by surface particle capture
  • Excellent surface particle release, easy to clean
  • High degree of stiffness



























Plain WeaveNylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 4



Plain weave is made by passing each weft thread or filling thread over and under each warp thread. Think of threads like tiny strings. Warp threads go up and down, and weft go side to side. When the threads are equal in thickness and number, the holes in the fabric are square. This happens in fabrics made from monofilament thread, ensuring the mesh opening precise and even.



SHARE plain weave nylon woven mesh is woven by 100% monofilament yarn. In plain weave constructions the straight-through pores of monofilament fabrics offer minimal flow restriction and surface loading of particles.

















SHARE has the ability to engineer woven mesh fabrics into finished or partly finished products, such as various types of cut-to-size filter stamped discs, pieces, shapes, ribbons, tubes, bags, injection molded filter products etc. With its industrial lines and long-standing experience, we provide fabrics cut to size, lot-to-lot consistency and high quality custom fabricated components, in almost any requested shapes.

Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 5





Your Benefits



  • Free samples
  • Wide range of filter materials(mainly in nylon, polyester, polypropylene, stainless steel) and micron sizes available
  • Supplied in the form of rolls, pieces, shapes, ribbons, tubes, bags, plastic molded filters
  • Decades of filtration manufacturing expertise and experience support
  • Customization, full traceability, consistent reliable performance and lot-to-lot accuracy
  • Precision uniform mesh opening and clean smooth surface, burr-free and flash-free
  • High flow rates and low pressure drop
  • Custom cutting and molding service, tight tolerances
  • Unlimited shapes, non-fraying sealed edges
  • 2 days or less lead time



Company Profile

Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.


Our products are categorized into three classes.



Monofilament Mesh Rolls
  • 30 years of experience & capabilities
  • PA, PET, PP, PE, PPS, PEEK etc.
  • Characterized by precise mesh opening, open area and thickness
  • Excellent converting capabilities from yarn over weaving to converted items
Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 6
Discs, Tubes, Ribbons, Bags
  • Cutting, calendering, welding, slitting, sewing, pleating, molding
  • Various converting capabilities by stamping or slitting technology: cold, heat, laser, ultrasonic
  • Clean, smooth & closed edge quality
  • Maximum compatibility with injection molding process
Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 7
Plastic Molded Filters
  • Insert molding and over molding
  • Mold design, modeling, prototyping, manufacturing and testing
  • High efficiency, excellent particles holding capacity and low pressure drop
  • High stability, repeatability and reliability
  • Extensive material options and industry-best lead times
Nylon Micron Mesh Sieve For Isolation Of Cells, Organelles, Cellular Debris In The Laboratory 8



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.



Contact SHARE today for additional information and how we can help you with your specific filtration requirements.





Packaging & Shipping



For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.



  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
