Anti-mildew Nylon Filter Mesh For Refrigerators Water Filtration System
Contact Person : Eric Xiang
Phone Number : +86-18658318635
WhatsApp : +8613968584834
| Minimum Order Quantity : | 1000 PCS | Price : | $1 for 1000 PCS, $0.9 for 5,000 PCS, $0.8 for 20, 000 PCS |
|---|---|---|---|
| Packaging Details : | 100PCS/Pkg | Delivery Time : | 5 working days |
| Payment Terms : | L/C, T/T, Paypal | Supply Ability : | 10, 0000 pcs / day |
| Place of Origin: | Zhejiang, China | Brand Name: | SHARE FILTERS |
|---|---|---|---|
| Certification: | Reach Svhc, SGS RoHS, California Proposition 65 | Model Number: | SG-NF-45 |
|
Detail Information |
|||
| Material: | Nylon | Specification: | Woven Nylon Monofilament Mesh |
|---|---|---|---|
| Color: | Natural White | Diameter: | 25, 47, 55, 70, 90, 110, 125, 150, 200, 300mm |
| Micron Opening: | 5, 10, 25, 35, 50, 75, 100, 150, 200, 250, 500, 750, 900um | Supplied In The Form Of: | Circle And Sheet |
| Feature 1: | Great Strength And Elasticity, Wrinkle Resistance | Feature 2: | Good Abrasion, Chemicals And Solvents Resistance |
| Feature 3: | Hydrophilic, Higher Water Absorption | Applications: | Determination Of Particles Size |
| HS Code: | 5911200090 | ||
| High Light: | Particles Polyamide Nylon Mesh Filters,High Water Absorption Nylon Mesh Filters |
||
Product Description
SHARE offers nylon monofilament mesh filters to provide a broad range of mesh for laborary research and development. Our laborary nylon filters are based on precise mesh openings, open area, thread diameter, mesh count and mesh thickness.
Polyester mesh filters for laborary are also available on your request due to its good chemical resistance to certain solvents and acids.
Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Mesh Thickness: The average thickness of the woven mesh
Features and Advantages
Technical Specifications
Model Definations:
Micron Rating(um)-SG050047
Diameter(mm)-SG050047
For example, SG050047=Nylon mesh filters, 50 Microns, Diameter 47mm
| Nylon Mesh Filters | Micron Rating | Open Area | Thickness | Diameter | Application |
| Model | μm | % | μm | mm | |
| SG010 | 10 | 6 | 65 | 5, 25, 47, 55, 70, 90, 110, 125, 150, 200 |
|
| SG025 | 25 | 14 | 55 | ||
| SG035 | 35 | 18 | 65 | ||
| SG050 | 50 | 37 | 50 | ||
| SG075 | 75 | 40 | 75 | ||
| SG100 | 100 | 44 | 80 | ||
| SG150 | 150 | 43 | 120 | ||
| SG200 | 200 | 48 | 135 | ||
| SG250 | 250 | 53 | 160 | ||
| SG500 | 500 | 50 | 190 | ||
| SG750 | 750 | 49 | 240 | ||
| SG900 | 900 | 52 | 30 |
Micron ratings from 3um to 2500um available.

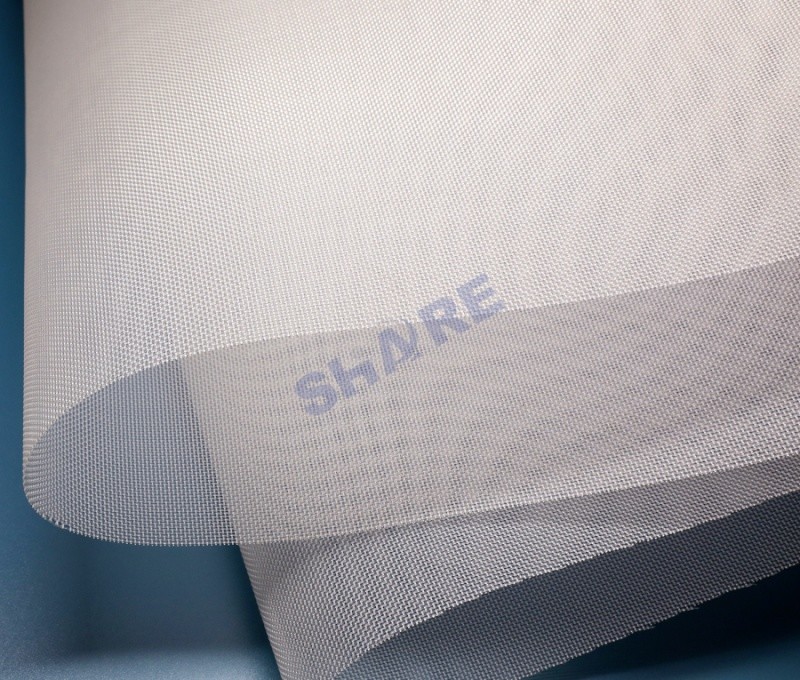

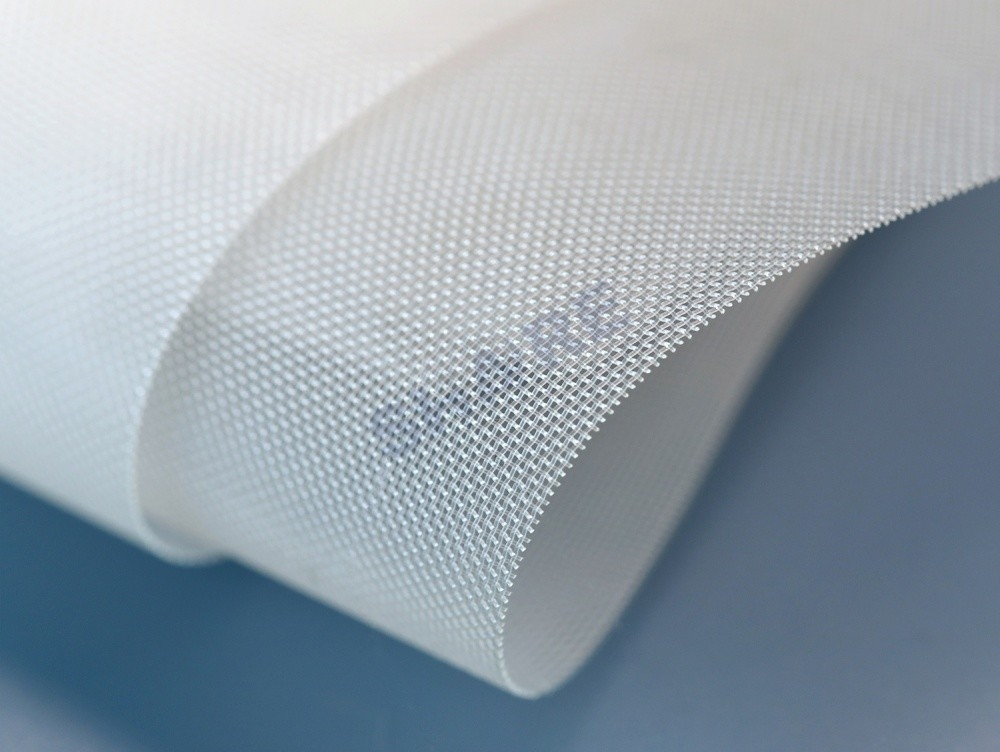

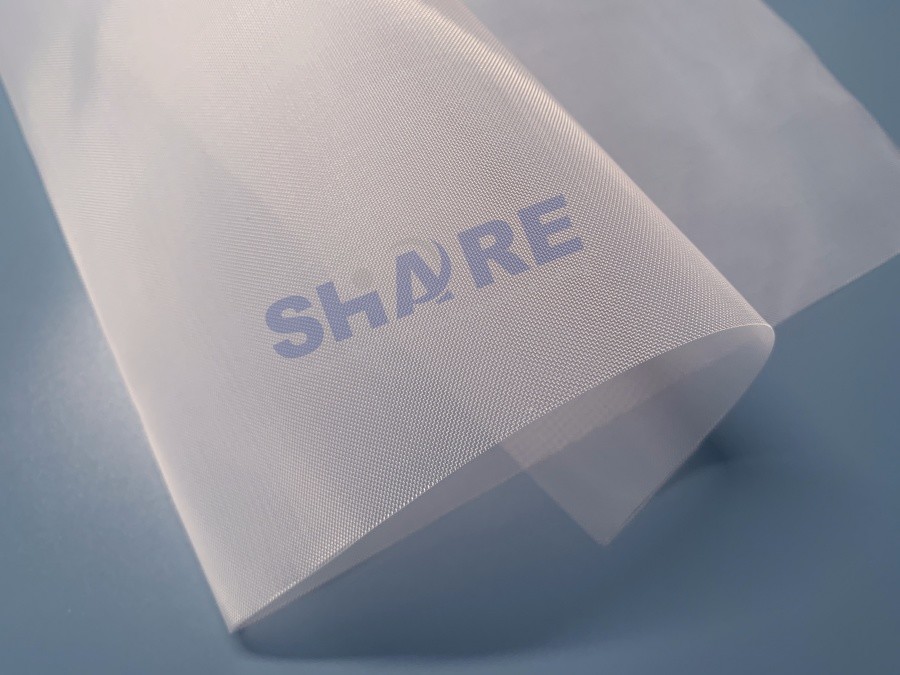

Real Images
Your Benefits
About us
Established in 1983, Taizhou Share Filters Co., Ltd. has been producing a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene, stainless steel etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products including:
|
Monofilament Mesh Rolls
|
|
Discs, Tubes, Ribbons, Bags
|
|
Plastic Molded Filters
|
Contact us today and SHARE application specialists with decades of experience will help you create the best filter solution for your application.
Packaging & Shipping
For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.
| Port to Port | Door to Door | |
| Express(DHL,UPS,FEDEX, EMS) | 1 - 5 days | |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
