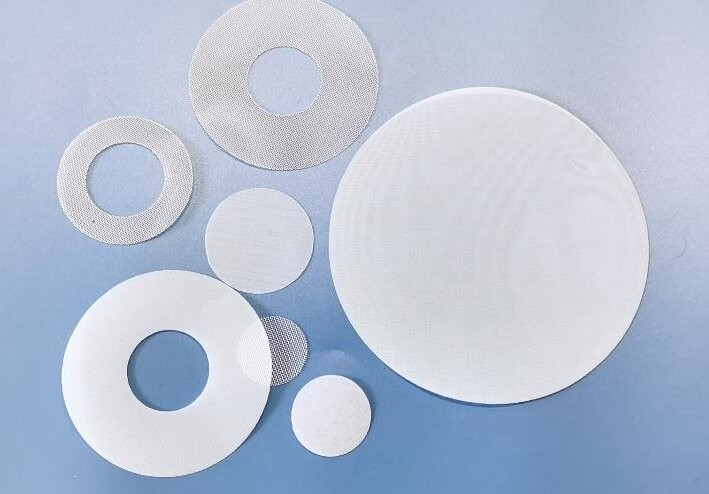

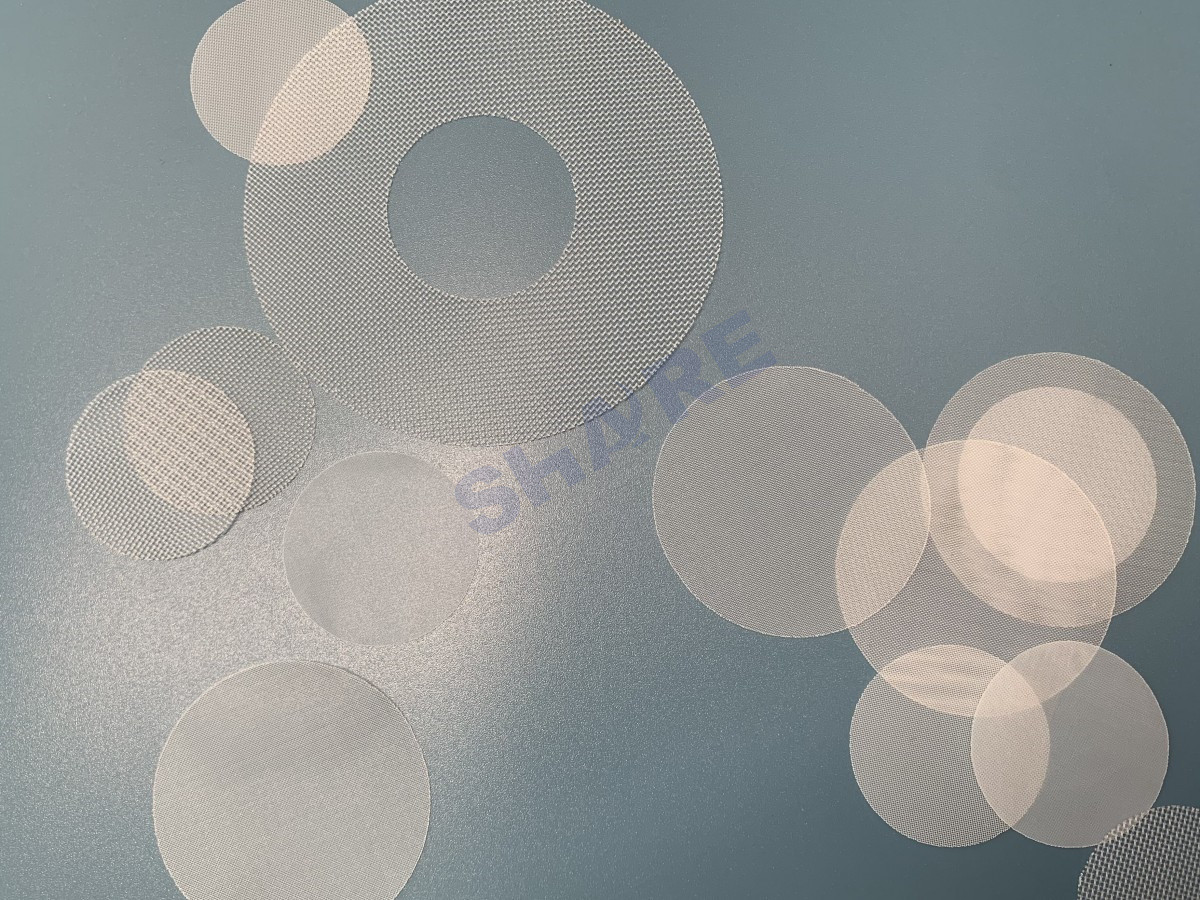

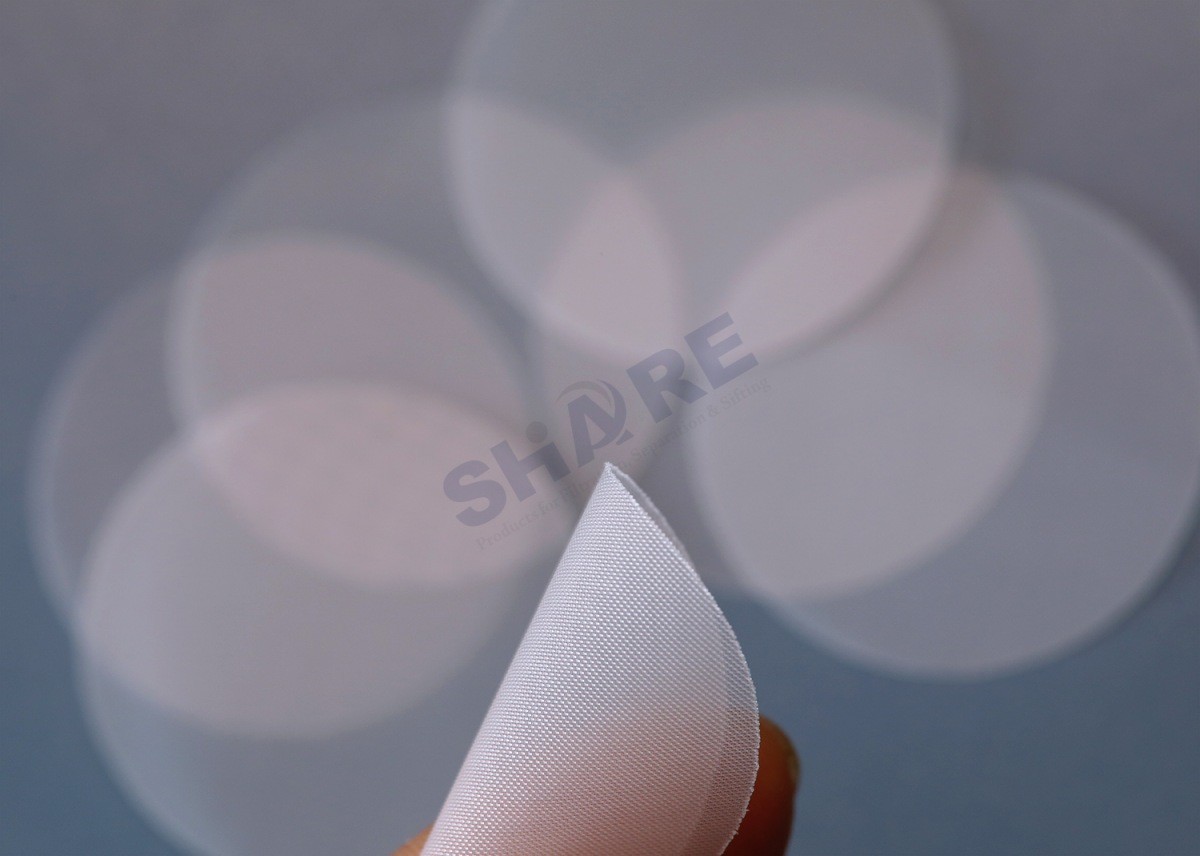

Nylon Woven Mesh Filter Discs 25, 47, 55, 90mm Diameter

Minimum Order Quantity : 1000 PCS Price : $1 for 1000 PCS, $0.9 for 5,000 PCS, $0.8 for 20, 000 PCS
Packaging Details : 100PCS/Pkg Delivery Time : 5 working days
Payment Terms : L/C, T/T, Paypal Supply Ability : 10, 0000 pcs / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, US California Proposition 65 Model Number: SG-NF-37

Detail Information

Material: Nylon Type: Filter Discs
Color: Natural White Diameter: 25, 47, 55, 90 Mm
Pore Size: 5, 8, 10, 20, 25, 30, 41, 53, 60, 70, 100, 200 Um... Supplied In The Form Of: Circle And Sheet
Temperature: Up To 100c Disposable/ Reusable: Disposable
Package: 100PCS/Pkg Used In: Laboratory
Applications: Particle Analysis To Assure Cleanliness & Quality HS Code: 5911200090
High Light:

Nylon Woven Mesh Filter Discs

,

Nylon Woven Mesh Filter 90mm

Product Description





SHARE Nylon Mesh Filters



SHARE provides a broad range of nylon woven mesh filters, characterized by precise mesh openings, open area and mesh thickness.

Mesh Opening: The distance between adjacent threads
Open Area: The ratio (%) of the open area to the thread area within a woven mesh
Mesh Thickness: The average thickness of the woven mesh



SHARE nylon mesh filters are commonly used in the laboratory for cleanliness analysis.






Features
  • Characterized by precise mesh openings, open area, and mesh thickness
  • Good abrasion resistance and low coefficient of friction
  • Hydrophilic
  • Good resistance against strong alkalis, organics and corrosives
  • Compatible with a broad range of solvents
  • High strength and durability
  • Working temperature up to 115ºC
  • Resistant against pH 3 to 14
  • Mesh openings ranging from 3 to 2500 µm
  • Various sizes and shapes can be tailored on demand
Nylon Woven Mesh Filter Discs 25, 47, 55, 90mm Diameter 0





Specifcations




Type Mesh Opening(um) Open Area(%) Thickness(um) Disc Diameter(mm) Sheet(cm)
Nylon Mesh Woven Filters 5 2 100 25mm, 47mm, 55mm, 90mm 30cm*30cm or custom size
8 1 75
10 2 45
20 14 55
25 16 55
30 21 64
41 33 60
53 36 60
60 45 55
70 36 70
100 47 78
200 55 125
300 50 200
600 51 445
710 45 350
1000 58 1350







Converting Capabilities




Customers have different requirements for filtration, separation and sifting, and relying only on single fabrication technology is not sufficient to meet the challenges of today's demanding filtration market. Therefore, SHARE has developed expertises and experiences in almost all processing technologies including cutting, stitching, gluing, welding, laser cutting, molding and more after decades of developments.



200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
1. Laser Cutting

Laser cutting produces highly precise fabric parts with
a heat-sealed edge.

Share uses different laser cutting systems to meet
customers various requirements including
semi-automated vision systems
and fully automated with AI programming.
2. Heat Slitting

Heated knives are used to create fabric strips/ribbons for much many applications such as injection molding, and hot-cut mesh edges are melted to enhance durability.

Optical measuring systems measure ribbon width with tight tolerances.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
3. Ultrasonic Slitting

Ultrasonic slitting are often used to produce fabric strips
with closed edge, minimal material build-up.

Ultrasonic cutting is ideal for precise and clean edge
quality, and measurements are conducted using
optical systems too.
4. Ultrasonic Stamping

Often used for highly precise fabric parts.

Ultrasonic stamping ensures tight geometric tolerances. The edges are non-fraying. One tool is used for punching and can be used for larger quantities. Optical measuring systems measure dimensions and tolerances.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
5. Ultrasonic Welding

Ultrasonic welding has accurate, clean welds without
introducing secondary materials.

SHARE produces precision plastic cylindrical filters
by using ultrasonic welded tubes.
6. Pleating

We increase the filter surface through pleating. Fabrics are firstly welded then pleated together, and cut to size of pleats.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility
7. Sewing

Sewing and stitching are very suitable for various of mesh
filter bags.

The thread, patch and stitch can be customized
on demand.
8. Plastic Injection Molding

Share plastic filters provide h igh flow rates and low pressure drops by maximum open area.

SHARE process our mesh fabrics to various plastic molded filters for automotive, chemical, medical, home appliance and f ood industry by plastic insert molding and overmolding technologies.
200 Mesh 75 Um Polypropylene Monofilament PP Filter Mesh with Wide Chemical Compatibility







Your Benefits




  • Wide range of filter materials(mainly in nylon, polyester, polypropylene, stainless steel) and micron sizes available
  • Supplied in the form of rolls, pieces, shapes, ribbons, tubes, bags, plastic molded filters
  • Precision unifom mesh opening and clean smooth surface
  • Custom cutting and molding service, tight tolerances
  • Unlimited shapes, non-fraying sealed edges
  • Free samples
  • 2 days or less lead time

Nylon Woven Mesh Filter Discs 25, 47, 55, 90mm Diameter 9Nylon Woven Mesh Filter Discs 25, 47, 55, 90mm Diameter 10



Nylon Woven Mesh Filter Discs 25, 47, 55, 90mm Diameter 11



Packaging & Shipping




For mesh rolls:


1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:


1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into b
igger PE bag and then standard export carton
3. W
rapped the outer carton with PE stretch film to prevent damage during transportation
4.
Package belt strengthen if pallets are available


The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.

  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ




​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.


3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.


6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
