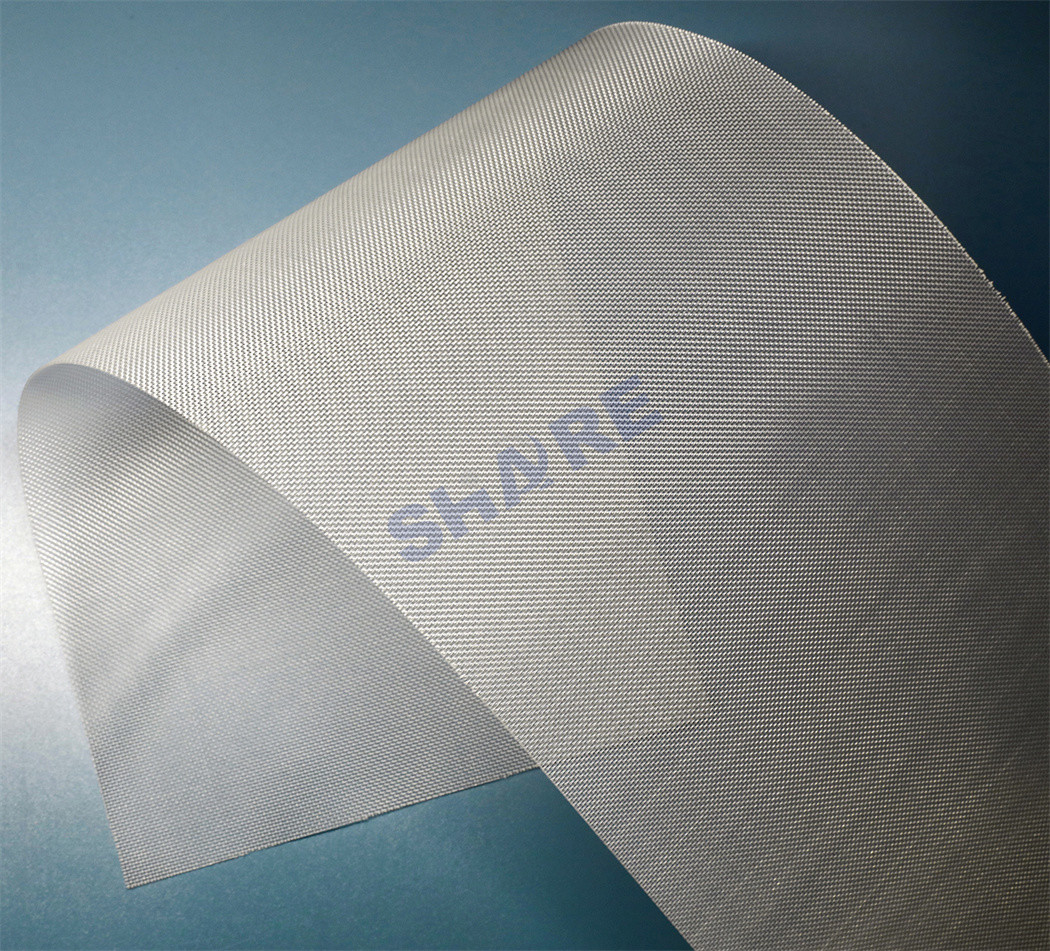

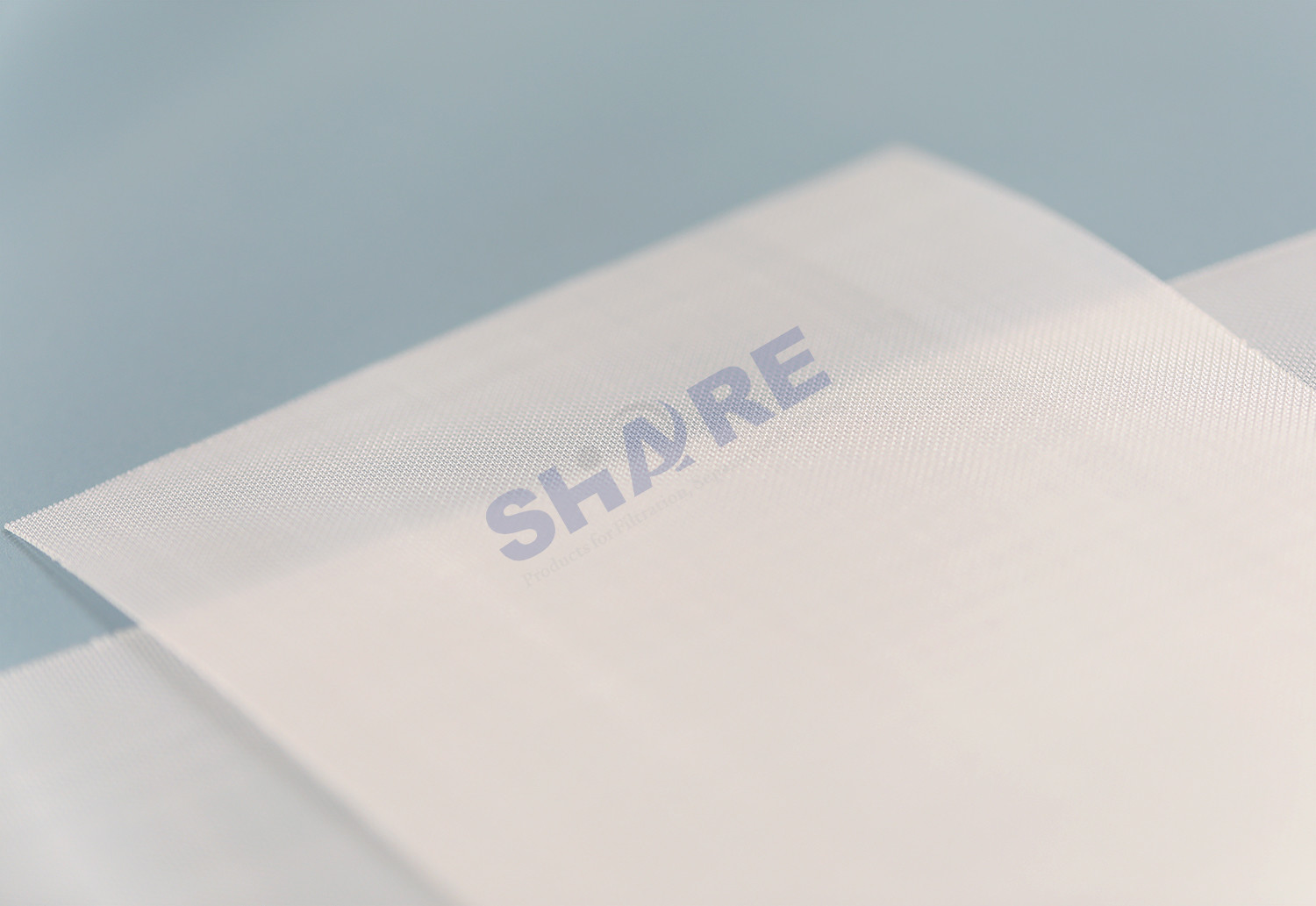

Food Grade 6 Inch 12 Inch Square Nylon Micron Woven Filter Mesh For Sifting Kief Pre-Pressed Concentrates And Isolates
Food Grade 6 Inch 12 Inch Square Nylon Micron Woven Filter Mesh For Sifting Kief Pre-Pressed Concentrates And Isolates Food Grade 6 Inch 12 Inch Square Nylon Micron Woven Filter Mesh For Sifting Kief Pre-Pressed Concentrates And Isolates Food Grade 6 Inch 12 Inch Square Nylon Micron Woven Filter Mesh For Sifting Kief Pre-Pressed Concentrates And Isolates
Contact Now

Food Grade 6 Inch 12 Inch Square Nylon Micron Woven Filter Mesh For Sifting Kief Pre-Pressed Concentrates And Isolates

Minimum Order Quantity : 500 PCS Price : $0.3 for 500 pcs, $0.25 for 10,000 pcs, $0.2 for 50, 000 pcs
Packaging Details : PE bag and carton Delivery Time : 5 working days
Payment Terms : L/C, T/T, Paypal Supply Ability : 1, 0000 pcs / day
Place of Origin: Zhejiang, China Brand Name: SHARE FILTERS
Certification: Reach Svhc, SGS RoHS, US California Proposition 65 Model Number: SG-NS-49

Detail Information
Features: Great Precision Smooth Surface Abrasion Resistance Material: Nylon Mesh
Shape: Sheet Micron Ratings: 15um And 25um
Sizes: 6" X 6", 12" X 12" Or Custom Size Applications: Sifting Kief Pre-Pressed Concentrates And Isolates
High Light:

Square Nylon Micron Woven Filter Mesh

,

Food Grade Nylon Woven Filter Mesh

Product Description

SHARE food grade nylon mesh features anti aging, wear resistance, pressure resistance and high temperature resistance. Our mesh is deal for a wide range of applications in the food, beverage, medical, chemical, industrial, and pharmaceutical field, such as rosin bags, paint filters, automotive filters, air purifier filters, air conditioner filters, circulating and wastewater filters, cell strainers, blood transfusion filters, wound care, injector filtration, coffee filters, biopsy bags, milling meshes, test/sample sieves, filters for agricultural instruments, and filtration of powder and liquid chemicals etc.

Our laser cutting technology ensures the production of highly precise fabric discs and sheets with heat sealed edges. To meet varied filtration needs of our customers, SHARE has imported high speed custom laser cutting machines equipped with CAD software, featuring semi-automated vision systems and fully automated AI programming, to make sure the precision and consistency of the final filter products.

Contact SHARE now for more information.





Item Name Food Grade Square Nylon Micron Woven Filter Mesh
Manufacturer Taizhou Share Filters Co., Ltd.
Material Nylon
Dimensions 6''x6", 12''x12" or customized size
Pore Size 15um and 25um
Shape Square
Process Technology Laser cutting
Features

Moderately hydrophilic

Good resistance against alkalis, organics and corrosives

Resistant against pH 3 to 14
Certificate Reach Svhc, SGS RoHS, US California Proposition 65
Application Sifting kief pre-pressed concentrates and isolates

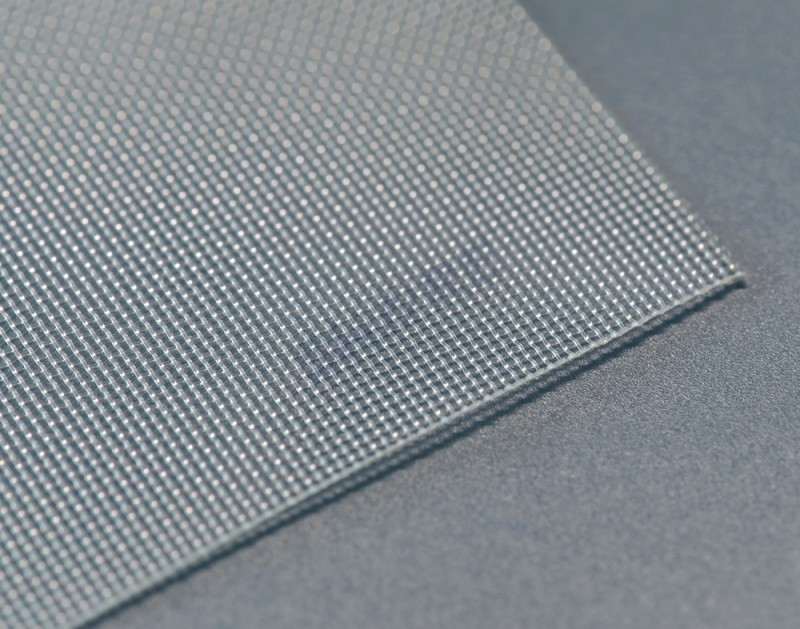

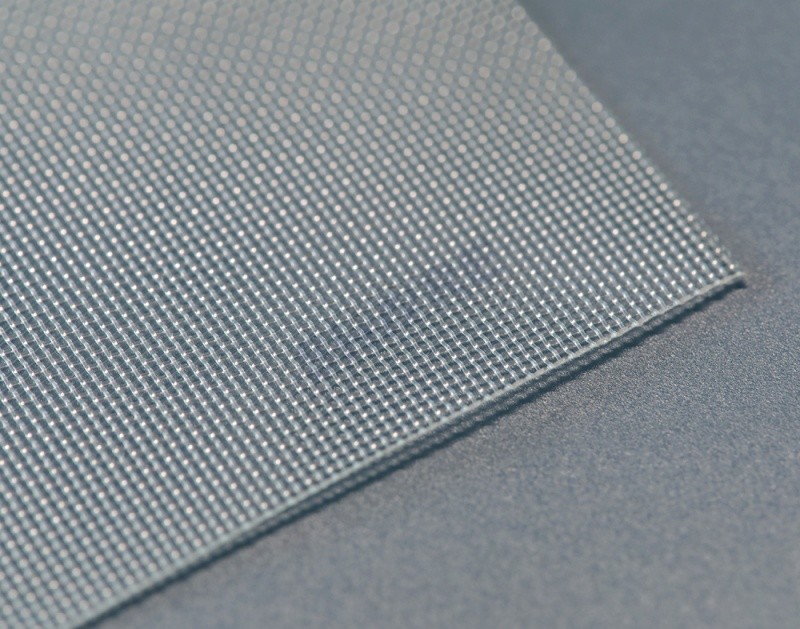

Food Grade 12 Inx12 in 30.5cmx30.5cm Square Nylon Micron Woven Filter Mesh for Sifting Kief Pre-Pressed Concentrates and Isolates



Precision Nylon Filter Mesh Technical Data Sheet
Fabric Number Mesh Count Thread Diameter Mesh Opening Open Area Mesh Thickness Weight
No. n/cm n/inch μm μm % μm g/m2
PA 3233/58.3 2.3 6 1000 3233 58.3 1900 412
PA 2300/51.3 3.1 8 900 2300 51.3 1700 450
PA 1950/61 4 10 550 1950 61 950 262
PA 1500/58 5 12 500 1500 58 850 271
PA 1267/56 6 16 400 1267 56 780 208
PA 1079/57 7 18 350 1079 57 675 186
PA 900/52 8 20 350 900 52 685 212
PA 860/58 9 24 250 860 58 455 145
PA 700/49 10 25 300 700 49 576 195
PA 583/49 12 30 250 583 49 470 162
PA 533/41 12 30 300 533 41 585 234
PA 414/34 14 35 300 414 34 595 273
PA 425/46 16 40 200 425 46 370 139
PA 375/36 16 40 250 375 36 485 217
PA 350/49 20 50 150 350 49 375 98
PA 300/36 20 50 200 300 36 385 173
PA 267/41 24 60 150 267 41 285 117
PA 237/44 28 70 120 237 44 215 87
PA 213/41 30 76 120 213 41 225 94
PA 213/46 32 80 100 213 46 165 69
PA 178/41 36 90 100 178 41 178 78
PA 150/36 40 100 100 150 36 190 87
PA 152/42 43 110 80 152 42 135 60
PA 130/38 48 120 80 130 38 145 62
PA 120/44 56 140 60 120 44 85 44
PA 110/41 59 150 60 110 41 98 46
PA 100/38 64 160 60 100 38 105 50
PA 90/41 72 180 50 90 41 82 39
PA 75/36 80 200 50 75 36 90 43
PA 60/34 100 250 42 60 34 65 35
PA 42/24 120 305 42 42 24 75 42
PA 44/29 120 305 38 44 29 72 35
PA 42/25 120 305 38 42 25 67 35
PA 45/33 120 305 35 45 33 60 28
PA 55/40 120 305 30 55 40 52 20
PA 40/25 130 330 38 40 25 74 36
PA 42/29 130 330 35 42 29 62 30
PA 47/37 130 330 30 47 37 55 22
PA 32/21 140 355 38 32 21 68 36
PA 37/26 140 355 35 37 26 65 33
PA 38/33 140 355 30 38 33 53 25
PA 31/18 150 380 38 31 18 68 40
PA 35/29 150 380 30 35 29 57 26
PA 34/26 150 380 30 34 26 50 26
PA 30/25 165 420 30 30 25 59 28
PA 30/19 145 368 38 30 19 64 40
PA 25/21 180 460 30 25 21 60 31
PA 25/15 165 420 38 25 15 75 42
PA 20/16 200 508 30 20 16 65 34
PA 10/4.3 208 530 38 10 4.3 77 53
PA 8/3 220 560 38 8 3 78 56
PA 6/1.7 228 580 38 6 1.7 80 59
PA 3/1 236 600 38 3 1 85 61
PA 1/2 256 650 34*38 1 2 80 62
PA 2/1 275 700 34*38 2 1 80 66
PA10GG 4 10 550 2000 61 950 238
PA12GG 4.5 11 400 1822 67 760 153
PA14GG 5 13 400 1600 64 770 170
PA15GG 5.5 14 400 1418 61 780 187
PA16GG 6 15 350 1317 62 665 156
PA18GG 6.5 17 350 1180 59 670 170
PA19GG 7 18 350 1079 57 675 182
PA20GG 7.5 19 300 1023 60 560 144
PA22GG 8 20 300 950 58 560 153
PA24GG 8.5 22 300 876 56 565 163
PA26GG 9 23 300 811 54 570 172
PA27GG 10 25 250 750 56 475 133
PA28GG 10.5 27 250 702 54 475 140
PA30GG 11 28 250 659 53 480 146
PA31GG 11.5 29 250 619 51 485 153
PA34GG 12 30 250 583 49 490 159
PA36GG 12.5 32 250 550 47 490 166
PA38GG 14 36 200 514 52 360 119
PA40GG 14.5 37 200 489 50 365 123
PA42GG 15 38 200 466 49 365 128
PA44GG 16 41 200 425 46 370 136
PA46GG 17 43 200 388 44 375 145
PA50GG 18 46 200 355 41 380 153
PA52GG 20.5 52 150 338 48 270 98
PA54GG 21.5 55 150 315 46 275 103
PA58GG 22 56 150 304 45 275 105
PA60GG 23 58 150 285 43 280 110
PA62GG 23.5 60 150 275 42 285 112
PA64GG 24 61 150 267 41 285 115
PA66GG 28.5 72 100 251 51 163 61
PA68GG 29 74 100 245 50 165 63
PA70GG 29.5 75 100 239 48 166 64
PA72GG 30.5 77 100 227 47 168 66
PA74GG 32 81 100 213 46 170 69
PA-6XXX 30 76 120 213 40 225 94
PA-7XXX 31 79 120 200 40 228 98
PA-8XXX 35.5 90 100 182 42 178 78
PA-8.5XXX 38 97 100 163 38 190 84
PA-9XXX 41 104 90 154 40 170 60
PA-9.5XXX 43 109 90 143 38 175 63
PA-10XXX 47 117 80 135 39 145 61
PA-10.5XXX 49 124 80 125 37 146 64
PA-11XXX 50 130 80 115 36 147 65
PA-12XXX 55 140 70 112 38 130 48
PA-12.5XXX 57 145 70 105 36 132 50
PA-13XXX 59 150 70 99 35 135 52
PA-14XXX 60 152 70 97 34 136 53
PA-15XXX 66 168 60 92 36 108 53
PA-16XXX 69 175 60 85 35 110 55
PA-17XXX 71 180 60 81 33 112 57

The data are compiled to the best of our knowledge.
Subject to change without notice.
Complete product range is available on request.

Food Grade 12 Inx12 in 30.5cmx30.5cm Square Nylon Micron Woven Filter Mesh for Sifting Kief Pre-Pressed Concentrates and Isolates



SHARE has the ability to engineer woven mesh fabrics into finished or partly finished products, such as various types of cut-to-size filter stamped discs, pieces, shapes, ribbons, tubes, bags, injection molded filter products etc . With its industrial lines and long-standing experience, we provide fabrics cut to size, lot-to-lot consistency and high quality custom fabricated components, in almost any requested shapes.

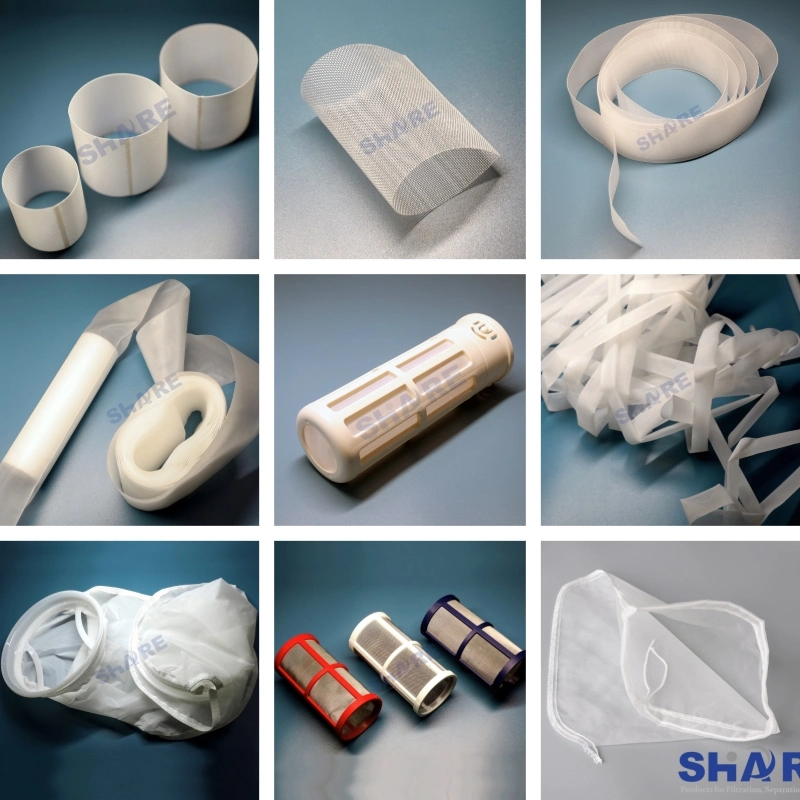

SHARE Fabricated Product
 SHARE Fabrication Capabilities
COLD HEAT ULTRASONICS LASER
Continuous & tubular ribbons Ribbon Ribbon Ribbon
  Double seam tubular ribbon Double seam tubular
ribbon
  Multiple layer ribbon Multiple Layer ribbon
    Multiple layer tubular
ribbon
    Single seam tubular
ribbon
Tubes & Rectangles Filter segment, two sides heat cut,
two sides cold cut		 Rectangle, four sides
ultrasonically cut
  Rectangle, two sides heat cut and two sides ultrasonically cut
Tube, two open ends Tube, two open ends,
hot wire cut
    Tube, one end sealed Tube, two open ends, laser cut
    Tube special execution
(single/double layer)
    Biopsy bag with or
without flaps
Shapes Cold punched part
(single layer)		   Punched part
(single or multiple layer)		 Single layer shapes,
laser cut
Pleated Element     Pleated pack
(ultrasonically cross cut)
    Pleated cartridges
(ultrasonically sealed)
Cone Shaped
(Truncated)		     Single seam
  Double seam
(single/double layer)

Food Grade 12 Inx12 in 30.5cmx30.5cm Square Nylon Micron Woven Filter Mesh for Sifting Kief Pre-Pressed Concentrates and Isolates
Why SHARE?

Wide Ranges of Materials and Micron Rating Options
Rolls, Pieces, Shapes, Ribbons, Tubes, Molded Products
Precision Unifom Mesh Opening
Smooth Surface
Custom Cutting Service, Tight Tolerances
Unlimited Shapes, Clean Sealed Edges
Free Samples
2 Days or Less Lead Time


SHARE application speciallists with decades of years experiences will help you select the best filter solution for your application. Contact us now to discuss how SHARE FILTERS can revolutionize your filtration needs.
Food Grade 12 Inx12 in 30.5cmx30.5cm Square Nylon Micron Woven Filter Mesh for Sifting Kief Pre-Pressed Concentrates and IsolatesFood Grade 12 Inx12 in 30.5cmx30.5cm Square Nylon Micron Woven Filter Mesh for Sifting Kief Pre-Pressed Concentrates and Isolates




Company Profile



Established in 1983, Taizhou Share Filters Co., Ltd. offers a comprehensive range of woven monofilament filter mesh fabrics(nylon, polyester, polypropylene etc.) with micron ratings ranging from 3um to 4mm. We specialize in engineering woven fabrics into finished or partly finished products.

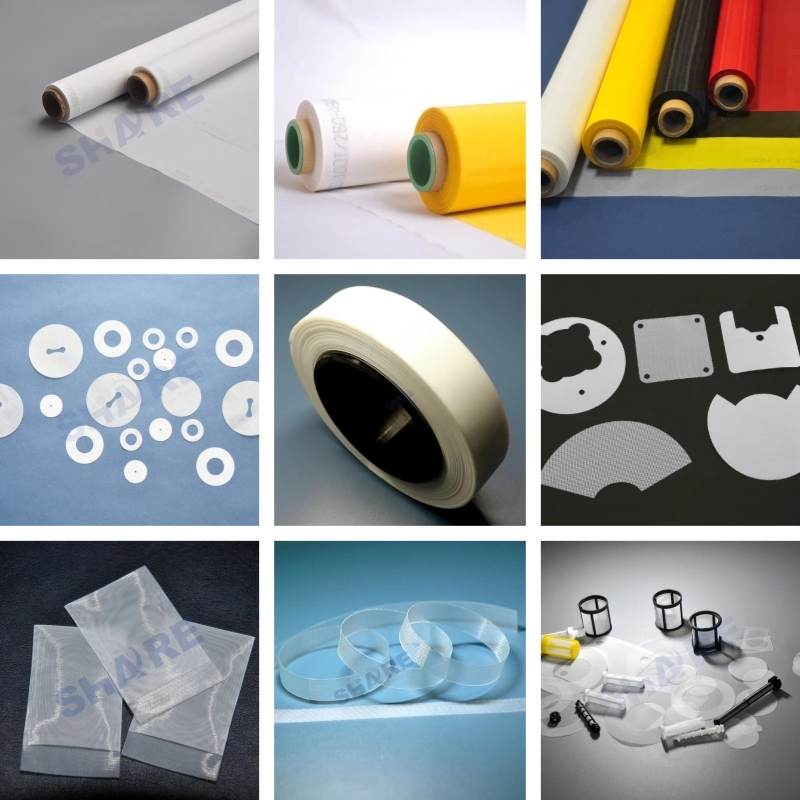

Our products ranges:

  • Monofilament Mesh Rolls
  • Discs, Tubes, Ribbons, Bags
  • Plastic Molded Filters



Whether you want to improve the quality or reduce the cost of your existing filter component, plan a new filtration application, or need assistance with specifications and design validation, SHARE application specialists with decades of experience will help you create the best filter solution for your application.

Contact SHARE today for additional information and how we can help you with your specific filtration requirements.





Packaging & Shipping



For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen

For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the actual size, double bagged and the product label is attached in the inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage during transportation
4. Package belt strengthen if pallets are available

The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date, order number, batch number etc.

  Port to Port Door to Door
Express(DHL,UPS,FEDEX, EMS)   1 - 5 days
Air Freight 1 - 5 days 4 - 10 days
Sea Freight(FCL) 15 - 30 days 20 - 35 days
Sea Freight(LCL) 15 - 30 days 22 - 37 days





FAQ



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
