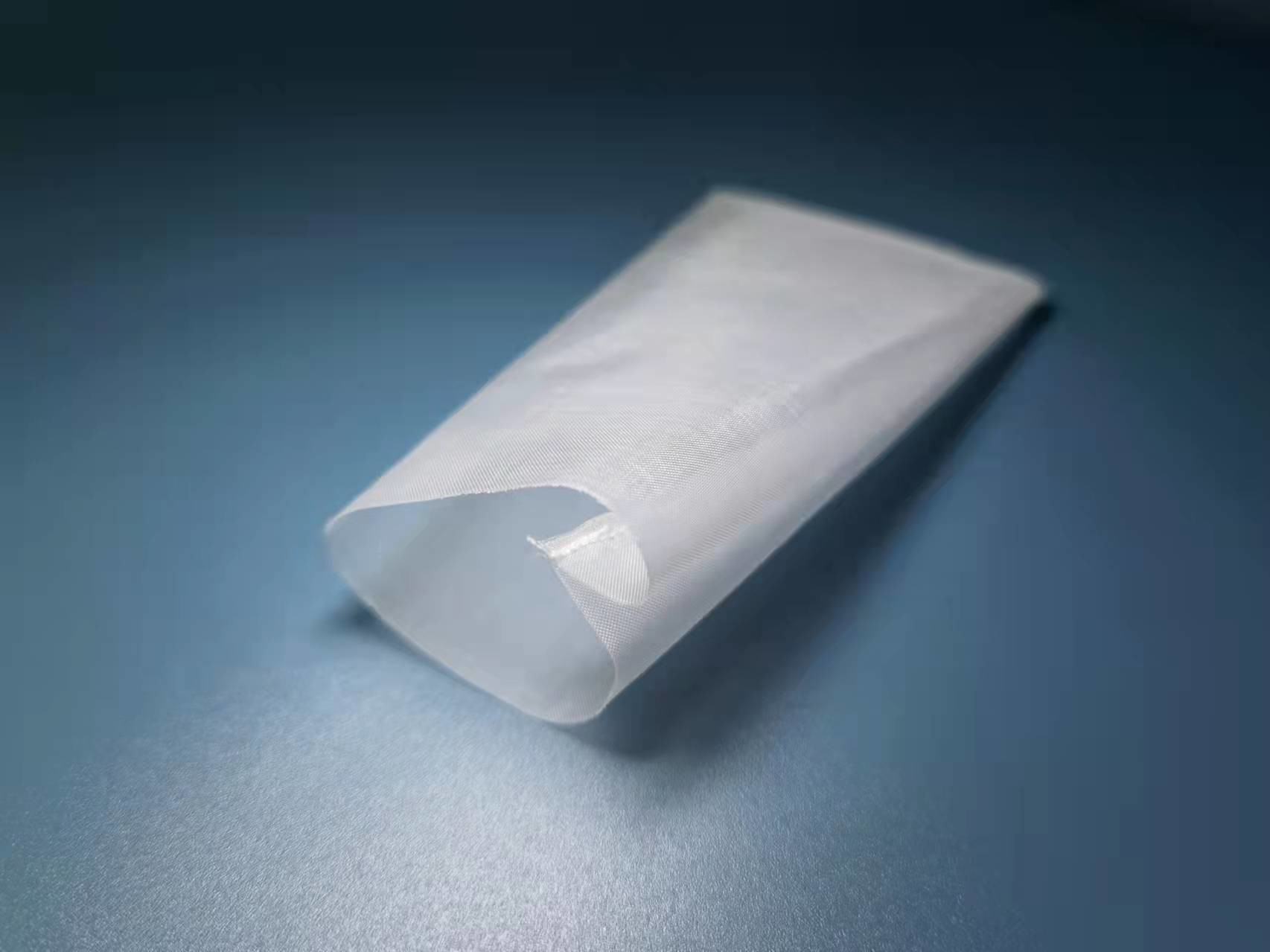

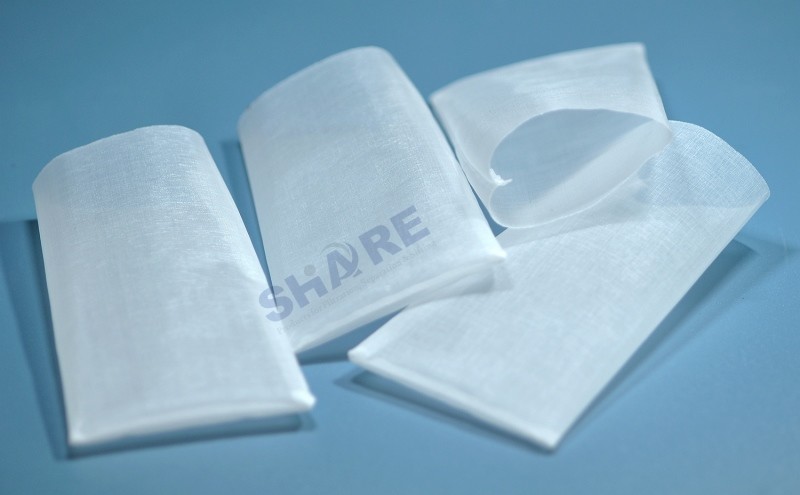

Sturdy And Durable Nylon Mesh Rosin Extracting Filter Bags, No Slippage, Zero Blow Outs

SHARE rosin filter bags are made of food safe, dye-free monofilament nylon filter mesh which is sewn with clean and food contact polyester threads, doubel-stitches make the bags stronger and not easy to break after pressing the rosins, and also our bags offer mild stretching properties to reduce the chance of a blowouts. As it is turned inside out, enabling the rosin pressing bags easier to be handled and filled and cleaned.

The physical dimensions of the bag are crucial, as you need to select bags that closely match the size of your press plates. Don't worry about it, at Share, our bags fit in all the rosin press in the market as we customize rosin bags according to your requert. You can also tell us the models of your press and our experienced engineer will advise the best filter bags for you.

Common sizes of our resin filter bag are 1.25"x3.25", 1.75"x5", 1.75"x8", 2"x3.5", 2"x6",2"x4.5"/2.5"x4.5" or customized.



We produce rosin bag in multiple micron sizes 25um, 36um, 50um, 72um, 90um, 100um, 120um, 160um, 175um, 200um and 250um etc. Other sizes from 2500 micron to 3 micron are avaiable on your demand.​



Precursor	Share Rosin Bag Mesh Size
	160um	120um	100um	90um	72um	36um	25um
Flower / Trim	The best yield with decent quality	Excellent yield with good quality	Great yield and quality	Great yield and quality	Good yield with excellent quality	Decent yield with the best quality
Kief / Bubble Hash					The best yield with good quality	Good yield with the best quality	Good yield with the best quality







Specifications

---



Product Name	Rosin Filter Bag
Certificate	Reach Svhc, SGS RoHS, US California Proposition 65
Manufacturer	Taizhou Share Filters Co., Ltd.
Brand	SHARE FILTERS
Color	Natural white
Bag Material	Nylon
Bag Size	1.25"x3.25", 1.75"x5", 1.75"x8", 2"x3.5", 2"x6",2"x4.5"/2.5"x4.5", or customized
Micron Size	25um, 36um, 72um, 90um, 100um, 120um, 160um, or customized size
Sealing Type	Sewing(inside out). Ultrasonic welding(seamless) are available
Max Temperature	110ºC
Packing	10pcs or 100pcs/bag or as your requirement
Quality	Visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment
Application	Rosin extracting filter bag, tea bag, food filtering, food packing, coffee filter bag and more.

​



The Advantages of SHARE Rosin Filter Bags

---

• Good heat resistant, abrasion resistance

Fine-mesh nylon filter bags are durable and heat-resistant (up to 110°C).

• Seam strength and blowout reduction

• Inside out design

Pre-flipped inside out double or continuous stitching not only helps expel the oil properly so it doesn't soak into the stitch, but also minimizes the risk of blowouts from the seam, under extreme pressures.

• Precison micron ratings

SHARE nylon monofilament woven mesh is characterized by precise mesh openings, open area and mesh thickness. Micron ratings ranging from 3 to 2500 um are available.

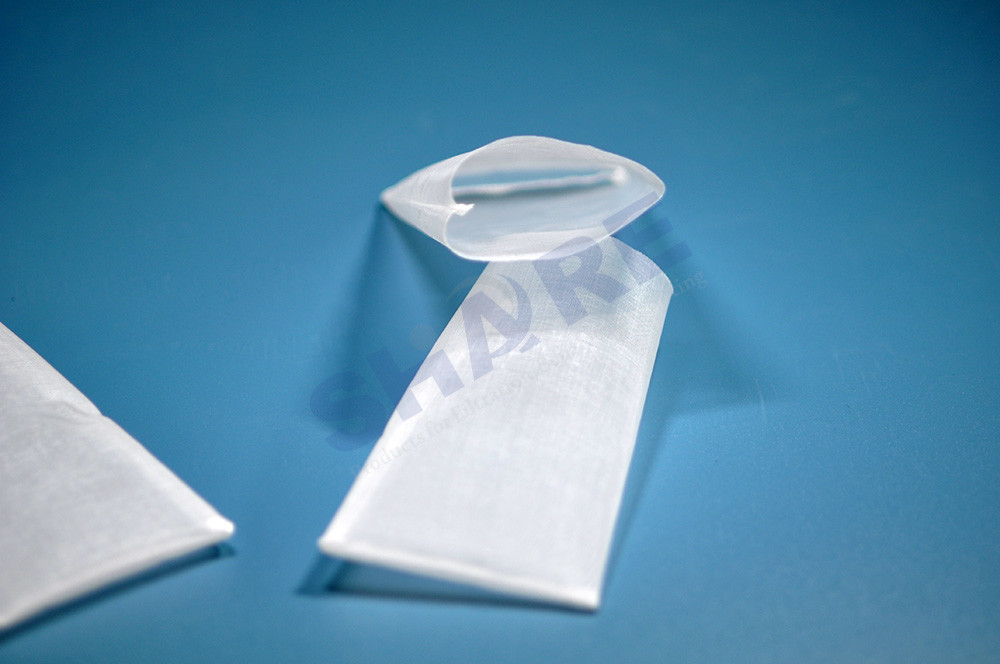

Seamless Rosin Filter Bag

---

Seamless rosin filter bag made by Share ultrasonic welding technology are also available for your option. It can prevent losing yield in stitches. No need to flip filter bags inside out. Call us now to get a free sample.







Operation Instructions

---

1. Dump or scoop your material into the wide end of the pure pressure funnel.
2. Leave a small amount of the rosin bag material open at the top.
3. Trim off any excess material.
4. Fold your bag over and you are ready to press.







Nylon Monofilament Filter Mesh Technical Datasheet

---





The below table provides information on the mesh opening, open area percentage, mesh count, and thread diameter on our various pore sizes of nylon mesh commonly offered.



Precision Nylon Filter Mesh Technical Data Sheet
Fabric Number	Mesh Count		Thread Diameter	Mesh Opening	Open Area	Mesh Thickness	Weight
No.	n/cm	n/inch	μm	μm	%	μm	g/m2
PA 178/41	36	90	100	178	41	178	78
PA 150/36	40	100	100	150	36	190	87
PA 152/42	43	110	80	152	42	135	60
PA 130/38	48	120	80	130	38	145	62
PA 120/44	56	140	60	120	44	85	44
PA 110/41	59	150	60	110	41	98	46
PA 100/38	64	160	60	100	38	105	50
PA 90/41	72	180	50	90	41	82	39
PA 75/36	80	200	50	75	36	90	43
PA 60/34	100	250	42	60	34	65	35
PA 42/24	120	305	42	42	24	75	42
PA 44/29	120	305	38	44	29	72	35
PA 42/25	120	305	38	42	25	67	35
PA 45/33	120	305	35	45	33	60	28
PA 55/40	120	305	30	55	40	52	20
PA 40/25	130	330	38	40	25	74	36
PA 42/29	130	330	35	42	29	62	30
PA 47/37	130	330	30	47	37	55	22
PA 32/21	140	355	38	32	21	68	36
PA 37/26	140	355	35	37	26	65	33
PA 38/33	140	355	30	38	33	53	25
PA 31/18	150	380	38	31	18	68	40
PA 35/29	150	380	30	35	29	57	26
PA 34/26	150	380	30	34	26	50	26
PA 30/25	165	420	30	30	25	59	28
PA 30/19	145	368	38	30	19	64	40
PA 25/21	180	460	30	25	21	60	31
PA 25/15	165	420	38	25	15	75	42

The data are compiled to the best of our knowledge.

Subject to change without notice.
Complete product range is available on request.





Packaging & Shipping







FAQ

---



​​1. Where is your factory located? How can I visit there?

We are in Taizhou city, Zhejiang province China. By train, we are one hour away from Hangzhou and two hours away from Shanghai.

2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.

3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly notify you soon.

4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically, it takes 5 to 15 working days for us to complete mass production once you have placed the order.

5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and automated 3D image-inspection equipment, our production operators conduct self-inspections at every stage of the process. Additionally, we have spot inspections and final inspections carried out by our Quality Control (QC) team.

6. What's your largest advantage?
One of our core competencies is our excellent converting capabilities from yarn over weaving to converted items with professional technical team and quality guarantee and management for more than 30 years.

7. What kind of payment terms do you accept?
T/T and LC and more.
